Product Description

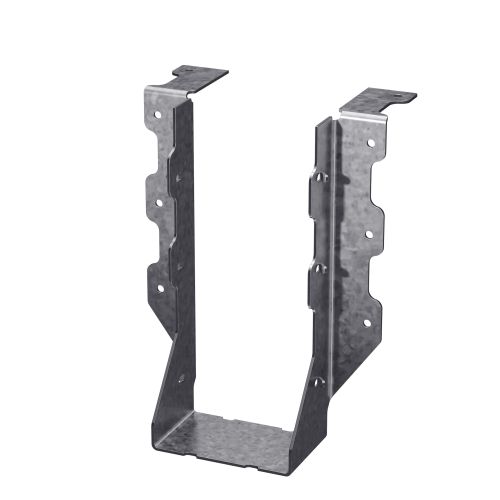

The Simpson Strong-Tie HUS46TF HUS Galvanized Top-Flange Joist Hanger for 4x6 is a heavy-duty face mount hanger engineered to deliver high-load performance in structural framing applications. Designed for nominal 4x6 joist, rafter, or beam connections, this top-flange hanger combines the strength of double-shear nailing with the convenience of a top-flange design, making it an excellent choice for applications where superior load values and faster installation are required.
Key Features
- Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
- Allows for the use of fewer nails, faster installation and the use of standard nails for all connections
- Do not bend or remove tabs
- Nominal joist size: 4x6
- Made from 14-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- Model No.: HUS46TF
- Member Size: 4x6
- Gauge: 14
- Coating/Finish: Zinc Galvanized, G90
- Install With: 0.162 in. x 3-1/2 in. nails
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders. Some products available in HDG.
Frequently Asked Questions
- What size joist is the HUS46TF designed for?
- The HUS46TF is designed for a nominal 4x6 joist, rafter, or beam member.
- What type of nails should be used to install the HUS46TF?
- Install with 0.162 in. x 3-1/2 in. nails for all connections.
- What is double-shear nailing and why does it matter?
- Double-shear nailing distributes the load through two points on each joist nail, resulting in greater connection strength compared to single-shear nailing. This also allows for the use of fewer nails and faster installation.
- Is the HUS46TF resistant to corrosion?
- Yes. The HUS46TF is made from 14-gauge steel with a Zinc Galvanized (G90) coating, which provides extra corrosion resistance for demanding environments.
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
