Product Description

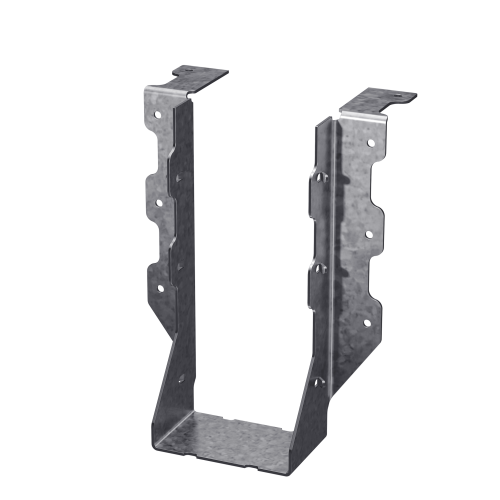

The Simpson 4 x 12 Top-Flange Face Mount Hanger (Model No. HUS412TF) is a heavy-duty hybrid joist hanger engineered to combine the structural advantages of both face-mount and top-mount hanger designs. Sized for 4x12 joists and constructed from 14-gauge zinc galvanized steel (G96 coating), this hanger delivers exceptional load capacity through double-shear nailing - a method that installs each nail into both the joist and the header, distributing the load through two points per joist nail for superior strength. The HUS412TF is an economical, non-modifiable solution for demanding framing applications that require tested, load-rated, and code-compliant performance.
Key Features
- Heavy-duty hybrid design incorporates the advantages of both face-mount and top-mount hangers
- Features an embossed top flange that provides additional connection strength
- Designed with double-shear nailing combined with face-nailing for high loads
- HUSTF-series hangers are tested, load rated and code compliant
- 14-gauge construction for robust, reliable performance
- Zinc Galvanized (G96) coating for corrosion resistance
- This economical joist hanger cannot be modified
Specifications
- Model No.: HUS412TF
- Joist Size: 4x12
- Gauge: 14
- Width: 3-9/16 in.
- Height: 11-1/8 in.
- TF: 2-1/16 in.
- Coating/Material: Zinc Galvanized, G96
- Country of Origin: United States
Approved Applications
- Face-mount and top-flange framing connections for 4x12 joists
- High-load joist-to-header connections requiring double-shear nailing
- Applications requiring code-compliant, tested, and load-rated hardware
- Not acceptable for nailer or welded applications
- With 3x carrying members, use 0.162" x 2-1/2" nails in the header and 0.162" x 3-1/2" nails in the joist
Options
Some products available in HDG. Contact us for Configurable Options and Special orders.
Frequently Asked Questions
- What size fasteners are required for the HUS412TF?
- The HUS412TF requires 0.162" x 3-1/2" nails as specified fasteners. When used with 3x carrying members, use 0.162" x 2-1/2" nails in the header and 0.162" x 3-1/2" nails in the joist. Always use all specified fasteners to ensure proper load performance.
- What is double-shear nailing and why does it matter?
- Double-shear nailing is a method where each nail is installed into both the joist and the header, distributing the load through two points on each joist nail. This technique, combined with face-nailing, results in greater strength and is one of the defining features of the HUSTF hanger series.
- Can the HUS412TF be modified or used in welded applications?
- No. This economical joist hanger cannot be modified, and it is not acceptable for nailer or welded applications. It must be used as designed and installed with all specified fasteners.
- Is the HUS412TF code compliant and load rated?
- Yes. HUSTF-series hangers, including the HUS412TF, are tested, load rated, and code compliant, making them suitable for use in applications where verified structural performance is required.
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
