Product Description

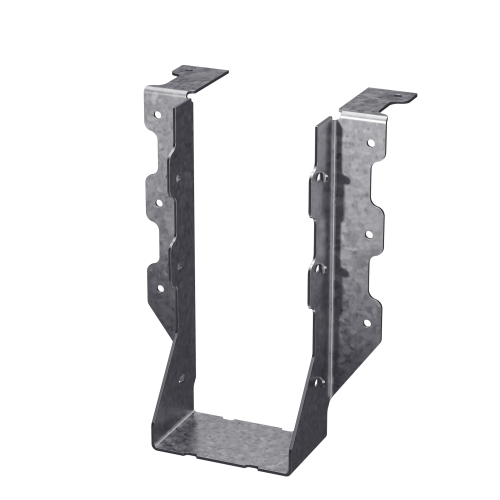

The Simpson Strong-Tie 4x10 Top-Flange Face Mount Hanger (Model HUS410TF) is a heavy-duty hybrid joist hanger engineered to deliver the combined advantages of both face-mount and top-mount hanger designs. Built for demanding structural connections, this galvanized hanger features double-shear nailing where each nail is installed into both the joist and the header, distributing load through two points on each joist nail for superior strength and reliability.
Key Features
- Heavy-duty hybrid design incorporates the advantages of both face-mount and top-mount hangers
- Features an embossed top flange that provides additional connection strength
- Designed with double-shear nailing combined with face-nailing for high loads
- HUSTF-series hangers are tested, load rated and code compliant
- Zinc Galvanized G95 coating provides corrosion resistance
- 14-gauge construction for heavy-duty performance
- This economical joist hanger cannot be modified
Specifications
- Model No.: HUS410TF
- Joist Size: 4x10
- Gauge: 14
- Width: 3-9/16 in.
- Height: 9-1/4 in.
- TF: 1-1/4 in.
- Coating/Material: Zinc Galvanized, G95
- Country of Origin: United States
Approved Applications
- Use all specified fasteners
- Fasteners required: 0.162" x 3-1/2" nails
- Not acceptable for nailer or welded applications
- With 3x carrying members, use 0.162" x 2-1/2" nails in the header and 0.162" x 3-1/2" nails in the joist
Options
Contact us for Configurable Options and Special orders. Some products available in HDG.
Frequently Asked Questions
- What makes the HUS410TF a hybrid hanger?
- The HUS410TF is considered a hybrid hanger because it incorporates the advantages of both face-mount and top-mount hanger designs. The embossed top flange provides a top-mount connection point while the face-nailing pattern delivers additional load capacity typical of face-mount hangers.
- What is double-shear nailing and why does it matter?
- Double-shear nailing means each nail is installed into both the joist and the header, distributing the load through two points on each joist nail. This method significantly increases the overall strength of the connection compared to single-shear nailing, making it ideal for high-load applications.
- What fasteners are required for the HUS410TF?
- The HUS410TF requires 0.162" x 3-1/2" nails as standard fasteners. When used with 3x carrying members, use 0.162" x 2-1/2" nails in the header and 0.162" x 3-1/2" nails in the joist. Always use all specified fasteners to maintain load ratings and code compliance.
- Can the HUS410TF be modified or used in welded applications?
- No. This economical joist hanger cannot be modified, and it is not acceptable for nailer or welded applications. For applications requiring modification or alternate configurations,.
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
