Product Description

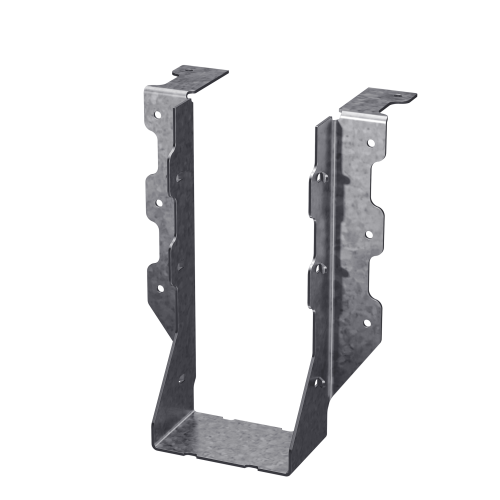

Simpson Double 2 x 14 Top-Flange Face Mount Hanger, Galvanized (HUS214-2TF) - Model No. HUS214-2TF - is a heavy-duty hybrid hanger engineered by Simpson Strong-Tie that incorporates the advantages of both face-mount and top-mount hangers. Designed for double 2x14 joist applications, this top-flange hanger delivers exceptional structural performance through double-shear nailing, where each nail is installed into both the joist and header, distributing the load through two points on each joist nail for greater strength.
Key Features
- Features an embossed top flange that provides additional connection strength
- Designed with double-shear nailing combined with face-nailing for high loads
- HUSTF-series hangers are tested, load rated and code compliant
- Zinc Galvanized (G94) coating for corrosion resistance
- 14-gauge construction for heavy-duty performance
- Economical joist hanger design; cannot be modified
- Made in the United States
Specifications
- Model No.: HUS214-2TF
- Joist Size: Double 2x14
- Gauge: 14
- Width: 3-1/8 in.
- Height: 13-1/8 in.
- TF: 2-1/4 in.
- Coating/Material: Zinc Galvanized, G94
- Country of Origin: United States
Approved Applications
- Face-mount and top-mount hybrid hanger applications requiring high load capacity
- Double 2x14 joist-to-header connections
- Applications requiring code-compliant, load-rated hardware
- Not acceptable for nailer or welded applications
Installation
- Use all specified fasteners
- Fasteners required: 0.162" x 3-1/2" nails
- With 3x carrying members, use 0.162" x 2-1/2" nails in the header and 0.162" x 3-1/2" nails in the joist
- Not acceptable for nailer or welded applications
Options
Contact us for Configurable Options and Special orders. Some products available in HDG.
Frequently Asked Questions
- What type of fasteners are required for the HUS214-2TF hanger?
- The HUS214-2TF requires 0.162" x 3-1/2" nails as the primary fastener. When used with 3x carrying members, use 0.162" x 2-1/2" nails in the header and 0.162" x 3-1/2" nails in the joist.
- What makes the double-shear nailing design beneficial?
- Double-shear nailing means each nail is installed into both the joist and header, distributing the load through two points on each joist nail. This method provides greater strength compared to single-shear connections, making it well suited for high-load applications.
- Can the HUS214-2TF hanger be modified on the job site?
- No. This economical joist hanger cannot be modified. It must be installed as designed to maintain its tested and load-rated performance, and it is not acceptable for nailer or welded applications.
- What coating does the HUS214-2TF feature, and why does it matter?
- The HUS214-2TF features a Zinc Galvanized, G94 coating. This galvanized finish provides corrosion resistance, helping to protect the hanger in typical construction environments and contributing to the long-term integrity of the structural connection.
Note: Product dimensions and/or Screw or Bolt holes may differ from picture.
