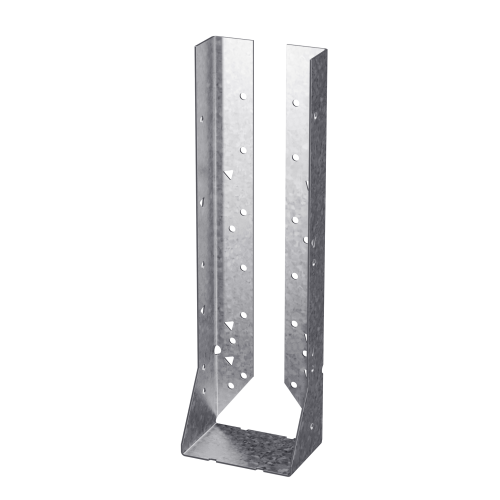

The Simpson HUC814 8x14 Concealed-Flange Heavy Face-Mount Hanger is a heavy-duty structural connector built for demanding joist and beam connections in both residential and commercial construction. Engineered by Simpson for 8x14 lumber, this face-mount hanger combines robust 14-gauge steel construction with concealed header flanges, making it a practical choice wherever structural performance and clean framing aesthetics are both priorities.

Key Features

• Concealed Header Flanges - Flanges are hidden from view once installed, delivering cleaner visible lines in exposed framing conditions without sacrificing load capacity or structural integrity.
• Heavy-Duty 14-Gauge Steel Construction - Built from 14 ga. (68 mil) steel, this hanger is rated for heavy structural framing connections that require additional strength and elevated safety factors.
• Face-Mount Design - Attaches directly to the face of the header or beam, simplifying installation and providing a secure, positive connection for 8x14 lumber in a wide range of framing applications.
• Galvanized Finish - The galvanized coating provides a layer of corrosion resistance, helping protect the connector in environments where long-term durability is a consideration.
• Configurable Seat Options - Select models in this series can be configured with a skewable seat or a seat that slopes as far as up to 45 deg., offering flexibility for non-standard framing conditions.

Why This Product

• Built for Heavy Structural Work - At 14 ga. (68 mil) steel, this hanger is specifically suited for heavy structural framing connections where standard-gauge hangers may not meet the required strength or safety thresholds.
• Aesthetics Meet Performance - The concealed-flange design addresses a real challenge in exposed framing: maintaining a tidy, unobtrusive appearance while still delivering the holding power a heavy-duty beam connection demands.
• Versatility for Complex Framing - With seat configurations that can accommodate slopes up to 45 deg., this hanger adapts to angled and non-standard installations that would otherwise require custom solutions.
• Domestic Quality You Can Specify with Confidence - Produced in the United States by Simpson, a recognized name in structural connectors, the HUC814 is a dependable choice for contractors and engineers who need consistent, verifiable quality on the jobsite.

Specifications

• Model Number: HUC814
• Description: 8x14 HUC Heavy Concealed-Flange Face-Mount Joist Hanger
• Material: 14 ga. (68 mil) steel
• Finish: Galvanized
• Mount Type: Face-Mount
• Flange Style: Concealed
• Height: 11-7/8 in.
• Width: 7-1/2 in.
• Seat Depth: 2-1/2 in.
• Country of Origin: United States

Approved Applications

• Heavy structural framing connections requiring additional strength and safety factors
• Exposed framing conditions where concealed flanges provide cleaner visible lines
• Face-mount joist and beam connections in residential and commercial construction
• Applications requiring a heavy-duty, 14-gauge steel connector

Configurable Options

Some models of this heavy-duty hanger can be configured with a skewable seat and a seat that slopes as far as up to 45 degrees. for configurable options and special orders.

Frequently Asked Questions

What size lumber is the HUC814 designed for?

The HUC814 is designed for use with 8x14 lumber, as indicated in the model designation.

What gauge steel is the HUC814 made from?

The HUC814 is manufactured from 14-gauge (68 mil) steel, placing it in the heavy-duty category of face-mount hangers.

Does the HUC814 have concealed or exposed flanges?

The HUC814 features concealed header flanges, which provide cleaner visible lines, making it a preferred choice for exposed framing conditions.

Can the seat of the HUC814 be skewed or sloped?

Some models in the HUC series are available with a skewable seat and a seat that can slope up to 45 degrees. to discuss configurable options for your project.

Note: Product dimensions and/or nail holes may differ from picture. Please see the item description and Spec Sheet for specifications.
