Product Description

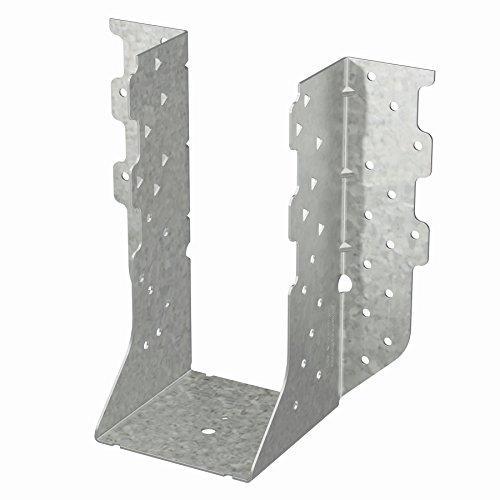

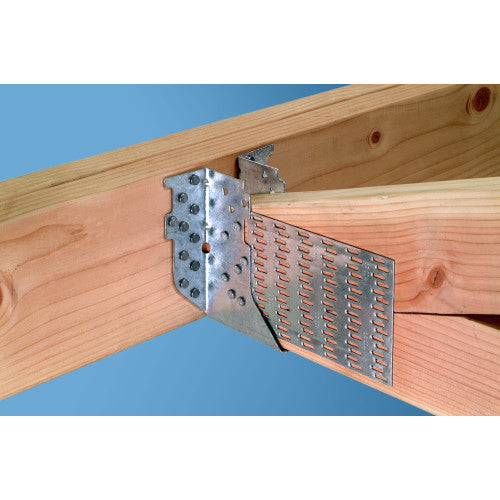

The Simpson HTU26-2 HTU Galvanized Heavy Face-Mount Truss Hanger for Double 2x6 is a Simpson Strong-Tie engineered connector designed to provide strong, reliable support underneath trusses with shallow heel heights. Featuring a nail pattern specifically optimized for low heel height applications, this hanger delivers full allowable loads with minimum nailing at heel heights as low as 3-7/8 in., making it an ideal solution for demanding truss connections where heel height clearance is limited.
Key Features
- Face-mount truss hanger with nail patterns designed specifically for shallow heel heights - full allowable loads apply to heel heights as low as 3-7/8 in.
- Can be installed filling round holes only, or filling round and triangle holes for maximum load values
- Minimum and maximum nailing options provide solutions for varying heel heights and end conditions
- Alternate allowable loads provided for gaps between the end of the truss and the carrying member up to 1/2 in. max., allowing for greater construction tolerances
- Nominal joist size: Double 2x6
- Constructed from 16-gauge steel for heavy-duty performance
- Galvanized (G90) finish for extra corrosion resistance
- Made in the United States
Specifications
- MPN: HTU26-2
- Brand: Simpson Strong-Tie
- Member Size: Double 2x6
- Gauge: 16
- Width: 3-5/16 in.
- Height: 5-7/16 in.
- B Dimension: 3-1/2 in.
- Coating / Finish: Zinc Galvanized, G90
- Install With: 16d common nails and 10d common nails, or #9 x 1-1/2 in. Strong-Drive SD Connector screws
- Country of Origin: United States
Options
- HTU may be skewed up to 67-1/2 deg.. Contact us for Configurable Options and Special orders
Installation:
- Install with 16d common nails and 10d x 1-1/2 in. nails, or #9 x 1-1/2 in. Strong-Drive SD Connector screws
- Can be installed filling round holes only, or filling round and triangle holes for maximum values
- See alternate installations in Specifications
Frequently Asked Questions
- What is the minimum heel height this hanger supports at full allowable load?
- The HTU26-2 is engineered so that full allowable loads with minimum nailing apply to heel heights as low as 3-7/8 in., making it well suited for shallow heel truss applications.
- What member size is the HTU26-2 designed for?
- This hanger is designed for a double 2x6 nominal joist or truss member size.
- What fasteners are recommended for installing the HTU26-2?
- The HTU26-2 should be installed with 16d common nails and 10d common nails, or #9 x 1-1/2 in. Strong-Drive SD Connector screws. The hanger can be installed filling round holes only, or filling both round and triangle holes to achieve maximum load values.
- What corrosion protection does the HTU26-2 have?
- The HTU26-2 features a G90 zinc galvanized finish, which provides extra corrosion resistance for use in demanding environments.
Note: Product dimensions and/or screw or nail holes may differ from picture. Please see item description for specifications.
