Product Description

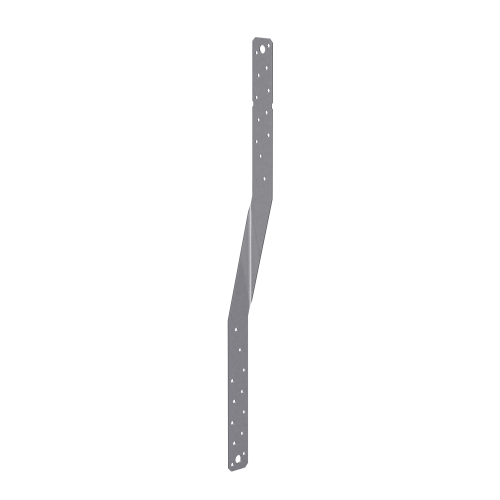

The Simpson Heavy Twist Strap, Reverse Bend (HTS30-REV) - model number HTS30-REV - is a 30-inch, 14-gauge zinc galvanized twist strap engineered to create a reliable tension connection between two structural members. Manufactured by Simpson Strong-Tie, this heavy-duty strap is designed to resist substantial uplift loads at the rafter or heel of a truss, featuring a small reverse-bend section that minimizes interference at the transition points between connected members.
Key Features
- Available with the bend reversed to accommodate specific framing configurations
- Straps do not need to be wrapped over the truss to achieve the allowable load
- Versatile with many lengths offered to fit the specific application
- Small bend section reduces interference at the transition points between two members
- Economical design that resists heavy uplift loads at the rafter or heel of a truss
- Zinc galvanized G90 coating for corrosion resistance
Specifications
- Model Number: HTS30-REV
- Bend Type: Reverse Bend
- Length: 30 in.
- Gauge: 14
- Thickness: 68 mil
- Coating/Material: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Tension connection between two structural members
- Uplift load resistance at the rafter
- Uplift load resistance at the heel of a truss
Frequently Asked Questions
- What is the purpose of the reverse bend on the HTS30-REV?
- The reverse bend configuration allows the strap to be installed in specific framing orientations where a standard bend direction would not be suitable. The small bend section is designed to reduce interference at the transition points between the two members being connected.
- Does the strap need to be wrapped over the truss during installation?
- No. The HTS30-REV does not need to be wrapped over the truss to achieve the allowable load, simplifying installation while still delivering the full rated performance.
- What fasteners are required to install the HTS30-REV?
- Installation requires two nail sizes: Nails 0.148 x 3" and Nails 0.148" x 1-1/2". Use all specified fasteners, with half into each member being connected, to achieve the listed loads.
- What is the gauge and coating of the HTS30-REV?
- The HTS30-REV is a 14-gauge strap with a thickness of 68 mil. It features a Zinc Galvanized, G90 coating for durability and corrosion resistance in structural applications.
