Product Description
The Simpson 38-1/2 in. Heavy Purlin Anchor - Galvanized HPA35 by Simpson Strong-Tie is a heavy-duty structural connector engineered for wood-to-concrete connections, delivering the highest load capacity available in concrete applications. Designed specifically to connect roof purlins to a concrete wall, the HPA35 meets code requirements while offering a low-profile design that minimizes on-site visibility.
Key Features
- Provides wood-to-concrete connections that satisfy code requirements
- Engineered to connect roof purlins to a concrete wall with the highest capacity in concrete

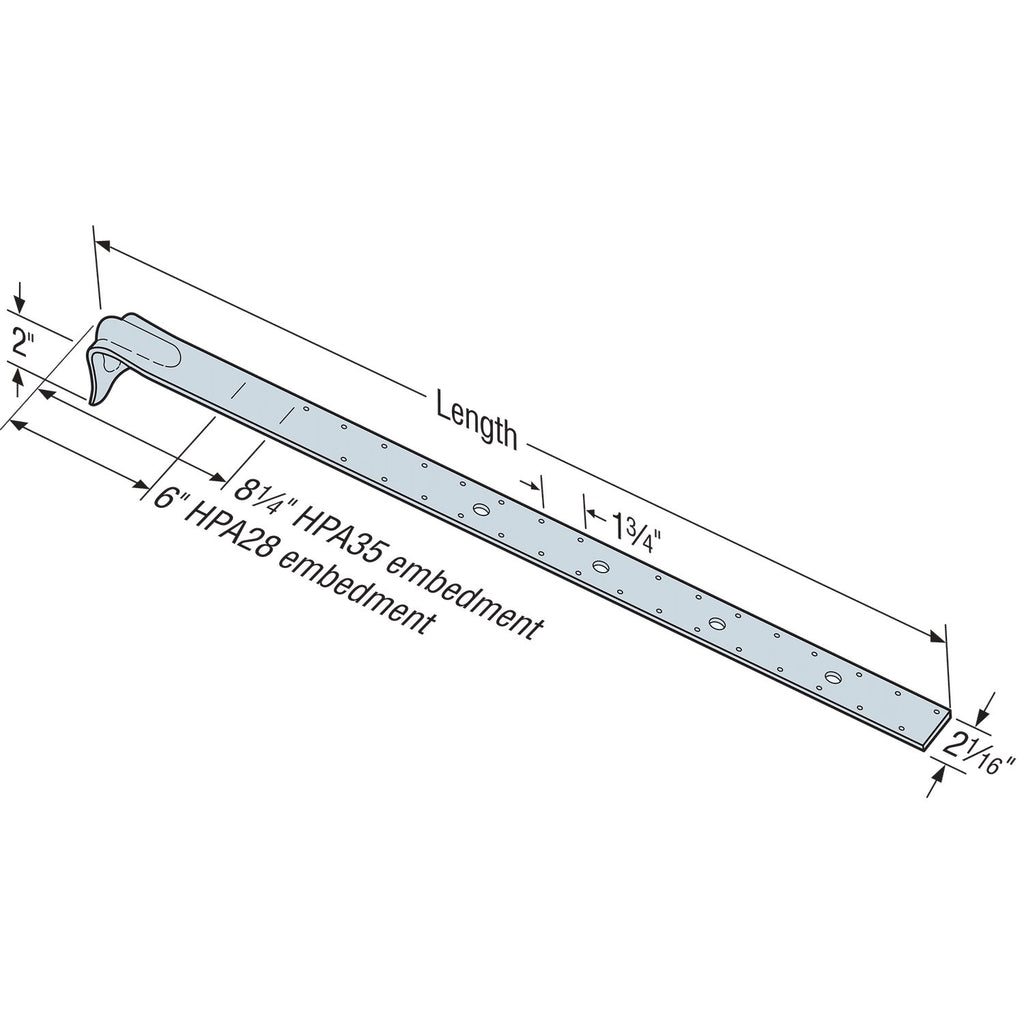

- Embedment line stamped on strap to aid installation
- Nailing pattern optimized for narrow face of nominal 3x or double 2x wood member
- Low design profile minimizes visibility
- Zinc Galvanized finish (G90) for corrosion resistance
- Strap may be bent one full cycle (bent vertical 90 deg., then bent horizontal)
Specifications
- Model No.: HPA35
- Gauge: 10
- Width (W): 2 1/16 in.
- Length (L): 38 1/2 in.
- Coating/Material: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications

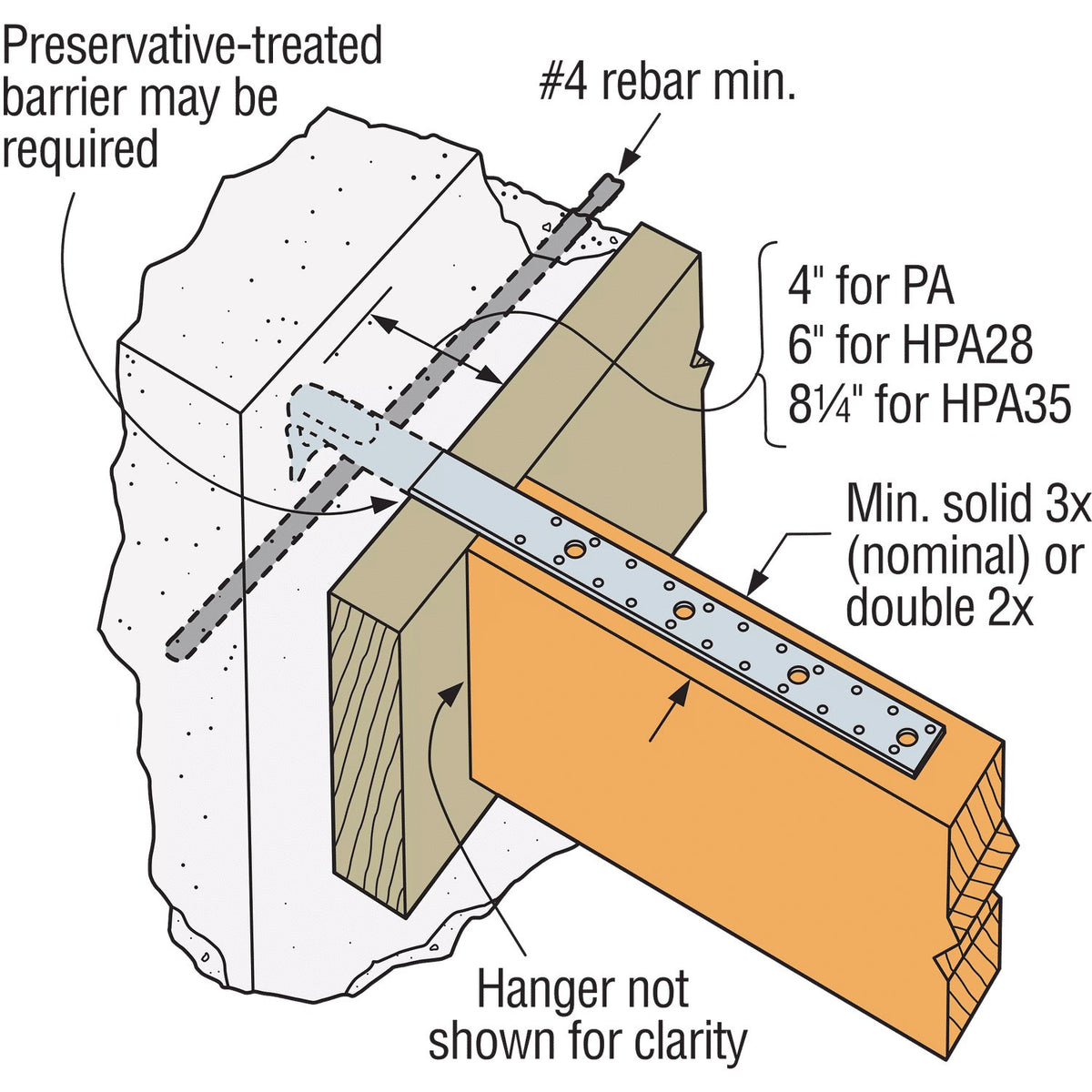

- Connecting roof purlins to concrete walls
- Wood-to-concrete structural connections requiring code compliance
- Horizontal installation into the side of a concrete or masonry wall
- Applications requiring connections to nominal 3x or double 2x wood members
Frequently Asked Questions
- Does the HPA35 purlin anchor need to hook around rebar during installation?
- Yes. The purlin anchor must hook around rebar as part of proper installation to achieve the rated allowable loads.
- What is the minimum concrete edge distance required for the HPA35?
- The minimum concrete edge distance is 5 inches. For concrete-block installations, the minimum left-to-right edge distance is 20 inches.
- Can the strap on the HPA35 be bent during installation?
- Yes. The strap may be bent one full cycle - bent vertical 90 deg., then bent horizontal - to accommodate installation requirements.
- Are all fastener holes on the HPA35 required to be filled during installation?
- Yes. All specified fasteners must be used during installation. Note that some models may include extra fastener holes; refer to the specifications for guidance.
