Product Description

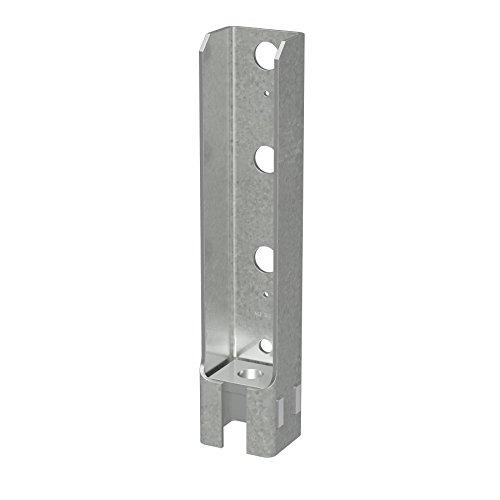

The Simpson Strong-Tie HD9BHDG HDB 14 in. Hot-Dip Galvanized Bolted Holdown is engineered by Simpson Strong-Tie to deliver reliable performance for intermediate-load-range shearwalls, braced-wall panels, and lateral applications in wood construction. Installed with bolts into studs or columns, this holdown provides low-deflection performance across a range of load requirements. Its hot-dip galvanized finish offers superior corrosion resistance, making it well suited for exterior and treated-wood applications.
Key Features
- Installed after the placement of concrete and framing is in place
- Can be installed directly on the sill plate or raised above it
- Self-jigging, ensuring the code-required minimum of seven bolt diameters from the end of the post when installed flush with the sill plate
- Feature a unique seat design which greatly minimizes deflection under load
- Base made from 3/8-in. steel; body made from 7-gauge steel
- Width: 2-7/8 in.
- Height: 14 in.
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
- Suitable for back-to-back applications where eccentricity is a concern
Specifications
- MPN: HD9BHDG
- Brand: Simpson Strong-Tie
- Series: HDB
- Height: 14 in.
- Width: 2-7/8 in.
- Gauge: 7
- Coating: Hot-Dip Galvanized
- Finish: Hot-Dip Galvanized
- Base Material Thickness: 3/8 in. steel
- Install With: Install with 7/8 in. anchor bolt and 7/8 in. stud machine bolts
- Country of Origin: United States
Approved Applications
- Intermediate-load-range shearwalls
- Braced-wall panels
- Lateral applications in wood construction
- Back-to-back installations where eccentricity is a concern
- Exterior applications requiring enhanced corrosion resistance
- Treated-wood applications
Frequently Asked Questions
- When during construction is the HD9BHDG holdown installed?
- The HD9BHDG is installed after the placement of concrete and framing is in place, allowing it to be integrated into the structure at the appropriate stage of construction.
- Can the HD9BHDG be installed in a raised position above the sill plate?
- Yes. The HD9BHDG can be installed directly on the sill plate or raised above it, providing flexibility to accommodate various framing conditions and installation requirements.
- Why is the HD9BHDG described as self-jigging?
- The self-jigging design automatically ensures the code-required minimum of seven bolt diameters from the end of the post when the holdown is installed flush with the sill plate, simplifying installation and helping maintain code compliance.
- What makes the HD9BHDG suitable for exterior and treated-wood applications?
- The hot-dip galvanization (HDG) finish provides extra corrosion resistance compared to standard coatings, making the HD9BHDG well suited for exterior environments and use with treated wood where moisture and chemical exposure are a concern.
