Product Description

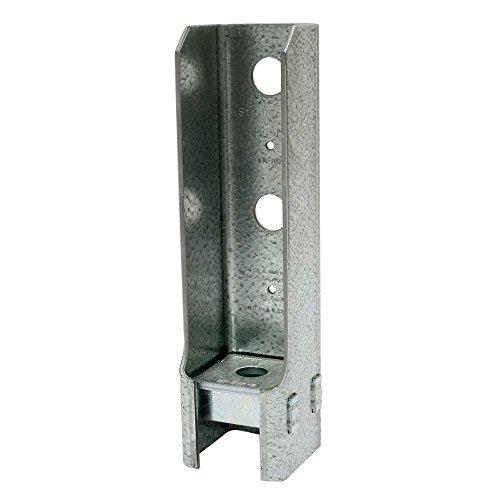

The Simpson HD5BHDG HDB 9-3/8 in. Hot-Dip Galvanized Bolted Holdown by Simpson Strong-Tie is engineered to provide reliable load performance for intermediate-load-range shearwalls, braced-wall panels, and lateral applications in wood construction. Installed with bolts into studs or columns, this bolted holdown delivers low-deflection performance across a range of load requirements and is well-suited for back-to-back applications where eccentricity is a concern. The hot-dip galvanized finish provides extra corrosion resistance, making it ideal for exterior and treated-wood applications.
Key Features
- Installed after the placement of concrete and framing is in place
- Can be installed directly on the sill plate or raised above it
- Self-jigging, ensuring the code-required minimum of seven bolt diameters from the end of the post when installed flush with the sill plate
- Feature a unique seat design which greatly minimizes deflection under load
- Base made from 3/16-in. steel; body made from 10-gauge steel
- Width: 2-1/2 in.
- Height: 9-3/8 in.
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
- Suitable for back-to-back applications where eccentricity is a concern
- Install with 5/8 in. anchor bolt and 3/4 in. stud machine bolts
Specifications
- MPN: HD5BHDG
- Brand: Simpson Strong-Tie
- Series: HDB
- Width (W): 2-1/2 in.
- Height (H): 9-3/8 in.
- Gauge: 10 (body); base made from 3/16-in. steel
- Coating: Hot-Dip Galvanized
- Finish: Hot-Dip Galvanized
- Install With: Install with 5/8 in. anchor bolt and 3/4 in. stud machine bolts
- Country of Origin: United States
Approved Applications
- Intermediate-load-range shearwalls
- Braced-wall panels
- Lateral applications in wood construction
- Back-to-back holdown applications where eccentricity is a concern
- Exterior applications requiring enhanced corrosion resistance
- Treated-wood applications
Frequently Asked Questions
- What type of fasteners are required to install the HD5BHDG?
- The HD5BHDG is installed with 5/8 in. anchor bolt and 3/4 in. stud machine bolts into studs or columns.
- Can the HD5BHDG be installed in exterior or treated-wood applications?
- Yes. The hot-dip galvanization (HDG) finish provides extra corrosion resistance, making the HD5BHDG well-suited for exterior and treated-wood applications.
- Can the HD5BHDG be installed directly on the sill plate?
- Yes. The HD5BHDG can be installed directly on the sill plate or raised above it. When installed flush with the sill plate, its self-jigging design ensures the code-required minimum of seven bolt diameters from the end of the post.
- What makes the HD5BHDG suitable for back-to-back holdown applications?
- The HDB series is specifically designed to be suitable for back-to-back applications where eccentricity is a concern, and its unique seat design greatly minimizes deflection under load for reliable performance in these configurations.
