Product Description
The Simpson Strong-Tie Deck-Drive DSV Wood Screw (HCKDSVT3S) is a powerful fastening solution engineered specifically for preservative-treated decking applications. Featuring a rimmed flat head with under-head nibs and a high-low threaded fast-start tip, the DSV drives and countersinks cleanly into today's wood deck boards for a professional, finished appearance. The screw's variable thread shank is purpose-built to accommodate the swelling and shrinkage common with fast-growth dimensional lumber, keeping your deck surface tight and stable over time. Protected by Quik Guard coating for corrosion resistance in exterior and certain preservative-treated wood environments, and listed to meet the performance requirements of ICC-ES AC257 exposure conditions 1 and 3, these collated screws are ready for high-volume production use with the Simpson Strong-Tie Quik Drive auto-feed screw driving system. Each package includes 500 screws in a tan color that blends naturally with wood deck boards, plus one T25 driver bit.
Key Features
- Low-torque threads - designed for efficient driving, reducing strain on batteries and the operator.

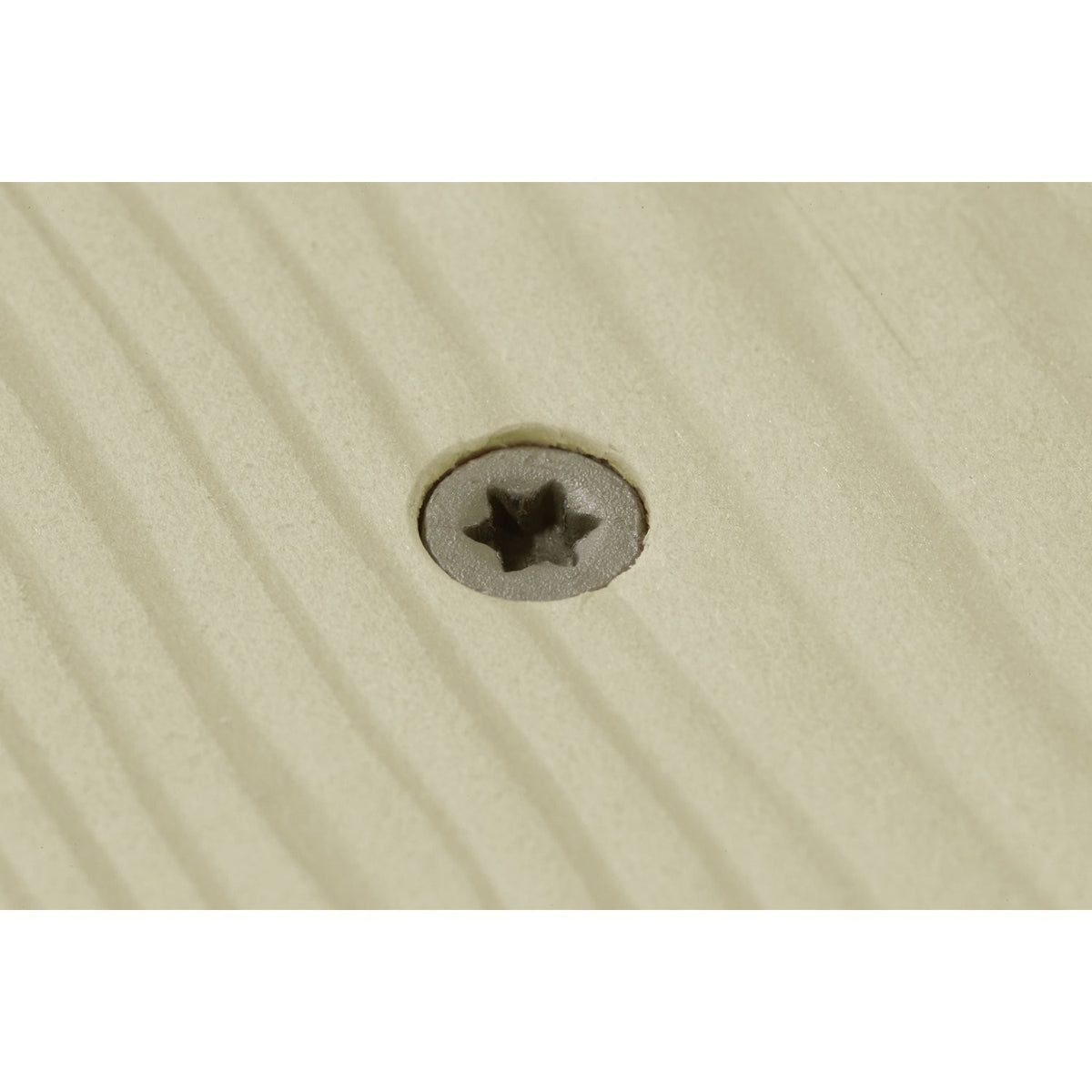

- Rimmed flat head with nibs - countersinks easily and provides a clean, finished appearance flush with the deck surface.
- High-low threaded point - provides fast starts for quicker installation.
- Optimized variable thread design - engineered specifically for dimensional lumber to resist the forces of wood movement.
- Quik Guard coating - delivers corrosion resistance for exterior and certain preservative-treated wood applications.
- Meets ICC-ES AC257 - satisfies exposure conditions 1 and 3 performance requirements.
- T25 6-lobe drive - compatible T25 driver bit (model BITTX25) included in every package.

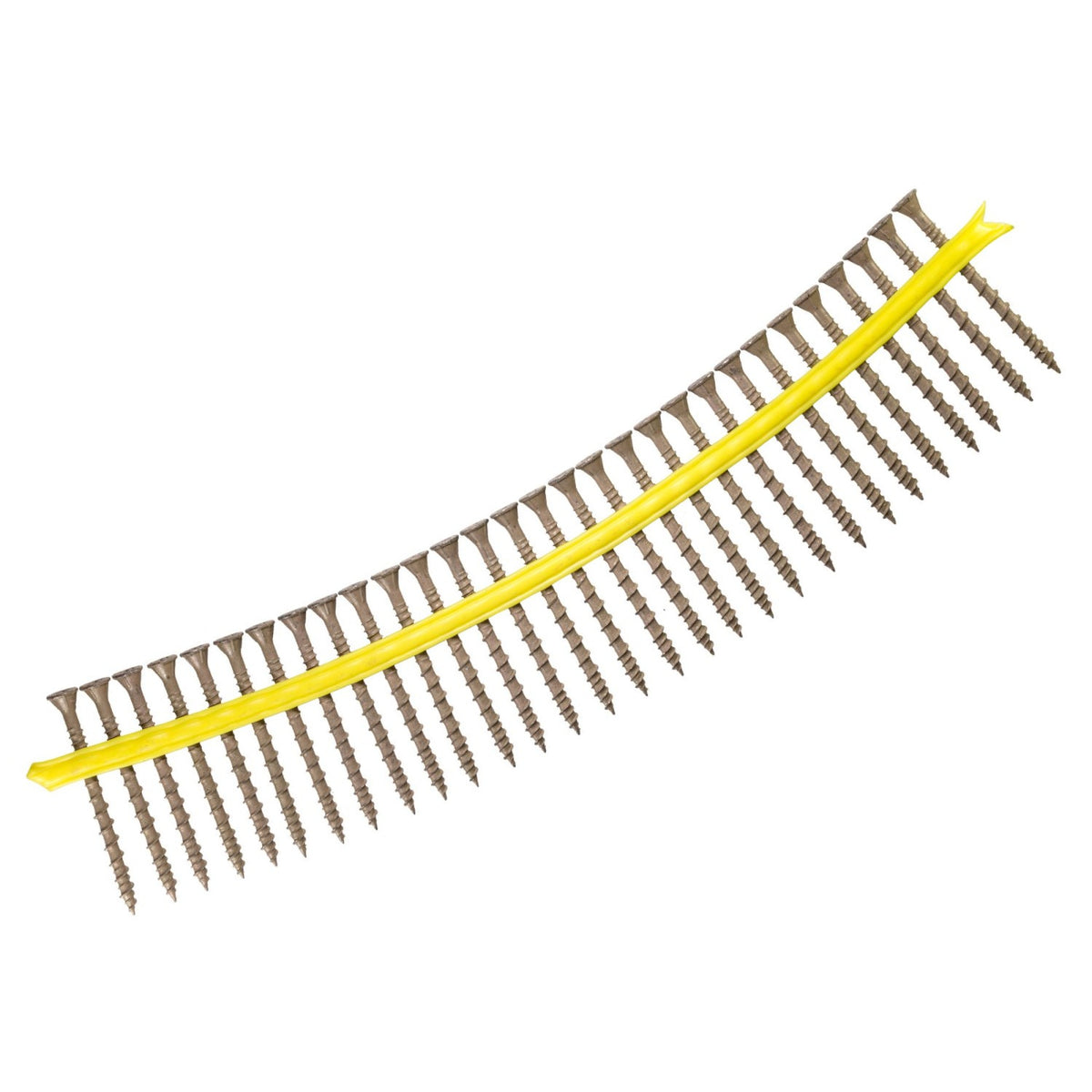

- Curved collation strips - optimized for use with the Quik Drive PRO300S auto-feed screw driving system or compatible attachment.
- Tan color - blends naturally with most wood deck boards for a seamless look.
- 500-count package - ideal for large decking projects and production-level installations.
Specifications
- Manufacturer Part Number (MPN): HCKDSVT3S
- Screw Size: #10
- Length: 3 in.
- Head Type: Rimmed Flat Head with Nibs
- Head Diameter: 0.333 in.
- Drive Type: T25 6-Lobe
- Thread Type: Variable Thread Design
- Point Type: High-Low Threaded Point
- Collation Type: Curved
- Coating / Finish: Quik Guard Coating
- Color: Tan
- Compatible Tool: Quik Drive PRO300S auto-feed screw driving system or attachment
- Package Quantity: 500
- Country of Origin: Taiwan
Frequently Asked Questions
- What auto-feed screw driving system is compatible with these collated DSV screws?
- These collated DSV screws are designed to install with the Simpson Strong-Tie Quik Drive PRO300S auto-feed screw driving system or attachment. The screws are collated in curved strips specifically for use with this system, making them well-suited for high-volume deck fastening applications.
- Are these screws suitable for use with preservative-treated lumber?
- Yes. The DSV screws feature Quik Guard coating, which provides corrosion resistance for exterior and certain preservative-treated wood applications. They also meet the performance requirements of ICC-ES AC257 exposure conditions 1 and 3, confirming their suitability for treated decking environments.
- What drive type do these screws use, and is a driver bit included?
- These screws use a T25 6-lobe drive. Each package includes one T25 driver bit (model BITTX25), so you have the correct bit on hand right out of the box.
- How do the DSV screw's design features help with installation into wood deck boards?
- The DSV screw combines several features for efficient installation: low-torque threads reduce driving effort, a high-low threaded point provides fast starts, and a rimmed flat head with under-head nibs countersinks cleanly into the deck board surface for a finished appearance. The variable thread shank is also optimized for dimensional lumber to accommodate the swelling and shrinkage common with fast-growth wood.
