Product Description

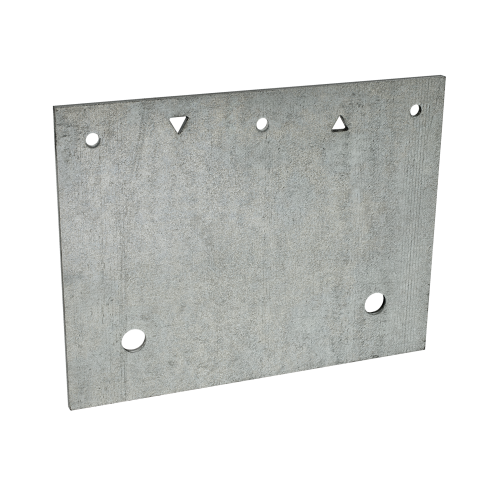

The Simpson FRFP 7 in. x 9 in. HDG Retrofit Foundation Plate (FRFPHDG) by Simpson Strong-Tie is a next-generation flat retrofit foundation plate engineered to connect the mudsill to the foundation and provide lateral load resistance against earthquakes and high winds. Manufactured from 7-gauge steel with a hot-dip galvanized finish, this plate delivers enhanced corrosion resistance, making it well suited for exterior and treated-wood applications.
Key Features
- Ideal where the mudsill is flush to the inside of the foundation (or up to 1-1/2 in. set back)
- When the two optional holes are filled, the plate offers increased loads and can be spaced farther apart
- When all five holes are filled, the FRFP is a one-for-one replacement for 5/8-in. anchor bolts
- Width: 9 in.
- Height: 7 in.
- Made from 7-gauge steel
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
Specifications
- Model Number (MPN): FRFPHDG
- Width: 9 in.
- Height: 7 in.
- Gauge: 7
- Coating: Hot-Dip Galvanized
- Finish: Hot-Dip Galvanized
- Install With: 1/2 in. diameter anchor bolts and 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
- Country of Origin: United States
Downloads and Resources
Frequently Asked Questions
- What is the purpose of the two optional triangle holes on the FRFPHDG?
- When the two optional triangle holes are filled, the plate offers increased loads and can be spaced farther apart, giving designers greater flexibility for wind or seismic design requirements compared to using only the three standard round holes.
- Can the FRFPHDG replace a standard anchor bolt?
- Yes. When all five holes are filled, the FRFP is a one-for-one replacement for 5/8-in. anchor bolts, providing equivalent connection performance in retrofit situations.
- Is the FRFPHDG suitable for use with treated lumber or exterior applications?
- Yes. The hot-dip galvanization (HDG) coating offers extra corrosion resistance specifically for exterior and treated-wood applications, making the FRFPHDG appropriate for these environments.
- What mudsill setback conditions does the FRFPHDG accommodate?
- The FRFPHDG is ideal where the mudsill is flush to the inside of the foundation or set back up to 1-1/2 in., providing installation flexibility in common retrofit scenarios.
