Product Description

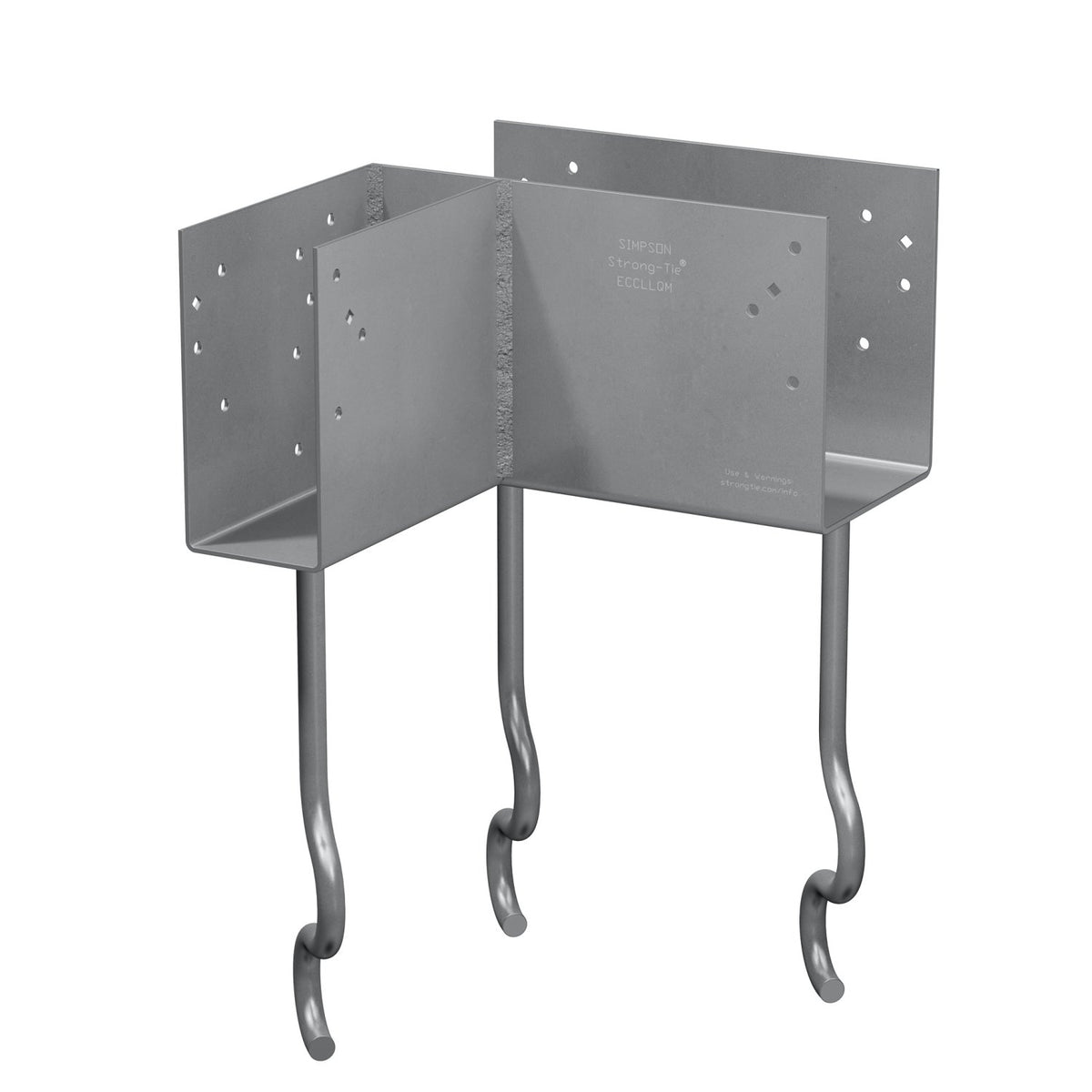

The Simpson Strong-Tie ECCLQM5.50G-KT is a 5-1/2 in. L-Shaped End Column Cap engineered for use in raised pier foundations and heavy-timber construction where large beams bear on concrete or concrete block (CMU) columns. Designed specifically for building corner applications, this embedded column cap combines a heavy-gauge beam seat with Simpson Strong-Tie SSTB anchor bolts to deliver exceptional uplift and lateral resistance - critical performance characteristics in high-wind events and seismic zones. The hot-dip galvanized (HDG) finish provides superior corrosion resistance, making it well suited for exterior environments and applications involving treated lumber. This kit arrives complete with MSTQM straps and Strong-Drive SDS screws so your installation has everything needed right out of the box.
Key Features

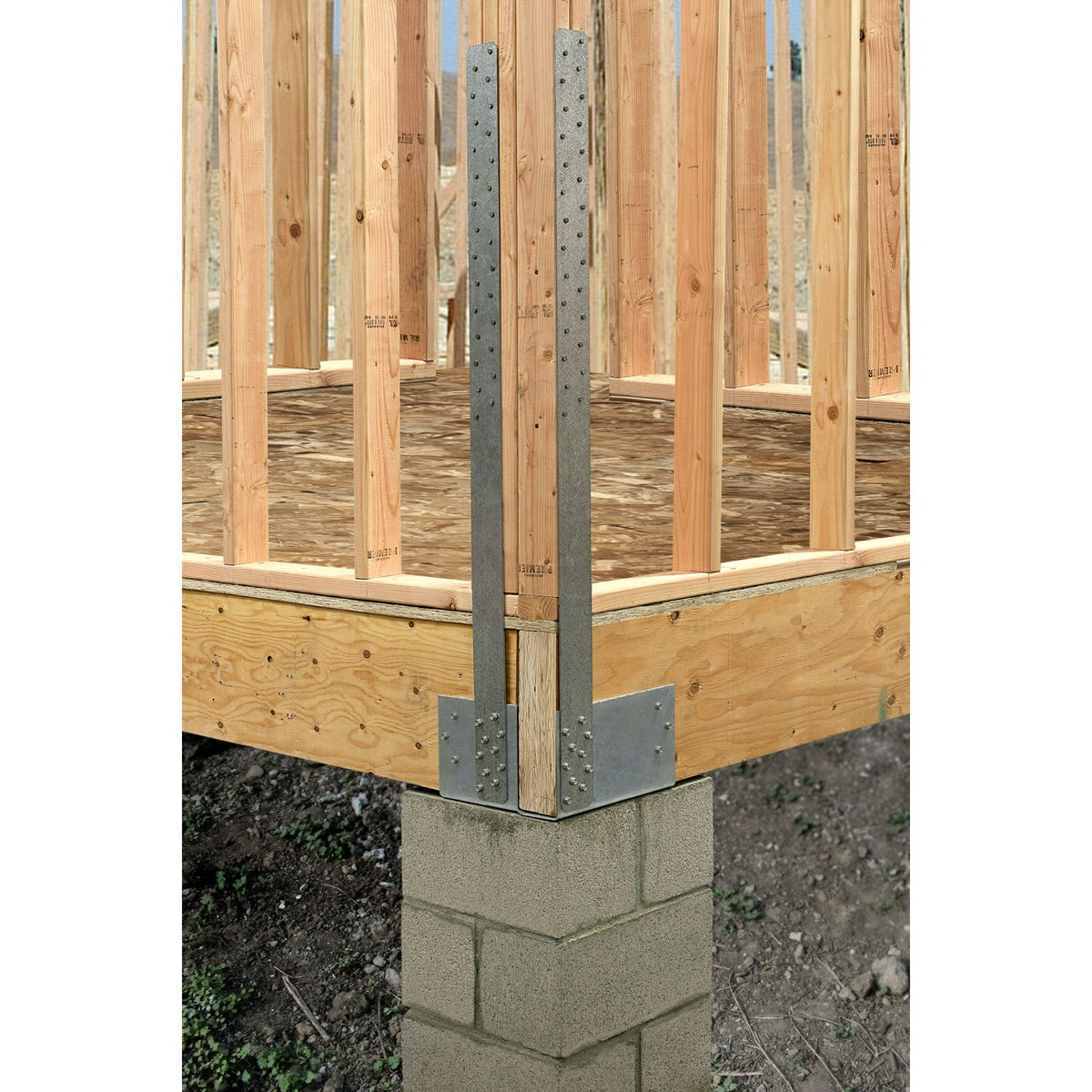

- L-Shaped Corner Design: ECCLQM-KT is intended for use at building corners, providing a complete end-cap connection solution for raised pier foundations.
- MSTQM Straps Included: Straps make the connection from the ECCLQM to the wall framing, ensuring a continuous load path from the structure to the foundation.
- High Uplift Design Values: Screws are configured specifically to provide high uplift design values for enhanced structural performance.
- Certified Welds: All welds are certified for confidence in strength and loading capacity.
- SSTB Offset for Flush Installation: The SSTB offset allows flush installation to the edge of the pier for a clean, precise fit.
- CMU-Compatible Bolt Spacing: SSTBs are spaced to fit in standard CMU cells, simplifying installation on concrete block columns.
- Heavy 7-Gauge Steel Construction: Built from 7-gauge steel for a robust, heavy-duty beam seat capable of supporting heavy timber loads.
- Hot-Dip Galvanized Finish: HDG coating offers extra corrosion resistance ideal for exterior and treated-wood applications.
- No Pre-Drilling Required: Includes Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws that install without pre-drilling and feature a corrosion-resistant double-barrier coating.
- Made in the USA: Manufactured in the United States.
Specifications
- Manufacturer Part Number (MPN): ECCLQM5.50G-KT
- Series: ECCLQM
- Configuration: L-Shaped End Column Cap
- Main Channel Width (W1): 5-1/2 in.
- Side Stirrup Width (W3 & W4): 5-1/2 in.
- Main Channel Length (L1): 11-1/2 in.
- Side Stirrup Length (L2): 7-3/4 in.
- Material Gauge: 7 Gauge Steel
- Coating / Finish: Hot-Dip Galvanized (HDG)
- Fastener Size: 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector Screws
- Country of Origin: United States
Approved Applications
- Raised pier foundation construction where heavy timbers rest on concrete or concrete block columns
- Building corner connections in raised pier and post-and-beam foundation systems
- Applications requiring high uplift and lateral resistance in high-wind or seismic regions
- Installations on standard CMU (concrete masonry unit) block columns
- Exterior and treated-wood construction requiring enhanced corrosion resistance
- Connections from ECCLQM column caps to wall framing via included MSTQM straps
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What is included in the ECCLQM5.50G-KT kit?
- The kit includes 32 pieces of 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws and 2 pieces of 12 ga., 3 in. x 48 in. MSTQM straps. The MSTQM straps connect the ECCLQM to the wall framing, and the SDS screws require no pre-drilling and feature a corrosion-resistant double-barrier coating.
- Where is the ECCLQM5.50G-KT intended to be used?
- This L-shaped end column cap is designed specifically for building corner applications in raised pier foundations where heavy timbers rest on concrete or concrete block (CMU) columns. The SSTB anchor bolts are spaced to fit in standard CMU cells, and the SSTB offset allows for flush installation to the edge of the pier.
- What corrosion protection does this column cap offer?
- The ECCLQM5.50G-KT features a hot-dip galvanized (HDG) finish, which provides extra corrosion resistance compared to standard coatings. This makes it well suited for exterior applications and use with treated lumber where moisture exposure is a concern.
- What are the key dimensions and gauge of this column cap?
- The ECCLQM5.50G-KT has a main channel width and side stirrup width of 5-1/2 in., and a main channel length of 11-1/2 in. The connector is constructed from 7-gauge steel, providing the heavy-gauge build needed for high uplift and lateral resistance in demanding structural applications.
