Product Features
Product Description

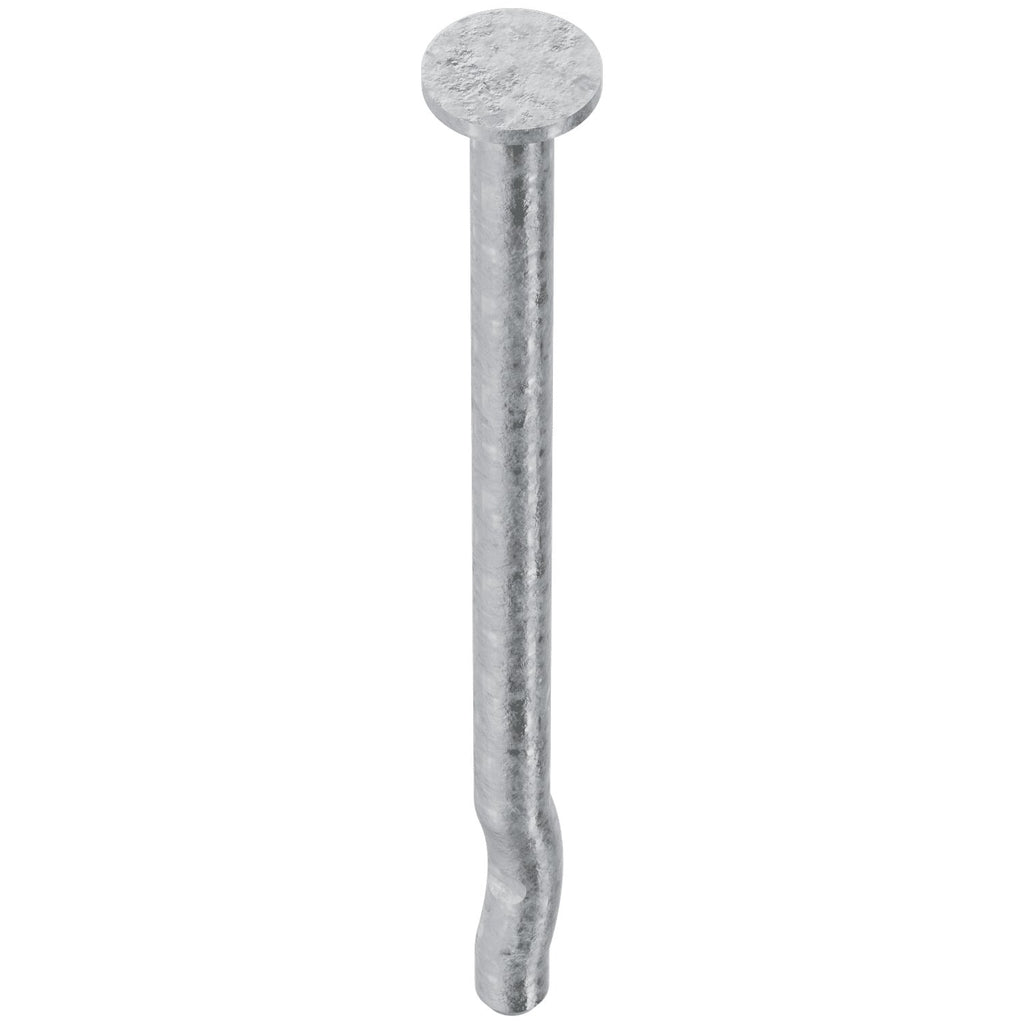

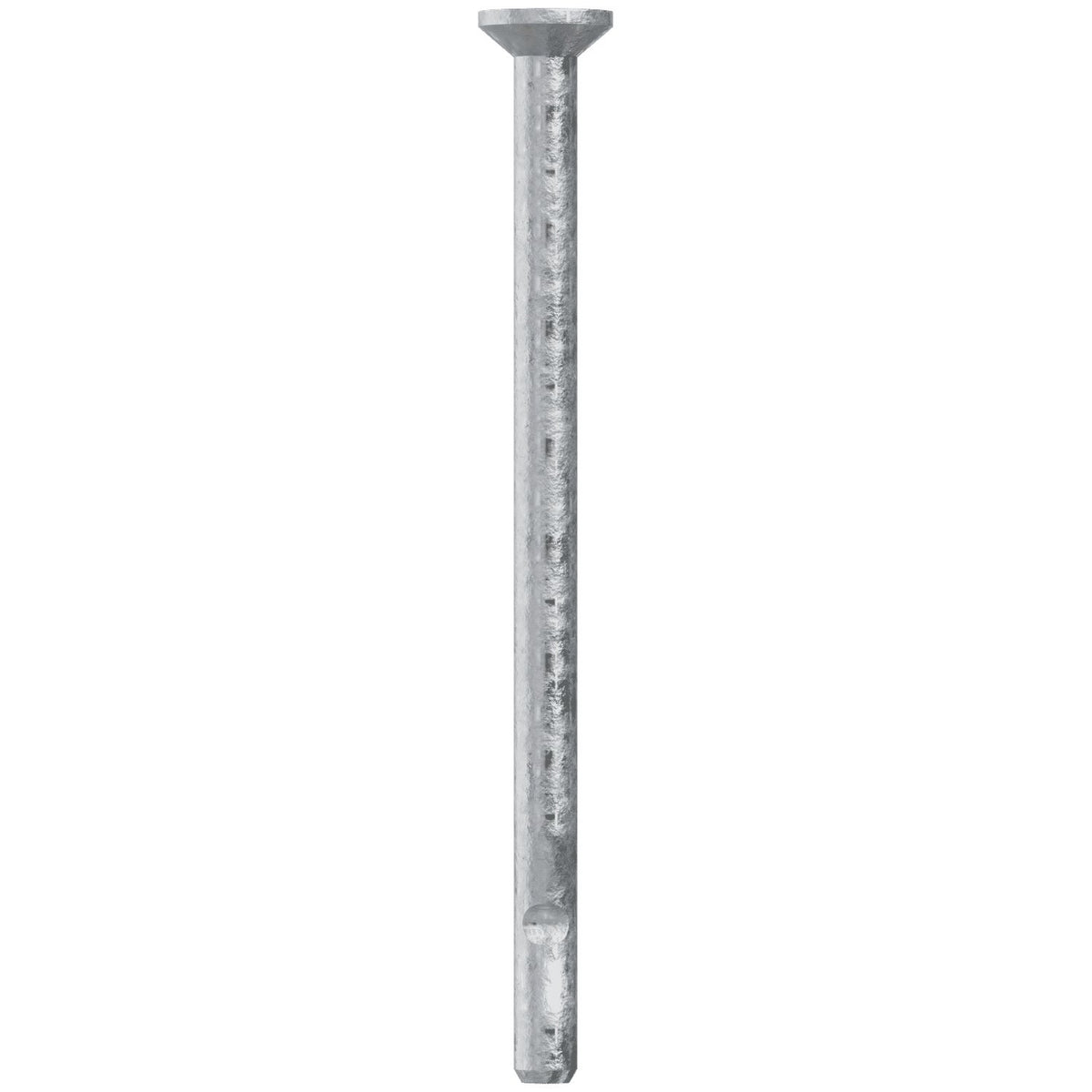

Simpson CD25400CMG Crimp Drive 1/4 in. x 4 in. Mechanically Galvanized Countersunk Head Anchor is a Simpson Strong-Tie expansion anchor engineered for fast, reliable installation in concrete and grout-filled block. The preformed curvature along the shaft creates a built-in expansion mechanism that secures the anchor firmly in place, eliminating the need for a secondary tightening procedure and reducing overall installation time. The countersunk head delivers a flush, zero-profile finish ideal for applications where a clean surface is required.
Key Features
- Unique curved shaft design that provides secure placement
- Speeds up anchor installation by eliminating need for additional tightening
- Countersunk head provides a zero-profile solution
- Mechanical galvanizing meets ASTM B695, Class 55, Type 1, intended for some pressure-treated wood sill plate applications; not for use in other corrosive or outdoor environments
Specifications
- MPN: CD25400CMG
- Brand: Simpson Strong-Tie
- Size: 1/4 in. x 4 in.
- Head Type: Countersunk Head
- Material: Carbon Steel
- Coating: Mechanically Galvanized
- Finish: Mechanically Galvanized
- Packaging: Packs of 100 and Cartons of 400
- Country of Origin: Taiwan
Approved Applications
- Fastening wood or light-gauge steel to concrete and grout-filled block
- Attaching concrete formwork
- Hanging overhead support for sprinkler pipes
- Installing suspended ceiling panels
- Pressure-treated wood sill plate applications where mechanical galvanizing is specified
Frequently Asked Questions
- What base materials are compatible with the Simpson CD25400CMG Crimp Drive anchor?
- The CD25400CMG is designed for use in concrete and grout-filled block, making it suitable for a wide range of structural and light construction applications.
- Does this anchor require a secondary tightening step after installation?
- No. The preformed curvature along the shaft acts as a built-in expansion mechanism that secures the anchor in place upon installation, completely eliminating the need for additional tightening and speeding up the installation process.
- Is the CD25400CMG anchor suitable for outdoor or corrosive environments?
- The mechanical galvanizing meets ASTM B695, Class 55, Type 1, and is intended for some pressure-treated wood sill plate applications. It is not intended for use in other corrosive or outdoor environments.
- What is the head style on this anchor, and what advantage does it provide?
- This anchor features a countersunk head, which provides a zero-profile solution by sitting flush with or below the surface of the fixture, making it ideal for applications where a clean, low-profile finish is required.
