Product Description

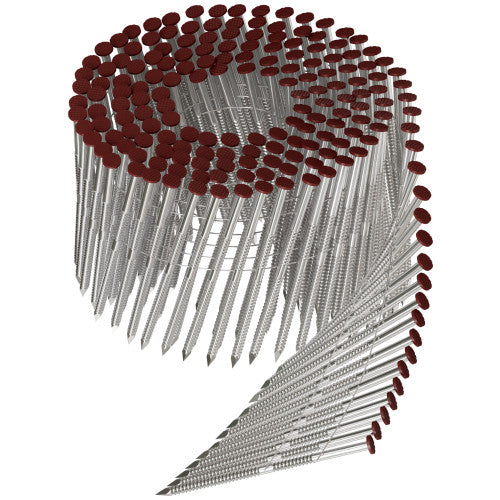

Simpson 3 in. 11-gauge 304 stainless steel 15 deg. wire coil annular ring-shank decking nail - these 10d fasteners are built for outdoor deck construction and framing where corrosion resistance and long-term holding power are non-negotiable. Finished in a Redwood painted color, they pair a full round checkered head with a diamond point and annular ring shank to deliver secure, weather-ready fastening in a 15 deg. wire coil format ready for professional coil nailers.
Key Features
- Annular Ring Shank - dramatically increases withdrawal resistance compared to smooth-shank nails, giving decking and framing connections the grip they need to stay tight over time.
- Type 304 Stainless Steel Construction - provides superior corrosion resistance for outdoor and moisture-exposed environments, keeping fasteners structurally sound through seasons of weather exposure.
- 15 deg. Wire Coil Collation - compatible with a wide range of professional coil nailers, allowing high-volume fastening without frequent reloading interruptions on the job site.
- Full Round Checkered Head - blends with wood grain, reduces glare, and readily accepts surface finishes for a cleaner, more finished appearance on exposed deck surfaces.
- Diamond Point Tip - drives cleanly and consistently through decking material, reducing the chance of splitting or misdirection during installation.
- Redwood Painted Finish - color-coordinates with redwood decking for a low-profile look that keeps nail heads from standing out against the wood surface.
Why This Product
- Corrosion resistance built for the outdoors - Type 304 stainless steel construction means these nails hold up in wet, humid, and moisture-heavy conditions without the rust and staining concerns associated with standard fasteners.
- Superior holding power for demanding applications - the annular ring shank delivers significantly greater withdrawal resistance than smooth-shank alternatives, making these nails a dependable choice for structural decking and framing work where joint integrity matters.
- Professional-grade coil format for efficient workflow - the 15 deg. wire coil configuration works with a broad range of coil nailers, keeping production moving on larger deck projects without constant tool changeovers.
- Finish-forward design for visible surfaces - the Redwood painted color and checkered head pattern are purpose-built for exposed deck applications, letting the finished surface look clean and intentional rather than fastener-heavy.
Specifications
- Model Number (MPN): S11A300PJR
- Coating / Material: Type 304 Stainless Steel
- Penny Size: 10d
- Length: 3 in.
- Head Diameter: 17/64 in.
- Shank Diameter: 0.12 in.
- Shank Type: Annular-Ring Shank
- Head Type: Full Round Head
- Head Pattern: Checkered
- Point Type: Diamond Point
- Collation Angle: 15 Degrees - Wire Coil
- Color: Redwood
- Packaging Quantity: 1,800 Nails
- Country of Origin: United States
Frequently Asked Questions
What type of nailer is compatible with these coil nails?
These nails are configured in a 15-degree wire coil format, which is designed for compatibility with a wide range of professional coil nailers that accept 15-degree wire coil nails.
Why choose an annular ring-shank nail over a smooth-shank nail for decking?
The annular ring shank dramatically increases withdrawal resistance compared to smooth-shank alternatives, providing a more secure and long-lasting attachment in decking and framing applications where holding power is critical.
Are these nails suitable for outdoor and moisture-exposed environments?
Yes. These nails are made from Type 304 stainless steel, which provides superior corrosion resistance, making them well-suited for outdoor and moisture-exposed environments such as deck construction.
Why do these nails have a checkered head pattern and a Redwood painted finish?
The checkered head pattern blends with wood grain, reduces glare from sunlight, and accepts surface finishes for a cleaner finished look. The Redwood painted finish is a color-matched coating that helps the nails blend with redwood decking for a more aesthetically consistent result.
