Product Description

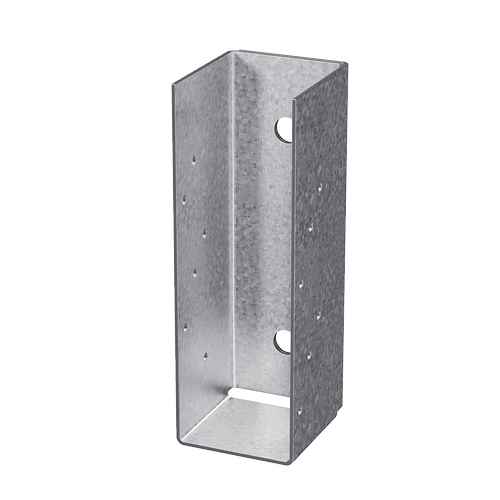

Simpson MBHU3.56/9.25KT MBHU 3-9/16-in. x 9-1/4-in. Galvanized Masonry Beam Hanger with Screws/Anchors is a Simpson Strong-Tie face-mounted connector engineered for attaching beams to masonry or concrete walls. As a non-welded, one-piece design made from 10-gauge steel with a G90 galvanized finish, it delivers durable, corrosion-resistant performance for solid sawn beams, engineered wood beams, and trusses. Installation hardware - including Titen HD screw anchors and Strong-Drive SDS Heavy-Duty Connector screws - is included, making this a complete, ready-to-install solution.
Key Features
- Face-mounted, non-welded, one-piece connector for connecting beams to masonry or concrete walls
- Compatible with solid sawn beams, engineered wood beams, and trusses
- Made from 10-gauge steel for structural strength and rigidity
- Galvanized (G90) finish for corrosion resistance
- Seat width: 3-9/16 inches; seat height: 9-1/4 inches
- Titen HD anchor is installed after the wall is built, making anchor placement easier than with cast-in-place bolts
- Carbon-steel Titen HD is not recommended for exposed exterior applications
- Provide moisture barrier between beam and wall per jurisdictional requirements
- Made in the United States
Specifications
- MPN: MBHU3.56/9.25KT
- Member Size: 3-9/16 in. x 9-1/4 in.
- Seat Width: 3-9/16 inches
- Seat Height: 9-1/4 inches
- Gauge: 10
- Coating/Finish: Zinc Galvanized, G90
- Country of Origin: United States
- Install With: Install with Titen HD screw anchors and Strong-Drive SDS Heavy-Duty Connector screws (included)
What's Included
- (2) 3/4-in. x 5-in. Titen HD anchors
- (12) 1/4-in. x 2-1/2-in. Strong-Drive SDS Heavy-Duty Connector screws
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What types of beams is the MBHU3.56/9.25KT compatible with?
- The MBHU beam hanger is suitable for solid sawn beams, engineered wood beams, and trusses, providing a versatile face-mounted connection option for a range of structural applications.
- Is the Titen HD anchor suitable for exposed exterior applications?
- No. The carbon-steel Titen HD anchor included with this hanger is not recommended for exposed exterior applications. Additionally, a moisture barrier should be provided between the beam and wall per jurisdictional requirements.
- Does this hanger include all the hardware needed for installation?
- Yes. The kit includes (2) 3/4-in. x 5-in. Titen HD anchors and (12) 1/4-in. x 2-1/2-in. Strong-Drive SDS Heavy-Duty Connector screws, so no additional fasteners need to be sourced separately for standard installation.
- What is the advantage of using a post-installed Titen HD anchor versus cast-in-place bolts?
- Because the Titen HD anchor is installed after the wall is built, locating the anchor in the correct position is easier and more precise compared to cast-in-place bolts, which must be set before the wall is completed.
Note: Product dimensions may differ from picture. Please see item description for specifications.
