Product Description

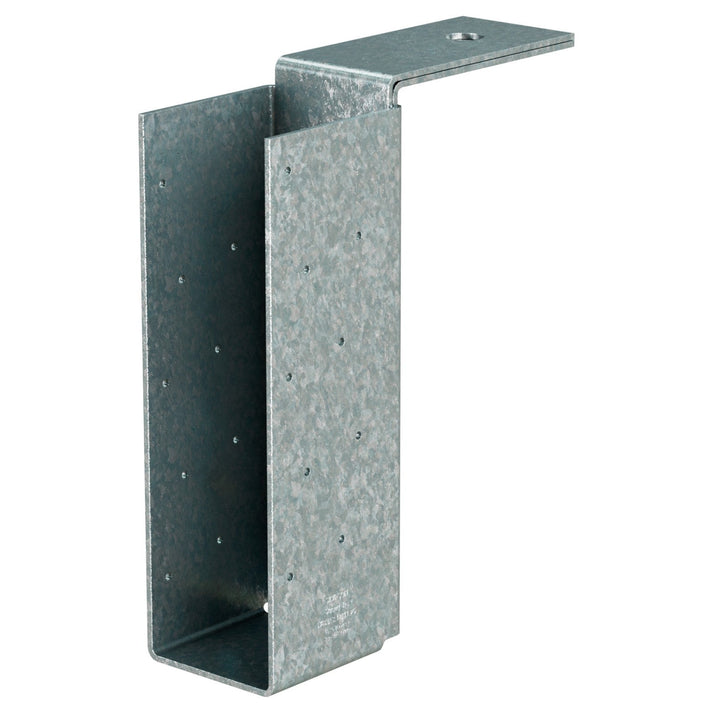

Simpson MBHA5.50/18 Masonry Hanger is a heavy-duty concrete and masonry top-flange hanger engineered by Simpson Strong-Tie for reliable structural connections in a wide range of framing applications. This single-piece, non-welded connector is designed to accommodate solid sawn lumber, truss systems, and engineered wood products, offering exceptional versatility and strength in masonry and concrete construction.
Key Features
- Single-piece, non-welded construction for consistent structural integrity
- Compatible with solid sawn lumber, truss assemblies, and engineered wood products
- G90 galvanized finish provides durable corrosion protection
- Seat can be skewed up to 45 degrees to accommodate a wide variety of installation angles
- Fabricated from 10-gauge steel for robust load-bearing performance
- Top-flange design for secure masonry and concrete bearing surface connections
- Made in the United States

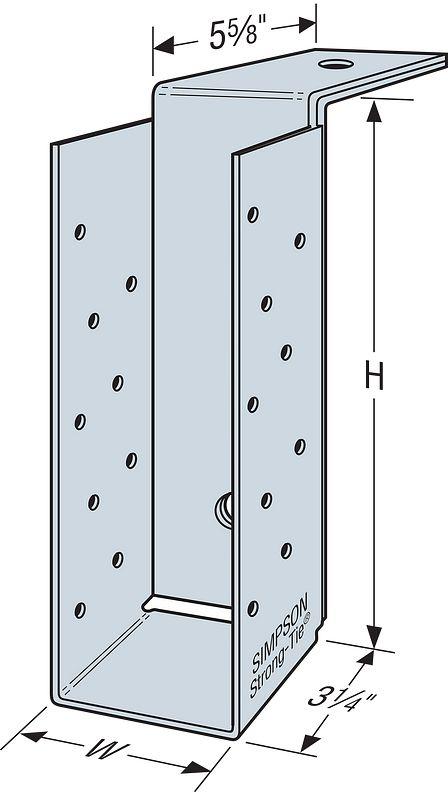

Specifications
- Model No.: MBHA5.50/18
- Width (W): 5-1/2 in.
- Height (H): 18 in.
- CL: 2-3/4 in.
- Material: 10 gauge steel
- Finish: Galvanized (G90)
- Country of Origin: United States
Options
- Seat can be skewed at 45 deg. only.
- Contact us for Configurable Options and Special orders
- The maximum allowable download is 3,495 lb. and 1,585 lb. uplift for height 7 1/4". For all other models, use the table listed download and uplift of 2,390 lb. Order MBHAR for skew right and MBHAL for skew left.
Frequently Asked Questions
- What types of lumber and framing systems is the MBHA5.50/18 compatible with?
- The MBHA5.50/18 is designed to work with solid sawn lumber, truss assemblies, and engineered wood products, making it a versatile solution for a broad range of framing applications in masonry and concrete construction.
- Can the hanger be installed at an angle?
- Yes. The seat of the MBHA5.50/18 can be skewed at 45 degrees only, allowing it to adapt to angled framing conditions. Order MBHAR for a skew right configuration and MBHAL for skew left.
- What are the load capacities for this hanger?
- For the 7-1/4" height, the maximum allowable download is 3,495 lb. and the uplift capacity is 1,585 lb. For all other models, the table listed download and uplift capacity is 2,390 lb.
- What finish does the MBHA5.50/18 have, and does it provide corrosion resistance?
- The MBHA5.50/18 features a G90 galvanized finish, which provides a durable layer of corrosion protection suitable for use in demanding construction environments.
Note: Product dimensions may differ from picture. Please see item description for specifications.
