Product Description

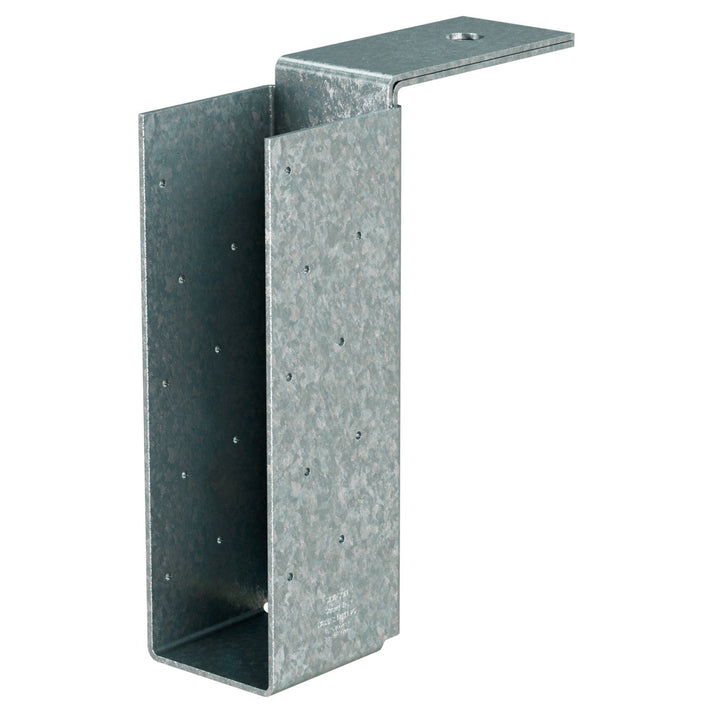

Simpson MBHA5.50/16 MBHA 5-1/2 in. x 16 in. Galvanized Top-Flange Concrete and Masonry Hanger is a professional-grade connector engineered by Simpson Strong-Tie for anchoring solid sawn, truss, and engineered wood products to concrete and masonry. As a single-piece, non-welded top-flange hanger, the MBHA delivers the structural reliability and manufacturing quality that engineers and contractors depend on for compliant, long-lasting construction.
Key Features
- Available skewed at 45 deg. only; order MBHAR for skew right and MBHAL for skew left

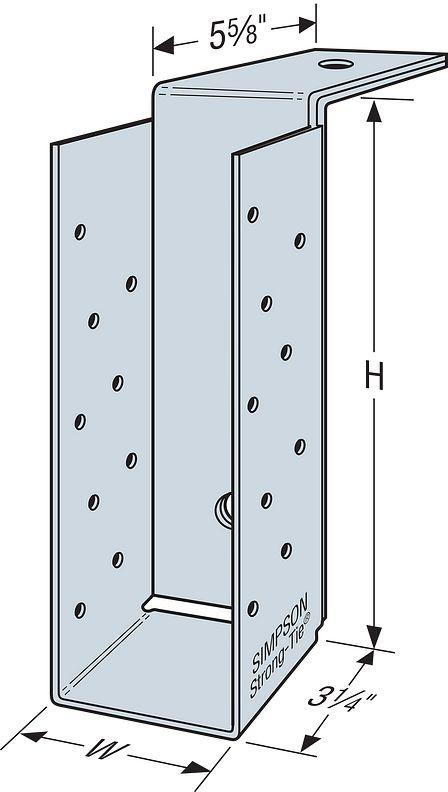

- Seat Width: 5-1/2 in.
- Height to bottom of flange: 16 in.
- Made from 10-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- MPN: MBHA5.50/16
- Brand: Simpson Strong-Tie
- Member Size: 5-1/2 in. x 16 in.
- Seat Width: 5-1/2 in.
- Height to Bottom of Flange: 16 in.
- Gauge: 10
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Country of Origin: United States
Options
- Seat can be skewed at 45 deg. only.
- Contact us for Configurable Options and Special orders
- The maximum allowable download is 3,495 lb. and 1,585 lb. uplift for height 7 1/4". For all other models, use the table listed download and uplift of 2,390 lb. Order MBHAR for skew right and MBHAL for skew left.
Frequently Asked Questions
- What types of wood products is the MBHA5.50/16 compatible with?
- The MBHA5.50/16 is a single-piece, non-welded connector designed for use with solid sawn lumber, truss, and engineered wood products when attaching to concrete or masonry structures.
- What is the seat width and height of this hanger?
- The MBHA5.50/16 has a seat width of 5-1/2 in. and a height to the bottom of the flange of 16 in., making it suitable for correspondingly sized structural members.
- What corrosion protection does this hanger offer?
- This hanger features a G90 zinc galvanized coating, which provides an elevated level of corrosion resistance suitable for demanding construction environments.
- Can this hanger be used in a skewed installation, and how do I order the correct version?
- Yes, the MBHA is available skewed at 45 deg. only. For a skew-right configuration, order the MBHAR; for a skew-left configuration, order the MBHAL.
Note: Product dimensions may differ from picture. Please see item description for specifications.
