Product Description

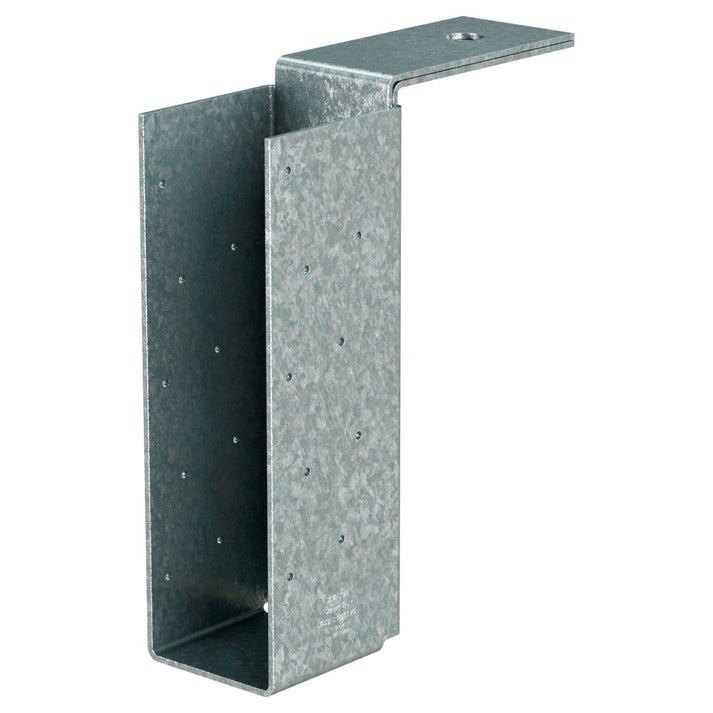

Simpson MBHA5.50/14 MBHA 5-1/2 in. x 14 in. Galvanized Top-Flange Concrete and Masonry Hanger by Simpson Strong-Tie is a single piece, non-welded top-flange connector designed for use with solid sawn, truss, and engineered wood products in concrete and masonry applications. Engineered and tested to perform, this hanger is manufactured to the highest quality standards and is the trusted choice of engineers and contractors for projects that demand strength and safety.
Key Features
- Available skewed at 45 deg. only; order MBHAR for skew right and MBHAL for skew left

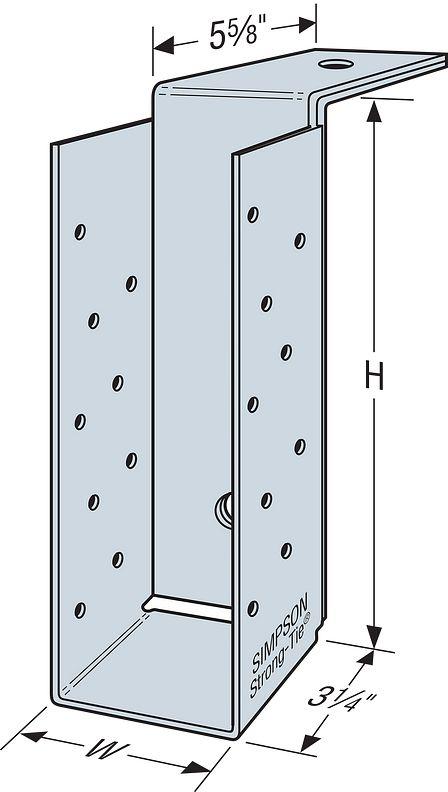

- Seat Width: 5-1/2 in.
- Height to bottom of flange: 14 in.
- Made from 10-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- MPN: MBHA5.50/14

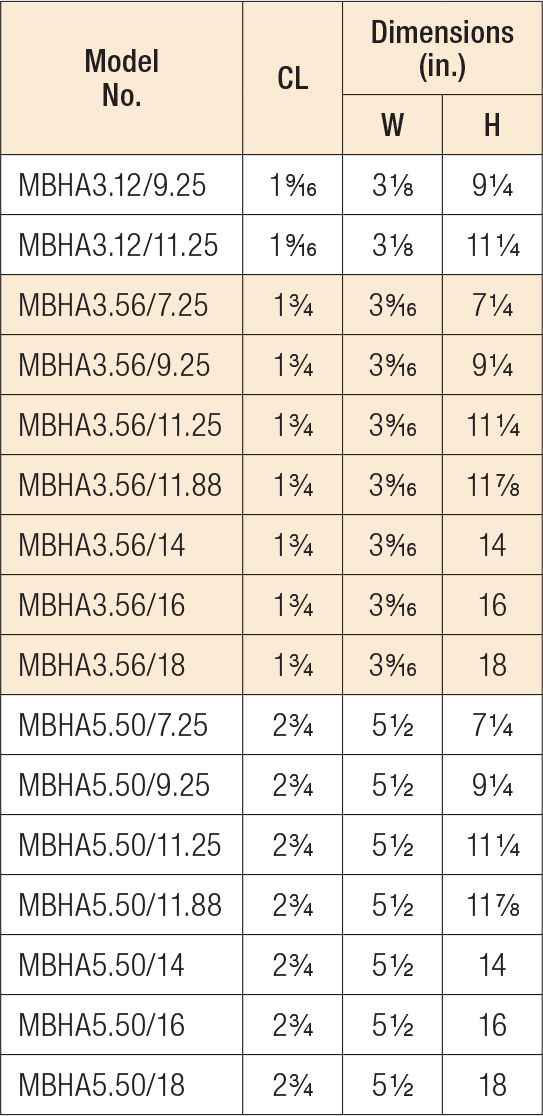

- Member Size: 5-1/2 in. x 14 in.
- Seat Width: 5-1/2 in.
- Height to Bottom of Flange: 14 in.
- Gauge: 10-gauge steel
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Country of Origin: United States
Options
- Seat can be skewed at 45 deg. only.
- Contact us for Configurable Options and Special orders
- The maximum allowable download is 3,495 lb. and 1,585 lb. uplift for height 7 1/4". For all other models, use the table listed download and uplift of 2,390 lb. Order MBHAR for skew right and MBHAL for skew left.
Frequently Asked Questions
- What type of connector is the Simpson MBHA5.50/14?
- The MBHA5.50/14 is a single piece, non-welded top-flange concrete and masonry hanger. It is compatible with solid sawn, truss, and engineered wood products.
- What are the dimensions of this hanger?
- This hanger has a seat width of 5-1/2 in. and a height to the bottom of the flange of 14 in., corresponding to a member size of 5-1/2 in. x 14 in.
- What finish does the MBHA5.50/14 have, and why does it matter?
- This hanger features a Zinc Galvanized G90 finish, which provides extra corrosion resistance, making it well-suited for applications where exposure to moisture is a concern.
- Can this hanger be installed at an angle?
- Yes, the MBHA5.50/14 seat can be skewed at 45 deg. only. For a right skew, order the MBHAR model, and for a left skew, order the MBHAL model.
Note: Product dimensions may differ from picture. Please see item description for specifications.
