Product Description

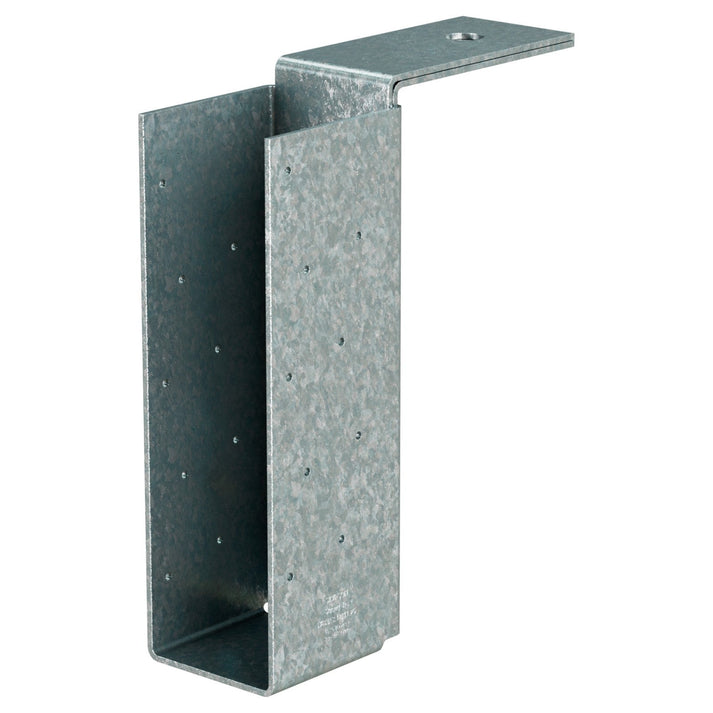

Simpson MBHA3.12/11.25 MBHA 3-1/8 in. x 11-1/4 in. Galvanized Top-Flange Concrete and Masonry Hanger by Simpson Strong-Tie is a single-piece, non-welded top-flange connector engineered for use with solid sawn, truss, and engineered wood products in concrete and masonry applications. Designed to make projects stronger and safer, this hanger is manufactured to the highest quality standards and is the trusted choice of engineers and contractors.
Key Features
- Single-piece, non-welded construction for consistent strength and reliability
- Seat can be skewed at 45 deg. only; order MBHAR for skew right and MBHAL for skew left
- Seat width of 3-1/8 in. accommodates standard member sizes
- Height to bottom of flange is 11-1/4 in. for deep-beam applications
- Made from 10-gauge steel for a strong, durable connection
- G90 galvanized finish provides extra corrosion resistance for long-term performance
- Compatible with solid sawn, truss, and engineered wood products
Specifications
- MPN: MBHA3.12/11.25
- Brand: Simpson Strong-Tie

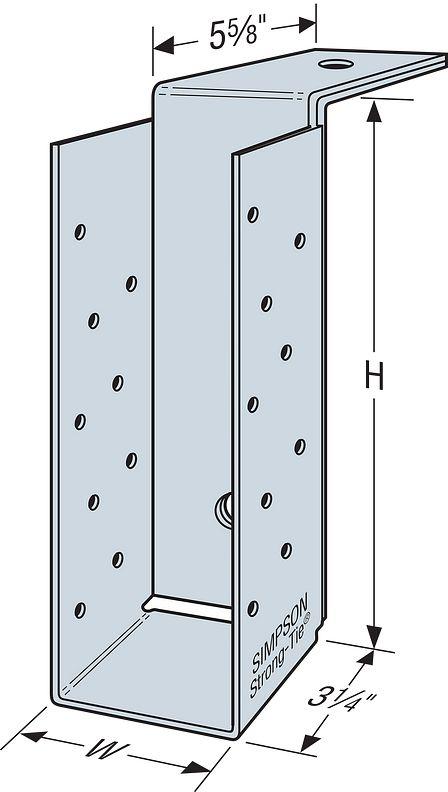

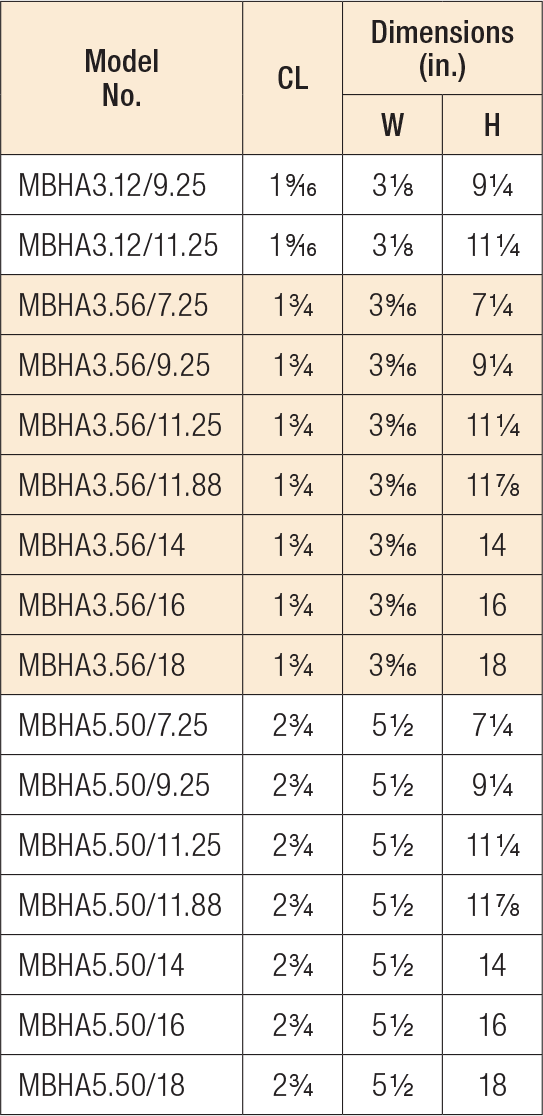

- Member Size: 3-1/8 in. x 11-1/4 in.
- Seat Width: 3-1/8 in.
- Height to Bottom of Flange: 11-1/4 in.
- Material Gauge: 10-gauge steel
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Country of Origin: United States
Options
- Seat can be skewed at 45 deg. only.
- Contact us for Configurable Options and Special orders
- The maximum allowable download is 3,495 lb. and 1,585 lb. uplift for height 7 1/4". For all other models, use the table listed download and uplift of 2,390 lb. Order MBHAR for skew right and MBHAL for skew left.
1/2
Frequently Asked Questions
- What type of wood products is the MBHA3.12/11.25 compatible with?
- The MBHA is designed for use with solid sawn lumber, truss systems, and engineered wood products, making it versatile for a wide range of construction applications in concrete and masonry structures.
- Can the seat on this hanger be skewed, and are there other skew options available?
- Yes, the seat can be skewed at 45 deg. only. For a right-skew configuration, order the MBHAR, and for a left-skew configuration, order the MBHAL.
- What corrosion protection does the MBHA3.12/11.25 offer?
- This hanger features a G90 zinc galvanized finish, which provides an enhanced level of corrosion resistance compared to standard galvanized coatings, making it suitable for demanding environments.
- Is the MBHA3.12/11.25 a welded or fabricated assembly?
- The MBHA is a single-piece, non-welded connector. This one-piece construction ensures consistent quality and structural integrity throughout the hanger.
Note: Product dimensions may differ from picture. Please see item description for specifications.
