Product Description

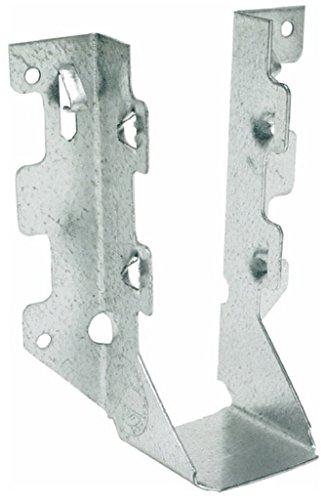

The Simpson LUS26 LUS Galvanized Face-Mount Joist Hanger for 2x6 by Simpson Strong-Tie is an easy-to-install, economical face-mount hanger engineered to support joists, rafters, and beams with a strong, reliable connection. Featuring a patented double-shear nailing design, this widely used hanger distributes load through two points on each joist nail for greater strength - allowing for fewer nails, faster installation, and the use of all common nails for the same connection.
Key Features
- Patented double-shear nailing design provides greater strength with fewer nails
- Speed prongs for fast and easy installation
- Angled joist nailing easier in tight spaces
- Do not bend or remove tabs
- Nominal joist size: 2x6 and 2x8
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Tested, load rated, and code compliant
- Cannot be modified
Specifications
- MPN: LUS26
- Brand: Simpson Strong-Tie
- Member Size: 2x6 and 2x8
- Gauge: 18
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Width: 1-9/16 in.
- Height: 4-3/4 in.
- B Dimension: 1-3/4 in.
- Country of Origin: ZZ
Approved Applications
- Face-mount joist hanger applications for solid sawn lumber
- Supporting joists, rafters, or beams where load-bearing connection is required
- Suitable for a wide range of common lumber framing applications
- Not designed for welded or nailer applications
Frequently Asked Questions
- What fasteners should be used to install the Simpson LUS26?
- Install with Simpson Strong-Tie Strong-Drive SD Connector screws: (4) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (8) 0.148 in. x 3 in. Strong-Drive SCN Smooth-Shank Connector nails (Models: SD9112, SD9212, 10DHDG). Always use all specified fasteners and refer to the load tables for full requirements.
- What is the benefit of the double-shear nailing design on the LUS26?
- The patented double-shear nailing design distributes the load through two points on each joist nail, which provides greater strength. This means fewer nails are needed for the same connection, resulting in faster installation while still meeting load requirements.
- Can the tabs on the LUS26 hanger be bent or removed to fit a specific application?
- No. The tabs on the LUS26 must not be bent or removed. This hanger cannot be modified. Altering the connector may compromise its structural integrity and void its load rating and code compliance.
- What lumber sizes does the Simpson LUS26 support?
- The LUS26 is designed for a nominal joist size of 2x6 and 2x8 lumber. It is constructed from 18-gauge steel with a G90 galvanized coating for enhanced corrosion resistance, making it suitable for treated lumber applications.
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
