Product Features
Product Description

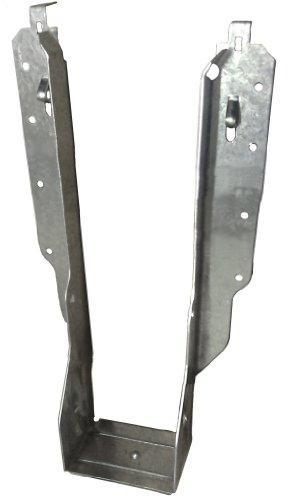

Simpson IUS2.56/9.5 IUS Galvanized Face-Mount Joist Hanger for 2-1/2 in. x 9-1/2 in. Engineered Wood by Simpson Strong-Tie is a hybrid hoist hanger engineered to combine the advantages of both face-mount and top-mount hanger designs. Fully compatible with shallow-flange I-joists, this hanger delivers a strong, reliable connection beneath the joist while keeping installation fast and straightforward thanks to its innovative Strong-Grip seat, self-jigging locator tabs, and easy-to-reach face nails.
Key Features
- Installation is fast with the Strong-Grip seat, easy-to-reach face nails and self-jigging locator tabs
- Fasten hanger to header; position I-joist into hanger and snap into place
- Seat width: 2-5/8 in.
- Height: 9-1/2 in.
- Actual joist size: 2-1/2 in. to 2-9/16 in. x 9-1/2 in.
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- Model Number: IUS2.56/9.5
- Member Size: 2-1/2 in. to 2-9/16 in. x 9-1/2 in.
- Seat Width (W): 2-5/8 in.
- Height (H): 9-1/2 in.
- Gauge: 18
- Coating/Finish: Zinc Galvanized, G90
- Install With: 10d common nails
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What type of joists is the IUS2.56/9.5 compatible with?
- The IUS2.56/9.5 is fully compatible with shallow-flange I-joists and is designed to accommodate an actual joist size of 2-1/2 in. to 2-9/16 in. x 9-1/2 in., making it well-suited for engineered wood applications.
- What fasteners are recommended for installing this joist hanger?
- This hanger is designed to be installed with 10d common nails. The easy-to-reach face nail positions help speed up the fastening process during installation.
- What is the Strong-Grip seat and how does it benefit installation?
- The Strong-Grip seat is a feature that allows the I-joist to snap securely into place without requiring joist nails through the seat, resulting in a faster and more efficient installation process. Combined with the self-jigging locator tabs, the hanger self-positions for accuracy and speed.
- What corrosion protection does the IUS2.56/9.5 offer?
- The IUS2.56/9.5 features a Zinc Galvanized, G90 coating, which provides extra corrosion resistance suitable for demanding construction environments. The hanger body is formed from 18-gauge steel for structural integrity.
Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
