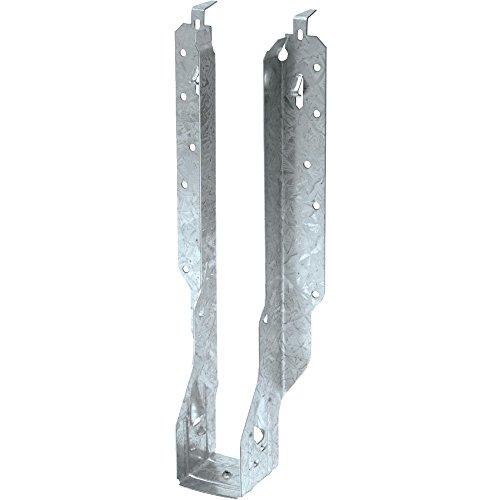

The Simpson IUS2.37/11.88 IUS Galvanized Face-Mount Joist Hanger is a hybrid connector engineered specifically for 2-5/16 in. x 11-7/8 in. engineered wood I-joists. Built by Simpson, this hanger combines the advantages of both face-mount and top-mount hanger designs into a single solution, with a Strong-Grip seat that allows the I-joist to snap securely into place without the need for joist nails - reducing installed cost and keeping framing projects moving. Easy-to-reach face nails and self-jigging locator tabs make positioning straightforward, even in fast-paced production framing environments.

Key Features

• Strong-Grip seat snaps the I-joist into place without joist nails - eliminates a nailing step at each joist location, lowering labor time and overall installed cost
• Hybrid face-mount and top-mount design - gives installers the flexibility and strength benefits of both hanger styles in one connector
• Self-jigging locator tabs - align the hanger automatically during placement so you spend less time measuring and more time installing
• Locator tabs can be bent back - allows adjustment for hanger placement or leaves a completely smooth top surface when needed for your application
• Accommodates skews of up to 5 deg. - provides flexibility for installations that are not perfectly square without requiring a specialty hanger
• Made from 18-gauge steel with a G90 zinc galvanized finish - delivers corrosion resistance suited for demanding structural environments
• IUS-series hangers are tested, load rated, and code compliant - gives builders and inspectors confidence that the connection meets recognized structural standards

Why This Product

• Faster installation without sacrificing holding strength - the Strong-Grip seat locks engineered wood I-joists into position without joist nails, cutting steps from the installation process while maintaining a secure, load-rated connection
• Purpose-built for engineered lumber - sized precisely for 2-5/16 in. x 11-7/8 in. I-joists, this hanger fits engineered wood members the way standard hangers fit dimensional lumber, reducing the guesswork that comes with mixed framing systems
• Installer-friendly details that add up on the job site - easy-to-reach face nail positions, self-jigging tabs, and adjustable locator tabs all reduce the small frustrations that slow down repetitive hanger installation
• Tested, rated, and code compliant out of the box - the IUS series carries load ratings and meets code requirements, so contractors and inspectors are not left questioning whether the connection is approved for structural use

Specifications

• Model Number: IUS2.37/11.88
• Actual Joist Size: 2-5/16 in. x 11-7/8 in.
• Seat Width (W): 2-7/16 in.
• Height (H): 11-7/8 in.
• Steel Gauge: 18
• Coating/Finish: Zinc Galvanized, G90
• Install With: 10d common nails (sold separately)
• Member Size: 2-5/16 in. x 11-7/8 in.

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What type of joist is this hanger designed to support?

The IUS2.37/11.88 is designed for engineered wood I-joists with an actual member size of 2-5/16 in. x 11-7/8 in.

Do I need joist nails to secure the I-joist in this hanger?

No. The Strong-Grip seat feature allows the I-joist to snap securely into place without the need for joist nails, which helps reduce installation time and overall installed cost.

What nails should be used to install this hanger?

This hanger should be installed with 10d common nails.

Can this hanger accommodate angled or skewed installations?

Yes. IUS-series models will normally accommodate a skew of up to 5 deg.. Additionally, the locator tabs may be bent back to adjust for hanger placement or to leave a completely smooth top surface.

Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
