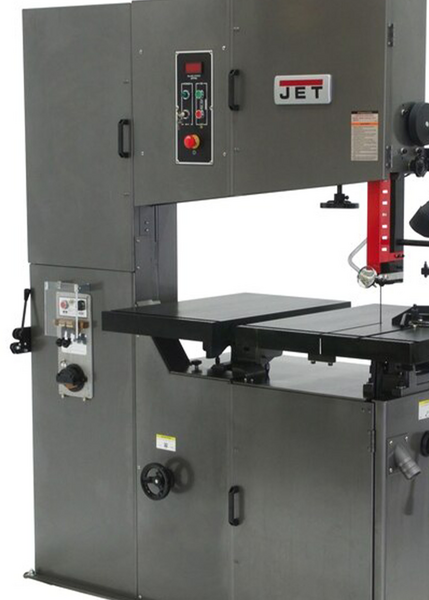

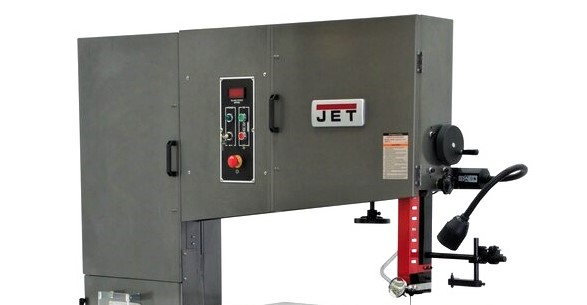

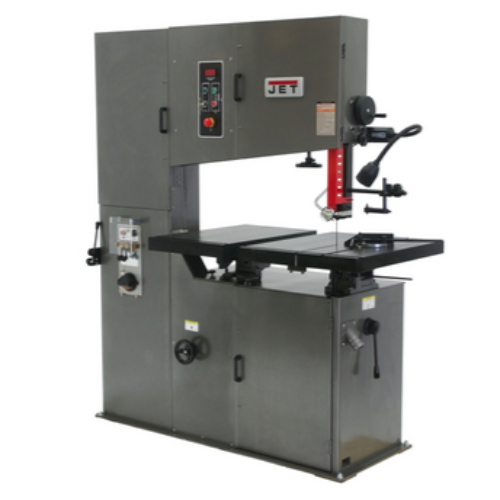

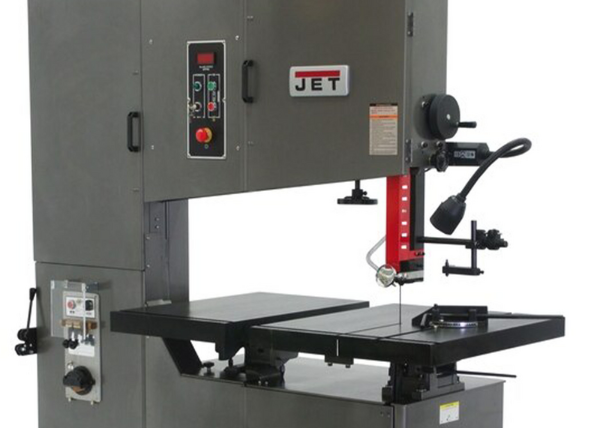

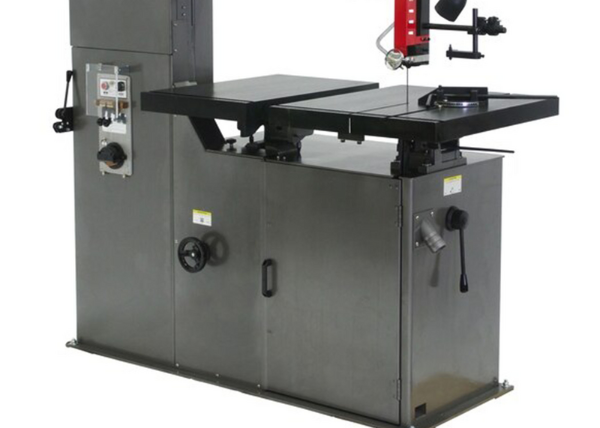

JET VBS-3612 36" Vertical Bandsaw (3PH, 460V) - MPN: JT9-414470-4 - is a heavy-duty JET vertical bandsaw engineered for machine and fabrication professionals who demand power, precision, and versatility in high-production environments. Built around a completely enclosed steel frame and a three-wheel system, this industrial bandsaw delivers a full 36-inch throat capacity along with twin extra-large worktables, making it exceptionally capable of handling large production pieces with consistent accuracy.
Key Features
- Heavy-duty, completely enclosed steel frame for maximum rigidity and long-term durability in demanding production environments
- Three wheel system for cutting wide pieces, enabling the full 36-inch throat capacity that sets this machine apart
- Two-Speed transmission and variable speed allow for a wide range of blade speeds, adapting to diverse cutting applications and materials
- Multi-tilting worktable provides flexible workpiece positioning for angled and compound cuts
- Heavy-duty bandsaw, can handle large production pieces on its extra-large twin tables
- Easy to read blade tension indicator takes the guesswork out of blade setup and helps ensure consistent cut quality
- Bi-Metal blade welder, grinder, and cutter included for on-site blade fabrication and maintenance
- Blade and tire cleaning brush keeps critical components free of debris for smooth, uninterrupted operation
- Exclusive gear box design permits a variety of cutting applications
Specifications
- Stock Number: JT9-414470-4
- Model Number: VBS-3612
- Drive Type: Variable Speed
- Blade Speeds (SFPM): 50 - 4,925
- Blade Width (Min.-Max.) (In.): 1/8 - 1
- Height Capacity (Max.) (In.): 12
- Throat Capacity (In.): 36
- Motor: 3 HP, 230/460V, 3Ph
- Table Size (L x W) (In.): 23-5/8 x 27-1/2, 17-3/4 x 27-1/2
- Table Height (In.): 40
- Overall Dimensions (L x W x H) (In.): 69 x 32 x 81
- Weight (Lbs.): 1760
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
What's Included
- 1/4" x 14/18VT Bi-metal blade
- Bi-Metal blade welder, grinder, and cutter
- Blade and tire cleaning brush
Frequently Asked Questions
- What is the throat capacity of the JET VBS-3612, and why does it matter for production work?
- The VBS-3612 offers a 36-inch throat capacity, which represents the distance from the blade to the vertical support column. This generous capacity is made possible by the three wheel system for cutting wide pieces, allowing fabricators to cut significantly larger workpieces than standard two-wheel bandsaws permit. Combined with the extra-large twin tables, it is well-suited for heavy production environments.
- What blade speed range does the VBS-3612 support?
- The VBS-3612 offers blade speeds ranging from 50 to 4,925 SFPM. This wide range is achieved through the combination of a two-speed transmission and variable speed drive, allowing operators to select the optimal speed for different materials and cutting applications.
- Does the VBS-3612 include blade welding and maintenance equipment?
- Yes. The machine comes equipped with a bi-metal blade welder, grinder, and cutter, enabling on-site blade fabrication and maintenance. A blade and tire cleaning brush is also included to keep essential components clean and functioning properly during operation.
- What power supply does the JET VBS-3612 require?
- This specific model - MPN JT9-414470-4 - is configured for 460V, 3-Phase electrical service. The motor is rated at 3 HP. Ensure your facility's power infrastructure matches these requirements before installation. Note that this machine also carries a Prop 65 warning for Cancer and Reproductive Harm.
