Product Features
Product Description

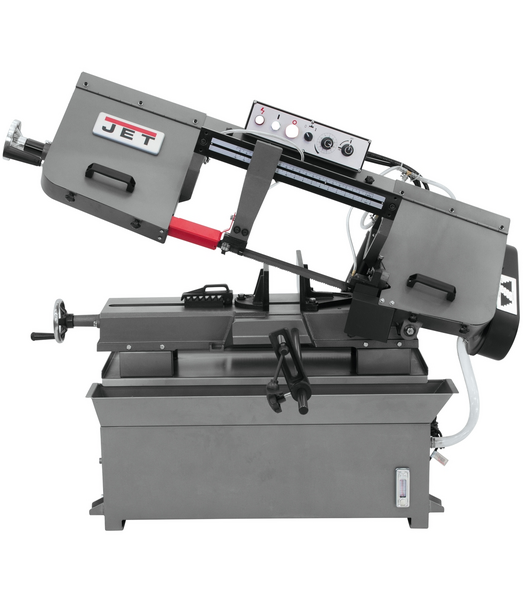

JET HBS-916 9" x 16" Horizontal Bandsaw is a heavy-duty belt drive bandsaw from JET engineered for demanding metal cutting operations where precision, capacity, and reliable performance are non-negotiable. With a robust 1-1/2 HP motor, a generous 9" x 16" cutting capacity, and a suite of professional-grade features including carbide blade guides, a fully adjustable hydraulic downfeed, and a quick-positioning vise that swivels to 45 deg., this machine delivers consistent, repeatable cuts across a wide range of materials and production environments.
Key Features
- Adjustable Material Stop for repeatable, accurate cuts without re-measuring
- Carbide blade guides feature parallel double-row ball bearing support for superior blade stability and longevity
- Built-in, self-propelled blade brush extends blade life by keeping the blade clean during operation
- Coolant is distributed through the blade guides, delivering lubrication precisely where it is needed most
- Fully adjustable hydraulic downfeed with separate on/off control valve gives the operator complete control over feed rate
- Large hand wheel and built-in gauge provides easy blade tensioning, eliminating guesswork
- Proprietary oversized chip tray design minimizes over spray and reduces clean up
- Quick-positioning vise with fully adjustable jaws swivels to 45 deg. for versatile angle cutting
- Belt Drive power transmission for smooth, consistent blade speed across four selectable speeds
Specifications
- MPN: JT9-414468-2
- Model Number: HBS-916
- Motor: 1-1/2 HP, 115/230V, 1Ph
- Prewired Voltage: 115V
- Drive: Belt Drive
- Blade Speed (SFPM): 82, 132, 170, 235
- Blade Wheel Diameter: 13 in.
- Cutting Capacity (W x D): 9 x 16 in.
- Round at 90 Degrees: 9 in.
- Round at 45 Degrees: 6-1/8 in.
- Rectangle at 90 Degrees: 8-1/2 x 14 in. and 2 x 16 in.
- Rectangle at 45 Degrees: 9 x 6-1/8 in.
- Vise Swivels: 45 deg.
- Overall Dimensions (L x W x H): 65 x 28 x 42 in.
- Weight: 818 lbs.
- Country of Origin: United States
Frequently Asked Questions
- What are the available blade speeds on the HBS-916?
- The HBS-916 offers four selectable blade speeds: 82, 132, 170, and 235 SFPM, allowing operators to match the speed to the specific material being cut for optimal performance and blade life.
- Can the vise be positioned for angled cuts?
- Yes. The quick-positioning vise features fully adjustable jaws and swivels to 45 deg., making it straightforward to set up and secure workpieces for both 90-degree and miter cuts.
- How does the coolant system work on this bandsaw?
- Coolant is distributed through the blade guides, delivering lubrication directly at the point of contact. This integrated approach improves cut quality, reduces heat buildup, and helps extend blade life during prolonged cutting operations.
- What is the maximum round cutting capacity at 90 degrees?
- The HBS-916 has a maximum round cutting capacity of 9 in. at 90 degrees and 6-1/8 in. at 45 degrees, while rectangular capacity at 90 degrees is 8-1/2 x 14 in. and 2 x 16 in.
