Product Features
Product Description

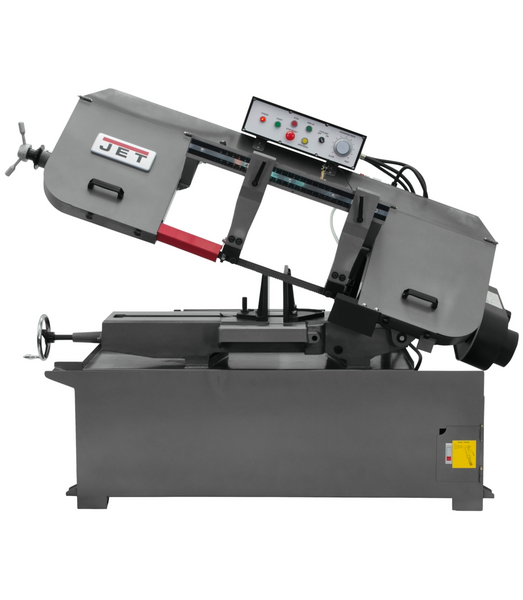

JET HBS-1321W 13" x 21" Semi-Auto Horizontal Bandsaw (460V) - MPN: JT9-414471-4 - delivers professional-grade cutting performance through a fully semi-automatic design that raises the bow to a predetermined height after each cut is complete. Built by JET for demanding industrial and shop environments, this heavy-duty horizontal bandsaw combines variable blade speed control, advanced hydraulic downfeed, and multiple safety systems to keep every cut accurate, efficient, and safe. The easy-access chip tray with cleaning hose and nozzle makes cleanup fast, while the quick-positioning vise dramatically reduces setup time between cuts.
Key Features
- Adjustable Material Stop for repeatable, precise cuts
- Built-in, self-propelled blade brush extends blade life
- Carbide blade guides with roller bearings for smooth, accurate tracking
- Coolant is distributed through the blade guides to manage heat and extend blade life
- Fully adjustable hydraulic downfeed controls the rate of descent for consistent cutting pressure
- Large hand wheel and built-in gauge provides easy blade tensioning
- Quick-positioning vise lessons set-up time between workpieces
- Safety switch shuts off motor if band breaks, protecting the operator and machine
- Variable blade speed allows optimum cutting performance across a wide range of materials
- Semi-automatic bow raises to a predetermined height automatically after each cut is complete
- Easy-access chip tray with cleaning hose and nozzle for fast, convenient cleanup
Specifications
- Stock Number: JT9-414471-4
- Model Number: HBS-1321W
- Blade Speeds: 80-260 SFPM
- Blade Wheel Diameter: 18 in.
- Drive: Variable Speed
- Motor: 3 HP, 230/460V, 3Ph
- Round at 90 Degrees: 13 in.
- Round at 45 Degrees: 10-1/2 in.
- Rectangle at 90 Degrees: 10 x 21 in. and 13 x 19 in.
- Rectangle at 45 Degrees: 11-1/2 x 10-1/2 in.
- Vise Swivels: 45 deg.
- Overall Dimensions (L x W x H): 84 x 32-1/2 x 55 in.
- Net Weight: 1320 lbs.
- Gross Weight: 1518 lbs.
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What blade speed range does the JET HBS-1321W offer, and why does it matter?
- The HBS-1321W operates at variable blade speeds ranging from 80-260 SFPM. This variable speed capability allows optimum cutting performance by letting the operator dial in the right speed for different materials - slower speeds for harder metals and faster speeds for softer materials - reducing blade wear and improving cut quality.
- How does the hydraulic downfeed system work on this bandsaw?
- The fully adjustable hydraulic downfeed controls the rate of descent of the saw bow, allowing the operator to set a consistent, controlled cutting pressure throughout the cut. This prevents blade stalling, reduces blade stress, and produces cleaner, more precise cuts across varying material thicknesses and densities.
- What safety features are built into the HBS-1321W?
- The HBS-1321W includes a dedicated safety switch that automatically shuts off the motor if the band breaks, protecting both the operator and the machine from damage. Additionally, the variable blade speed system and fully adjustable hydraulic downfeed help prevent overloading the blade during operation.
- What cutting capacities does the JET HBS-1321W support?
- The HBS-1321W handles round stock up to 13 in. at 90 degrees and up to 10-1/2 in. at 45 degrees. For rectangular cuts at 90 degrees, it accommodates up to 10 x 21 in. and 13 x 19 in., and at 45 degrees up to 11-1/2 x 10-1/2 in. The vise also swivels up to 45 deg. for angled cuts.
