Product Features
Product Description

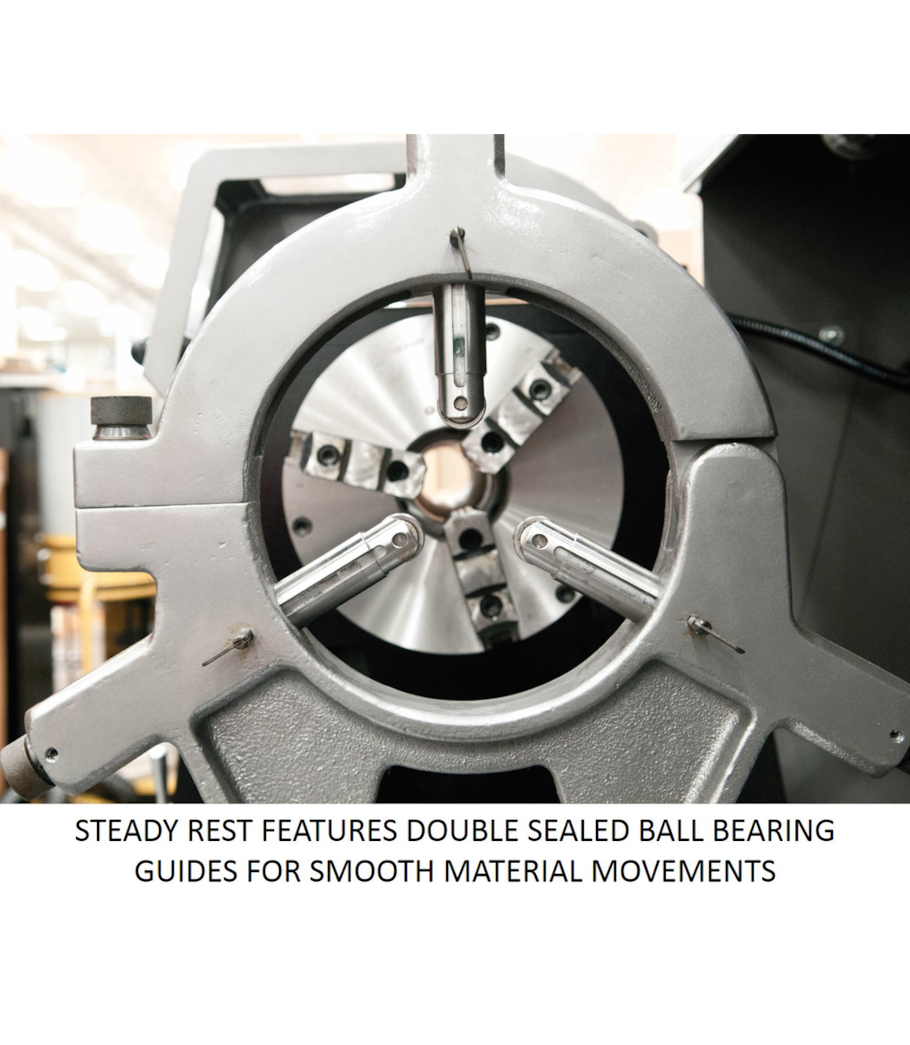

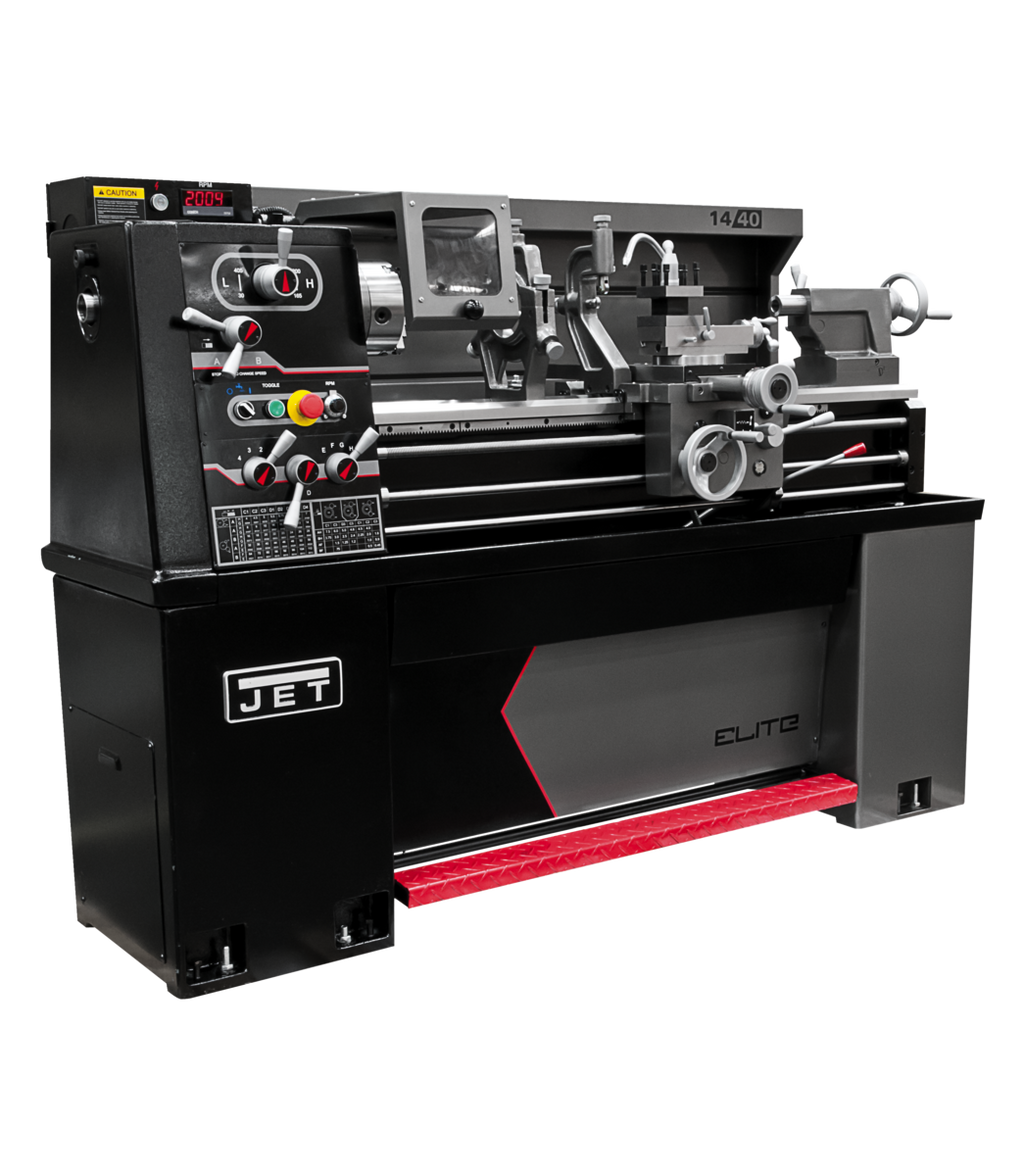

JET E-1440VS Elite EVS Lathe with Newall DP700 DRO with Collet Closer is a precision-engineered EVS lathe from JET designed for schools, small shops, and engineering labs that demand large-machine capability in a compact footprint. Certified Meehanite castings, an electro-magnetic brake, a three-jaw chuck, ball bearing-mounted steady and follow rests, and CNC-style lighting with enclosed splash guard combine to deliver a genuinely elite turning experience. CSA/CUS Certified.
Key Features
- 4-Position Carriage Stop for repeatable, precise positioning
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine

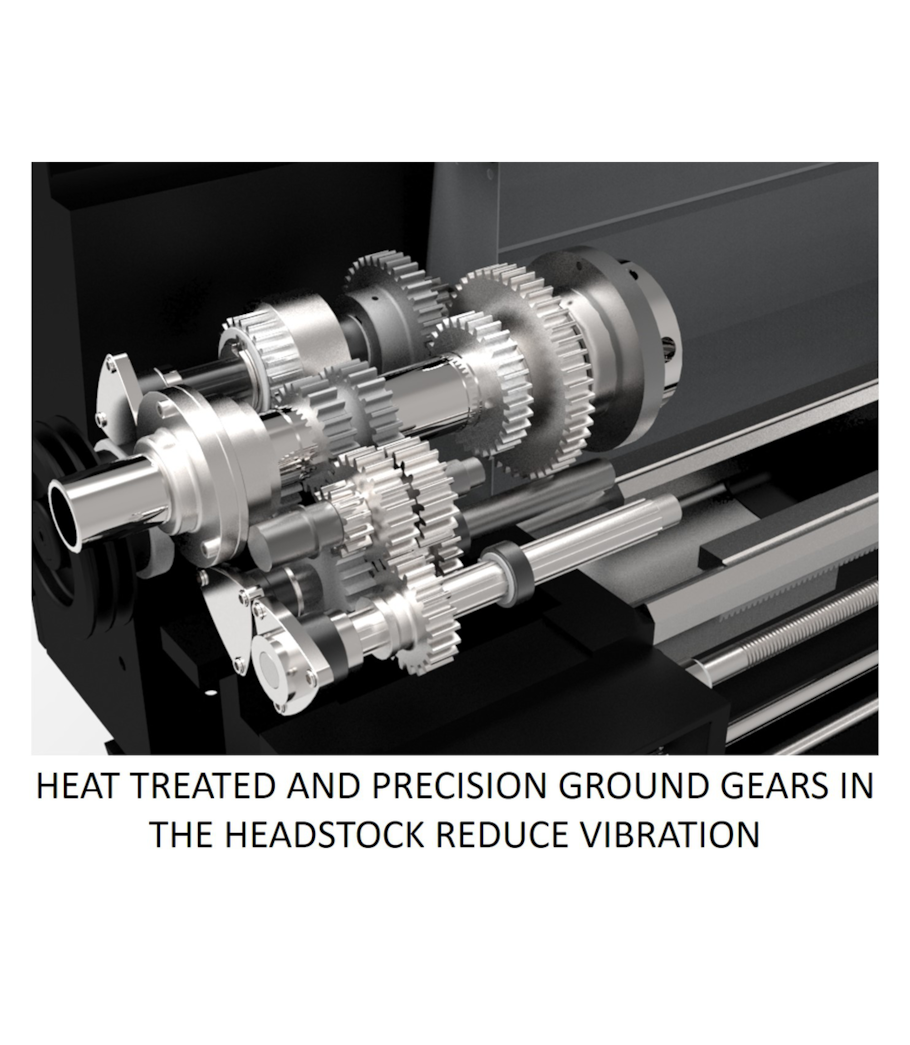

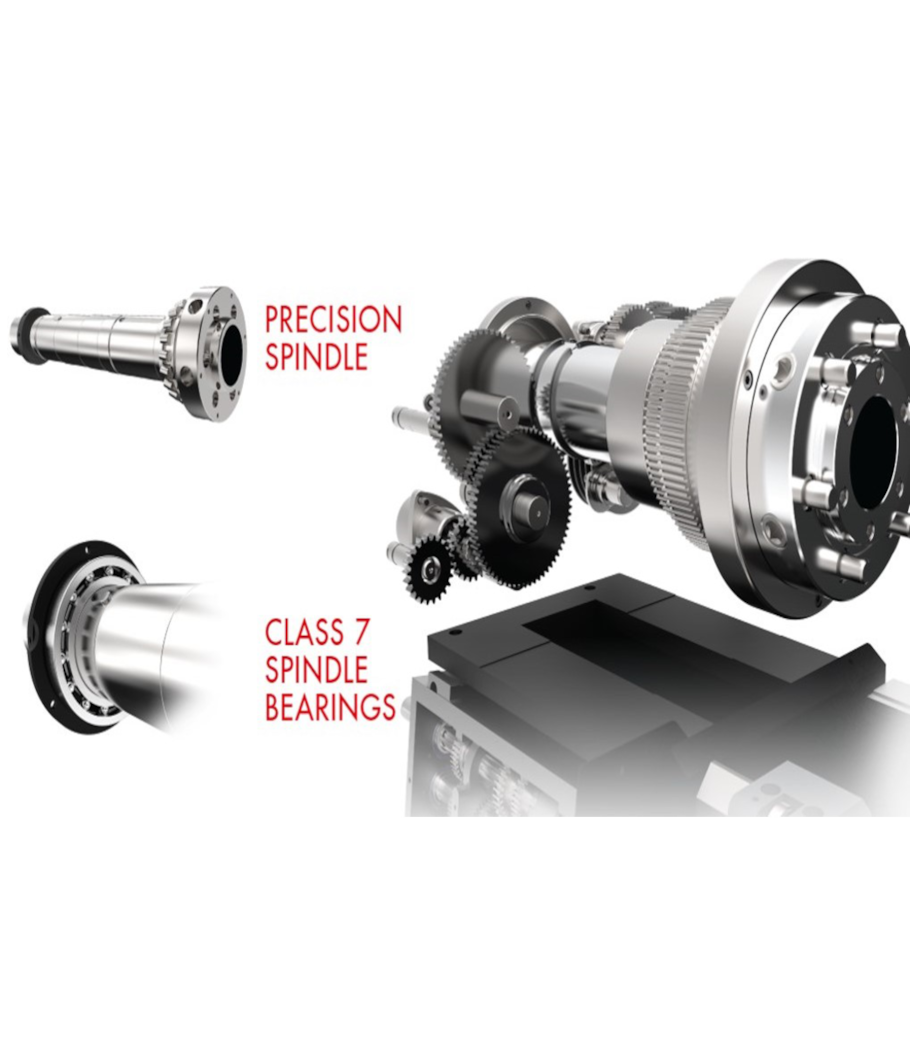

- Hardened and ground gears in headstock reduce vibration and deflection
- Inverter drive system provides infinitely variable spindle speeds
- LED RPM readout allows for precise turning speeds
- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
- Newall DP700 Digital Readout (DRO) with Collet Closer included
- 40 inch thread patterns and 22 metric thread patterns available
- 80 longitudinal and cross feed rates for versatile material removal

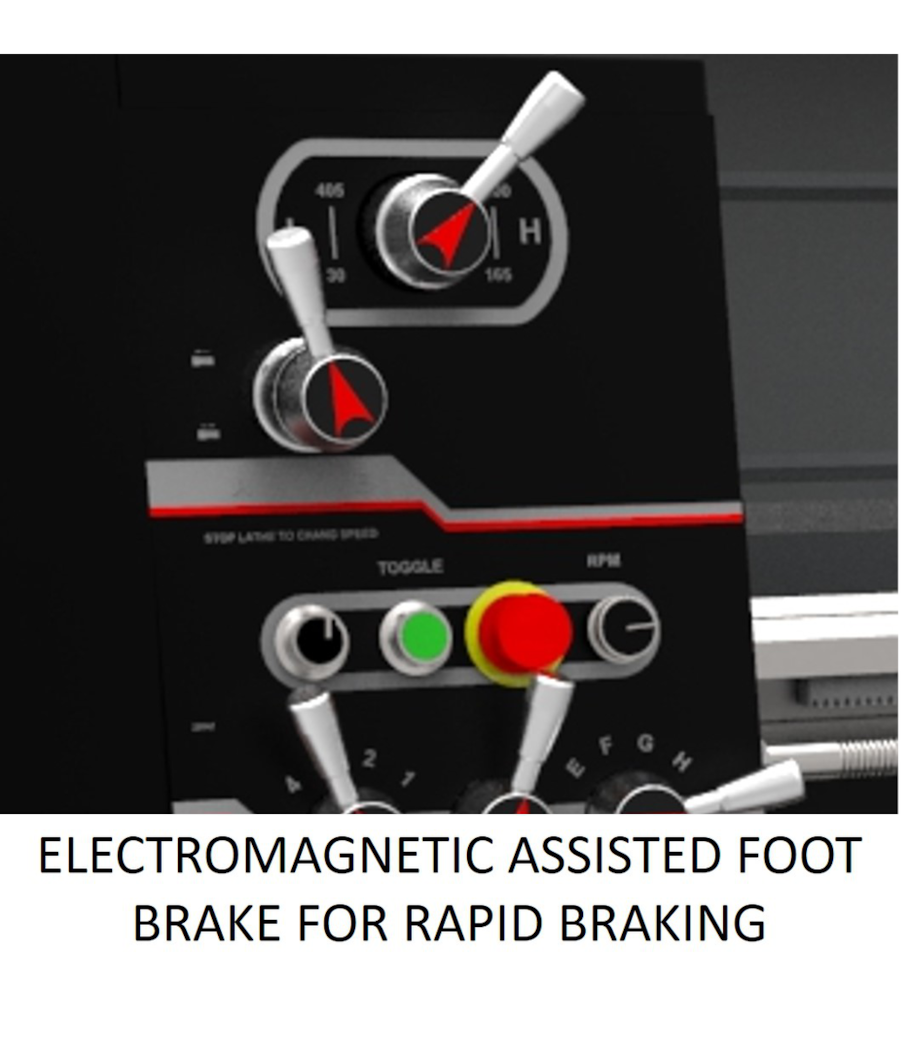

- Electro-magnetic brake for safe, rapid spindle stop

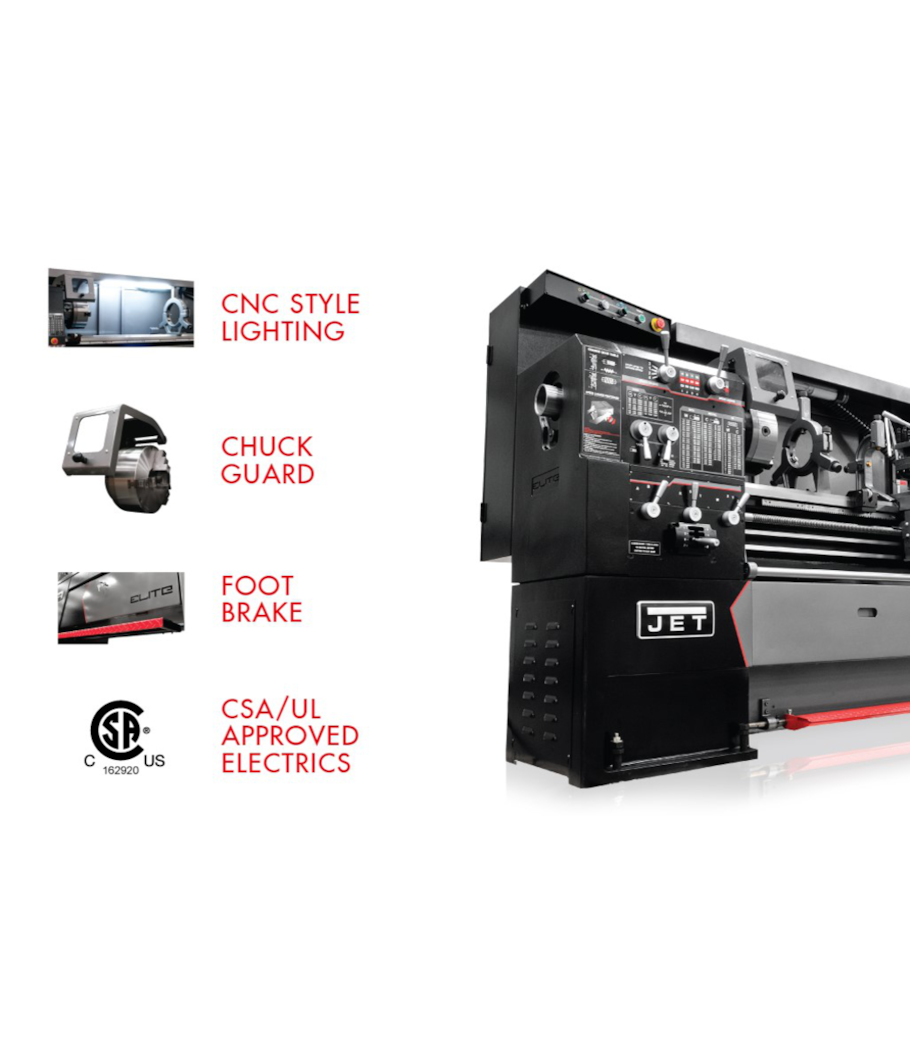

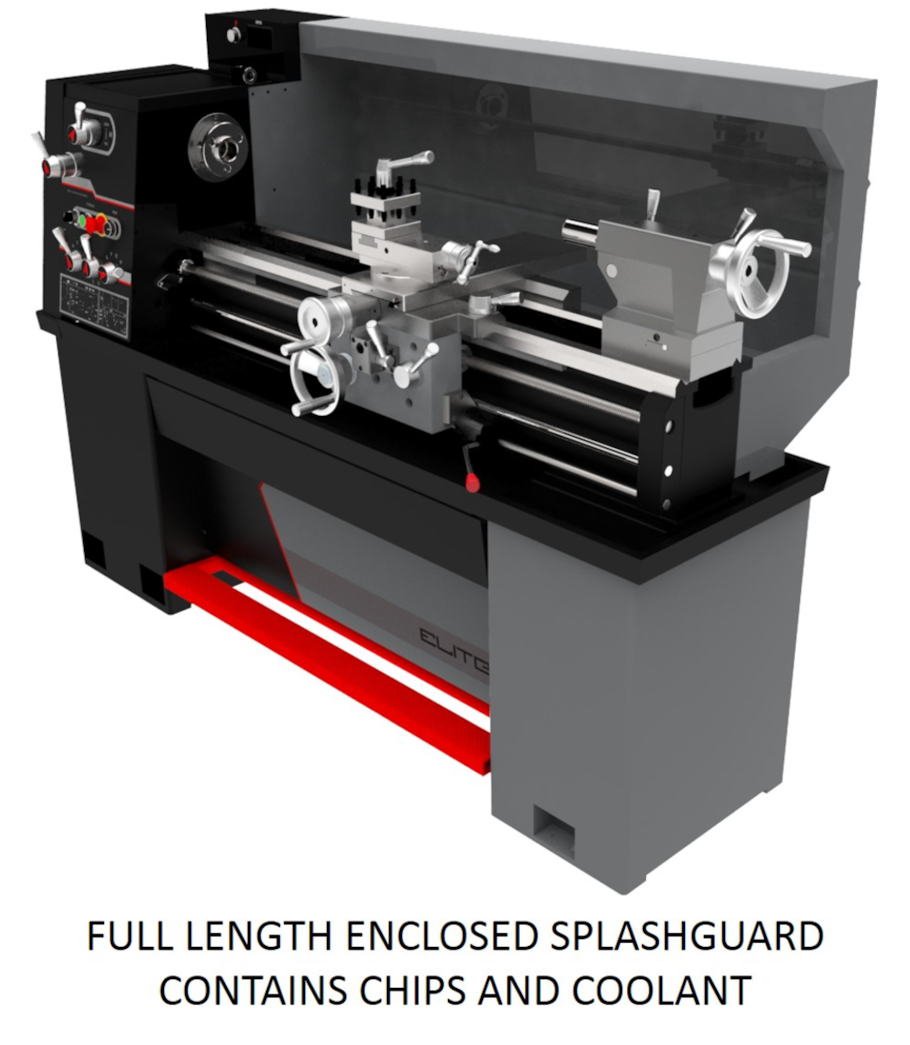

- CNC-style lighting with enclosed splash guard
Specifications
- MPN: JT9-892471
- Style (Type): ELITE EVS
- Size: 14 x 40
- Drive: EVS
- Motor: 3 HP, 230V, 3Ph
- Amperage Draw @ 230V 3Ph: 9
- Swing Over Bed: 14 in.
- Spindle Bore: 1-1/2 in.
- Spindle Mount: D1-4
- Spindle Taper with Sleeve: MT-5
- Range of Spindle Speeds: 0-2,200 RPM
- Two Speed Gearbox - Low Range: 40-365 RPM
- Two Speed Gearbox - High Range: 165-2000 RPM
- Number of Inch Threads: 40
- Range of Inch Threads: 4-112 TPI
- Number of Metric Threads: 22
- Range of Metric Threads: 0.45-7.5
- Number of Longitudinal and Cross Feed Rates: 80
- Range of Longitudinal Feeds: 0.0012-0.0294 IPR
- Range of Cross Feeds: 0.0003-0.01 IPR
- Compound Slide Travel: 4 in.
- Cross Slide Travel: 7 in.
- Length of Gap: 9 in.
- Steady Rest Capacity: 1/4-2-3/4 in.

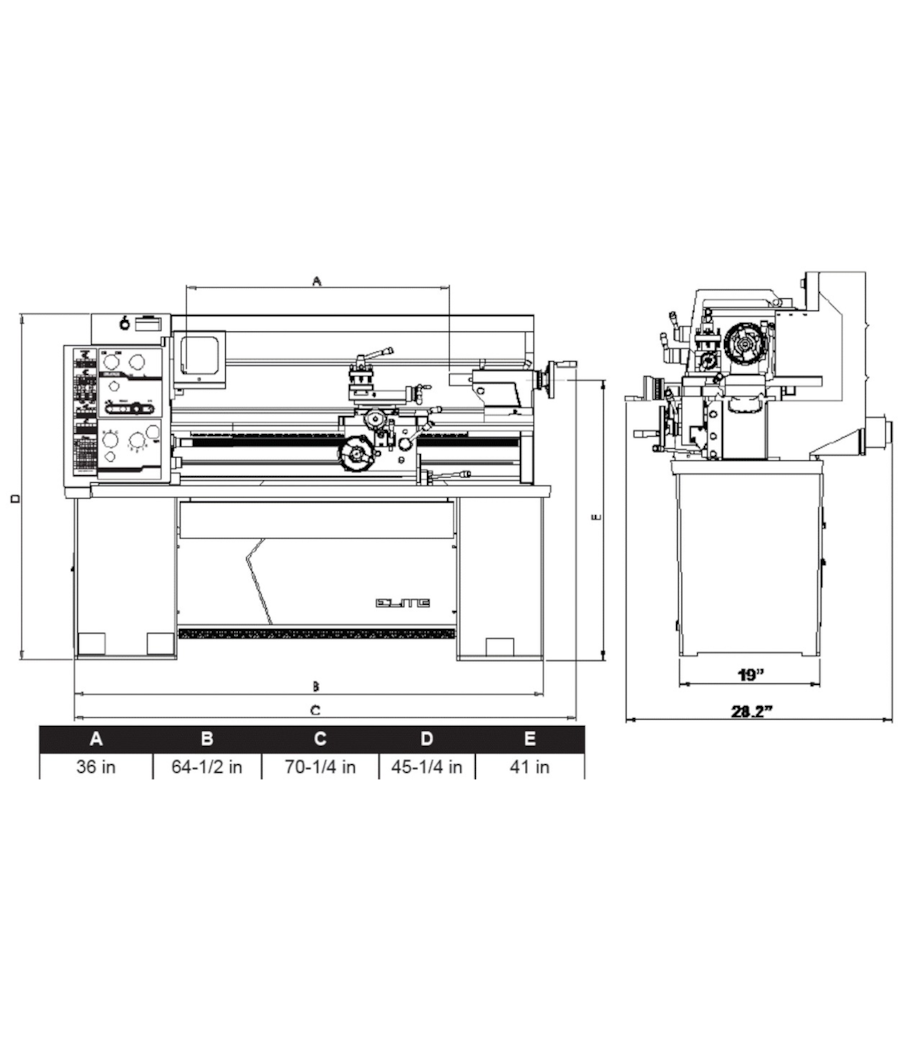

- Overall Dimensions (L x W x H): 77 x 30 x 58 in.
- Stock Number: 892471
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What spindle speed range does this lathe provide?
- The inverter drive system provides infinitely variable spindle speeds from 0-2,200 RPM. The two speed gearbox further divides this into a low range of 40-365 RPM and a high range of 165-2000 RPM, giving the operator precise control across a wide variety of materials and cutting conditions.
- How many thread-cutting options does the E-1440VS support?
- The lathe supports 40 inch thread patterns ranging from 4-112 TPI and 22 metric thread patterns ranging from 0.45-7.5. Combined with 80 longitudinal and cross feed rates, it covers an extensive range of threading and feed applications.
- What safety features are included as standard equipment?
- Chuck guards are standard equipment on all ELITE lathes for increased safety. The machine is also CSA/CUS Certified and includes an electro-magnetic brake and an enclosed splash guard for additional operator protection.
- What does the DRO package add to this lathe?
- This configuration includes the Newall DP700 Digital Readout (DRO) along with a Collet Closer. The LED RPM readout on the lathe itself also allows for precise monitoring of turning speeds, making the combination well-suited for accurate, repeatable production work.
