Product Features
Product Description

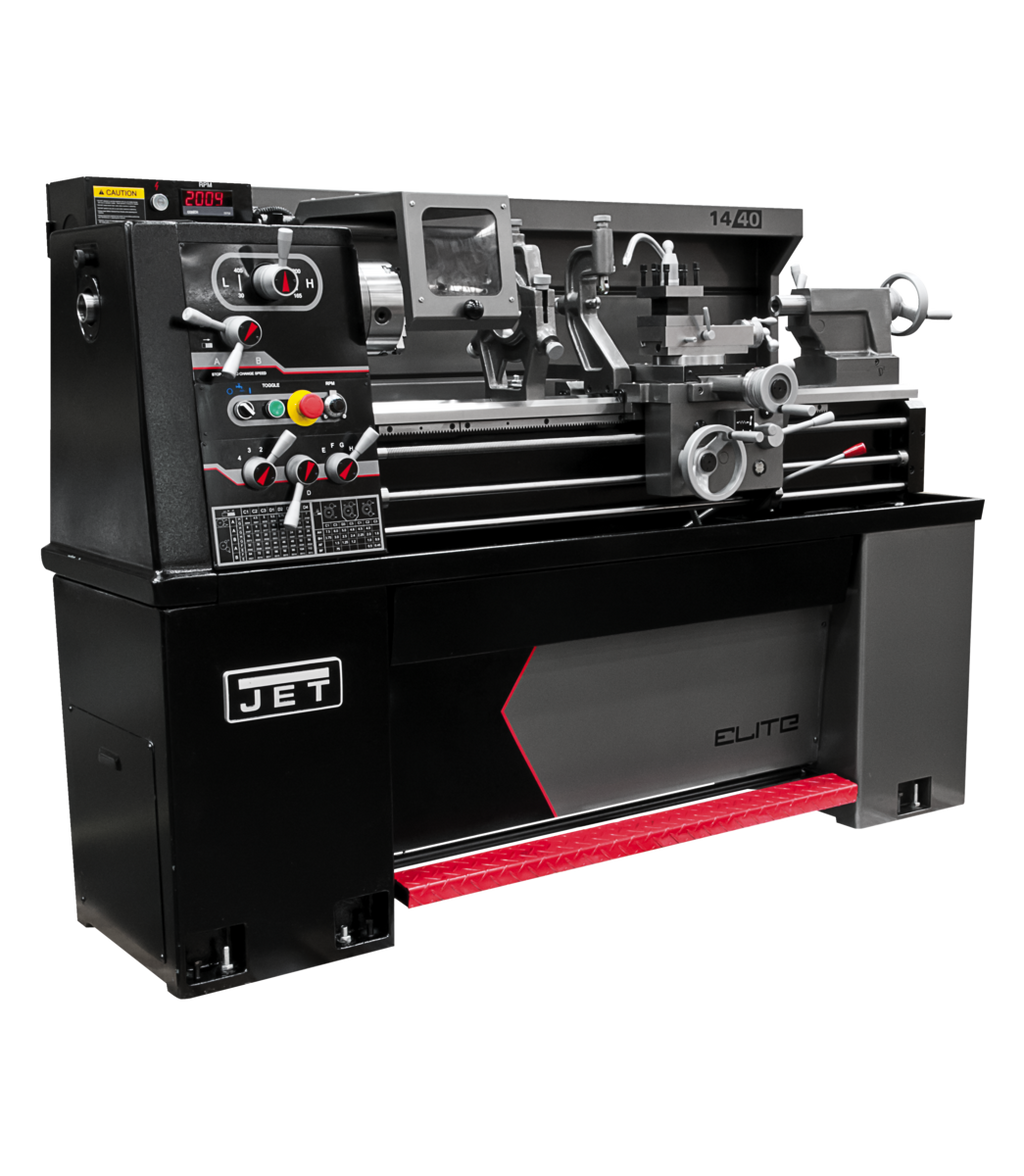

JET E-1340VS Elite EVS Lathe with ACU-RITE 303 CSS DRO, Taper Attachment & Collet Closer is a precision-engineered EVS metal lathe from JET designed for schools, small shops, and engineering labs that demand large-machine capability in a compact footprint. Certified Meehanite castings, an electro-magnetic brake, a three-jaw chuck, ball bearing-mounted steady and follow rests, and CNC-style lighting with enclosed splash guard combine with an infinitely variable spindle speed inverter drive to deliver a truly Elite machining experience. CSA/CUS Certified.
Key Features
- 4-Position Carriage Stop for repeatable, precise positioning
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine

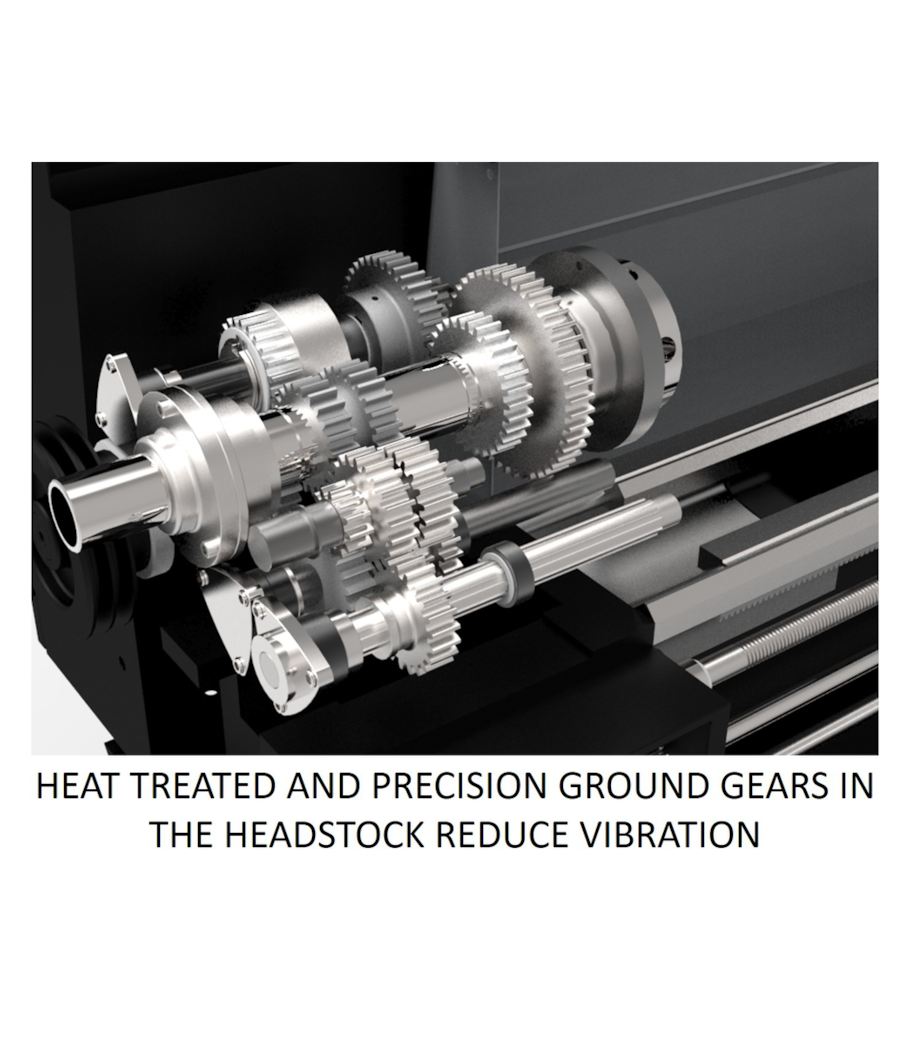

- Hardened and ground gears in headstock reduce vibration and deflection
- Inverter drive system provides infinitely variable spindle speeds
- LED RPM readout allows for precise turning speeds
- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
- Certified Meehanite castings for rigidity and long-term accuracy

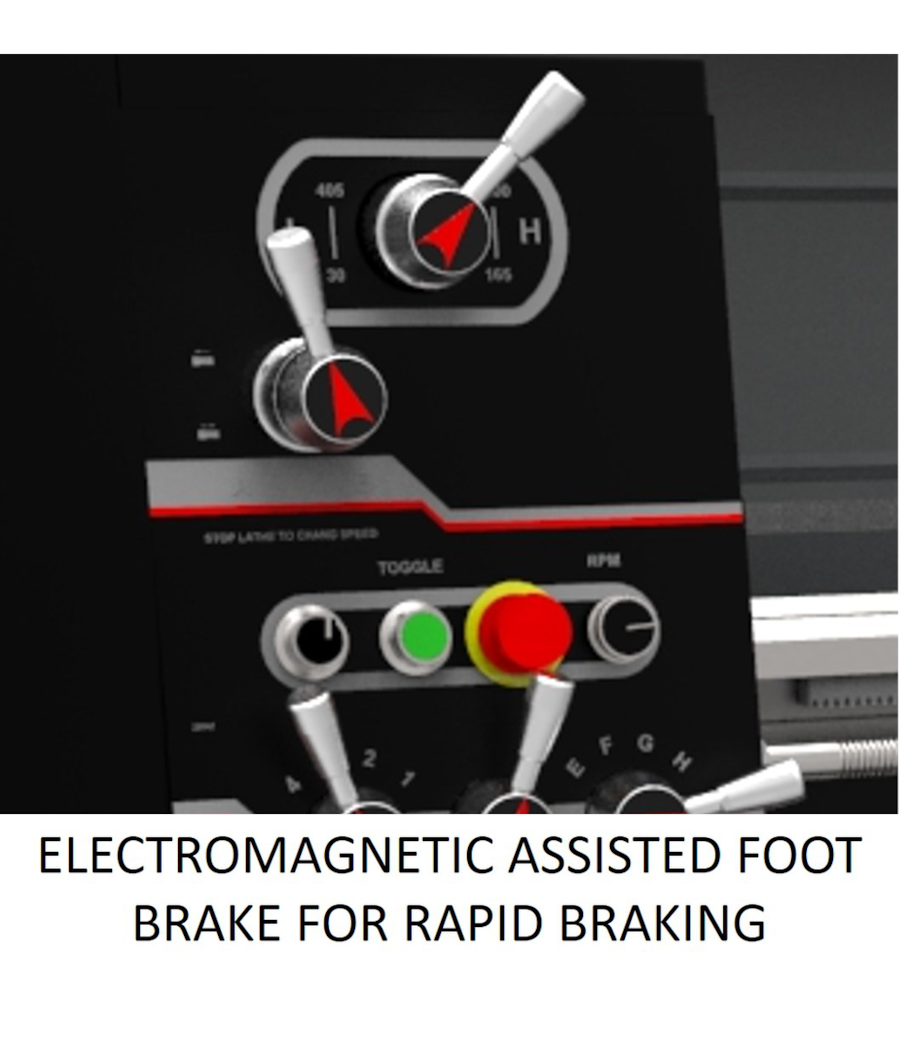

- Electro-magnetic brake for fast, controlled spindle stops
- Three-jaw chuck included for immediate productivity

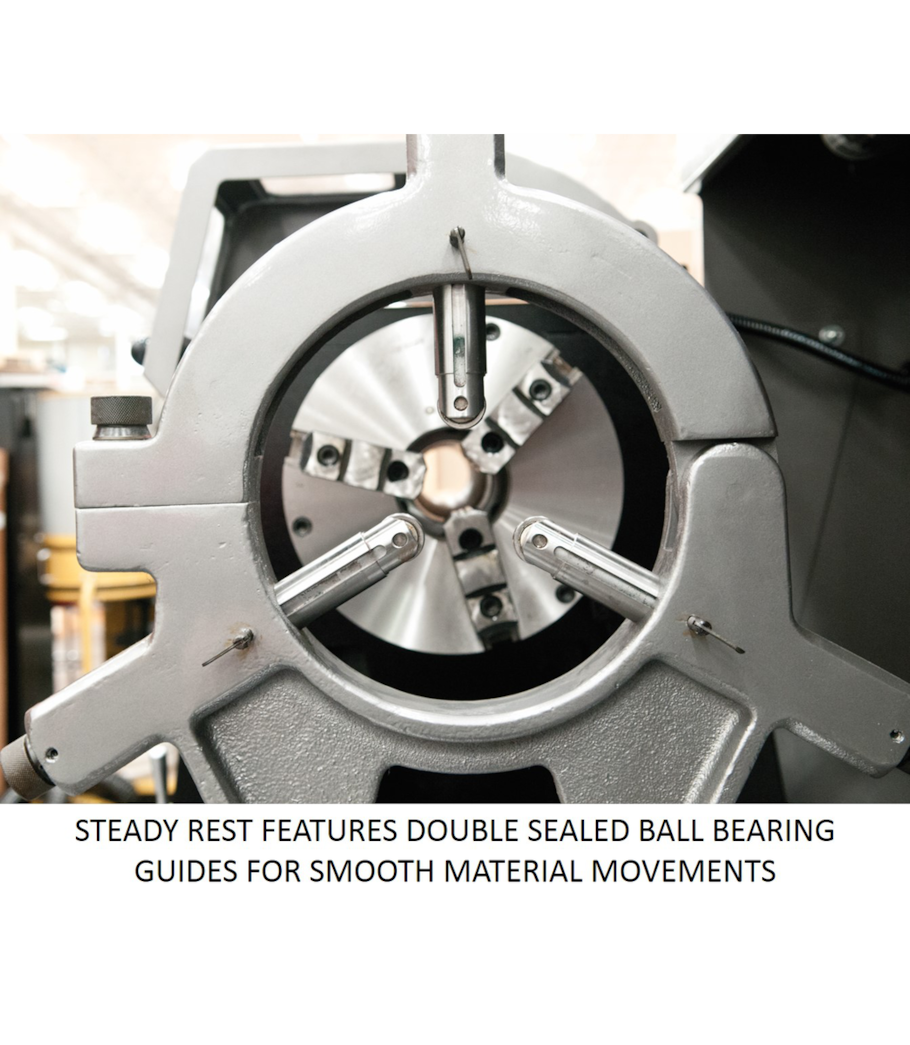

- Ball bearing-mounted steady and follow rests for supported long-workpiece turning

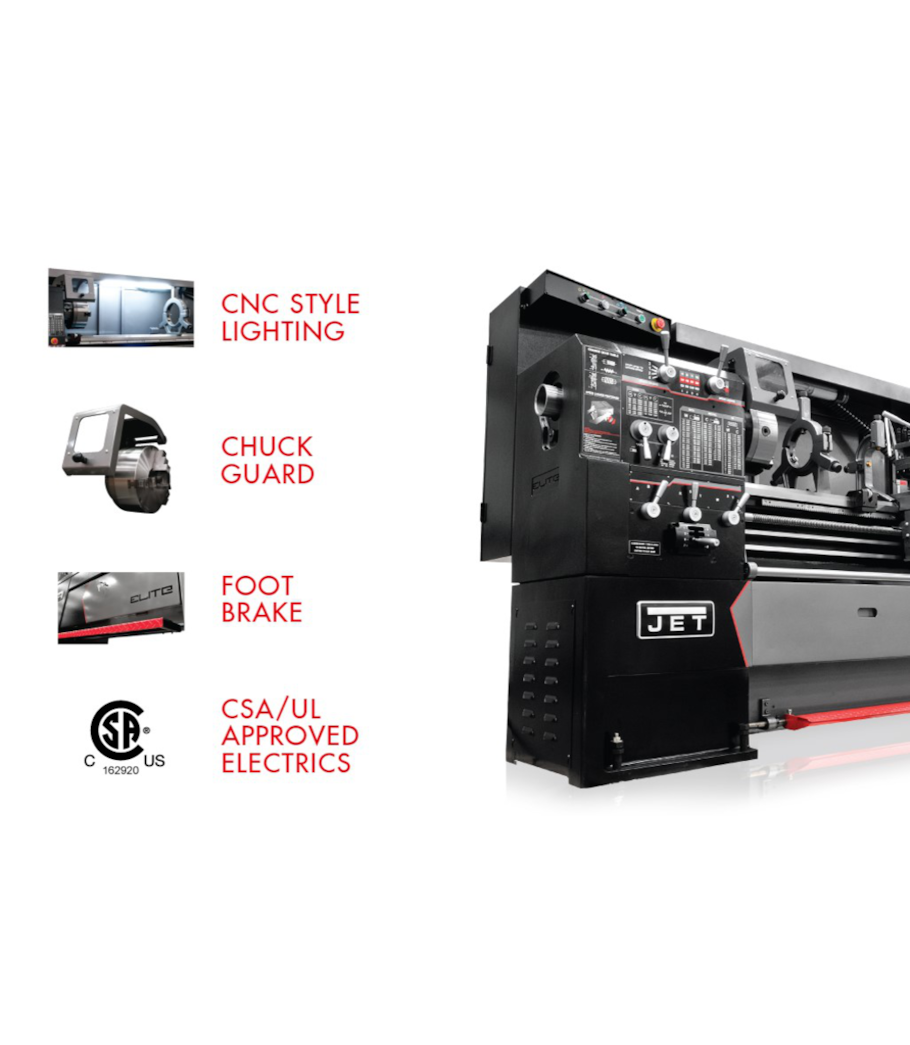

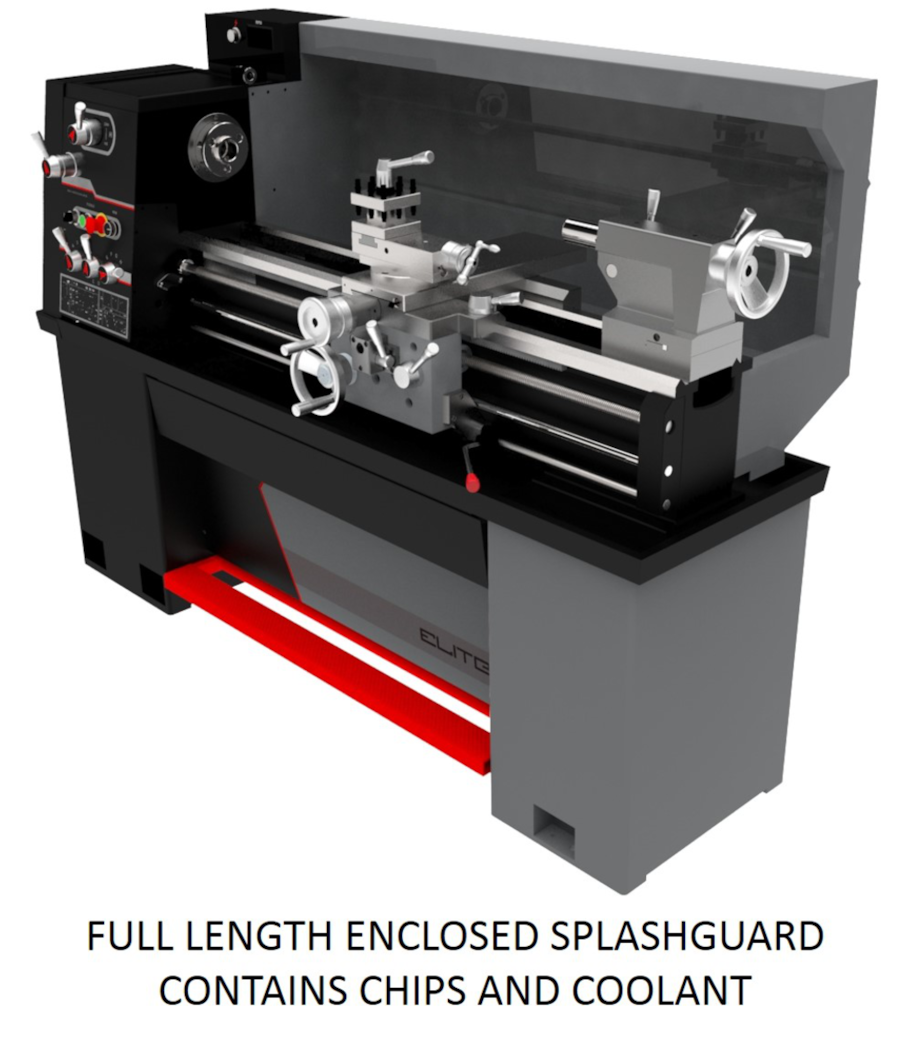

- CNC-style lighting with enclosed splash guard for a clean, well-lit work environment
- ACU-RITE 303 CSS DRO for real-time constant surface speed readout and enhanced precision
- Taper attachment enables accurate taper turning without offsetting the tailstock
- Collet closer included for fast, repeatable workholding with collets
- EVS drive type for smooth, stepless speed control across the full spindle range
- 13 x 40 in. capacity handles a wide variety of workpiece sizes
- CSA/CUS Certified for safety compliance
Specifications
- Stock Number: 892418
- Style (Type): ELITE EVS
- Size: 13 x 40
- Drive: EVS
- Motor: 3 HP, 230V, 3Ph
- Amperage Draw @ 230V 3Ph: 19
- Swing Over Bed: 13 in.
- Range of Spindle Speeds (RPM): 0-2,200
- Two Speed Gearbox Low Range: 40-365 RPM
- Two Speed Gearbox High Range: 165-2000 RPM
- Spindle Bore: 1-1/2 in.
- Spindle Mount: D1-4
- Spindle Taper with Sleeve: MT-5
- Compound Slide Travel: 3-1/2 in.
- Max Tool Size: 5/8 x 5/8 in.
- Length of Gap: 9 in.
- Number of Inch Threads: 40
- Range of Inch Threads: 4-112 TPI
- Number of Metric Threads: 22
- Range of Metric Threads: 0.45-7.5
- Number of Longitudinal and Cross Feed Rates: 80
- Range of Longitudinal Feeds (IPR): 0.0012-0.0294
- Range of Cross Feeds (IPR): 0.0003-0.01
- Steady Rest Capacity: 1/4-2-3/4 in.

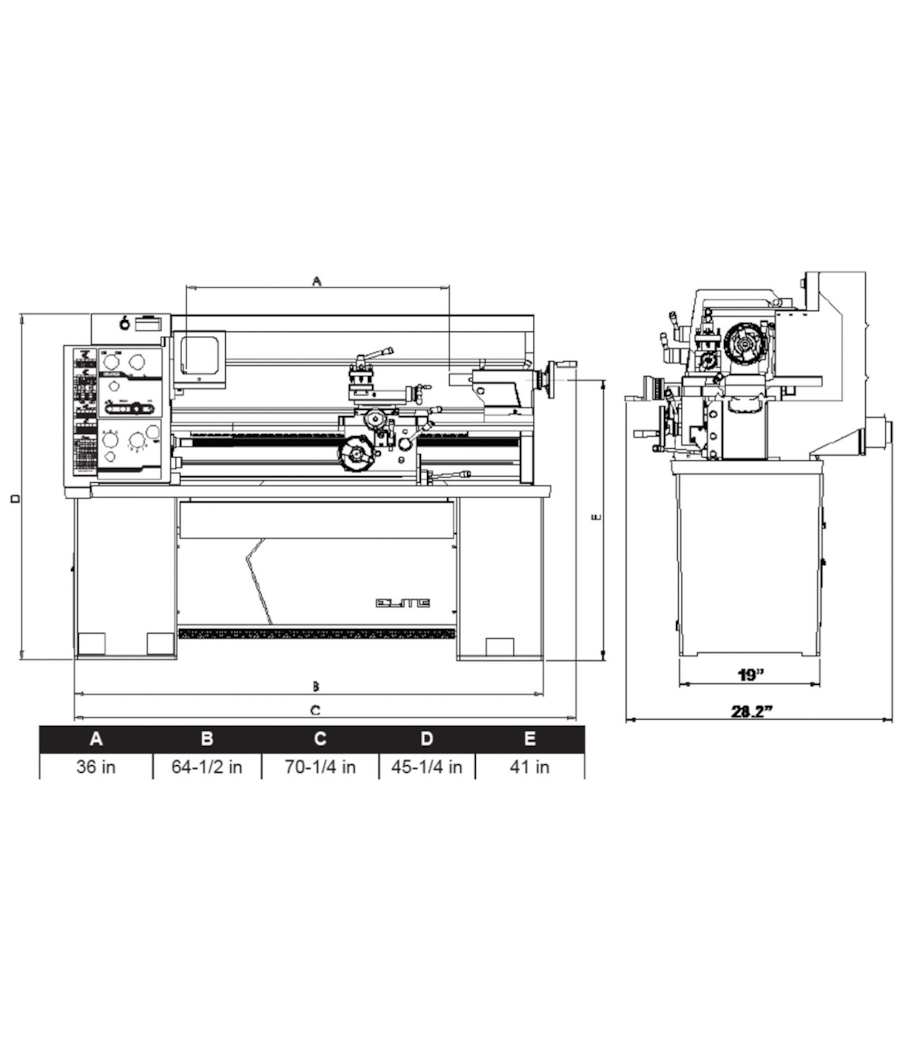

- Overall Dimensions (L x W x H): 67 x 30 x 57 in.
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What spindle speed range does the two-speed gearbox provide?
- The two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM. Combined with the inverter drive system that provides infinitely variable spindle speeds, the overall Range of Spindle Speeds is 0-2,200 RPM, giving operators precise control for a wide variety of materials and operations.
- What DRO system is included with this lathe?
- This lathe includes the ACU-RITE 303 CSS DRO, which provides constant surface speed readout to help machinists maintain optimal cutting conditions and enhance overall turning precision.
- What threading capabilities does the E-1340VS offer?
- The lathe is capable of cutting 40 different inch threads ranging from 4-112 TPI and 22 metric threads ranging from 0.45-7.5. It also offers 80 longitudinal and cross feed rates, with longitudinal feeds from 0.0012-0.0294 IPR and cross feeds from 0.0003-0.01 IPR.
- What safety features are standard on the ELITE EVS lathe?
- Chuck guards are standard equipment on all ELITE lathes for increased safety. The lathe also features an electro-magnetic brake for controlled spindle stops, a CNC-style lighting system with an enclosed splash guard, and a front facing chip pan that allows easy chip removal from the front of the machine. The unit is CSA/CUS Certified.
