Product Features
Product Description

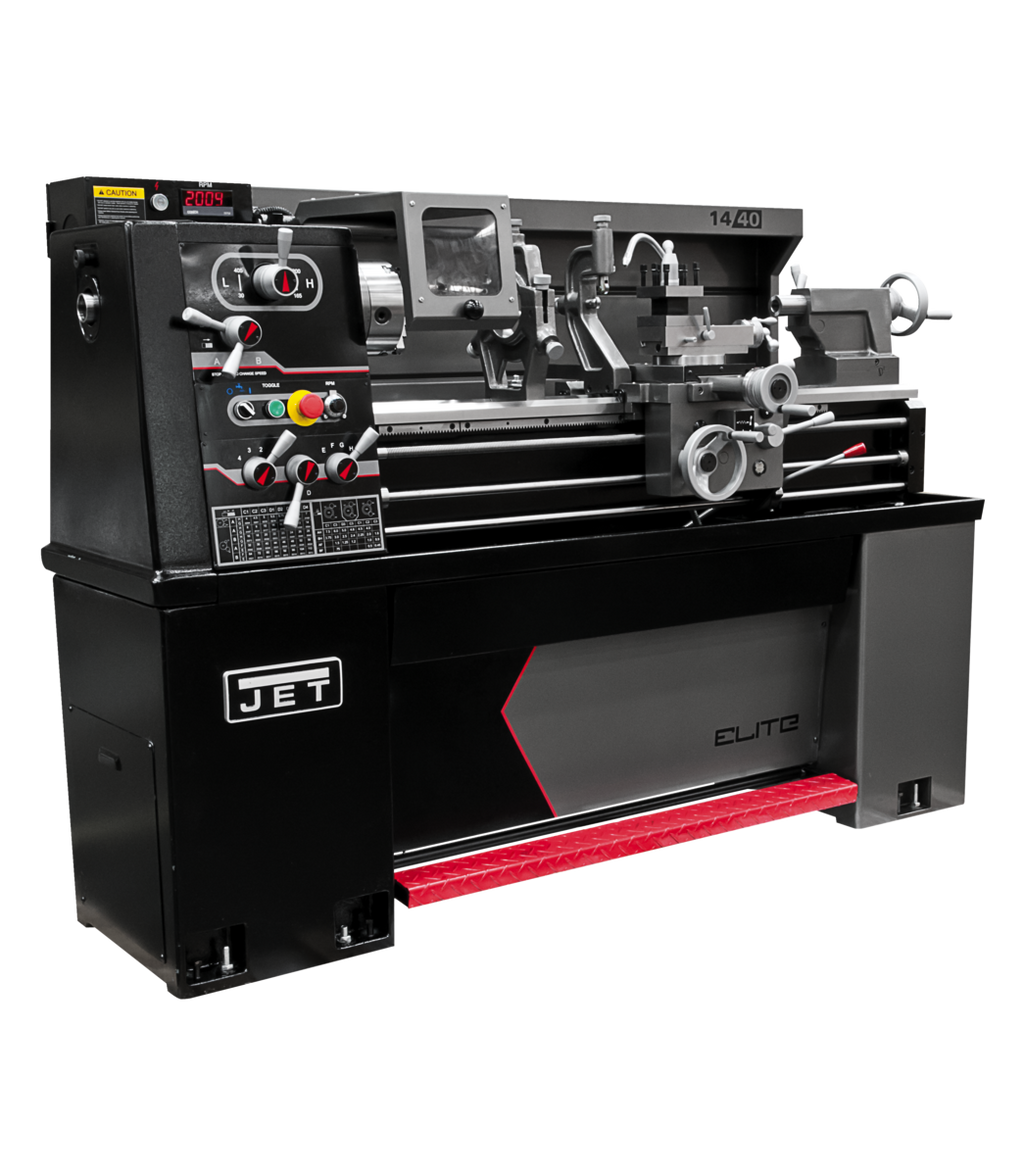

JET E-1340VS Elite EVS Lathe with ACU-RITE 203 DRO, Taper Attachment & Collet Closer from JET delivers precision metalworking capability in a compact, school- and shop-ready package. Built on certified Meehanite castings with an inverter drive system for infinitely variable spindle speeds, an electro-magnetic brake, CNC-style lighting, and an enclosed splash guard, this 13 x 40 in. lathe is CSA/CUS Certified and engineered for demanding use in schools, small shops, and engineering labs. The included ACU-RITE 203 DRO, taper attachment, and collet closer extend versatility straight out of the box.
Key Features
- 4-Position Carriage Stop for repeatable, accurate positioning
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine

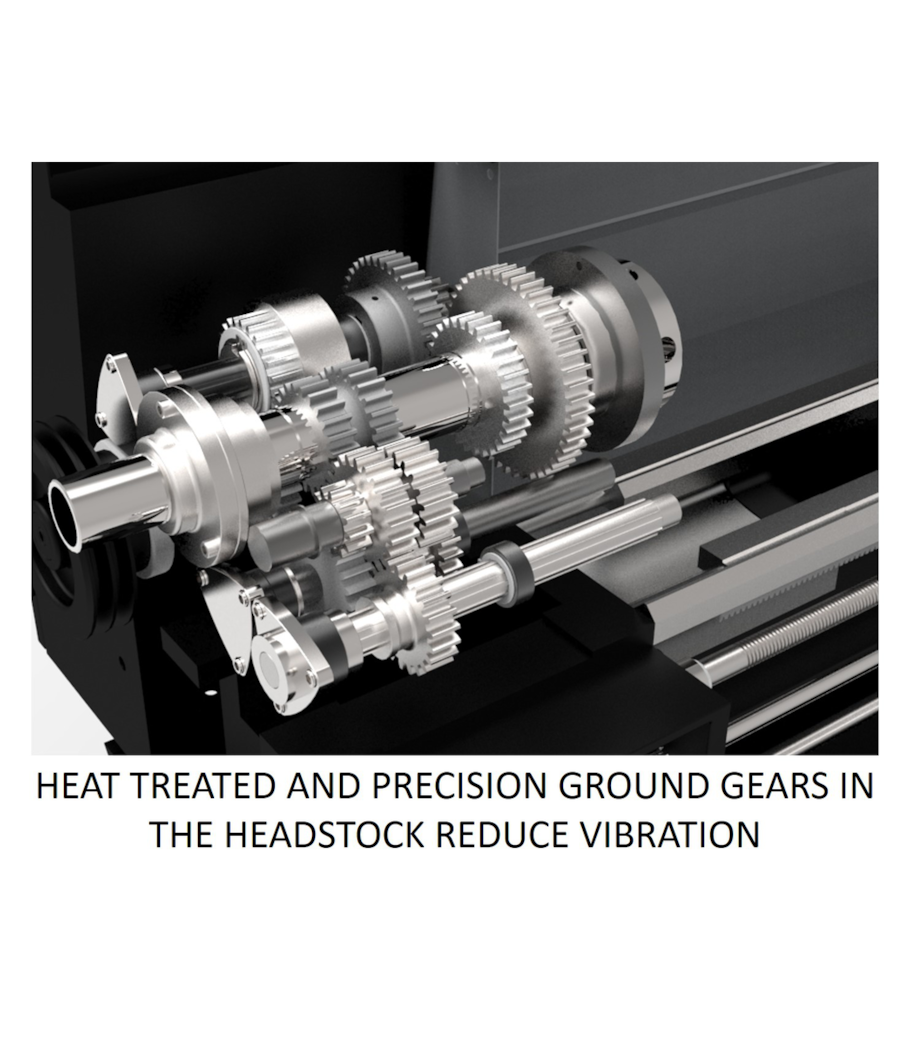

- Hardened and ground gears in headstock reduce vibration and deflection
- Inverter drive system provides infinitely variable spindle speeds
- LED RPM readout allows for precise turning speeds
- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM

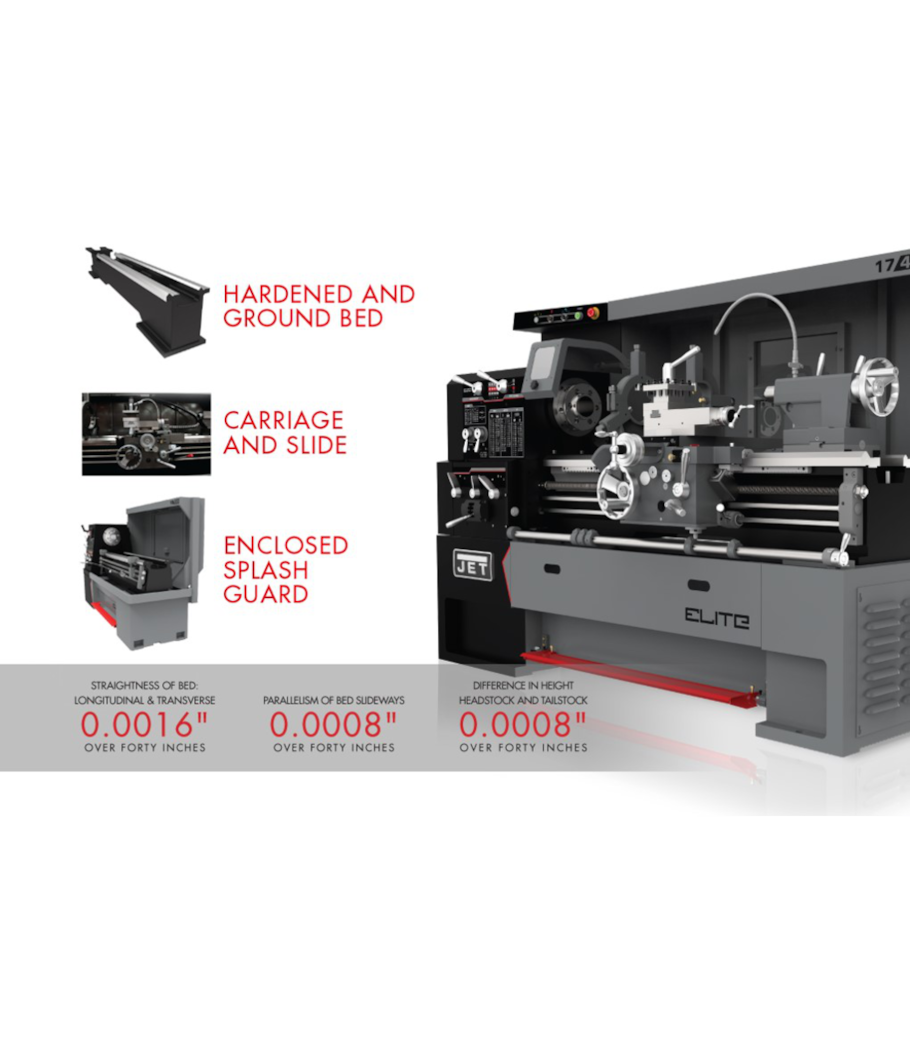

- Certified Meehanite castings for rigidity and long-term accuracy
- Electro-magnetic brake for fast, controlled spindle stops
- Three jaw chuck included as standard equipment

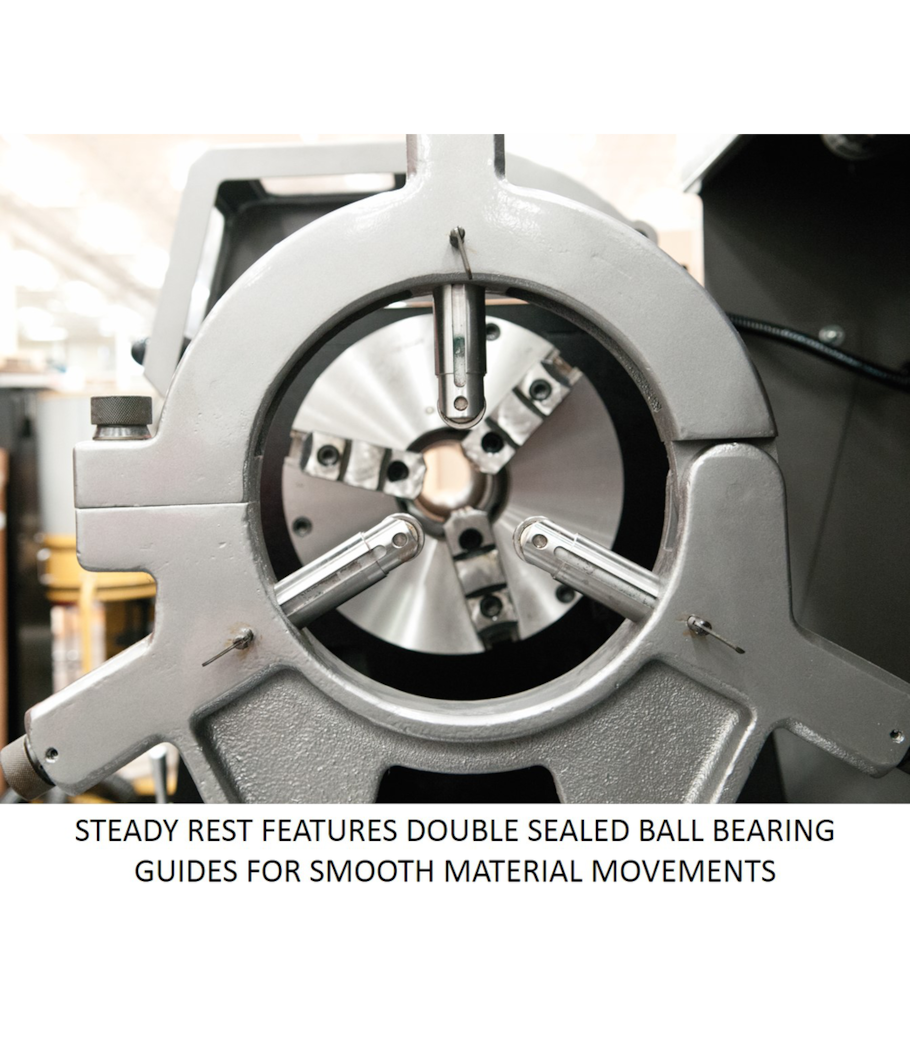

- Ball bearing-mounted steady and follow rests for workpiece support

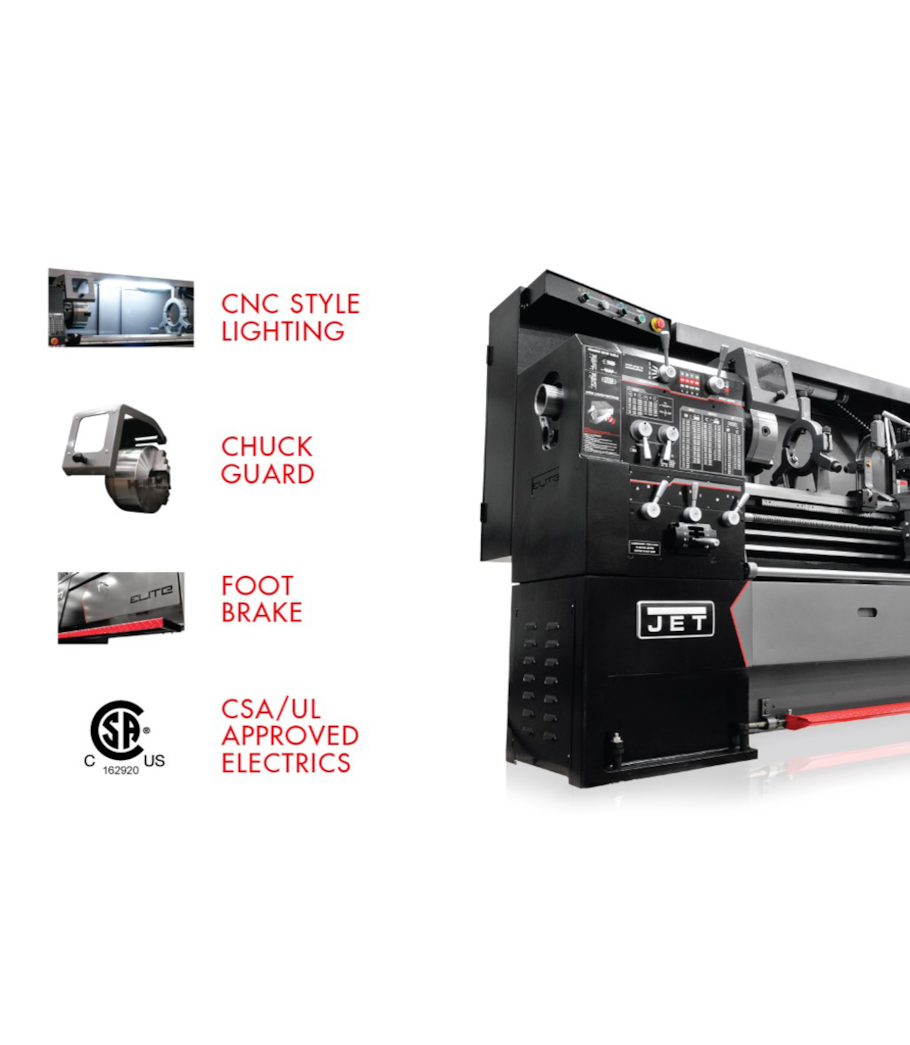

- CNC-style lighting with enclosed splash guard
- CSA/CUS Certified for safety compliance
Specifications
- Stock Number: 892406
- MPN: JT9-892406
- Style (Type): ELITE EVS
- Size: 13 x 40
- Drive: EVS
- Swing Over Bed (In.): 13
- Spindle Bore (In.): 1-1/2
- Spindle Mount: D1-4
- Spindle Taper with Sleeve: MT-5
- Range of Spindle Speeds (RPM): 0-2,200
- Two Speed Gearbox Low Range (RPM): 40-365
- Two Speed Gearbox High Range (RPM): 165-2000
- Motor: 3 HP, 230V, 3Ph
- Amperage Draw @ 230V 3Ph: 19
- Number of Inch Threads: 40
- Range of Inch Threads (TPI): 4-112
- Number of Metric Threads: 22
- Range of Metric Threads: 0.45-7.5
- Number of Longitudinal and Cross Feed Rates: 80
- Range of Longitudinal Feeds (IPR): 0.0012-0.0294
- Range of Cross Feeds (IPR): 0.0003-0.01
- Compound Slide Travel (In.): 3-1/2
- Length of Gap (In.): 9
- Max Tool Size (In.): 5/8 x 5/8
- Steady Rest Capacity (In.): 1/4-2-3/4
- Overall Dimensions (L x W x H) (In.): 67 x 30 x 57
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What spindle speed range does this lathe provide?
- The inverter drive system provides infinitely variable spindle speeds from 0-2,200 RPM. The two speed gearbox allows low speeds from 40-365 RPM and high speeds from 165-2000 RPM, giving operators precise control over a wide range of turning applications.
- What thread cutting capabilities does the E-1340VS offer?
- This lathe supports 40 inch thread pitches ranging from 4-112 TPI and 22 metric thread pitches ranging from 0.45-7.5 mm. It also provides 80 longitudinal and cross feed rates, with longitudinal feeds from 0.0012-0.0294 IPR and cross feeds from 0.0003-0.01 IPR.
- What safety features are included on this Elite EVS lathe?
- Chuck guards are standard equipment on all ELITE lathes for increased safety. The machine also features an electro-magnetic brake for controlled spindle stops, an enclosed splash guard, and CNC-style lighting to improve visibility at the work area.
- What is the spindle configuration on the E-1340VS?
- The spindle features a D1-4 mount with an MT-5 spindle taper (with sleeve) and a 1-1/2 in. spindle bore, providing compatibility with a wide variety of chucks and tooling. Hardened and ground gears in the headstock reduce vibration and deflection for improved precision.
