Product Features
Product Description

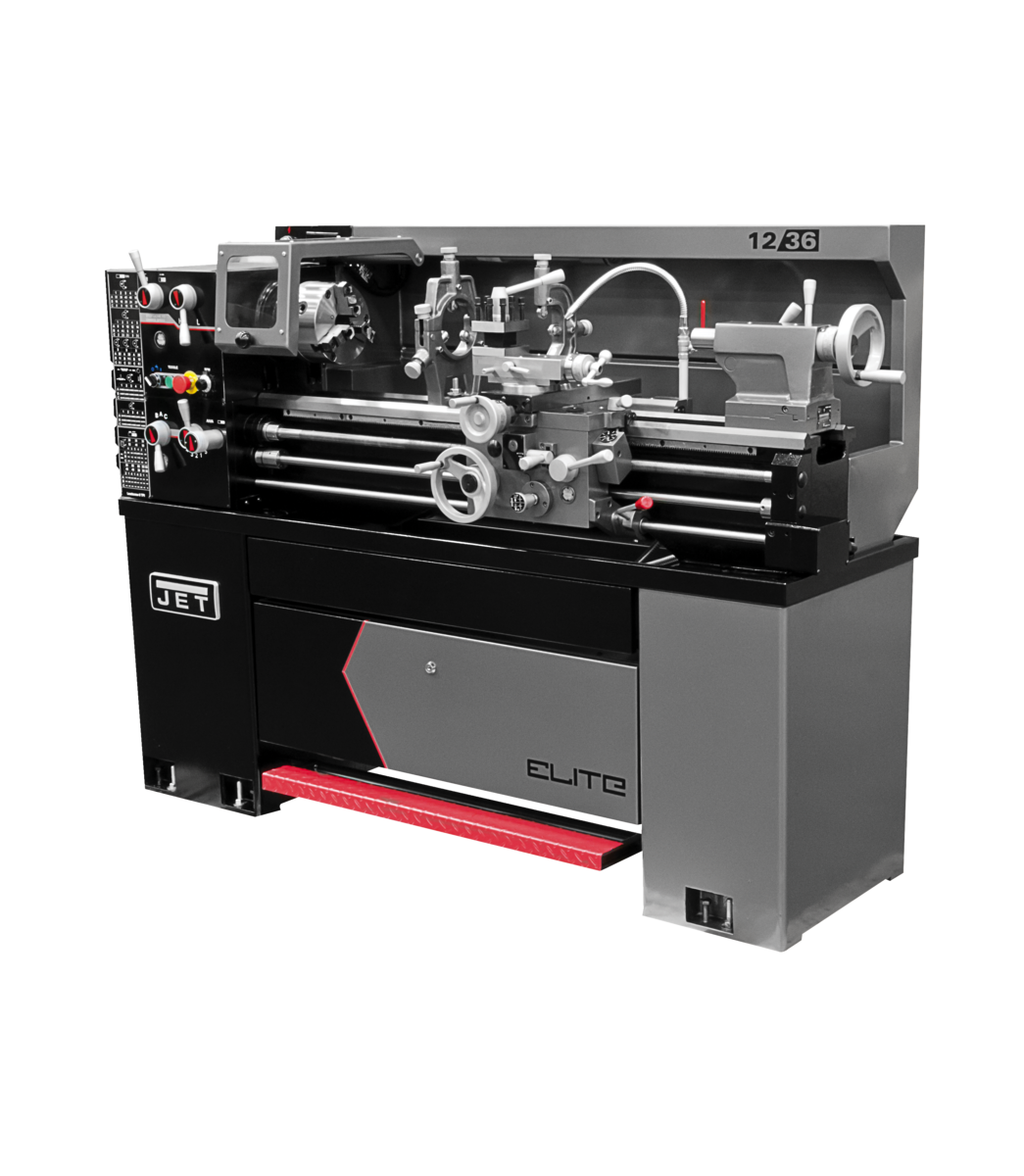

JET E-1236VS Elite EVS Lathe with Newall DP700 DRO is a precision-engineered metalworking lathe from JET designed for schools, small shops, and engineering labs that demand large-machine capability in a compact, professional footprint. Equipped with an inverter drive system for infinitely variable spindle speeds and paired with the Newall DP700 digital readout for exceptional positional accuracy, this 12 x 36 in. Elite EVS lathe delivers the performance and reliability serious machinists require. Certified to CSA/CUS standards and built on certified Meehanite castings, it combines robust construction with operator-focused safety features that set the Elite series apart.
Key Features
- 4-Position Carriage Stop for repeatable, precise longitudinal positioning
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine

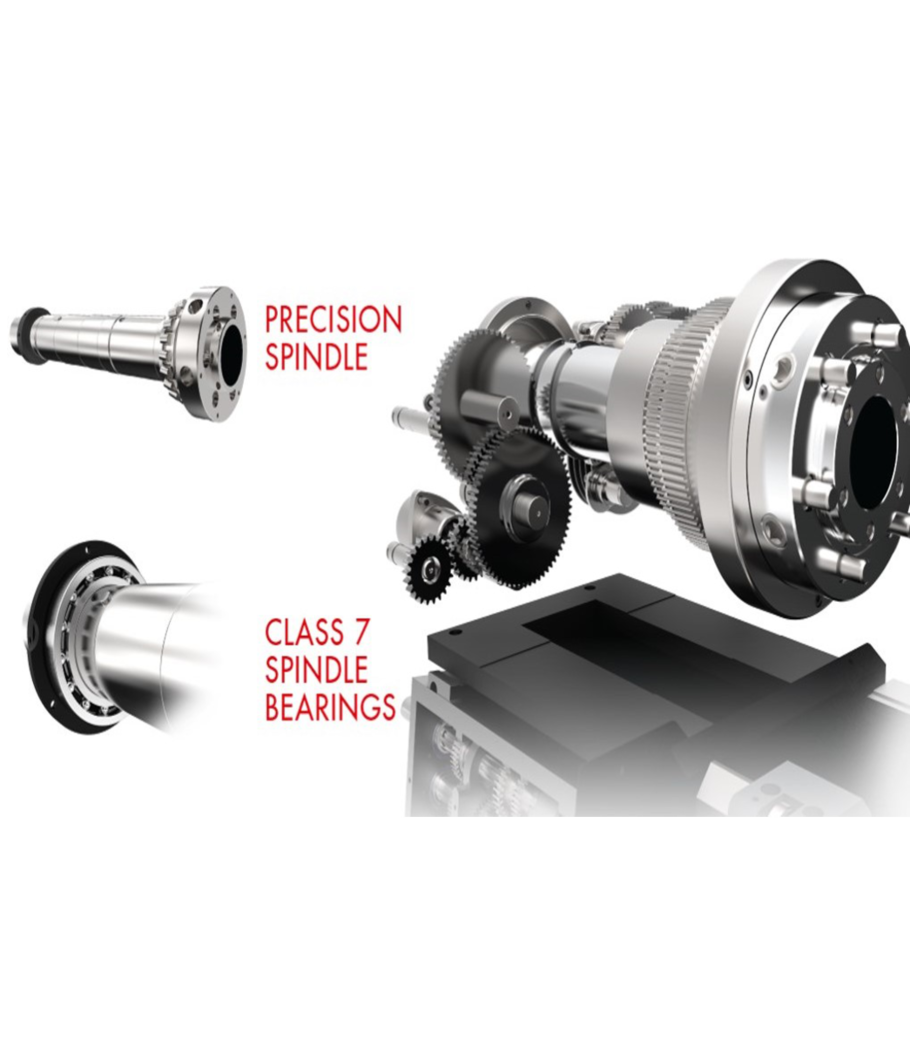

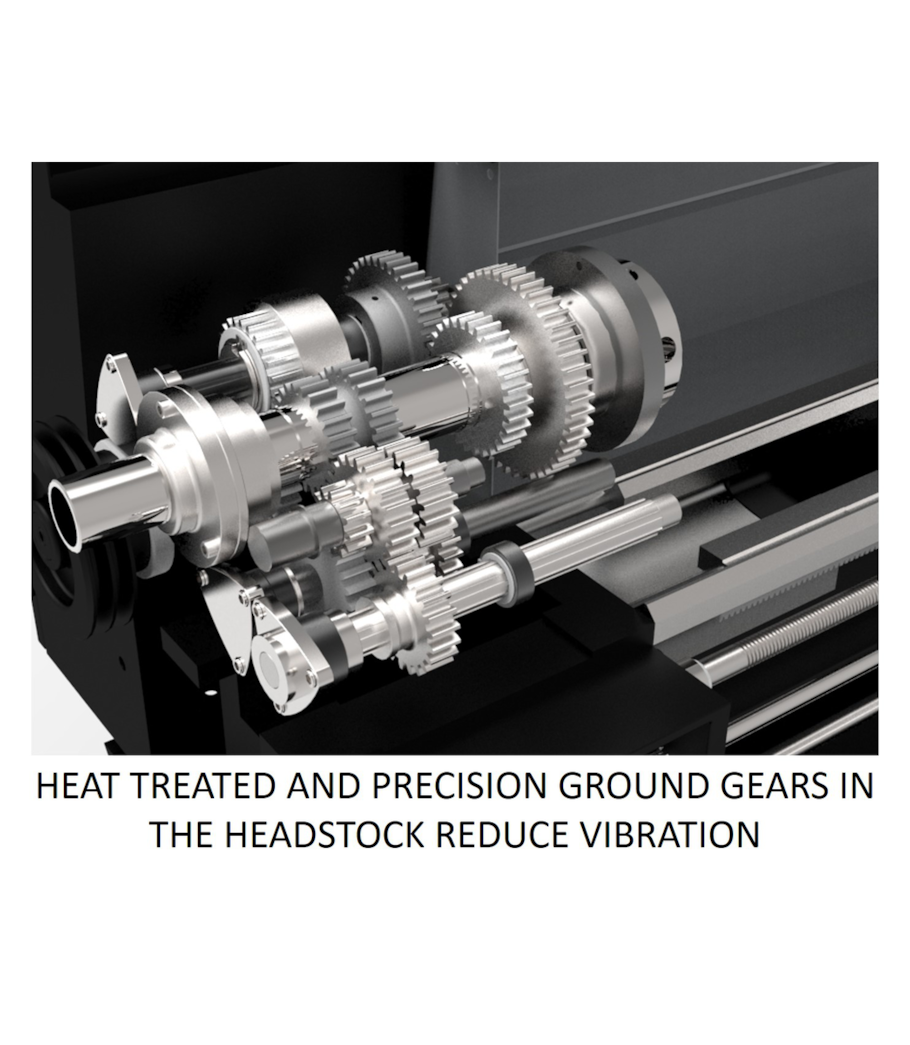

- Hardened and ground gears in headstock reduce vibration and deflection
- Integrated locking tool cabinet in stand on 12 in. Lathe for secure, organized tool storage
- Inverter drive system provides infinitely variable spindle speeds across the full operating range
- LED RPM readout allows for precise turning speeds at a glance
- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
- Certified Meehanite castings for a rigid, vibration-dampening machine structure

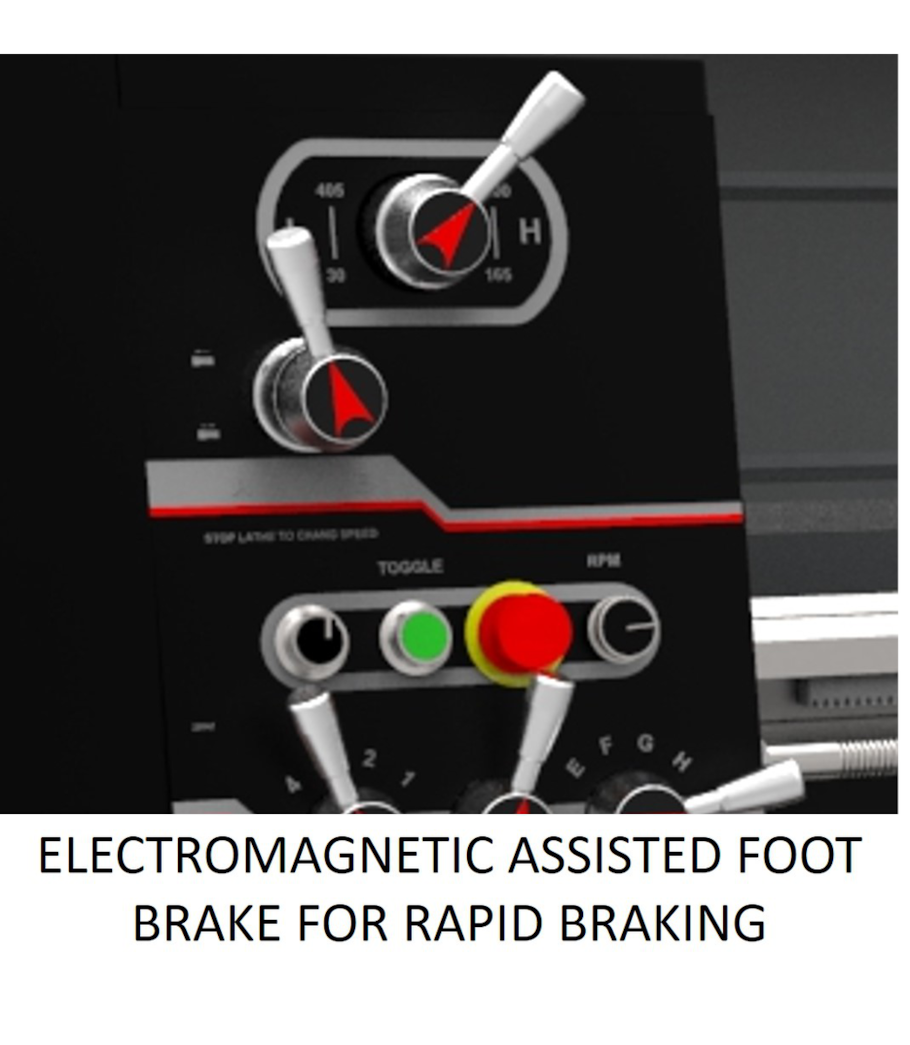

- Electro-magnetic brake for fast, controlled spindle stops
- Three jaw chuck included for immediate versatility

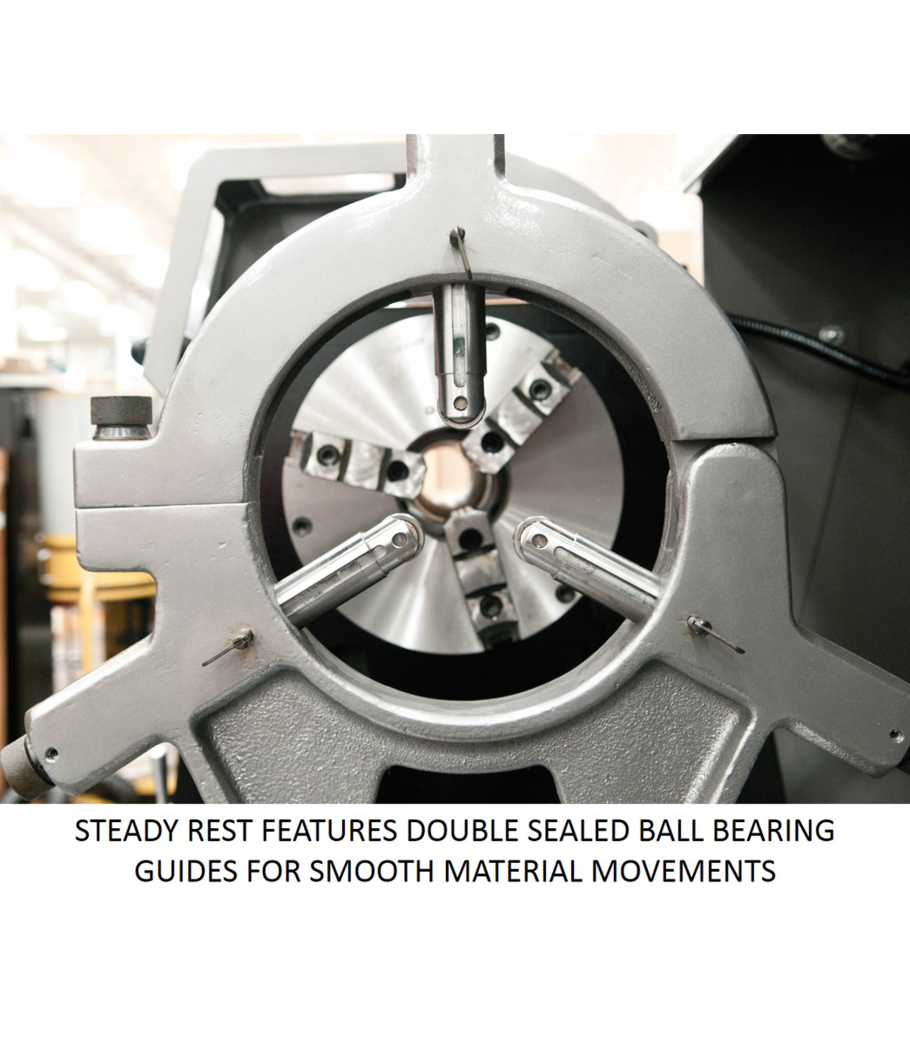

- Ball bearing-mounted steady and follow rests for stable workpiece support

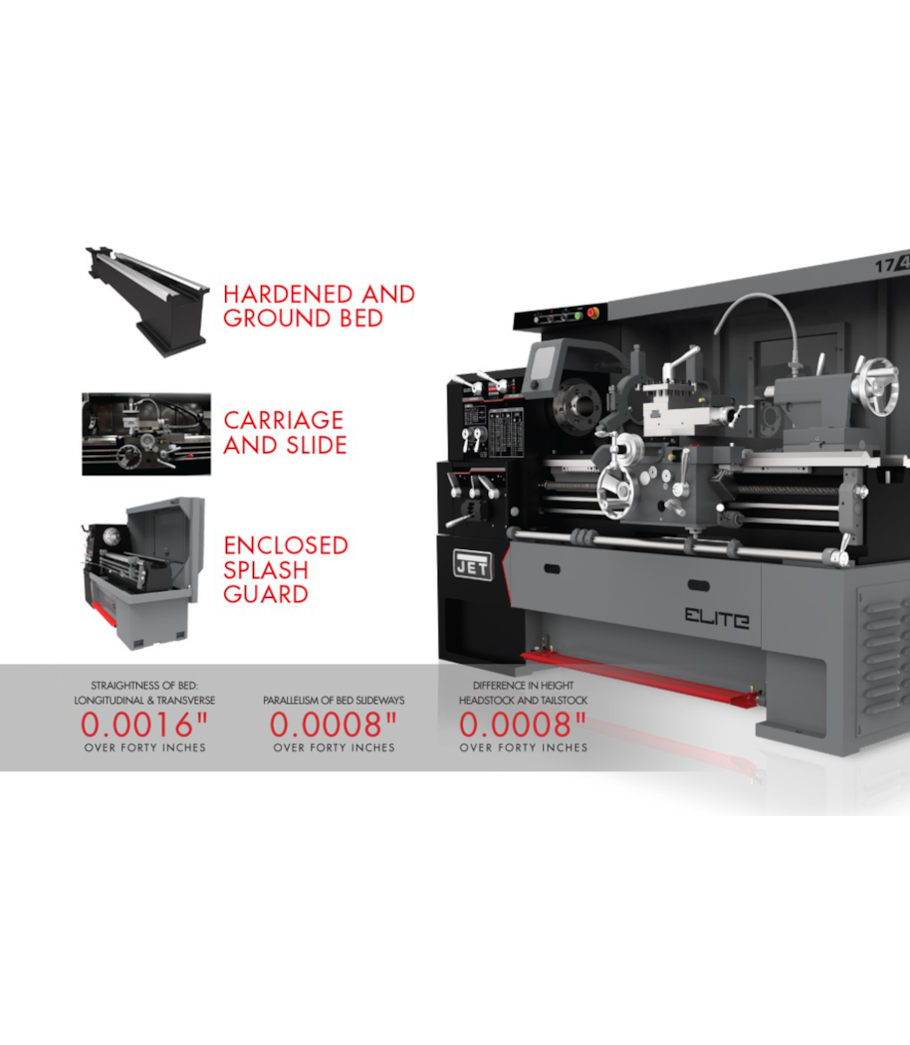

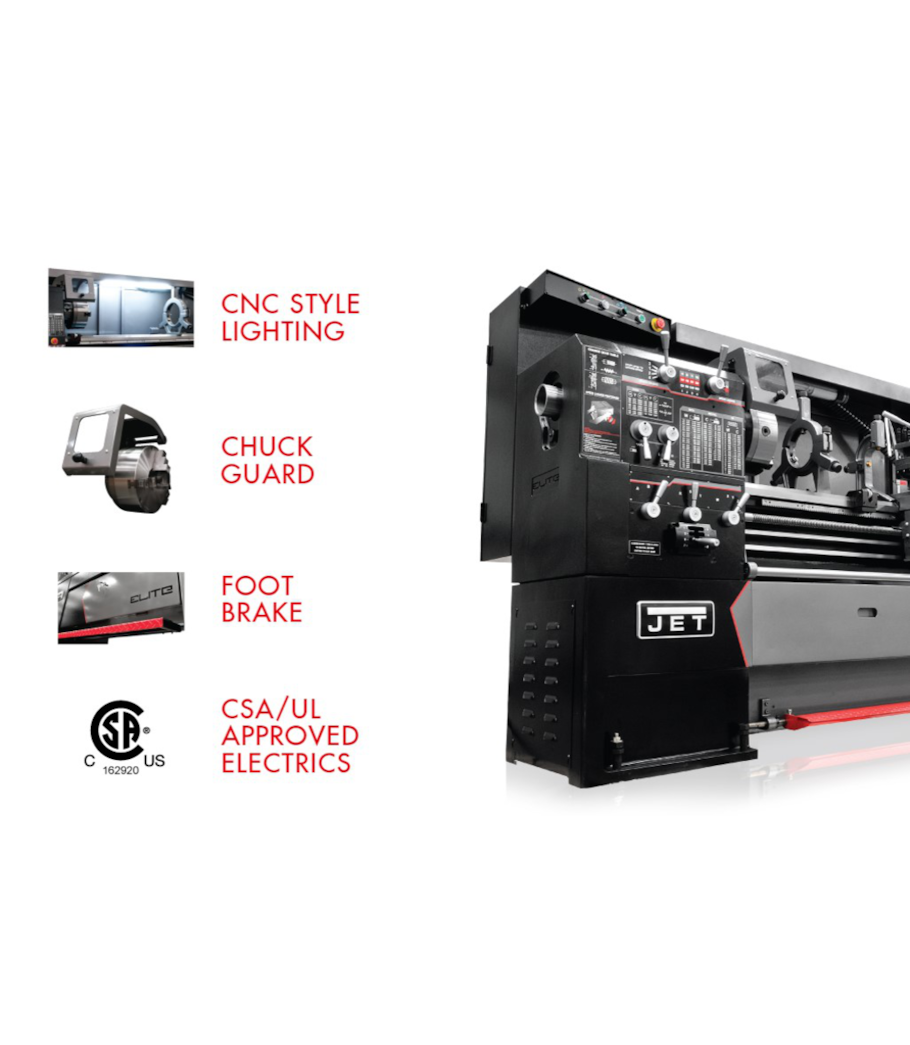

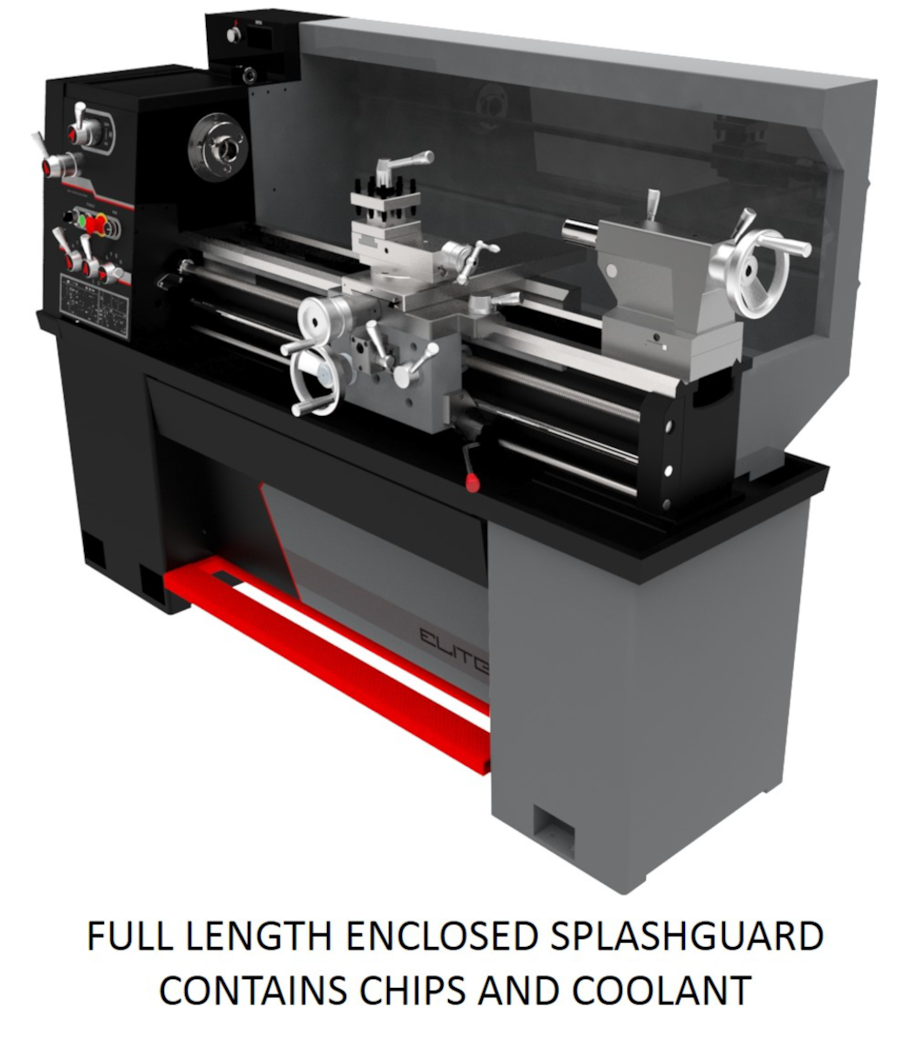

- CNC Style Lighting with enclosed splash guard for improved visibility and containment
- Paired with Newall DP700 DRO for accurate, real-time axis position readout
- EVS drive type for smooth, consistent power delivery across the speed range
- CSA/CUS Certified for recognized safety compliance
Specifications
- Stock Number: 892319
- Size: 12 x 36 in.
- Style (Type): ELITE EVS
- Drive: EVS
- Motor: 2HP, 230V, 3ph
- Range of Spindle Speeds (RPM): 0-2,000
- Swing Over Bed (In.): 12
- Swing Over Cross Slide (In.): 7-5/16 in.
- Spindle Bore (In.): 1-9/16
- Spindle Mount: D1-4
- Spindle Taper with Sleeve: MT-5
- Compound Slide Travel (In.): 3-1/2
- Max Tool Size (In.): 1/2 x 1/2
- Length of Gap (In.): 9-1/2
- Steady Rest Capacity (In.): 1/4-2-1/2
- Number of Inch Threads: 34
- Range of Inch Threads (TPI): 2-56
- Number of Metric Threads: 33
- Range of Metric Threads: 0.5-12
- Number of Longitudinal and Cross Feed Rates: 50
- Range of Longitudinal Feeds (IPR): 0.0016-0.046
- Range of Cross Feeds (IPR): 0.0005-0.015

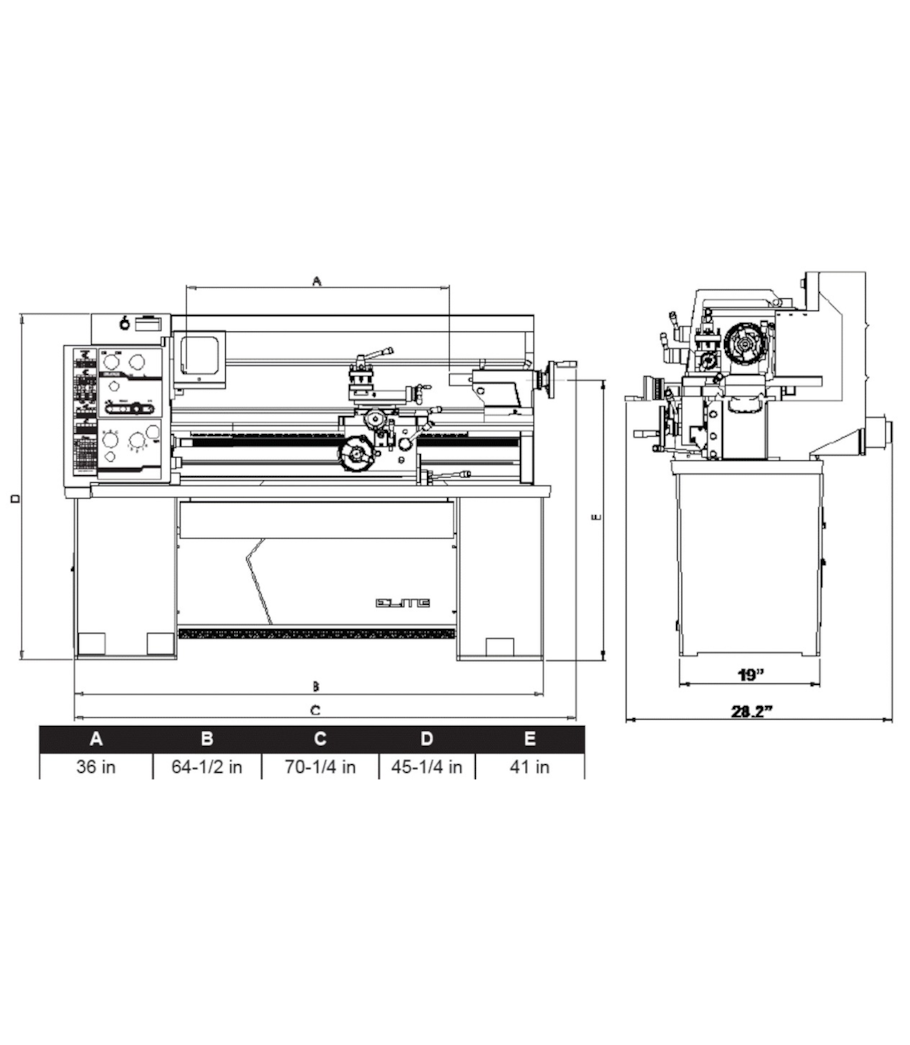

- Overall Dimensions (L x W x H) (In.): 71 x 30 x 60
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Approved Applications
- Precision metal turning in small to mid-size machine shops
- Technical education and training in school or vocational lab environments
- Prototype development and component fabrication in engineering labs
- Threading operations - both inch (2-56 TPI) and metric (0.5-12 mm) thread cutting
- Facing, boring, and taper turning with accurate DRO-assisted positioning
- High-detail work requiring precise, repeatable longitudinal stops via the 4-Position Carriage Stop
What's Included
- JET E-1236VS Elite EVS Lathe
- Newall DP700 Digital Readout (DRO)
- Three jaw chuck
- Chuck guard
- Ball bearing-mounted steady rest
- Ball bearing-mounted follow rest
- Integrated locking tool cabinet in stand
- Front facing chip pan
Frequently Asked Questions
- What spindle speed range does this lathe provide, and how is it controlled?
- The lathe delivers a range of spindle speeds from 0-2,000 RPM. The inverter drive system provides infinitely variable spindle speeds, while the two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM. The LED RPM readout allows for precise turning speeds to be monitored at all times.
- What thread-cutting capability does the E-1236VS Elite EVS lathe offer?
- This lathe supports 34 inch threads with a range of 2-56 TPI and 33 metric threads with a range of 0.5-12 mm. It also provides 50 longitudinal and cross feed rates, with longitudinal feeds ranging from 0.0016-0.046 IPR and cross feeds ranging from 0.0005-0.015 IPR, making it highly capable for a wide variety of threading and feeding applications.
- What safety features are built into the Elite EVS lathe?
- Chuck guards are standard equipment on all ELITE lathes for increased safety. The lathe also features an electro-magnetic brake for rapid spindle stopping, a front facing chip pan that allows easy chip removal from the front of the machine, an enclosed splash guard, and CNC Style Lighting for improved visibility during operation. The machine is CSA/CUS Certified.
- What is the swing capacity and what size workpieces can this lathe accommodate?
- The lathe has a 12 in. swing over bed and a swing over cross slide of 7-5/1 in. The spindle bore measures 1-9/16 in., the steady rest accepts workpieces from 1/4-2-1/2 in., and the length of gap is 9-1/2 in., providing flexibility for a range of workpiece sizes within this 12 x 36 in. machine's compact footprint.
