Product Features
Product Description

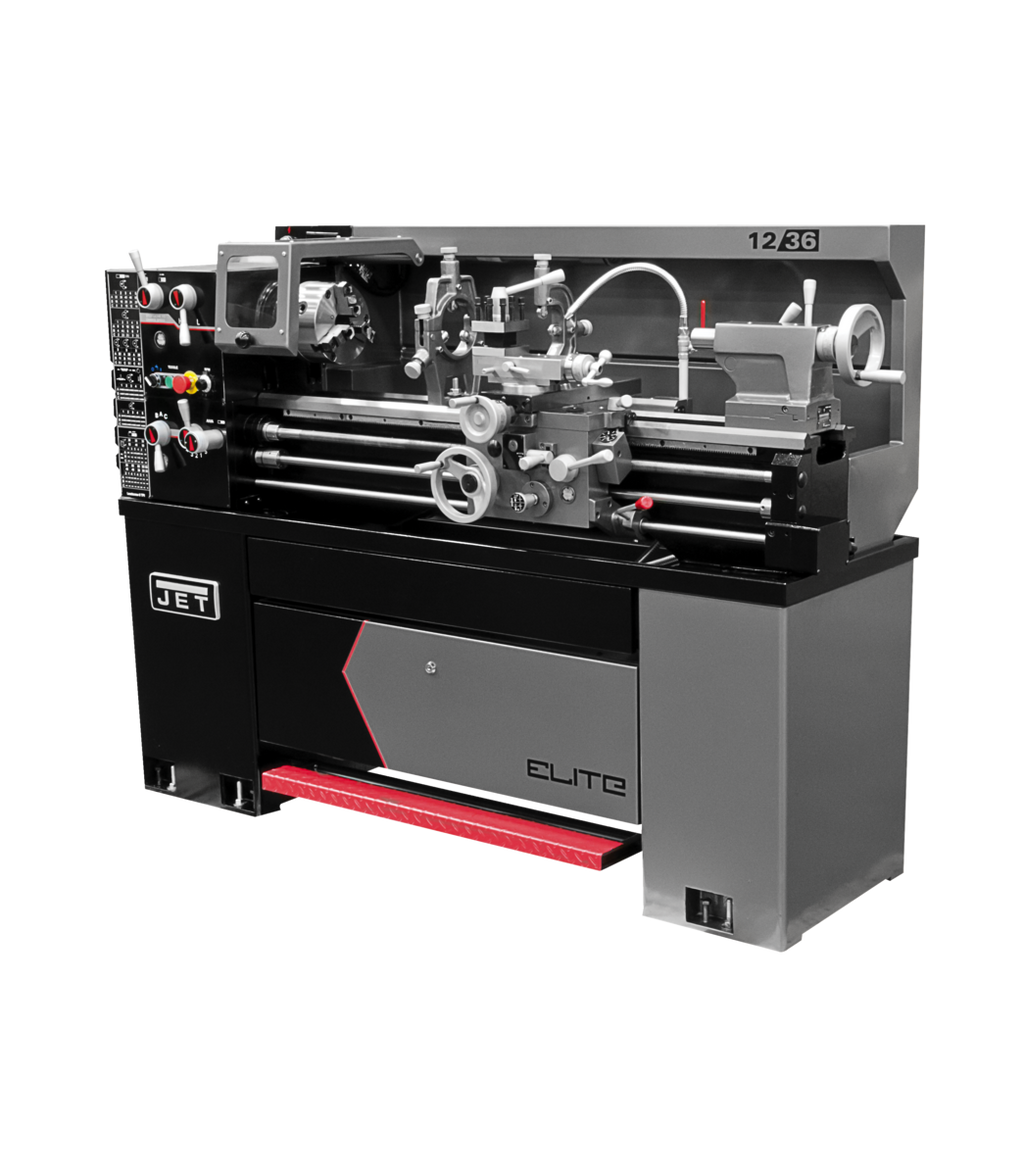

JET E-1236VS Elite EVS Lathe with ACU-RITE 303 DRO, Taper Attachment & Collet Closer is a precision-engineered metalworking lathe from JET designed for schools, small shops, and engineering labs that demand large-lathe capability in a compact footprint. The inverter drive system delivers infinitely variable spindle speeds up to 2,000 RPM, while certified Meehanite castings, an electro-magnetic brake, and CNC-style lighting with enclosed splash guard set this 12 x 36 in. machine firmly in the Elite class. CSA/CUS Certified.
Key Features
- 4-Position Carriage Stop for repeatable, precise part lengths
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine

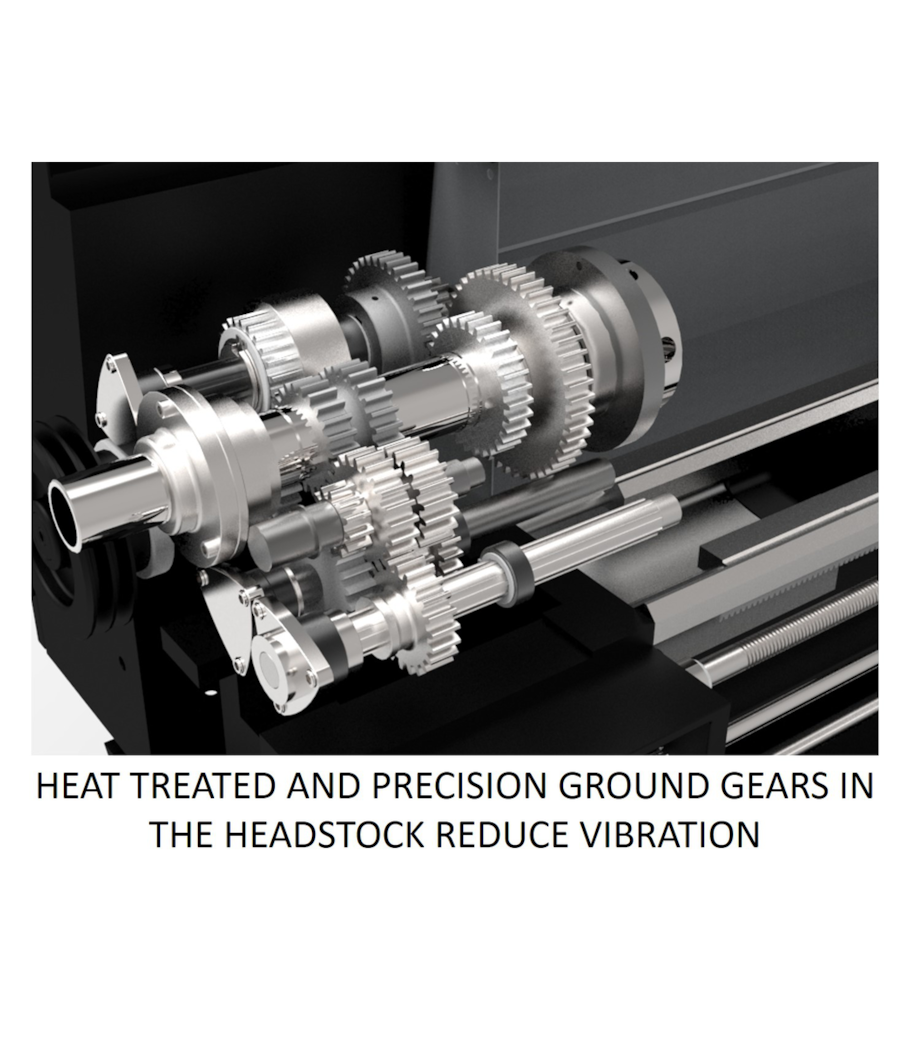

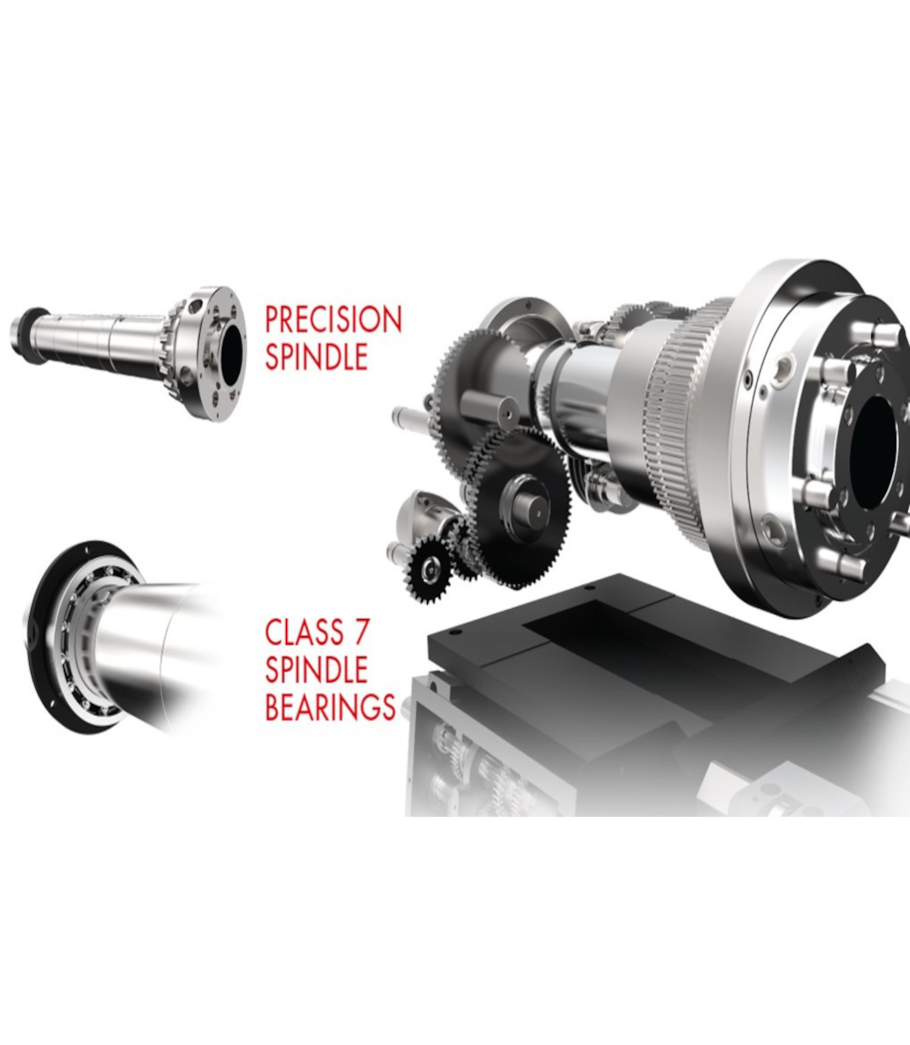

- Hardened and ground gears in headstock reduce vibration and deflection
- Integrated locking tool cabinet in stand on 12 in. Lathe keeps tooling organized and secure
- Inverter drive system provides infinitely variable spindle speeds
- LED RPM readout allows for precise turning speeds
- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
- Certified Meehanite castings for rigidity and vibration damping

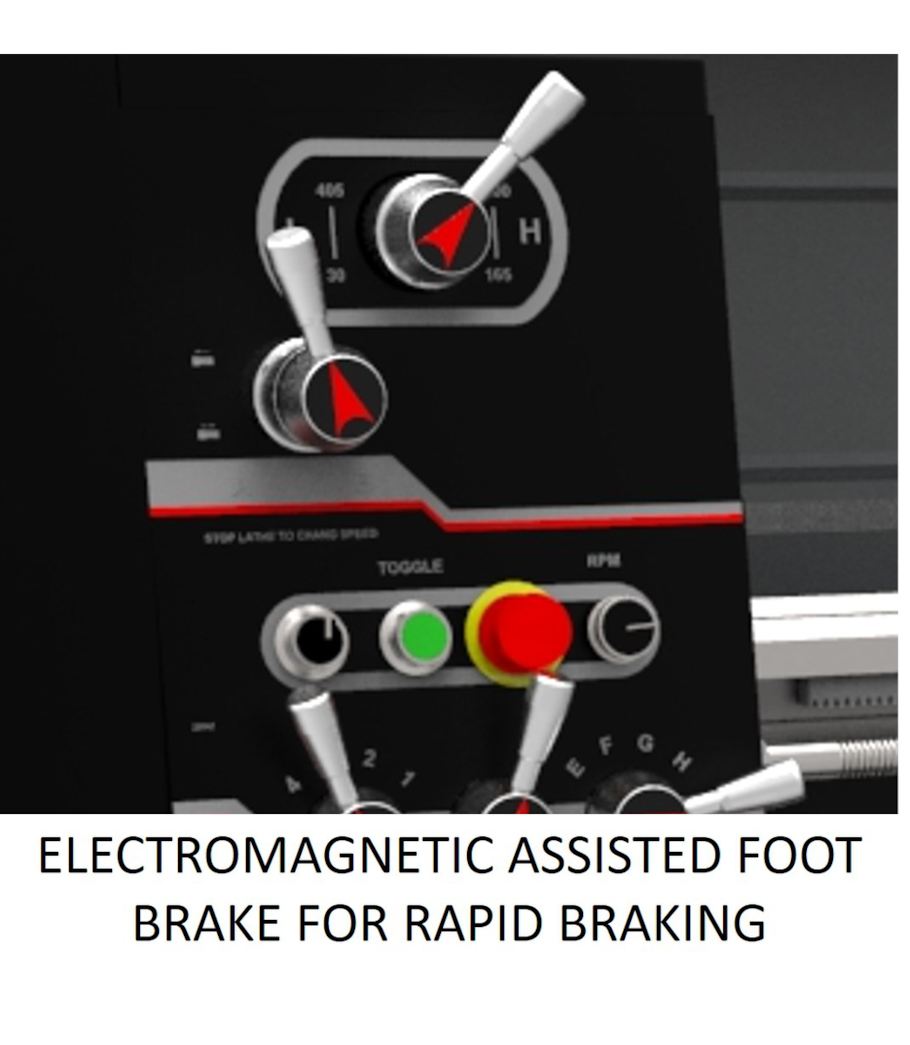

- Electro-magnetic brake for fast, controlled spindle stops
- Three jaw chuck included as standard equipment

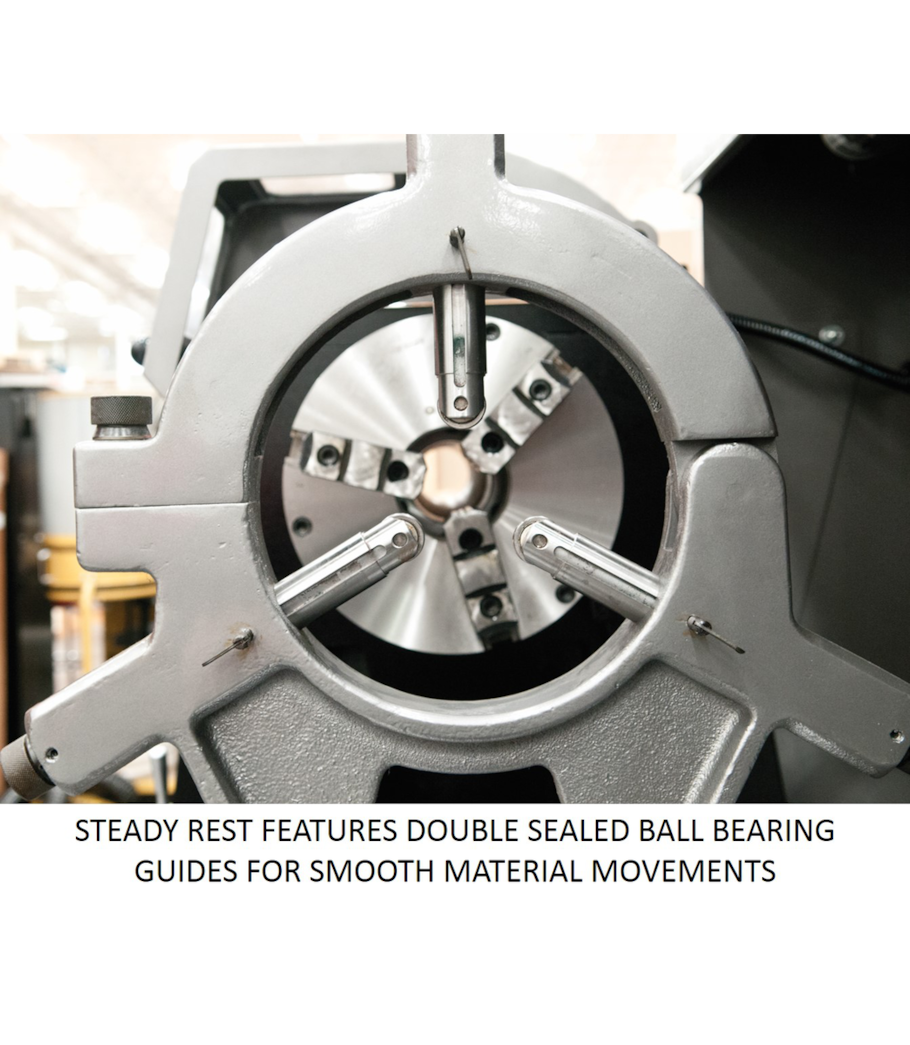

- Ball bearing-mounted steady and follow rests for workpiece support

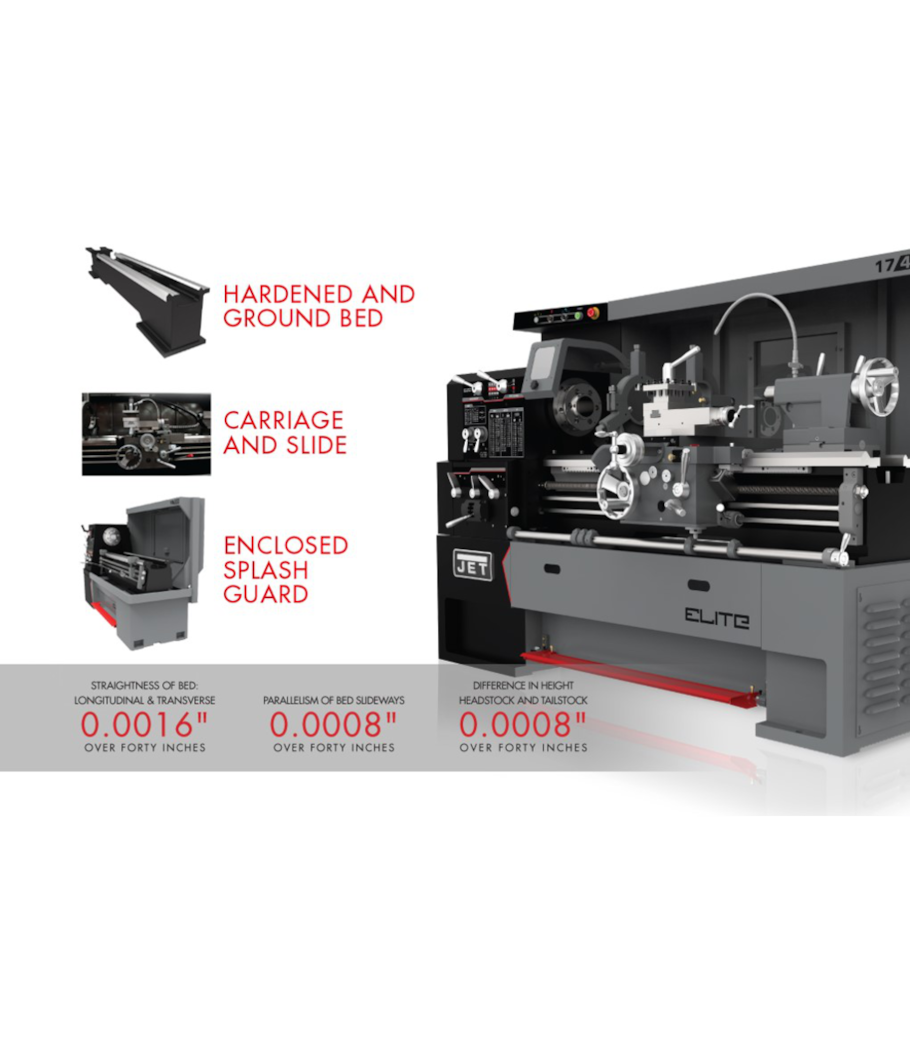

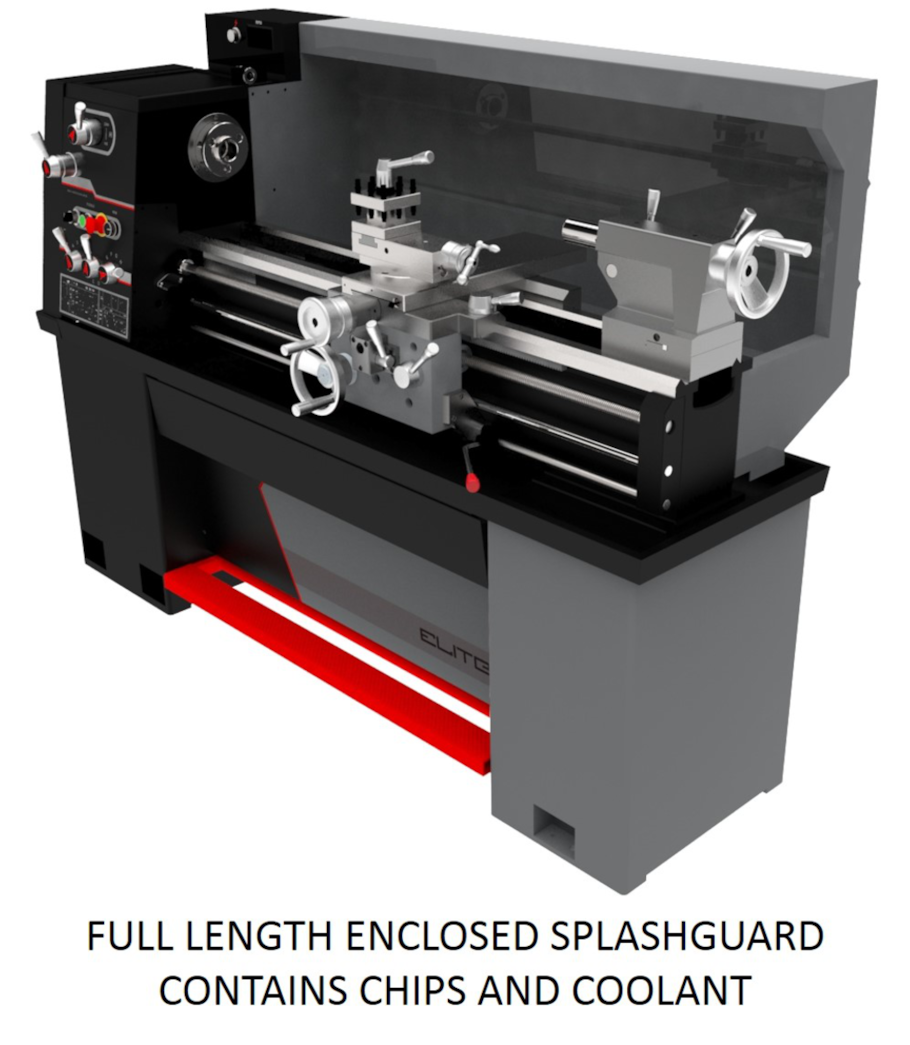

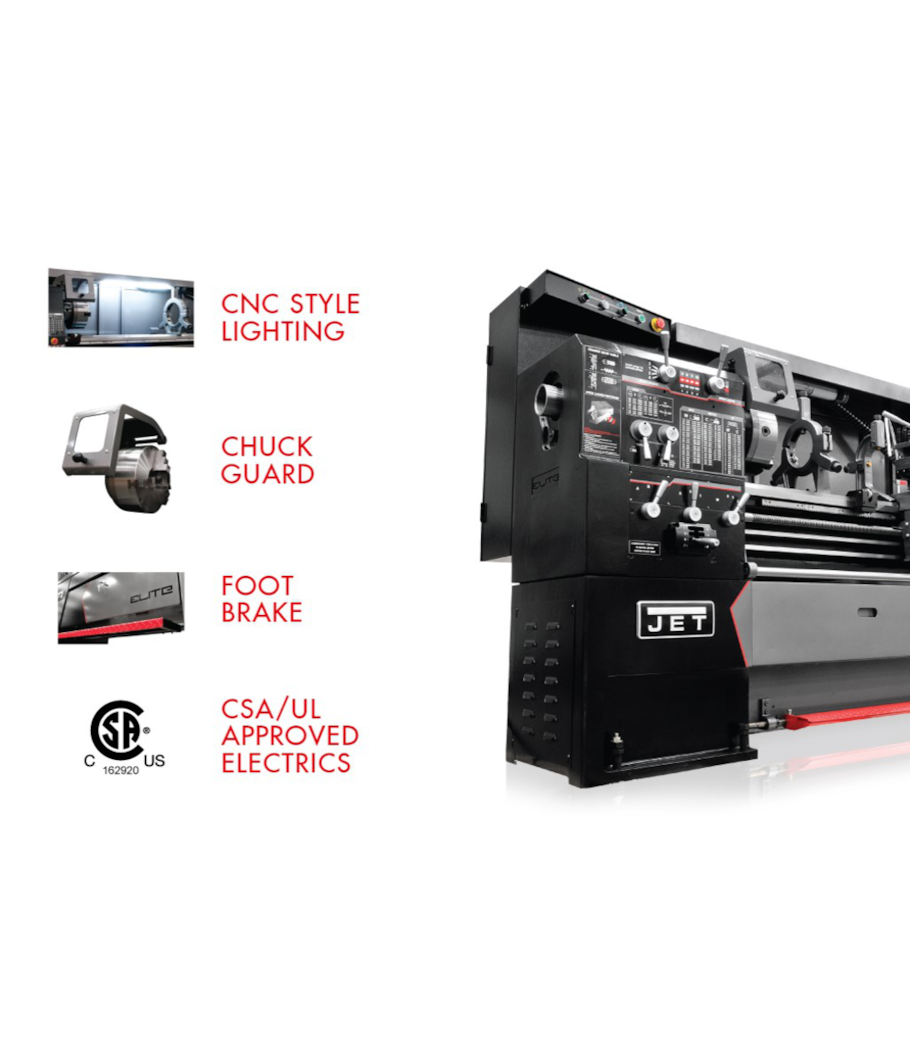

- CNC Style Lighting with enclosed splash guard
- ACU-RITE 303 Digital Readout (DRO) for accurate positional measurement
- Taper Attachment for precision taper turning
- Collet Closer for secure, repeatable workholding
- 34 inch thread pitches and 33 metric thread pitches for versatile threading
- 50 longitudinal and cross feed rates for flexible material removal control
Specifications
- Stock Number: 892314
- Size: 12 x 36
- Drive: EVS
- Style (Type): ELITE EVS
- Motor: 2HP, 230V, 3ph
- Range of Spindle Speeds (RPM): 0-2,000
- Two Speed Gearbox Low Range (RPM): 40-365
- Two Speed Gearbox High Range (RPM): 165-2000
- Swing Over Bed (In.): 12
- Swing Over Cross Slide (In.): 7-5/16 in.
- Compound Slide Travel (In.): 3-1/2
- Length of Gap (In.): 9-1/2
- Spindle Bore (In.): 1-9/16
- Spindle Mount: D1-4
- Spindle Taper with Sleeve: MT-5
- Max Tool Size (In.): 1/2 x 1/2
- Number of Inch Threads: 34
- Range of Inch Threads (TPI): 2-56
- Number of Metric Threads: 33
- Range of Metric Threads: 0.5-12
- Number of Longitudinal and Cross Feed Rates: 50
- Range of Longitudinal Feeds (IPR): 0.0016-0.046
- Range of Cross Feeds (IPR): 0.0005-0.015
- Steady Rest Capacity (In.): 1/4-2-1/2

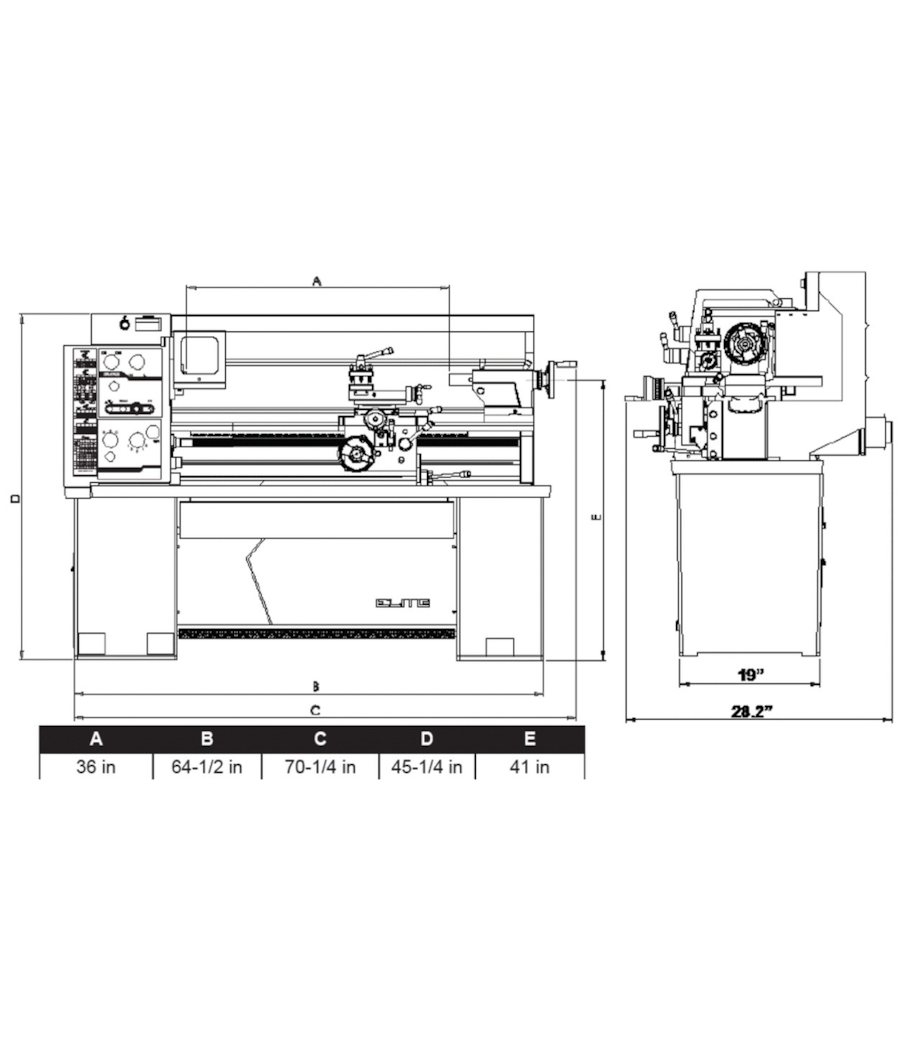

- Overall Dimensions (L x W x H) (In.): 71 x 30 x 60
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What spindle speed range does the two speed gearbox provide?
- The two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM. The inverter drive system further provides infinitely variable spindle speeds within those ranges, giving operators precise control over cutting conditions.
- What electrical requirements does this lathe need?
- The lathe is powered by a 2HP motor rated at 230V, 3-phase. Ensure your facility has a compatible 230V three-phase electrical supply before installation.
- How many threading options does this machine support?
- The E-1236VS supports 34 inch thread pitches ranging from 2-56 TPI and 33 metric thread pitches ranging from 0.5-12 mm. It also provides 50 longitudinal and cross feed rates, with longitudinal feeds from 0.0016-0.046 IPR and cross feeds from 0.0005-0.015 IPR.
- What safety features are standard on the ELITE lathe?
- Chuck guards are standard equipment on all ELITE lathes for increased safety. The machine also includes an electro-magnetic brake for rapid, controlled spindle stops, a CNC Style Lighting system, and an enclosed splash guard to protect the operator during turning operations.
