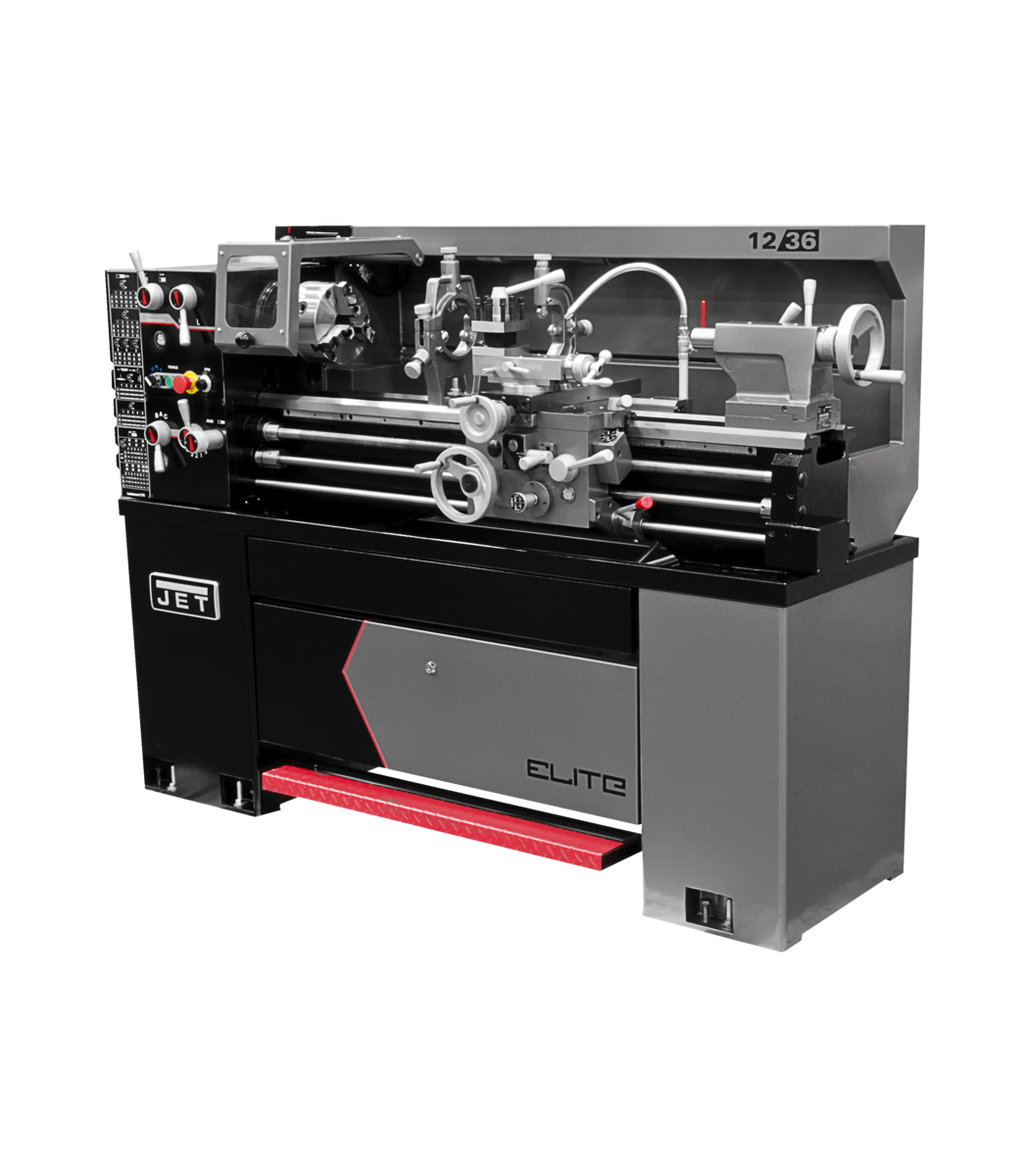

JET E-1236VS Elite EVS Lathe with ACU-RITE 203 DRO, Taper Attachment & Collet Closer by JET delivers precision metalworking capability in a compact 12 x 36 in. footprint, making it an ideal choice for schools, small shops, and engineering labs that demand professional-grade performance without sacrificing floor space. Powered by an inverter drive system for infinitely variable spindle speeds and paired with an ACU-RITE 203 Digital Readout, a taper attachment, and a collet closer, this lathe brings together accuracy, versatility, and safety in one complete package.

Key Features

• Inverter drive system provides infinitely variable spindle speeds for precise control across a wide range of turning operations
• Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
• LED RPM readout allows for precise turning speeds

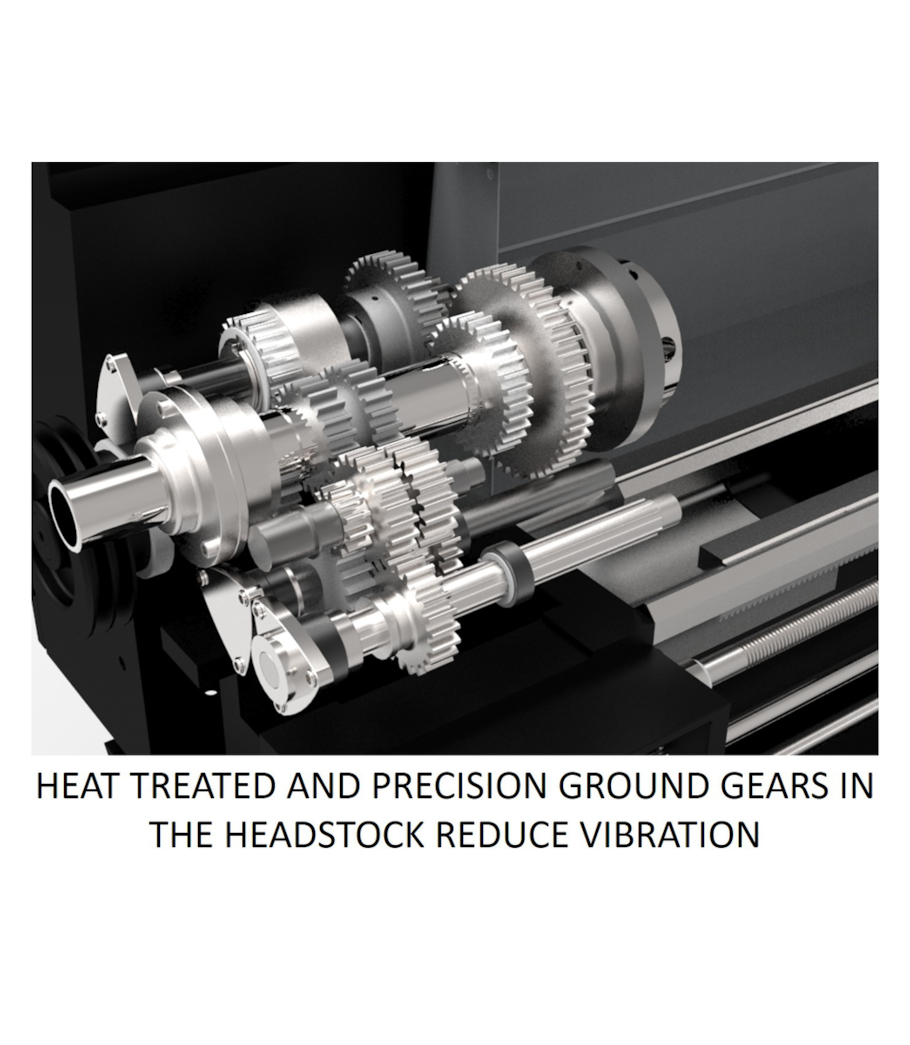

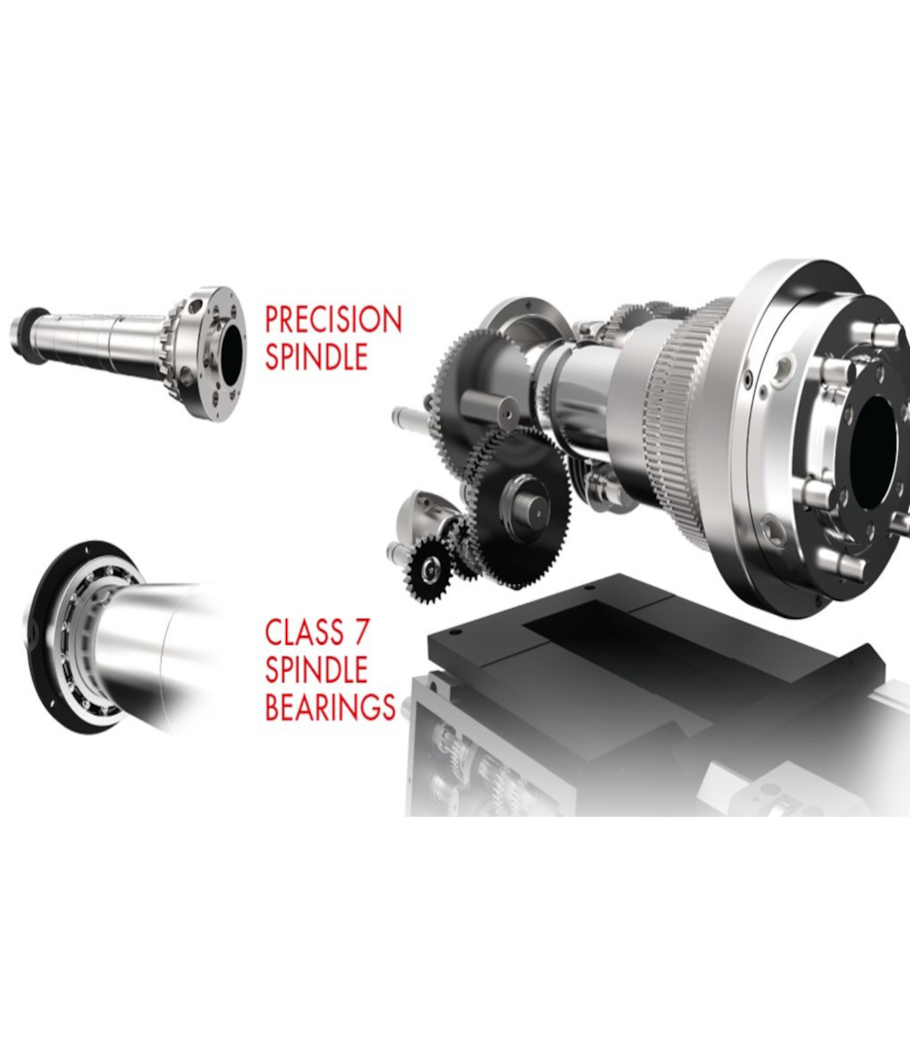

• Hardened and ground gears in headstock reduce vibration and deflection for smoother, more accurate cuts
• 4-Position Carriage Stop for repeatable, consistent workpiece positioning
• Chuck guards are standard equipment on all ELITE lathes for increased safety
• Front facing chip pan allows easy chip removal from the front of the machine
• Integrated locking tool cabinet in stand on 12 in. Lathe for secure, organized tool storage
• Certified Meehanite castings for superior rigidity and dimensional stability

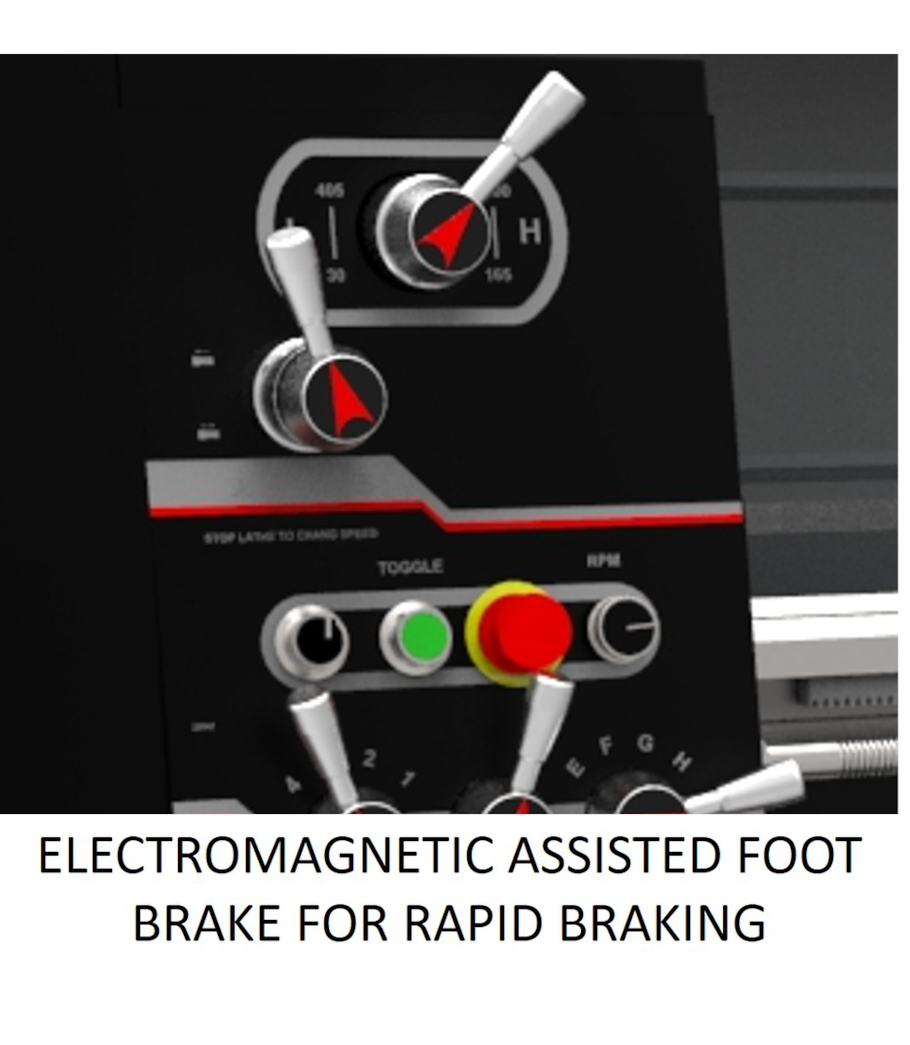

• Electro-magnetic brake for fast, controlled spindle stopping
• Three jaw chuck included for immediate setup and use

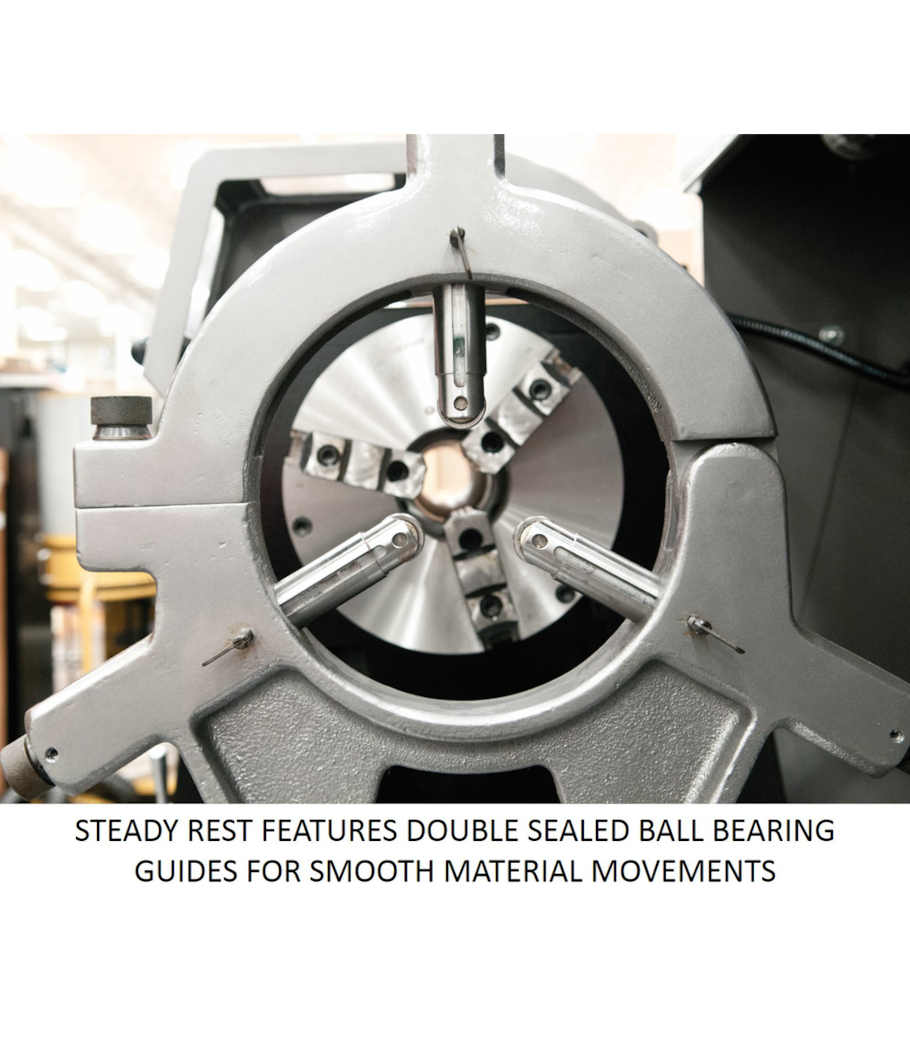

• Ball bearing-mounted steady and follow rests for stable workpiece support

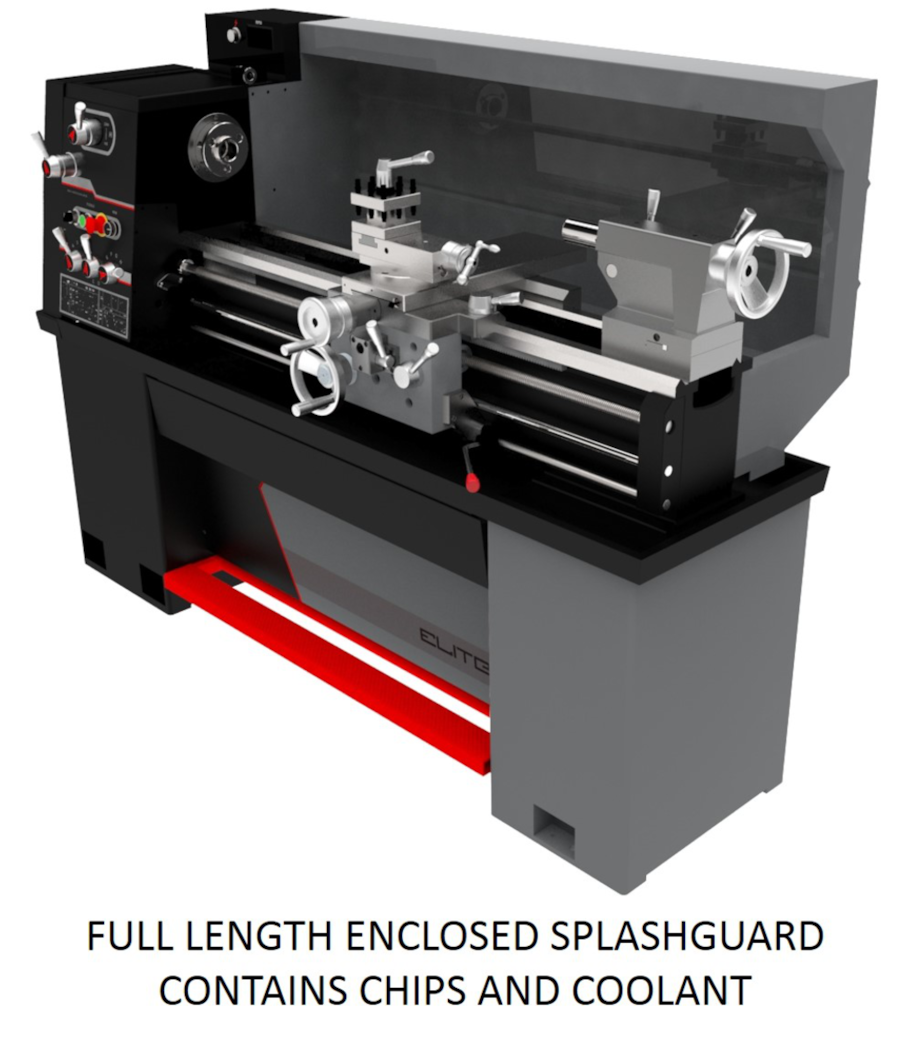

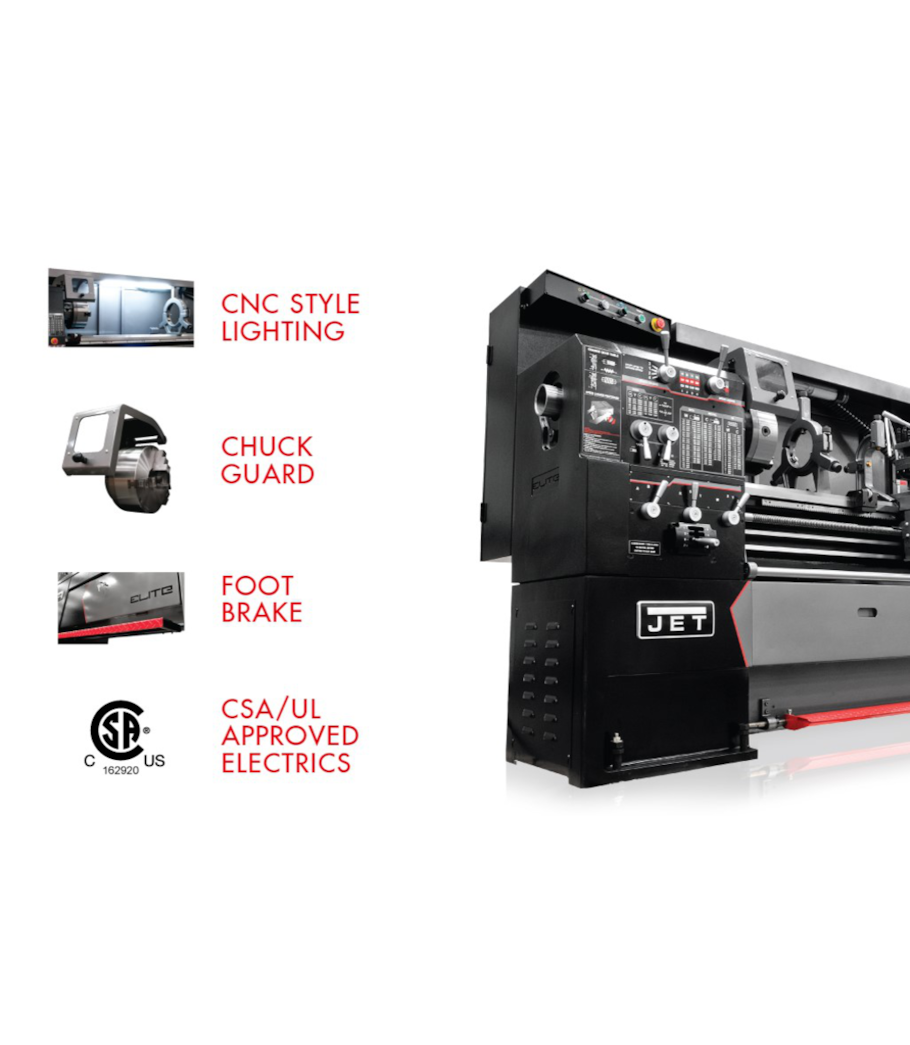

• CNC Style Lighting with enclosed splash guard for an illuminated, protected work environment
• CSA/CUS Certified for safety compliance
• D1-4 spindle mount for broad chuck and accessory compatibility
• 1-9/16 in. spindle bore accommodates a wide range of bar stock diameters
• MT-5 spindle taper with sleeve for versatile tooling options

Specifications

• Stock Number: 892306
• Size: 12 x 36
• Style (Type): ELITE EVS
• Drive: EVS
• Motor: 2HP, 230V, 3ph
• Range of Spindle Speeds (RPM): 0-2,000
• Two Speed Gearbox - Low Range (RPM): 40-365
• Two Speed Gearbox - High Range (RPM): 165-2000
• Swing Over Bed (In.): 12
• Swing Over Cross Slide (In.): 7-5/16 in.
• Length of Gap (In.): 9-1/2
• Compound Slide Travel (In.): 3-1/2
• Spindle Bore (In.): 1-9/16
• Spindle Mount: D1-4
• Spindle Taper with Sleeve: MT-5
• Max Tool Size (In.): 1/2 x 1/2
• Steady Rest Capacity (In.): 1/4-2-1/2
• Number of Inch Threads: 34
• Range of Inch Threads (TPI): 2-56
• Number of Metric Threads: 33
• Range of Metric Threads: 0.5-12
• Number of Longitudinal and Cross Feed Rates: 50
• Range of Longitudinal Feeds (IPR): 0.0016-0.046
• Range of Cross Feeds (IPR): 0.0005-0.015

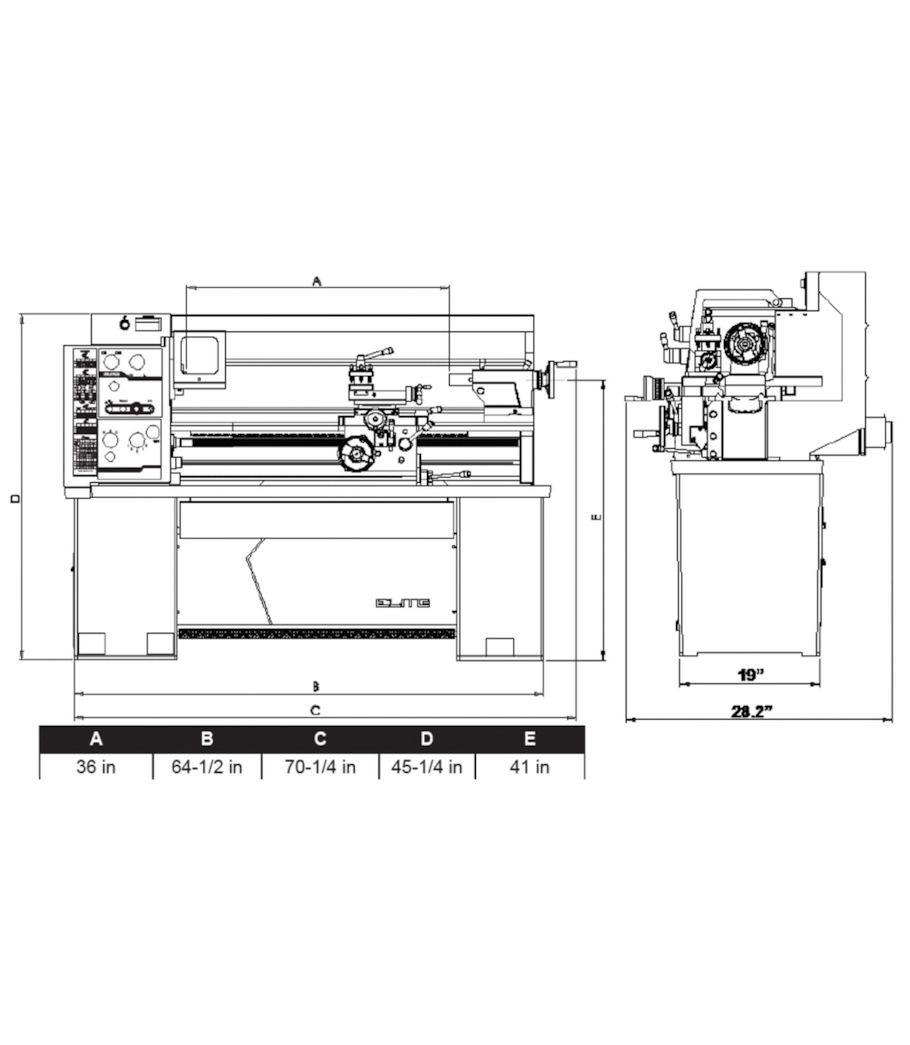

• Overall Dimensions (L x W x H) (In.): 71 x 30 x 60
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

What spindle speed range does the E-1236VS provide, and how are speeds controlled?

The E-1236VS features an inverter drive system that provides infinitely variable spindle speeds from 0-2,000 RPM. A two speed gearbox further divides this into a low range of 40-365 RPM and a high range of 165-2000 RPM, giving operators precise control for a wide variety of materials and operations. An LED RPM readout displays the current speed for accurate, repeatable setups.

What threading capabilities does this lathe offer?

This lathe supports 34 inch thread pitches ranging from 2-56 TPI and 33 metric thread pitches ranging from 0.5-12 mm. It also provides 50 longitudinal and cross feed rates, with longitudinal feeds ranging from 0.0016-0.046 IPR and cross feeds ranging from 0.0005-0.015 IPR, making it highly capable for both inch and metric threading applications.

What safety features are included on this ELITE lathe?

Chuck guards are standard equipment on all ELITE lathes for increased safety. The machine is also CSA/CUS Certified and includes an electro-magnetic brake for rapid spindle stopping. CNC Style Lighting with an enclosed splash guard provides a well-lit, protected workspace, and a front facing chip pan allows easy chip removal from the front of the machine to reduce hazards.

What are the key workholding and tooling specifications for this lathe?

The lathe uses a D1-4 spindle mount for broad compatibility with chucks and accessories. The spindle bore measures 1-9/16 in. and accepts an MT-5 spindle taper with sleeve. The maximum tool size is 1/2 x 1/2 in., the compound slide travel is 3-1/2 in., and the steady rest capacity covers 1/4-2-1/2 in. A taper attachment and collet closer are included with this configuration for expanded workholding flexibility.
