Product Features
Product Description

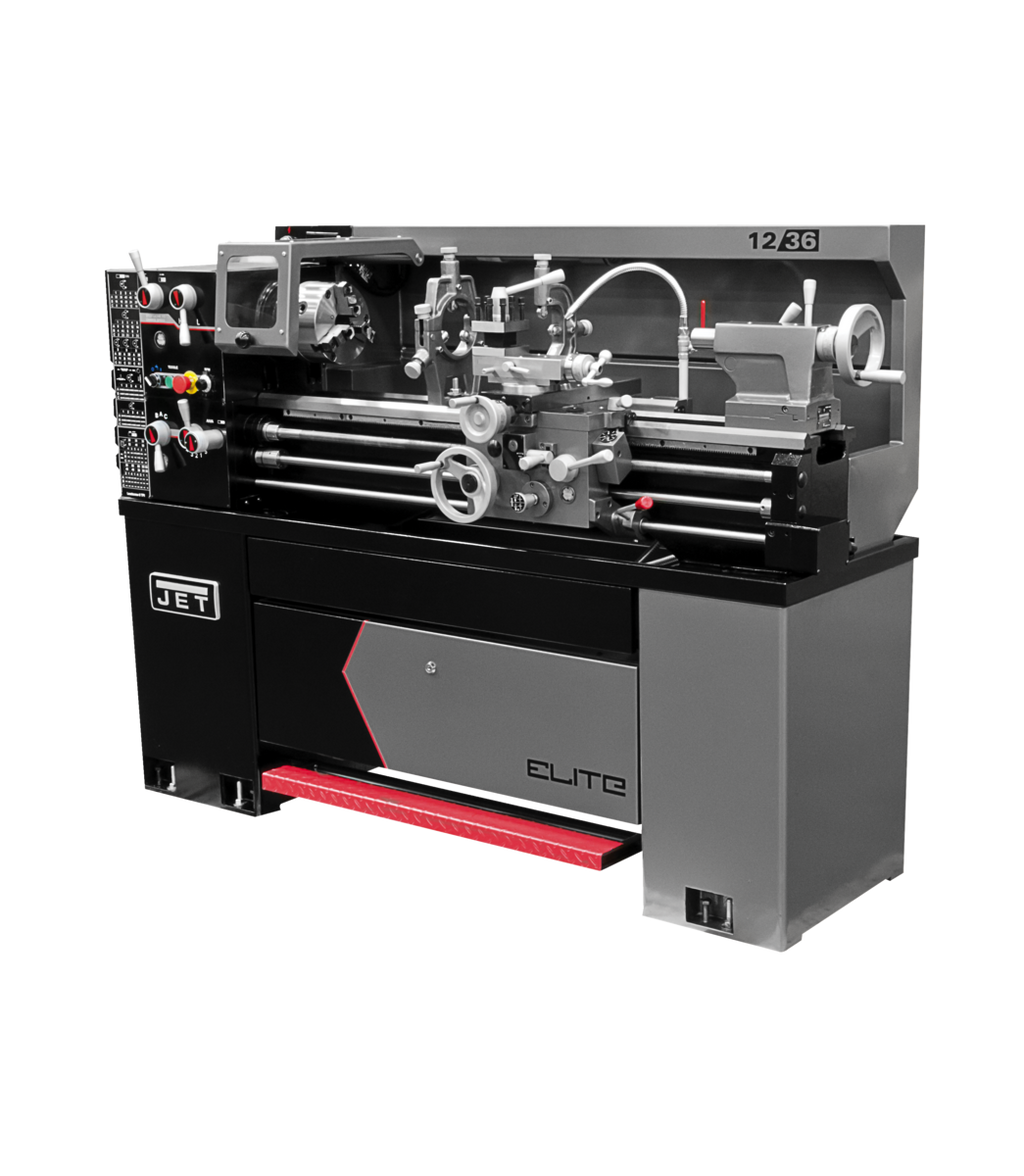

JET E-1236VS Elite EVS Lathe with Taper Attachment and Collet Closer is a precision-engineered 12 x 36 in. metalworking lathe from JET, purpose-built for schools, small shops, and engineering labs that demand large-machine capability in a compact footprint. Powered by an inverter drive system for infinitely variable spindle speeds and backed by certified Meehanite castings and hardened, ground headstock gears, this Elite EVS lathe delivers smooth, vibration-minimized performance across a full range of turning, threading, and feeding operations.
Key Features
- Inverter drive system provides infinitely variable spindle speeds for precise control across every operation
- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
- LED RPM readout allows for precise turning speeds at a glance

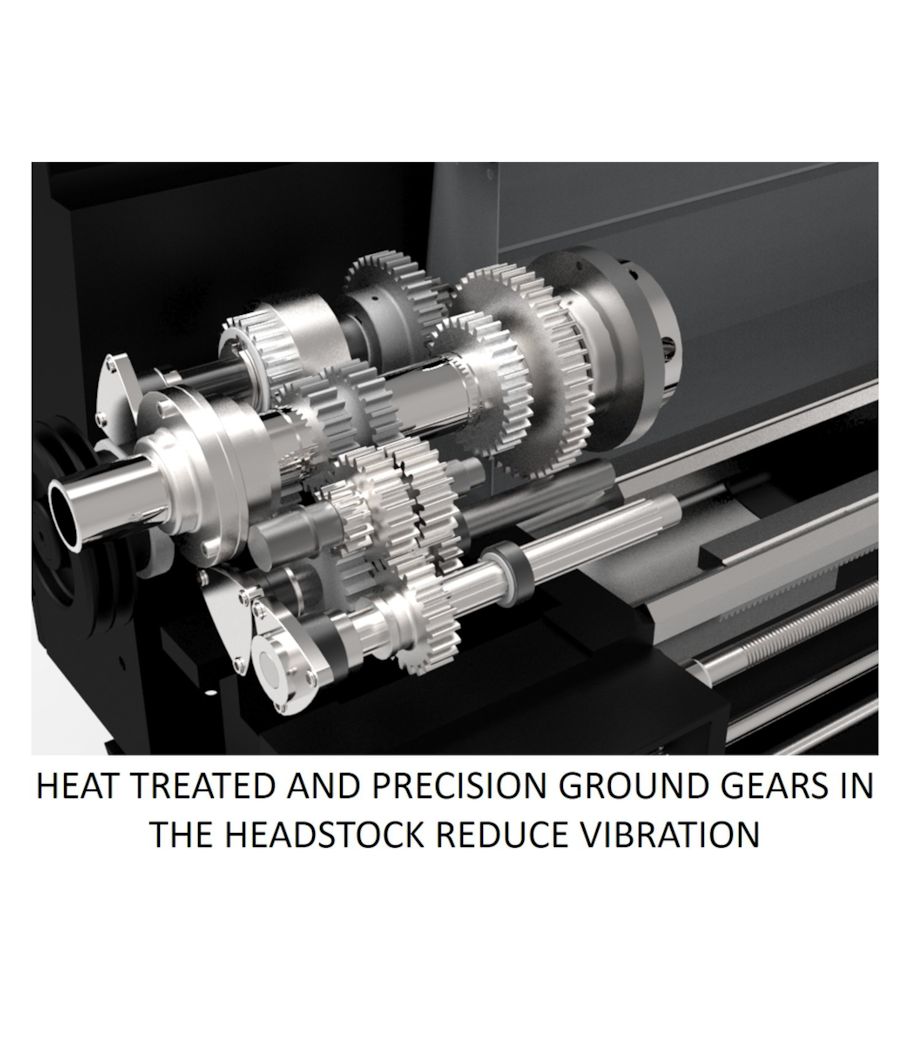

- Hardened and ground gears in headstock reduce vibration and deflection for superior surface finishes
- 4-Position Carriage Stop for repeatable, accurate cuts
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine
- Integrated locking tool cabinet in stand on 12 in. lathe for secure, organized tool storage
- Certified Meehanite castings for rigid, stable construction

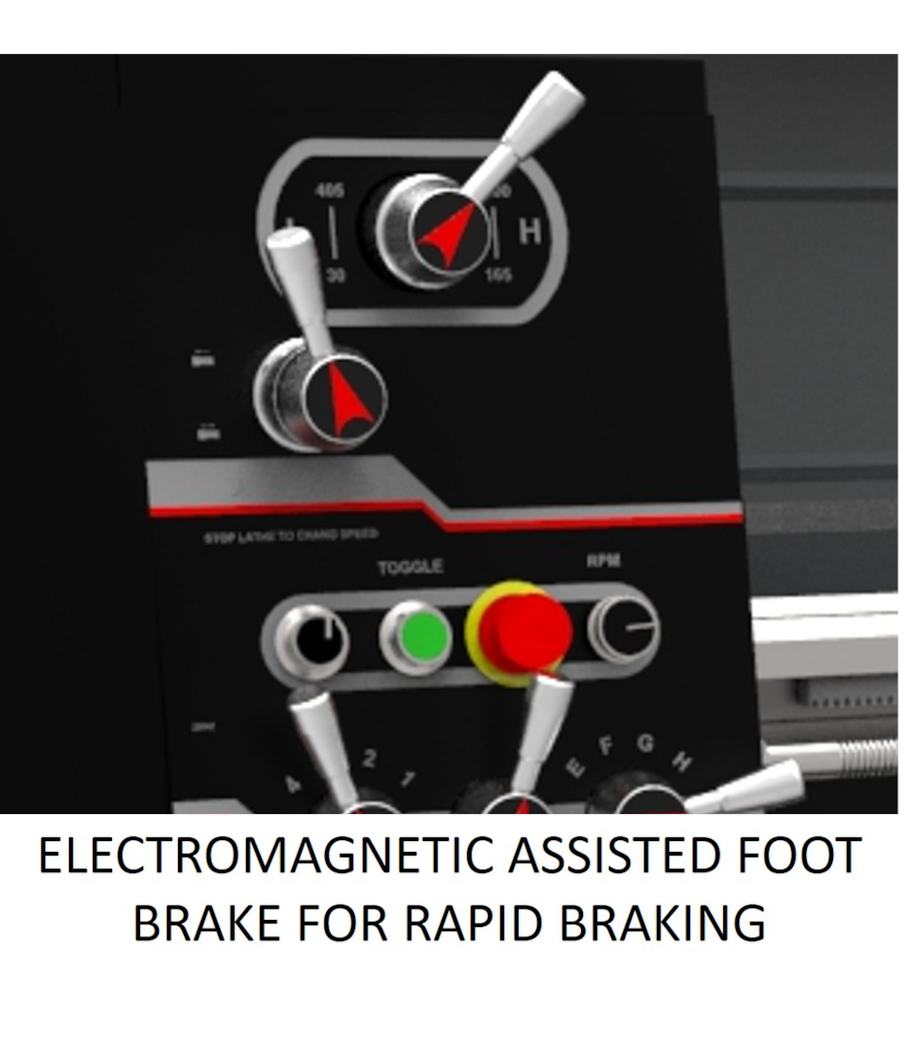

- Electro-magnetic brake for fast, controlled spindle stopping
- Three jaw chuck included as standard equipment

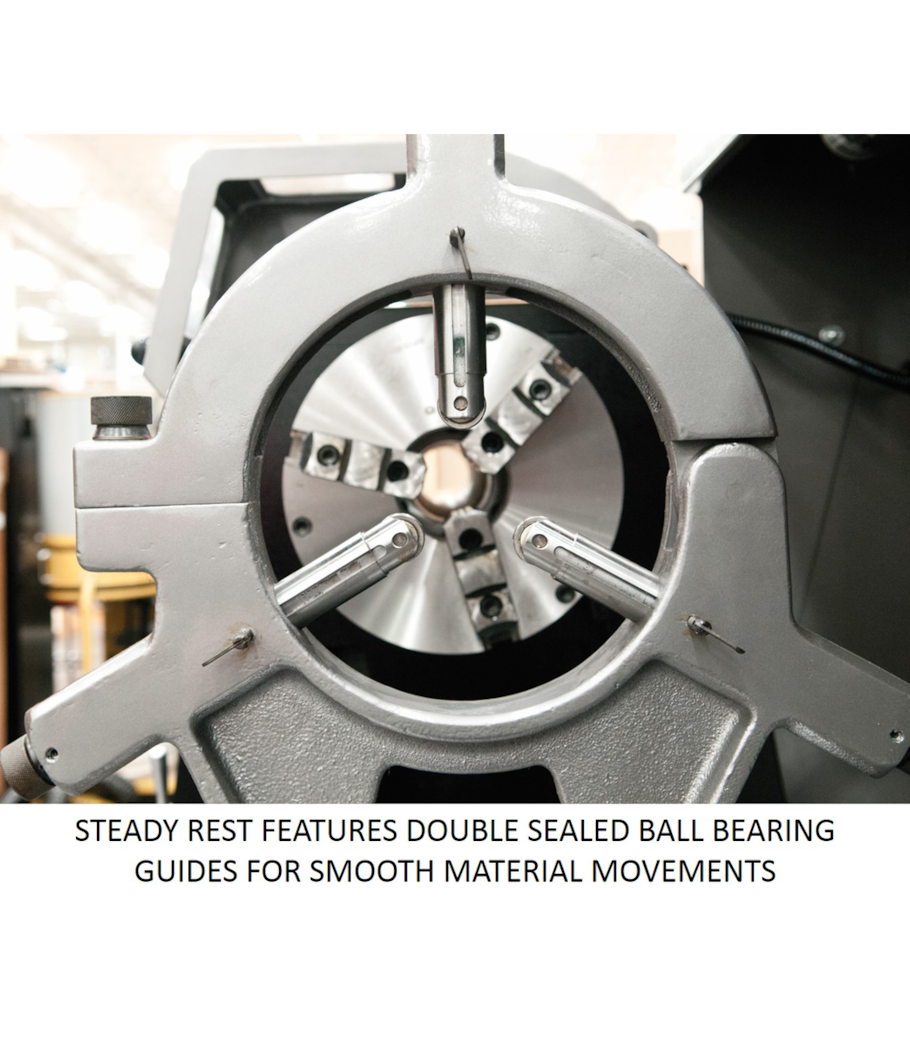

- Ball bearing-mounted steady and follow rests for precise workpiece support

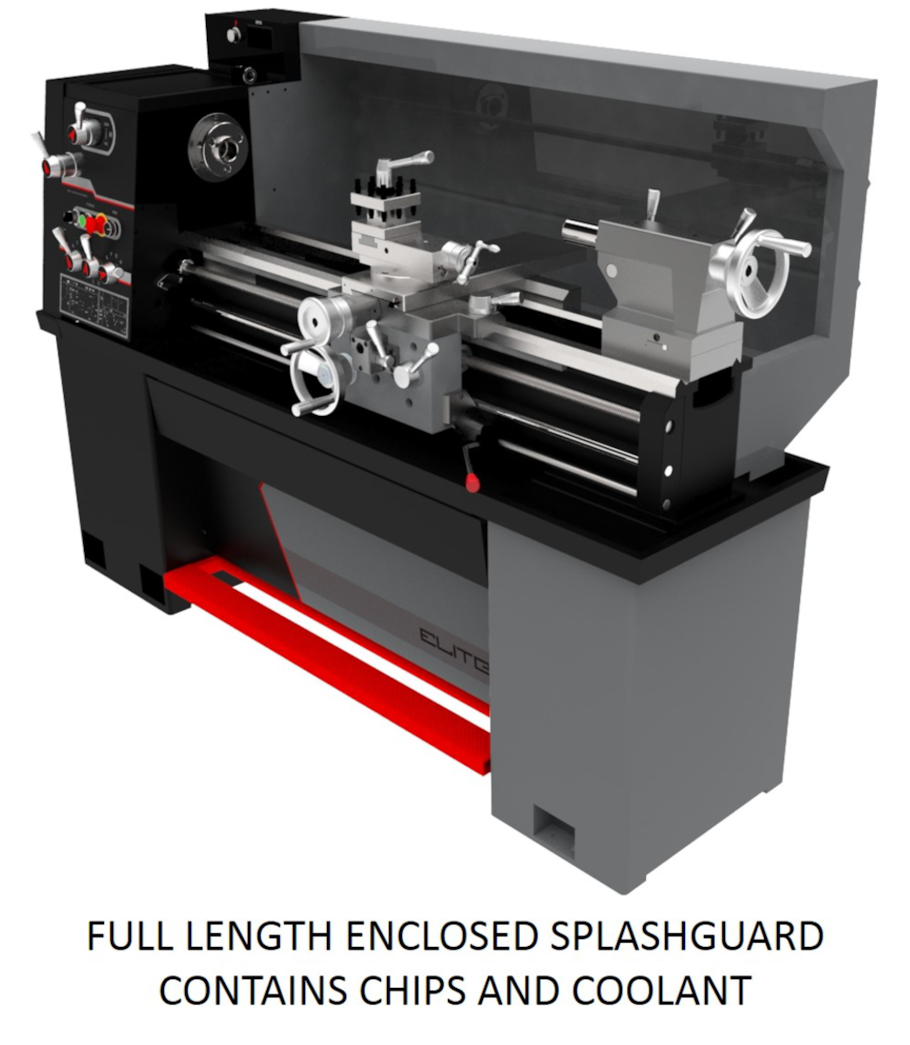

- CNC Style Lighting with enclosed splash guard
- CSA/CUS Certified for North American safety compliance
Specifications
- Stock Number: 892302
- MPN: JT9-892302
- Style (Type): ELITE EVS
- Size: 12 x 36
- Drive: EVS
- Motor: 2HP, 230V, 3ph
- Range of Spindle Speeds (RPM): 0-2,000
- Swing Over Bed (In.): 12
- Swing Over Cross Slide (In.): 7-5/16 in.
- Spindle Bore (In.): 1-9/16
- Spindle Mount: D1-4
- Spindle Taper with Sleeve: MT-5
- Compound Slide Travel (In.): 3-1/2
- Length of Gap (In.): 9-1/2
- Max Tool Size (In.): 1/2 x 1/2
- Steady Rest Capacity (In.): 1/4-2-1/2
- Number of Inch Threads: 34
- Range of Inch Threads (TPI): 2-56
- Number of Metric Threads: 33
- Range of Metric Threads: 0.5-12
- Number of Longitudinal and Cross Feed Rates: 50
- Range of Longitudinal Feeds (IPR): 0.0016-0.046
- Range of Cross Feeds (IPR): 0.0005-0.015

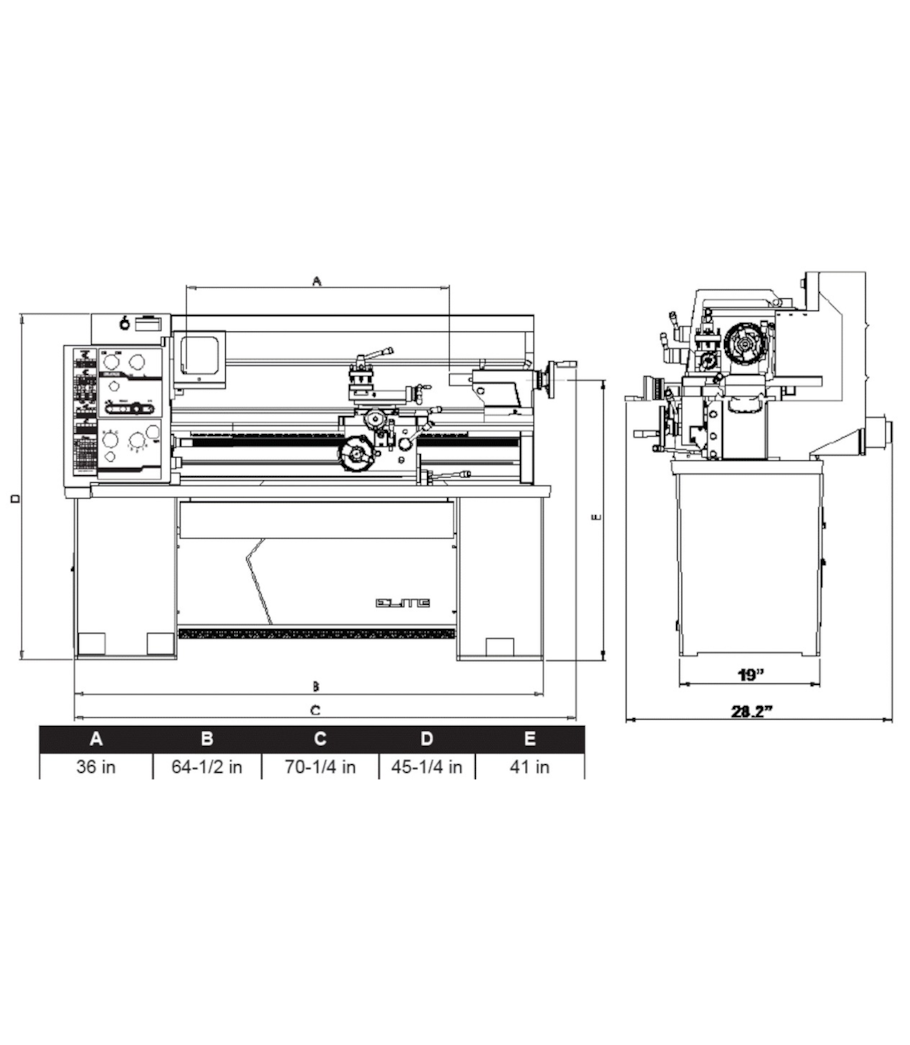

- Overall Dimensions (L x W x H) (In.): 71 x 30 x 60
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What spindle speed range does the E-1236VS provide, and how is it controlled?
- The E-1236VS features an inverter drive system that provides infinitely variable spindle speeds from 0-2,000 RPM. A two speed gearbox further divides this range, delivering low speeds from 40-365 RPM and high speeds from 165-2000 RPM. The LED RPM readout allows for precise turning speeds so operators can dial in exactly the right speed for each material and operation.
- What threading capabilities does this lathe offer?
- The E-1236VS supports 34 inch thread pitches ranging from 2-56 TPI and 33 metric thread pitches ranging from 0.5-12. Combined with 50 longitudinal and cross feed rates, it covers a wide variety of threading and feeding applications for both imperial and metric work.
- What safety features are included on this Elite EVS lathe?

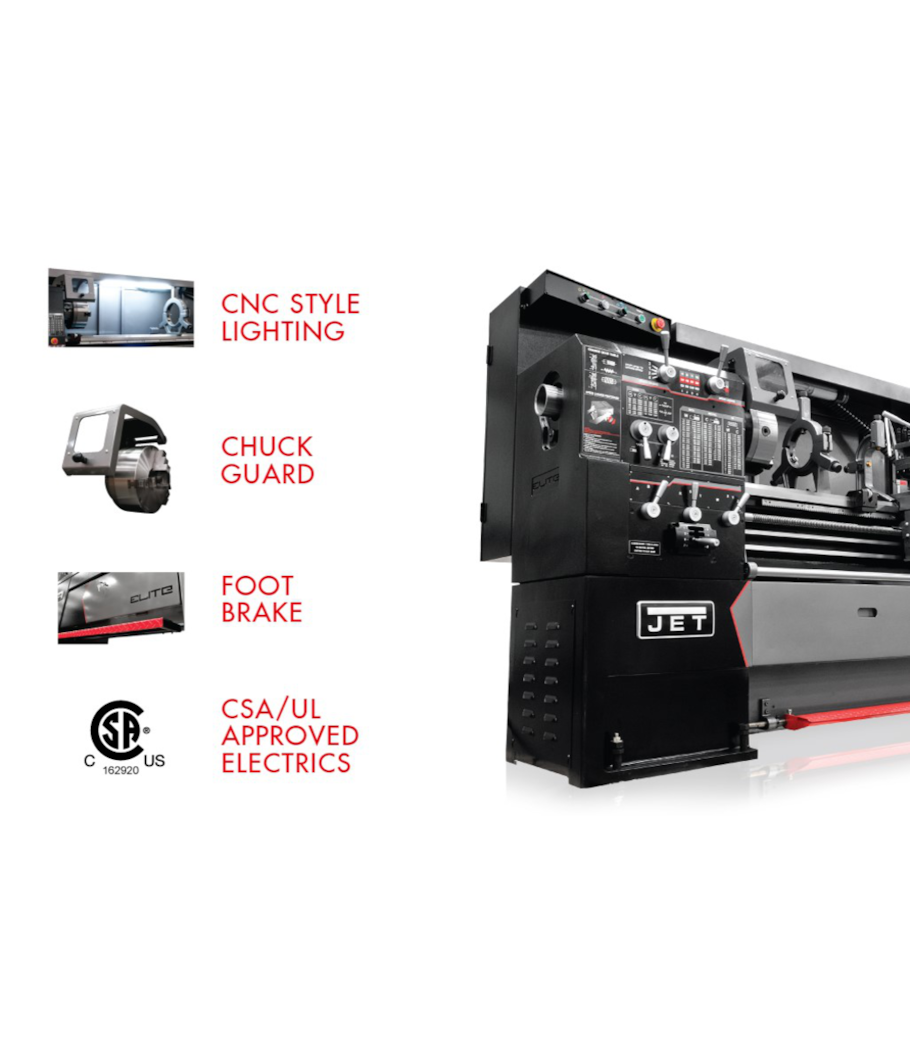

- Safety features include chuck guards that are standard equipment on all ELITE lathes for increased safety, an electro-magnetic brake for fast spindle stopping, CNC Style Lighting with an enclosed splash guard, and a front facing chip pan that allows easy chip removal from the front of the machine. The lathe is also CSA/CUS Certified.
- Does this lathe include a tool storage solution?
- Yes. The 12 in. Elite EVS lathe includes an integrated locking tool cabinet in the stand, providing secure, on-machine storage for tooling and accessories right at the point of use.
