Product Description

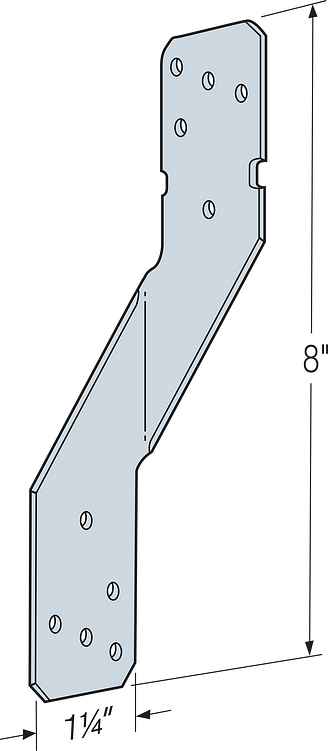

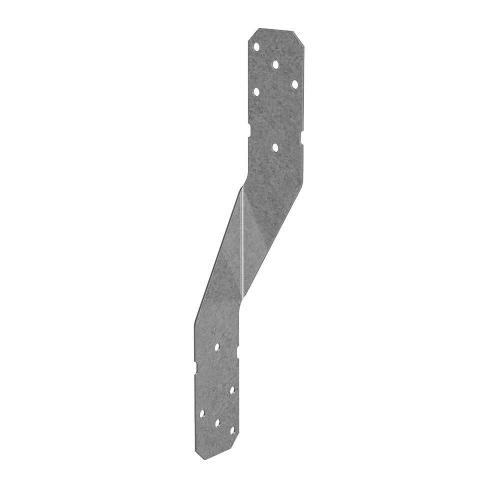

The Simpson Strong-Tie H8 18-Gauge Galvanized Hurricane Tie is an 18-gauge steel connector engineered to resist high winds and seismic forces by positively connecting trusses and rafters to the top of a wall structure. Finished with a G90 zinc galvanized coating for enhanced corrosion resistance, the H8 is equally effective with solid-sawn and engineered lumber across a wide range of framing applications.
Key Features

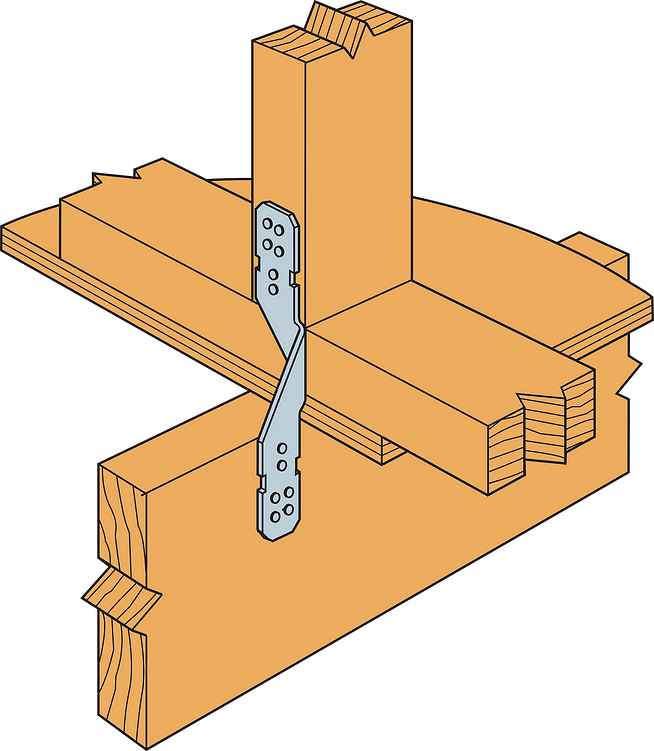

- Great for connecting 2x deck joists on top of a perpendicular beam
- Install in pairs on either side of the rafter/truss/joist to provide resistance to uplift and lateral forces
- Use also for a variety of connections where one member crosses another
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- Model Number: H8
- Gauge: 18
- Coating/Finish: Zinc Galvanized, G90
- Install With: Install with 10d x 1-1/2 in. nails or #9 x 1-1/2 in. Strong-Drive SD screws
- Country of Origin: United States
Approved Applications
- Connecting trusses and rafters to the top plate of a wall to resist wind uplift and seismic lateral forces
- Connecting 2x deck joists on top of a perpendicular beam
- A variety of connections where one framing member crosses another
- Exterior and treated-wood applications where additional corrosion resistance is required
Frequently Asked Questions
- What type of fasteners are required to install the H8 Hurricane Tie?
- Install with 10d x 1-1/2 in. nails or #9 x 1-1/2 in. Strong-Drive SD screws.
- Should the H8 be installed alone or in pairs?
- For maximum resistance to uplift and lateral forces, the H8 should be installed in pairs on either side of the rafter, truss, or joist.
- Is the H8 suitable for use with treated lumber or exterior applications?
- Yes. The G90 zinc galvanized coating provides extra corrosion resistance, making the H8 appropriate for exterior and treated-wood applications.
- Can the H8 be used with both solid-sawn and engineered lumber?
- Yes. The H8 is designed to connect both solid-sawn and engineered lumber across a wide range of framing applications.
