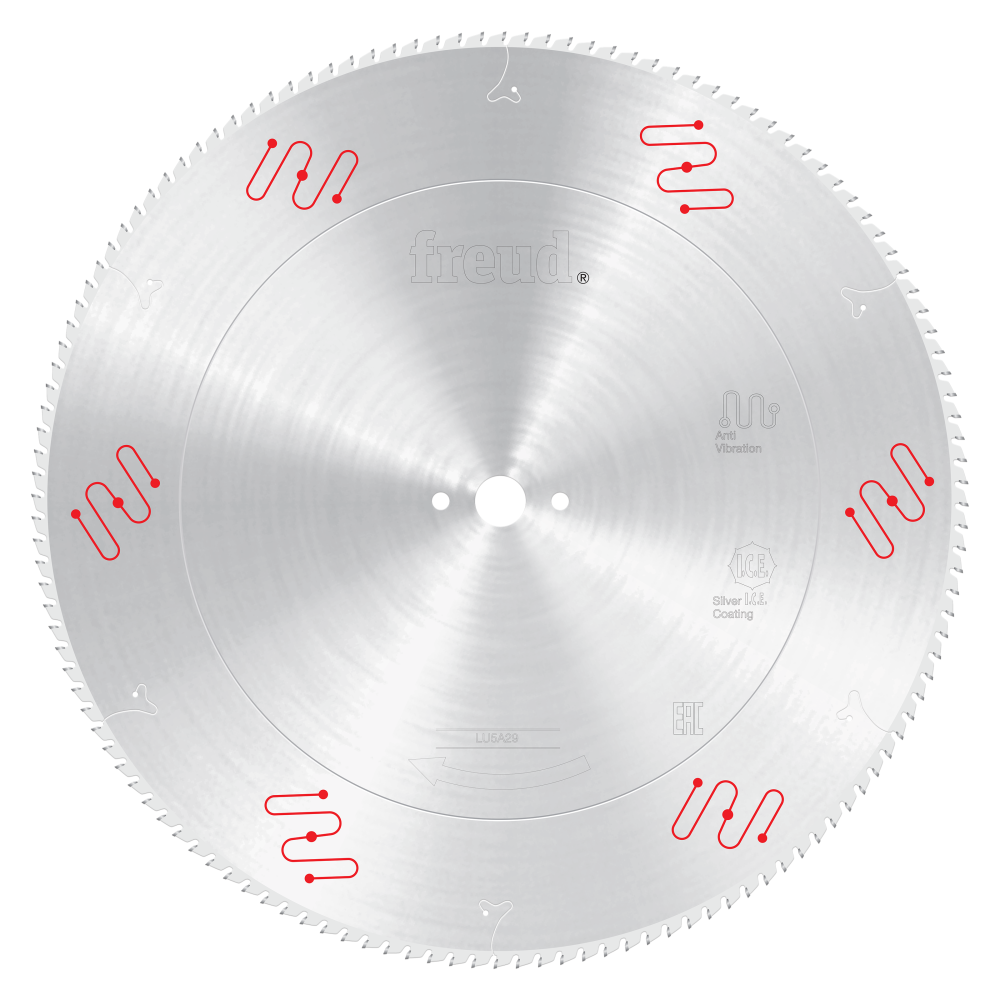

Freud 550mm Aluminum and Non-Ferrous Saw Blade with 132 Teeth and Mechanical Clamping is a professional-grade carbide-tipped cutting disc engineered to slice through solid drawn products with a thickness between 2 and 10 mm. Designed for aluminum, brass, copper, plastic, and vinyl, this large-format 550mm blade brings precision and durability to demanding non-ferrous cutting tasks on miter saws, stationary table saws, and double miter saws. With a 30mm arbor, a Triple Chip Grind (TCG) tooth geometry, and a flat-triple chip tooth with positive cutting angle, this blade delivers clean, controlled cuts through medium to thick aluminum profiles and non-ferrous materials alike.

Key Features

• Flat-triple chip tooth with positive cutting angle - produces aggressive yet controlled cuts through medium to thick non-ferrous materials, reducing chipping and improving cut quality.
• Silver I.C.E. Coating prevents build up on the blade surface and keeps the blade running cooler and cleaner - meaning less heat distortion, longer blade life, and reduced downtime for cleaning between cuts.
• TCG (Triple Chip Grind) tooth geometry - alternating tooth profile is specifically suited for aluminum, brass, copper, plastic, and vinyl, extending carbide life while maintaining a clean kerf.
• 550mm diameter with 132 teeth and a 4.2mm kerf - the high tooth count and large blade diameter combine to deliver smooth, fine finishes on solid drawn aluminum sections and non-ferrous profiles from 2 to 10 mm thick.
• 10 deg. hook angle - the positive hook angle promotes efficient chip evacuation and keeps cutting forces consistent across the full cut depth range.
• 3.5mm plate thickness - a substantial body reduces blade flex and vibration during high-load cuts through thick aluminum stock.
• 30mm arbor with 2/10.5/70 pinholes - fits a wide range of compatible miter and table saw machines, providing secure mechanical clamping and accurate blade registration.

Why This Product

• Purpose-built for aluminum and non-ferrous cutting - the TCG grind, positive 10 deg. hook angle, and 132-tooth configuration work together to handle solid drawn products from 2 to 10 mm thick without the tearing or smearing common with general-purpose blades.
• Cooler, cleaner operation through every cut - the Silver I.C.E. Coating actively prevents material build up on the blade surface, so performance stays consistent from the first pass to the last without frequent blade removal for cleaning.
• Broad material compatibility on a single blade - aluminum, brass, copper, plastic, and vinyl are all confirmed suitable materials, reducing the need to swap blades when cutting mixed non-ferrous workloads.
• Multi-machine versatility with mechanical clamping - the 30mm arbor with pinholes and compatibility with miter saws, stationary table saws, and double miter saws means this blade integrates directly into common professional shop setups.

Specifications

• Brand: Freud
• Product Group: Saw Blades
• Category: Aluminum and Plastics
• Sub Category: Aluminum and Non-Ferrous (Medium to Thick)
• Diameter: 550mm
• Teeth: 132
• Arbor: 30mm
• Kerf: 4.2mm
• Plate: 3.5mm
• Hook Angle: 10 deg.
• Grind: TCG
• Pinholes: 2/10.5/70
• Compatible Tools: Miter Saw; Stationary Table Saw; Double Miter Saw
• Compatible Materials: Plastic; Vinyl; Aluminum; Brass; Copper
• Usage: To cut solid drawn products with a thickness included between 2 and 10 mm.
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Sawblades to cut aluminum and non-ferrous metals

Frequently Asked Questions

What materials can this blade cut?

This blade is rated for cutting plastic, vinyl, aluminum, brass, and copper - making it a versatile choice for shops that work with a variety of non-ferrous materials on a regular basis.

What thickness range of material is this blade designed to handle?

This blade is designed to cut solid drawn products with a thickness included between 2 and 10 mm, placing it firmly in the medium to thick category for aluminum and non-ferrous cutting applications.

Which saws are compatible with this blade?

The blade is compatible with miter saws, stationary table saws, and double miter saws. It features a 30mm arbor with 2/10.5/70 pinholes to ensure secure mechanical clamping on compatible machines.

What does the Silver I.C.E. Coating do during cutting?

The Silver I.C.E. Coating prevents build up on the blade surface and keeps the blade running cooler and cleaner throughout the cut, which helps maintain consistent performance and can extend the usable life of the blade between maintenance intervals.
