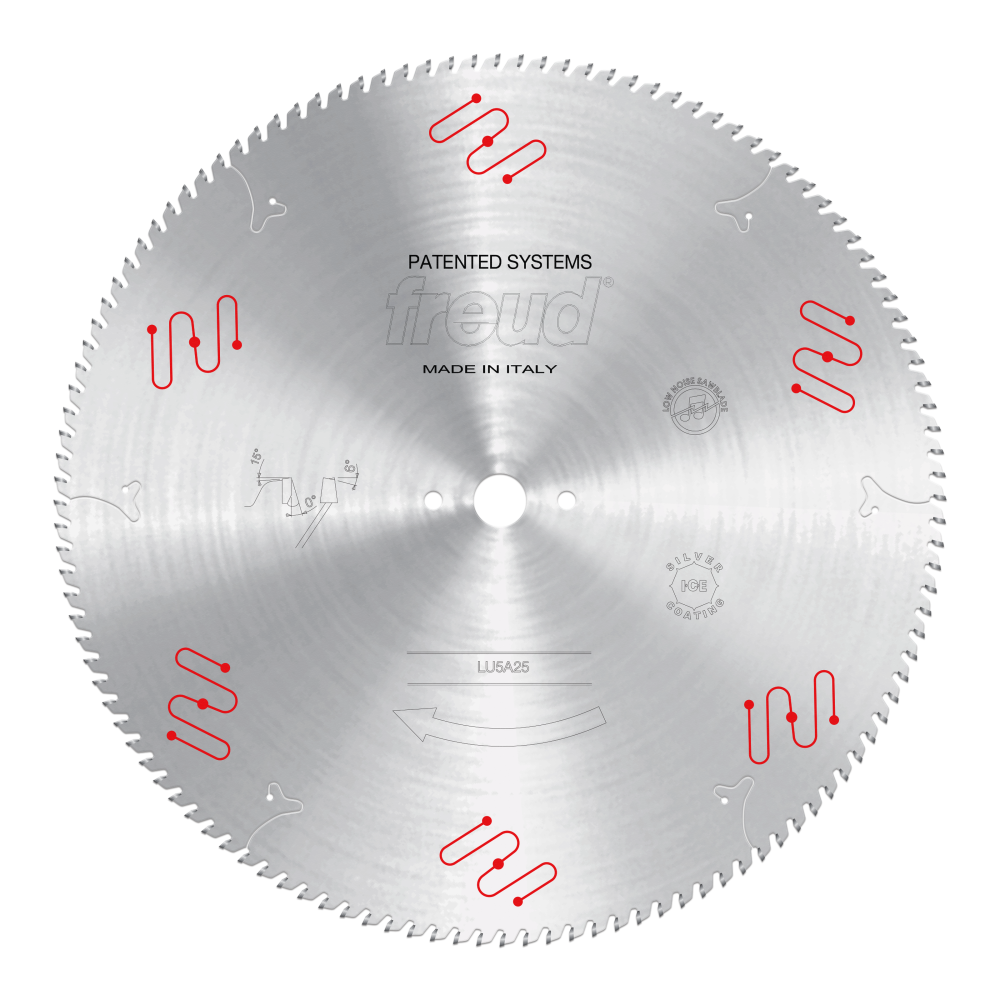

The Freud 500mm Aluminum and Non-Ferrous Saw Blade is a premium carbide-tipped cutting blade engineered specifically for sawing aluminum, brass, copper, plastic, and vinyl with precision and consistency. Featuring a 120-tooth TCG grind and a 10 deg. positive hook angle, this blade is designed to handle solid drawn products with a material thickness between 2 and 10 mm, making it a dependable choice for medium to thick non-ferrous cutting applications. Compatible with miter saws, stationary table saws, and double miter saws, it offers versatility across a wide range of professional setups. Manufactured in Italy, this 1-piece blade brings together advanced coating technology and a proven tooth geometry for cleaner, cooler cuts through non-ferrous metals and plastics.

Key Features

• Flat-triple chip (TCG) tooth geometry with positive cutting angle - the triple chip grind alternates between a flat tooth and a chamfered tooth, reducing chipping and producing smooth, clean cuts through aluminum, brass, copper, plastic, and vinyl.
• Silver I.C.E. Coating on the blade surface - this specialized coating actively prevents material build-up on the blade, keeping the blade running cooler and cleaner throughout extended use and helping to prolong blade life.
• 120 teeth on a 500mm diameter blade - the high tooth count delivers a finer finish cut through non-ferrous metals and plastics, reducing the need for secondary finishing work.
• 10 deg. positive hook angle - promotes aggressive, efficient material feed while maintaining control, which translates to consistent cut quality across medium to thick stock (2 to 10 mm thickness range).
• 4mm kerf width with a 3.2mm plate - the blade body and kerf dimensions are optimized to minimize material waste while providing the structural rigidity needed for stable cutting performance.
• 30mm arbor with pinholes sized 2/10.5/70 - designed to fit standard machine spindles on miter saws, stationary table saws, and double miter saws, making installation straightforward and secure.
• Designed for solid drawn products 2 to 10 mm thick - targeted performance for medium to thick aluminum and non-ferrous stock means the blade is matched to the specific demands of production and fabrication environments.

Why This Product

• The Silver I.C.E. Coating keeps the blade surface free of build-up and reduces heat accumulation, which helps maintain cut quality over repeated use without frequent interruptions for cleaning.
• With 120 teeth and a TCG grind, this blade is purpose-built for cutting aluminum, brass, copper, plastic, and vinyl - giving operators a single reliable blade across multiple non-ferrous and plastic materials.
• Compatibility with miter saws, stationary table saws, and double miter saws means this blade integrates into a variety of existing shop setups without requiring a dedicated machine.
• The 10 deg. positive hook angle and flat-triple chip tooth design work together to support clean, consistent cuts through solid drawn products in the 2 to 10 mm thickness range, reducing scrap and rework.

Specifications

• Brand: Freud
• Product Group: Saw Blades
• Category: Aluminum and Plastics
• Sub Category: Aluminum and Non-Ferrous (Medium to Thick)
• Diameter: 500mm
• Teeth: 120
• Arbor: 30mm
• Kerf: 4mm
• Plate: 3.2mm
• Hook Angle: 10 deg.
• Grind: TCG
• Pinholes: 2/10.5/70
• Compatible Tools: Miter Saw; Stationary Table Saw; Double Miter Saw
• Compatible Materials: Plastic; Vinyl; Aluminum; Brass; Copper
• Usage: To cut solid drawn products with a thickness included between 2 and 10 mm.
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Sawblades to cut aluminum and non-ferrous metals

Frequently Asked Questions

What materials can this blade cut?

This blade is designed to cut plastic, vinyl, aluminum, brass, and copper. It is suited for solid drawn products with a material thickness between 2 and 10 mm, covering medium to thick non-ferrous stock.

Which machines is this 500mm blade compatible with?

This blade is compatible with miter saws, stationary table saws, and double miter saws. It has a 30mm arbor and pinholes sized 2/10.5/70 to fit standard machine spindles on these tools.

What does the Silver I.C.E. Coating do?

The Silver I.C.E. Coating is applied to the blade surface to prevent material build-up during cutting. It also helps keep the blade running cooler and cleaner, which supports consistent performance over extended use.

What does TCG grind mean and why does it matter for non-ferrous cutting?

TCG stands for Triple Chip Grind. This tooth geometry alternates between a flat tooth and a chamfered tooth, which helps reduce chipping and produces smoother cut edges when sawing aluminum, brass, copper, plastic, and vinyl. It is the grind type used on this Freud 500mm blade.
