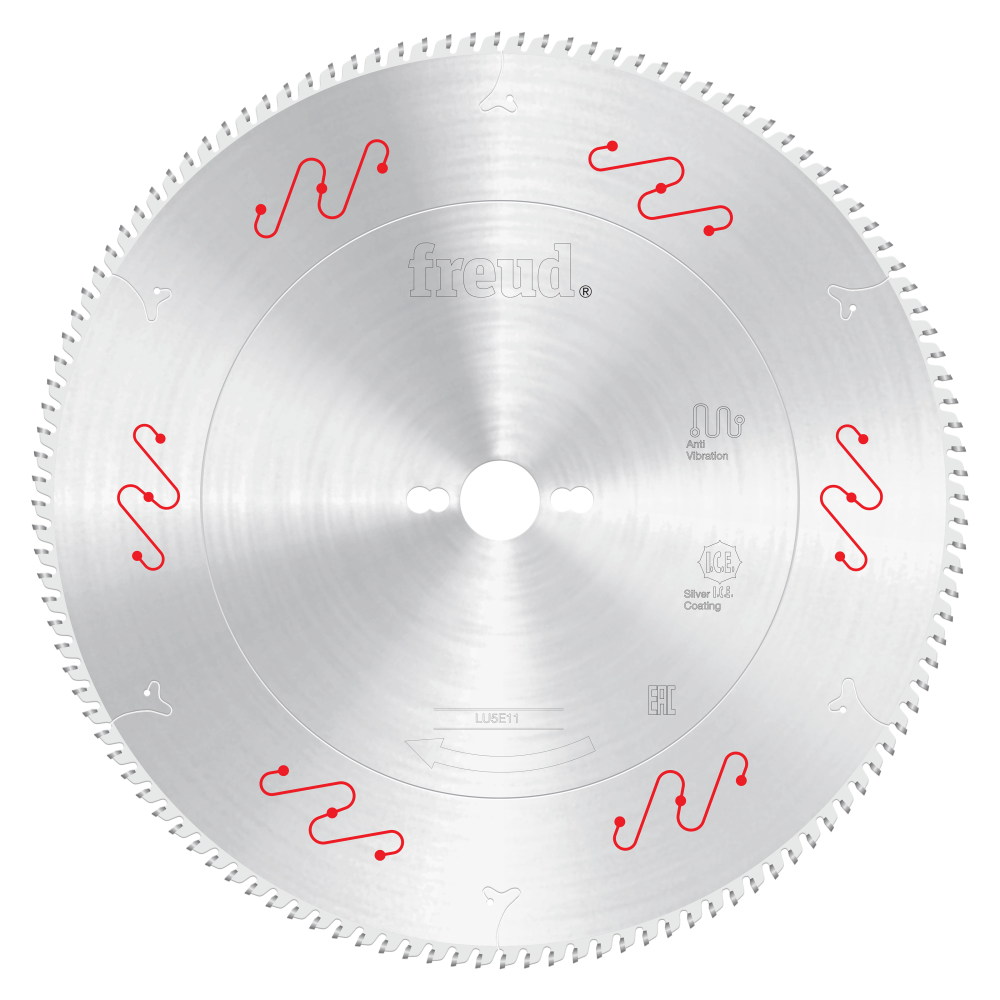

The Freud 350mm Carbide Tipped Saw Blade is a purpose-built cutting tool engineered for aluminum, non-ferrous metals, plastics, and similar materials - offering a 120-tooth configuration and a 3mm kerf designed to deliver an excellent cutting finish without splintering. With a Triple Chip Grind (TCG) tooth geometry, a 5 deg. hook angle, and compatibility with miter saws, stationary table saws, and double miter saws, this 350mm blade is a reliable choice for cutting special drawn products such as tubes and similar products having ultra-thin walls. Freud's exclusive TiCo Hi-Density Carbide and Silver I.C.E. Coating bring lasting performance to demanding non-ferrous cutting applications, while the anti-vibration design ensures smooth, accurate results on both high-power machines and low-power machines alike.

Key Features

• TiCo Hi-Density Carbide - Freud's exclusive blend of TiCo Hi-Density Carbide is specifically designed for each cutting application to maximize cutting life and material finish, meaning fewer blade changes and consistently cleaner cuts through aluminum, brass, copper, vinyl, and plastic.
• Silver I.C.E. Coating - Freud's own Silver I.C.E. Coating reduces heat, build up, and eliminates rust and corrosion to maximize the life of the blade, protecting your investment and keeping the blade performing like new over extended use.
• 120-Tooth TCG Grind - The Triple Chip Grind geometry with 120 teeth produces a fine, splinter-free finish when cutting aluminum, non-ferrous metals, and plastics, making it especially well suited to thin-walled tubes and precision drawn profiles.
• Anti-Vibration Design - The anti-vibration design eliminates movement and reduces vibration for flawless cuts, resulting in a smoother surface finish and increased operator control during crosscutting operations.
• Tri-Metal Brazing - Tri-Metal Brazing gives the tooth superior bond strength and protects the carbide tooth by giving it increased flexibility and impact resistance, so each tooth stays firmly seated even under the stress of cutting hard non-ferrous materials.
• Hi-Tolerance Precision Plate Grinding and Tensioning - Freud's Hi-Tolerance Precision Plate Grinding and Tensioning features a laser cut blade body from 48 Rockwell steel plate that remains flat and true over the lifetime of the blade, ensuring repeatable accuracy cut after cut.
• 5 deg. Hook Angle with 3mm Kerf - The positive 5 deg. hook angle combined with a 3mm kerf optimizes material removal and cutting efficiency, while the reduced plate thickness of 2.5mm minimizes waste and suits low-power machines without sacrificing finish quality.
• Multiple Pinhole Configurations (2/9/46.4 + 2/10/60) - Dual pinhole patterns allow the blade to mount on a wider range of machine arbors, adding versatility and making it compatible with more workshop setups without requiring adapters.

Why This Product

• Engineered specifically to cut special drawn products such as tubes and similar products having ultra-thin walls - delivering an excellent cutting finish without splintering across aluminum, brass, copper, vinyl, and plastic.
• The combination of TiCo Hi-Density Carbide and Silver I.C.E. Coating works together to extend blade life by resisting heat buildup, rust, and corrosion - reducing downtime and total cost of ownership.
• The 120-tooth TCG configuration and anti-vibration design make this blade a strong fit for operators who need consistently precise, smooth cuts across both high-power stationary table saws and lower-powered miter saw setups.
• A laser cut blade body from 48 Rockwell steel plate - the world's highest quality steel - stays flat and true over the lifetime of the blade, providing dimensional accuracy that holds up through repeated use in production environments.

Specifications

• Brand: Freud
• Product Group: Saw Blades
• Category: Aluminum and Plastics
• Sub Category: Aluminum and Non-Ferrous (Thin)
• Diameter: 350mm
• Teeth: 120
• Arbor: 30mm
• Kerf: 3mm
• Plate: 2.5mm
• Hook Angle: 5 deg.
• Grind: TCG
• Pinholes: 2/9/46.4 + 2/10/60
• Compatible Tools: Miter Saw; Stationary Table Saw; Double Miter Saw
• Compatible Materials: Plastic; Vinyl; Aluminum; Brass; Copper
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Sawblades to cut aluminum and non-ferrous metals

Frequently Asked Questions

What materials can this Freud 350mm blade cut?

This blade is designed to cut Plastic, Vinyl, Aluminum, Brass, and Copper. It is specifically intended to cut special drawn products such as tubes and similar products having ultra-thin walls, delivering an excellent cutting finish without splintering across all of these materials.

Which machines is this blade compatible with?

This 350mm Freud blade is compatible with a Miter Saw, a Stationary Table Saw, and a Double Miter Saw. Its reduced plate thickness and optimized kerf also make it well suited for use in low-power machines, in addition to higher-powered equipment.

What does the TCG grind mean for cutting performance?

TCG stands for Triple Chip Grind. This tooth geometry is particularly effective for cutting aluminum, non-ferrous metals, and plastics, producing a clean, splinter-free finish - especially when working with thin-walled tubes and precision drawn profiles.

What pinhole configurations does this blade support?

This blade features dual pinhole configurations: 2/9/46.4 and 2/10/60. These two patterns allow the blade to fit a wider range of machine arbor setups, increasing its compatibility across different workshop tools without requiring additional hardware.
