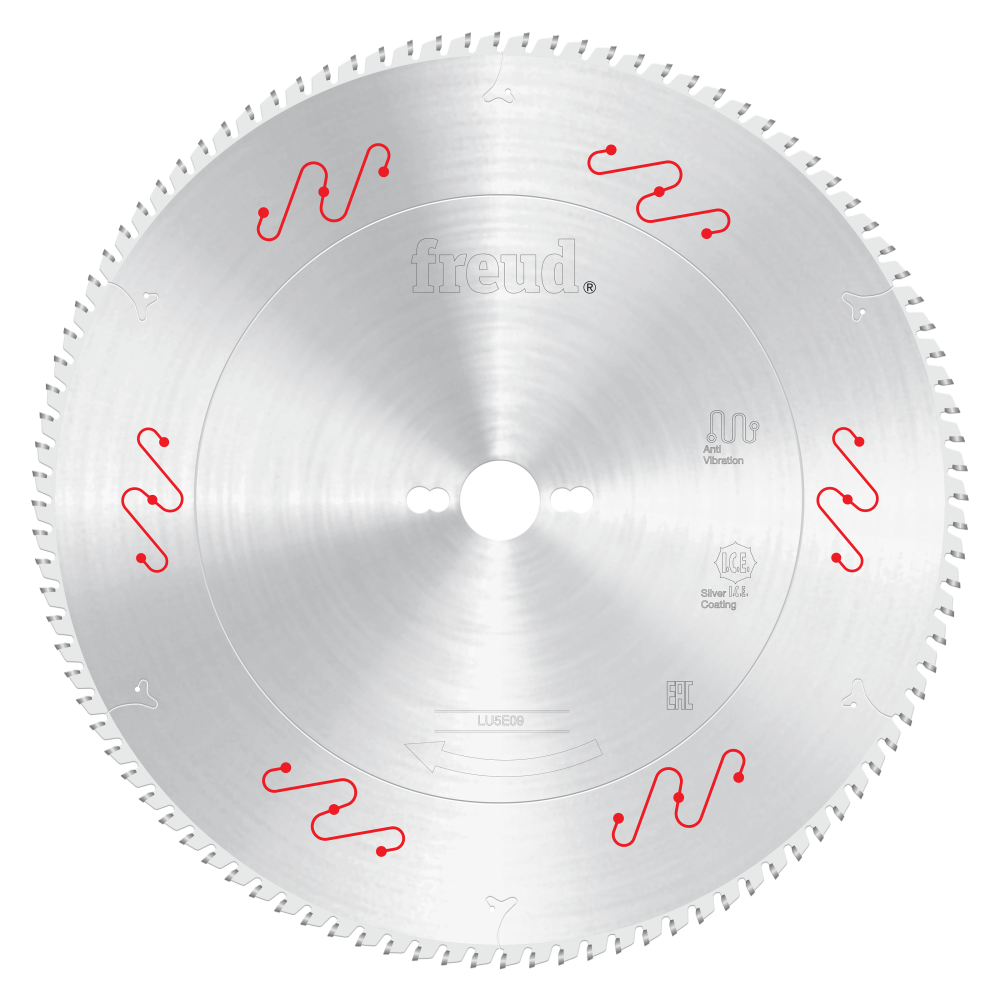

The Freud 350mm Carbide Tipped Saw Blade is a precision-engineered cutting tool designed specifically to cut aluminum and non-ferrous metals - including plastic, vinyl, brass, and copper - with a clean, splinter-free finish. Featuring 100 teeth, a 3mm kerf, and a Triple Chip Grind (TCG) geometry, this blade is purpose-built for cutting special drawn products such as tubes and similar products with ultra-thin walls. Its reduced plate thickness and optimized tooth configuration mean the blade performs reliably even in low-power machines, making it a versatile choice for both stationary table saws and miter saw setups. Compatible with double miter saws and standard miter saws alike, this 350mm circular saw blade delivers the accuracy and surface quality that demanding metalworking and fabrication applications require.

Key Features

• Freud TiCo Hi-Density Carbide - Freud's exclusive carbide blend is specifically designed for each cutting application to maximize cutting life and material finish, meaning the blade stays sharper longer and produces consistently clean results across aluminum, copper, brass, vinyl, and plastic.
• Triple Chip Grind (TCG) tooth geometry - This grind style is optimized for cutting non-ferrous metals and plastics, producing a smooth, chip-free edge on tube walls and thin-walled drawn profiles where surface quality is critical.
• Silver I.C.E. Coating - Freud's own Silver I.C.E. Coating reduces heat, build up, and eliminates rust and corrosion to maximize the life of the blade, keeping the blade performing at full capacity even during sustained cutting sessions.
• Anti-Vibration design - Eliminates movement and reduces vibration for flawless cuts, which is especially important when working with delicate thin-walled tubing where any blade movement can cause distortion or splintering.
• Tri-Metal Brazing - Gives the tooth superior bond strength and protects the carbide tooth by giving it increased flexibility and impact resistance, reducing the risk of tooth loss or breakage when cutting harder non-ferrous alloys like brass and copper.
• Hi-Tolerance Precision Plate Grinding and Tensioning - Features a laser cut blade body from 48 Rockwell steel plate that remains flat and true over the lifetime of the blade, ensuring repeatable dimensional accuracy cut after cut.
• 5 deg. hook angle - A positive cutting angle that controls the feed rate into non-ferrous material, helping prevent grabbing and ensuring a controlled, precise cut through aluminum, vinyl, and similar materials.
• 100-tooth configuration with a 3mm kerf - The high tooth count combined with a 3mm kerf width removes just enough material for a fine, smooth finish without excess waste, and the 2.5mm plate keeps the blade stable and rigid throughout the cut.
• Multiple pinhole configurations (2/9/46.4 + 2/10/60) - Broad arbor compatibility across a range of machine spindles, reducing the need for adapter rings and making the blade straightforward to mount on a wide variety of saw platforms.

Why This Product

• Engineered specifically to cut special drawn products such as tubes and ultra-thin-walled profiles without splintering, this blade addresses one of the most challenging cutting scenarios in non-ferrous metalwork and plastic fabrication.
• The combination of TiCo Hi-Density Carbide and Silver I.C.E. Coating works together to reduce heat buildup and extend blade life, meaning fewer blade changes and lower long-term tooling costs.
• Compatibility with miter saws, double miter saws, and stationary table saws gives this single blade flexibility across multiple machine types - reducing the number of specialty blades needed in a workshop or production environment.
• The anti-vibration design and precision plate tensioning ensure a flat, true blade body throughout the blade's lifetime, which directly translates to dimensional consistency and surface quality on every cut - whether in aluminum, copper, brass, vinyl, or plastic.

Specifications

• Brand: Freud
• Product Group: Saw Blades
• Category: Aluminum and Plastics
• Sub Category: Aluminum and Non-Ferrous (Thin)
• Diameter: 350mm
• Teeth: 100
• Arbor: 30mm
• Kerf: 3mm
• Plate: 2.5mm
• Hook Angle: 5 deg.
• Grind: TCG
• Pinholes: 2/9/46.4 + 2/10/60
• Compatible Tools: Miter Saw; Stationary Table Saw; Double Miter Saw
• Compatible Materials: Plastic; Vinyl; Aluminum; Brass; Copper
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Sawblades to cut aluminum and non-ferrous metals
• Cutting special drawn products such as tubes and similar products with ultra-thin walls

Frequently Asked Questions

What materials can this 350mm saw blade cut?

This blade is designed to cut plastic, vinyl, aluminum, brass, and copper. It is specifically suited to cutting special drawn products such as tubes and similar products with ultra-thin walls, delivering an excellent cutting finish without splintering.

What type of saws is this blade compatible with?

This blade is compatible with a miter saw, a stationary table saw, and a double miter saw. It has a 30mm arbor and dual pinhole configurations (2/9/46.4 + 2/10/60) to support a range of machine spindle setups.

What does the TCG grind mean for cutting performance?

TCG stands for Triple Chip Grind. This tooth geometry is optimized for non-ferrous metals and plastics, alternating between a flat raker tooth and a chamfered tooth to produce a smooth, clean edge - particularly important when working with thin-walled tubing and drawn profiles where surface finish and dimensional accuracy matter.

Can this blade be used in low-power machines?

Yes. The reduced plate thickness (2.5mm) and 3mm kerf are designed to minimize cutting resistance, which optimizes the blade's use in low-power machines as well as full-size stationary equipment. This makes it a practical choice for smaller shop setups without sacrificing cut quality.
