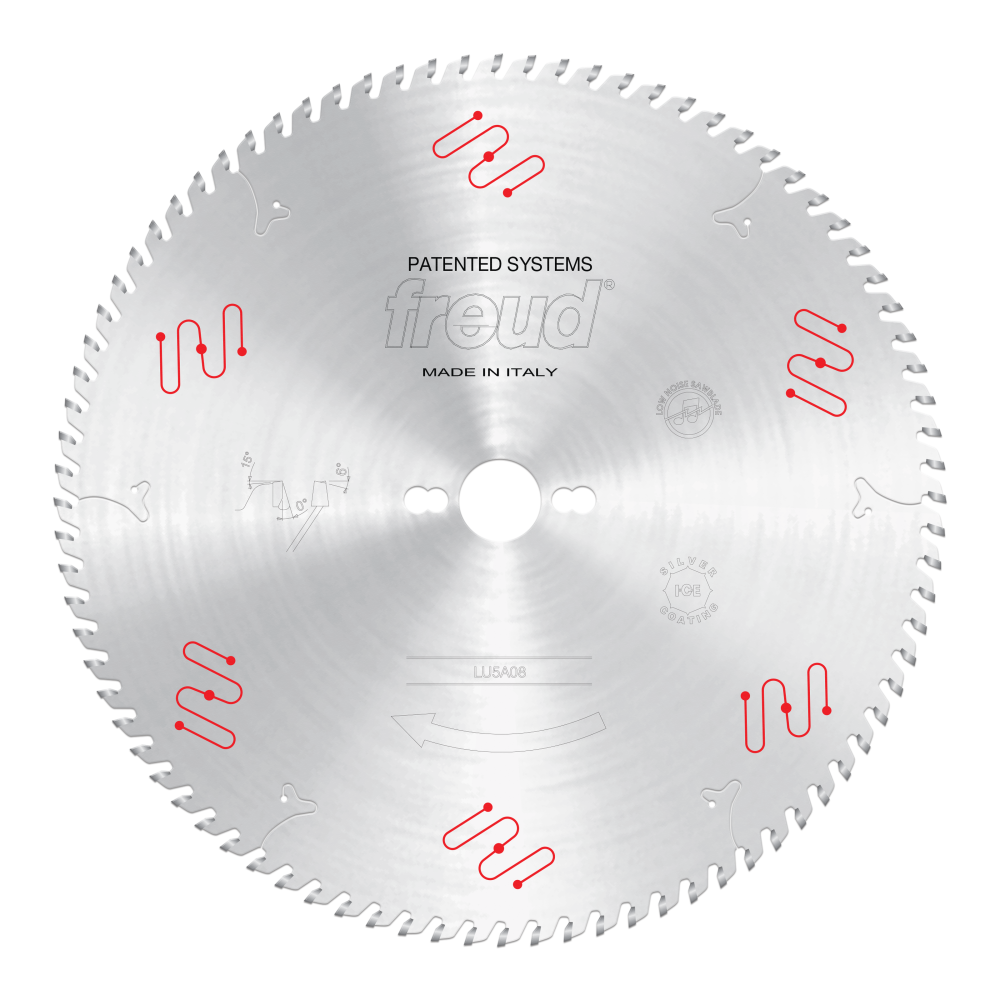

Freud 330mm carbide-tipped saw blade for aluminum and non-ferrous metals is engineered for cutting solid drawn products with a thickness between 2 and 10 mm, making it the go-to choice for fabricators and woodworkers who regularly process aluminum, brass, copper, plastic, and vinyl. Built with an 84-tooth configuration and a Triple Chip Grind profile, this 330mm circular saw blade delivers controlled, clean cuts through medium to thick non-ferrous materials with reduced vibration and long-lasting edge retention.

Key Features

• Flat-triple chip tooth with positive cutting angle - the TCG tooth geometry combined with a 10 deg. hook angle channels material away efficiently, reducing heat buildup and producing smooth, burr-free edges in aluminum and non-ferrous metals.
• Silver I.C.E. Coating prevents build up on the blade surface and keeps the blade running cooler and cleaner - this protective surface treatment extends blade life and reduces the need for frequent cleaning during continuous production runs.
• Silent Sawblade design - engineered to minimize noise and vibration during operation, improving user comfort and control when cutting materials like aluminum, brass, copper, plastic, and vinyl.
• 84-tooth count on a 330mm diameter blade - a high tooth count relative to blade diameter means more contact points per revolution, resulting in finer, more precise cuts through solid drawn non-ferrous profiles 2-10 mm thick.
• 3.5mm kerf with a 3mm plate - the kerf-to-plate ratio provides structural stability while removing an efficient amount of material per pass, reducing waste and maintaining accuracy.
• 30mm arbor with pinholes 2/9/46.4 + 2/10/60 - broad compatibility with mechanical clamping setups on miter saws, stationary table saws, and double miter saws, making installation straightforward on a wide range of machines.
• Compatible with miter saws, stationary table saws, and double miter saws - versatility across tool types means one blade can serve multiple machines in a workshop or production environment.

Why This Product

• Engineered specifically for aluminum and non-ferrous metals in the medium to thick range (2-10 mm), so you are not adapting a general-purpose blade to a demanding application - this blade is purpose-built for it.
• The Silver I.C.E. Coating actively prevents material buildup on the blade surface and keeps the blade running cooler and cleaner, meaning less downtime for cleaning and a longer usable blade life.
• With an 84-tooth TCG profile on a 330mm diameter, this blade handles a wide variety of non-ferrous materials - aluminum, brass, copper, plastic, and vinyl - from a single tool, reducing the need to swap blades between jobs.
• The Silent Sawblade construction and positive cutting angle work together to reduce vibration and noise during cutting, contributing to more consistent results and a more comfortable working environment.

Specifications

• Brand: Freud
• Product Group: Saw Blades
• Category: Aluminum and Plastics
• Sub Category: Aluminum and Non-Ferrous (Medium to Thick)
• Diameter: 330mm
• Teeth: 84
• Arbor: 30mm
• Kerf: 3.5mm
• Plate: 3mm
• Hook Angle: 10 deg.
• Grind: TCG
• Pinholes: 2/9/46.4 + 2/10/60
• Compatible Tools: Miter Saw; Stationary Table Saw; Double Miter Saw
• Materials: Plastic; Vinyl; Aluminum; Brass; Copper
• Usage: To cut solid drawn products with a thickness included between 2 and 10 mm.
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Sawblades to cut aluminum and non-ferrous metals

Frequently Asked Questions

What materials can this blade cut?

This blade is designed to cut plastic, vinyl, aluminum, brass, and copper. It is intended specifically for solid drawn products with a thickness between 2 and 10 mm, covering medium to thick non-ferrous material applications.

What machines is this blade compatible with?

This 330mm blade is compatible with miter saws, stationary table saws, and double miter saws. It features a 30mm arbor and pinholes sized 2/9/46.4 + 2/10/60 to support mechanical clamping configurations on these tool types.

What does the Silver I.C.E. Coating do?

The Silver I.C.E. Coating prevents build up on the blade surface and keeps the blade running cooler and cleaner during operation. This helps maintain cutting performance over extended use and reduces the frequency of cleaning required between cuts.

What is the tooth grind type on this blade, and why does it matter for non-ferrous cutting?

This blade uses a TCG (Triple Chip Grind) tooth form, described as a flat-triple chip tooth with a positive cutting angle. The TCG profile is well suited to non-ferrous metals and plastics because the alternating tooth geometry helps clear chips efficiently and reduces the risk of material grabbing or chipping during the cut. The 10 deg. hook angle further supports smooth, controlled feeding through aluminum and similar materials.
