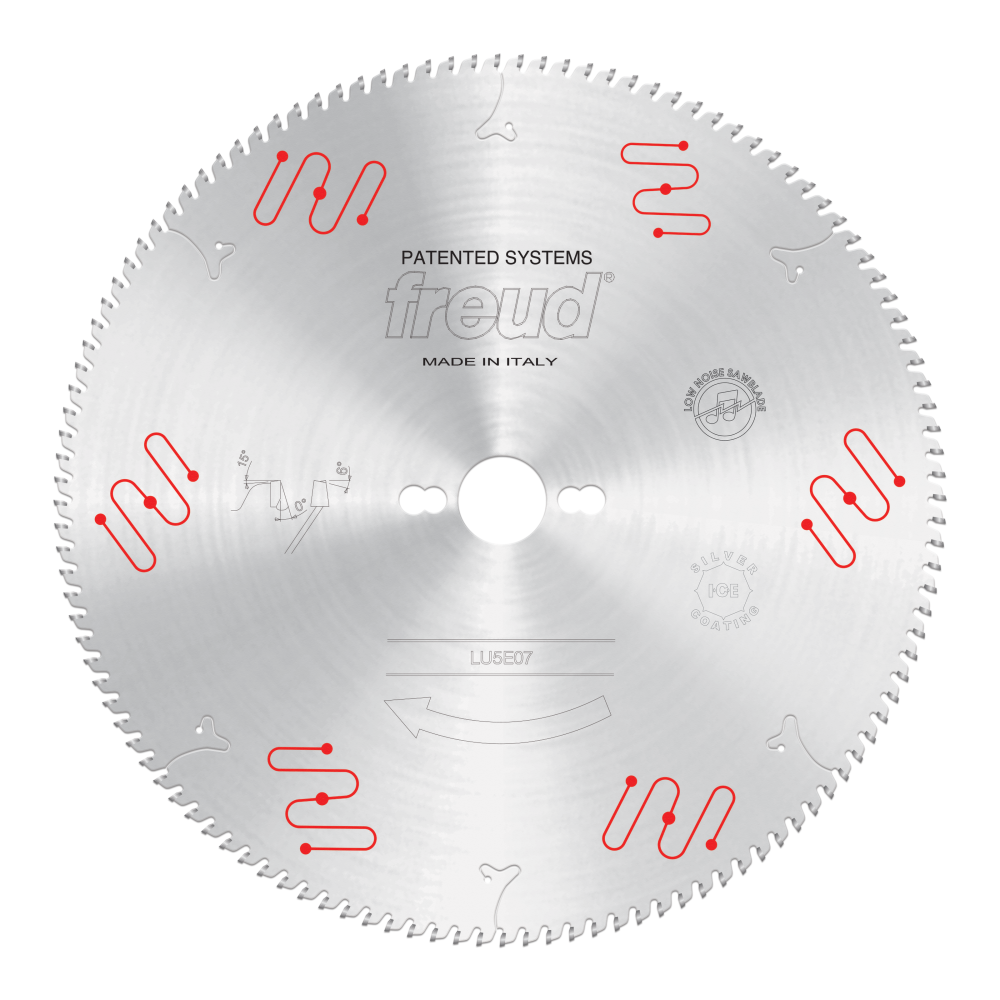

The Freud 300mm Carbide Tipped Saw Blade with 120 Teeth and a 3mm Kerf is a precision-engineered circular saw blade built specifically to cut aluminum, non-ferrous metals, and plastic materials with an exceptionally clean, splinter-free finish. Designed for use on miter saws, stationary table saws, and double miter saws, this 300mm blade handles demanding cutting tasks on special drawn products - such as tubes and similar products with ultra-thin walls - where surface quality and dimensional accuracy are critical. Its reduced kerf thickness delivers an excellent cutting finish without splintering, and its design is optimized for use on low-power machines as well as high-capacity shop equipment.

Key Features

• Freud TiCo Hi-Density Carbide - Freud's exclusive carbide blend is specifically formulated for each cutting application, which means the blade is tuned for maximizing cutting life and material finish when working with aluminum, brass, copper, vinyl, and plastic.
• Triple Chip Grind (TCG) tooth geometry - The TCG grind is well suited to cutting non-ferrous metals and plastics, producing clean, chip-free cuts on materials that can otherwise tear or deform under a standard grind profile.
• 5 deg. hook angle - The low positive hook angle controls the feed rate during cutting, reducing the risk of the blade grabbing or pulling through thin-walled materials like tubes and extrusions.
• Silver I.C.E. Coating - Freud's own Silver I.C.E. Coating reduces heat and build-up while eliminating rust and corrosion, which extends the working life of the blade and helps maintain consistent cut quality over time.
• Anti-Vibration design - The anti-vibration design eliminates movement and reduces vibration during the cut, resulting in flawless cuts and a smoother surface on finished workpieces.
• Tri-Metal Brazing - This brazing method gives each carbide tooth superior bond strength and provides increased flexibility and impact resistance, meaning the teeth are far less likely to chip or fracture when cutting hard or abrasive non-ferrous materials.
• Hi-Tolerance Precision Plate Grinding and Tensioning - The laser-cut blade body is made from 48 Rockwell steel plate and remains flat and true over the lifetime of the blade, which translates to consistent accuracy on every cut without the need for compensation or adjustment.
• 120 teeth and 3mm kerf - The high tooth count combined with the reduced 3mm kerf produces a fine, smooth cut with minimal material waste, making this blade ideal for precision work on thin-walled and delicate profiles.
• 30mm arbor with multiple pinhole configurations (2/9/46.4 + 2/10/60) - The versatile mounting options allow this blade to fit a wider range of machine spindles and tool configurations without requiring additional adapters.

Why This Product

• The TCG grind and 120-tooth configuration work together to deliver a clean, splinter-free finish on ultra-thin-walled tubes and drawn aluminum profiles - materials that are notoriously difficult to cut cleanly with standard blades.
• The Silver I.C.E. Coating actively reduces heat build-up during cutting, which is especially important when machining aluminum, copper, and brass, where heat transfer and galling can degrade both the blade and the workpiece surface.
• With compatibility across miter saws, double miter saws, and stationary table saws - and pinhole configurations that accommodate multiple mounting standards - this 300mm blade fits smoothly into a variety of shop setups without requiring special tooling.
• The anti-vibration design and precision plate grinding ensure the blade stays flat and tracks true over its lifetime, which protects dimensional accuracy on cuts where tight tolerances matter most.

Specifications

• Brand: Freud
• Diameter: 300mm
• Teeth: 120
• Kerf: 3mm
• Plate: 2.5mm
• Arbor: 30mm
• Hook Angle: 5 deg.
• Grind: TCG
• Pinholes: 2/9/46.4 + 2/10/60
• Compatible Tools: Miter Saw; Stationary Table Saw; Double Miter Saw
• Compatible Materials: Plastic; Vinyl; Aluminum; Brass; Copper
• Product Group: Saw Blades
• Category: Aluminum and Plastics
• Sub Category: Aluminum and Non-Ferrous (Thin)
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Sawblades to cut aluminum and non-ferrous metals
• Cutting special drawn products such as tubes and similar products with ultra-thin walls
• Precision cutting of plastic, vinyl, aluminum, brass, and copper on miter saws, stationary table saws, and double miter saws
• Use on low-power machines where a reduced kerf optimizes machine performance and cutting finish

Frequently Asked Questions

What materials can this Freud 300mm saw blade cut?

This blade is rated to cut plastic, vinyl, aluminum, brass, and copper. It is specifically designed for aluminum and non-ferrous metal applications, including special drawn products such as tubes and similar products with ultra-thin walls.

What type of tooth grind does this blade use, and why does it matter?

This blade uses a Triple Chip Grind (TCG) tooth geometry. The TCG profile is well suited to non-ferrous metals and plastics, where it helps produce clean, precise cuts without chipping or deforming the workpiece surface - particularly on thin-walled profiles and extrusions.

Will this blade work with my machine if it has a different pinhole pattern?

This blade includes two pinhole configurations - 2/9/46.4 and 2/10/60 - on a 30mm arbor, which allows it to mount on a wider range of miter saws, stationary table saws, and double miter saws. Check your machine's spindle and mounting specifications to confirm compatibility before use.

What does the Silver I.C.E. Coating do, and how does it benefit the blade over time?

Freud's Silver I.C.E. Coating reduces heat and build-up during cutting while also eliminating rust and corrosion. This protective coating helps extend the operational life of the blade and supports consistent cutting performance across the blade's lifespan.
