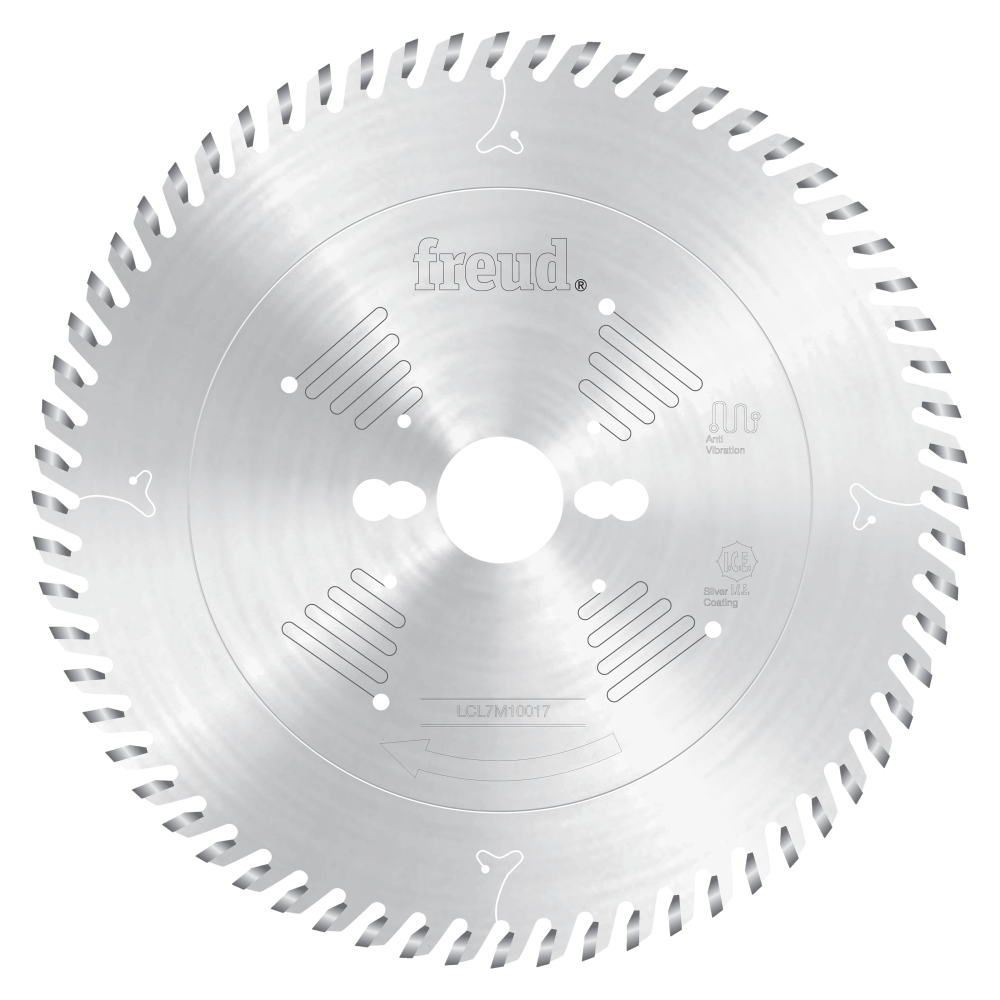

Freud 220mm Industrial Solid Surface Saw Blade is a precision-engineered cutting tool built specifically for demanding solid surface, plastic, and vinyl cutting applications. Featuring 64 teeth, a 30mm arbor, and a -3 deg. hook angle, this blade is designed for use on vertical panel saws where clean, accurate cuts through solid surface materials are essential. With a kerf of 3.2mm and a plate thickness of 2.2mm, it delivers the stability and control that professional fabricators and shop operators depend on daily.

Key Features

• Exclusive TiCo Hi-Density Carbide - designed and manufactured by Freud specifically for each cutting application to maximize cutting life, meaning fewer blade changes and lower long-term tooling costs.
• Tri-Metal Brazing - consists of copper sandwiched between two layers of silver alloy to create a stronger, more impact-resistant bond between the carbide and blade body, helping the blade hold up under the repeated stresses of industrial solid surface cutting.
• Anti-vibration Design - reduces blade movement during cuts, which translates to smoother, more consistent results when working with plastic, vinyl, and solid surface panels.
• Silver I.C.E. Coating - prevents build up on the blade surface and keeps the blade running cooler and cleaner, extending performance life and reducing the need for frequent cleaning or maintenance.
• MTCG Grind - a grind geometry suited to solid surface and plastic materials, helping produce clean edges with minimal chipping or tearing on finished workpieces.
• 64-Tooth Configuration - provides a high tooth count optimized for smooth, fine cuts through solid surface materials on a vertical panel saw.
• Multiple Pinhole Options (2/7/42 + 2/9/46.4 + 2/10/60) - offers compatibility with a range of vertical panel saw configurations, giving operators greater flexibility when setting up the blade.

Why This Product

• Purpose-built for industrial solid surface cutting - the blade's 64 teeth, -3 deg. hook angle, and MTCG grind are all matched to the specific demands of cutting plastic, vinyl, and solid surface materials rather than being a general-purpose compromise.
• Longer cutting life through advanced carbide technology - Freud's TiCo Hi-Density Carbide is formulated specifically for this type of cutting application, helping shops get more cuts per blade and reduce downtime from tooling changes.
• Stronger carbide bond for impact resistance - Tri-Metal Brazing creates a more impact-resistant connection between the carbide tips and the blade body, reducing the risk of tip loss during demanding production work.
• Cooler, cleaner operation - the Silver I.C.E. Coating actively resists buildup and heat accumulation on the blade surface, supporting consistent cut quality across longer production runs.

Specifications

• Brand: Freud
• Product Group: Saw Blades
• Category: Aluminum and Plastics
• Sub Category: Industrial Solid Surface
• Diameter: 220mm
• Teeth: 64
• Arbor: 30mm
• Kerf: 3.2mm
• Hook Angle: -3 deg.
• Plate: 2.2mm
• Grind: MTCG
• Pinholes: 2/7/42 + 2/9/46.4 + 2/10/60
• Tools: Vertical Panel Saw
• Materials: Plastic; Vinyl; Solid Surface
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Sawblades to cut solid surface materials.

Frequently Asked Questions

What types of materials can this blade cut?

This blade is designed for cutting plastic, vinyl, and solid surface materials. It falls within the Industrial Solid Surface sub-category and is intended for use in applications where clean, precise cuts through these materials are required.

What tool is this blade compatible with?

This 220mm blade is designed for use with a vertical panel saw. Its multiple pinhole options - 2/7/42, 2/9/46.4, and 2/10/60 - provide compatibility with a range of vertical panel saw setups.

What is the kerf and plate thickness of this blade?

This blade has a kerf of 3.2mm and a plate thickness of 2.2mm. These dimensions determine the width of the cut and the structural thickness of the blade body itself.

What makes the carbide tips on this blade more durable?

Freud uses two technologies to enhance tip durability. First, TiCo Hi-Density Carbide is formulated specifically for each cutting application to maximize cutting life. Second, Tri-Metal Brazing - copper sandwiched between two layers of silver alloy - creates a stronger, more impact-resistant bond between the carbide and the blade body.
