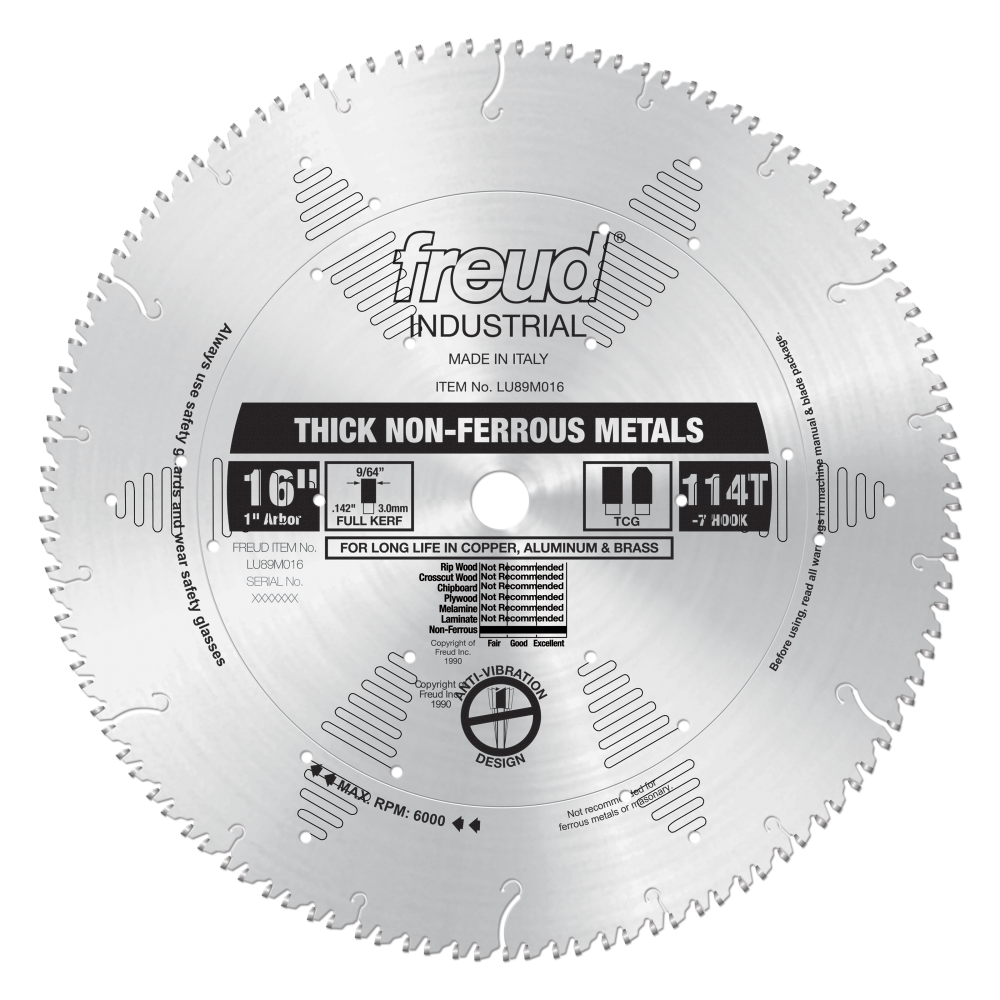

Freud's 16" Thick Stock Aluminum Metal Blade is a precision-engineered, 114-tooth saw blade built specifically for cutting thick non-ferrous materials including aluminum, brass, and copper with a maximum wall thickness of 1/4". Designed for use with miter saws, radial arm saws, and stationary table saws, this specialty blade combines Premium TiCo HI-Density Carbide Non-Ferrous Blend technology with a unique gullet design to deliver clean, accurate cuts in demanding non-ferrous metal cutting applications. Whether you work with aluminum extrusions, copper pipe, or brass stock, this large-format circular blade provides the controlled, high-finish performance required for thick non-ferrous stock.

Key Features

• Premium TiCo HI-Density Carbide Non-Ferrous Blend for Maximum Performance - this advanced carbide formulation is specifically engineered for non-ferrous metals, meaning you get longer tooth life and more cuts before replacement compared to a general-purpose blade.
• Freud-Made TiCo Carbide specifically designed to cut nonferrous metals extends tooth life - a proprietary carbide blend produced in-house by Freud translates directly into reduced tooling costs and fewer blade changes over time.
• Unique Gullet Design reduces chip build-up, which can cause shoulder damage or breakage - custom-designed gullets keep chips from accumulating during the cut, protecting both the blade and your workpiece from damage caused by clogging or heat buildup.
• Silver Ice Coating resists corrosion and pitch build-up - this protective surface treatment keeps the blade cleaner during use and guards against corrosion between jobs, extending the blade's service life.
• 114 teeth on a 16" diameter blade - a high tooth count on this large-format blade means finer, smoother cuts through thick aluminum, brass, and copper stock with minimal burring or tearing.
• TCG (Triple Chip Grind) tooth geometry - this grind style is well suited for non-ferrous metals, helping produce a clean finish on cut edges and reducing the risk of material chipping or cracking.
• -7 deg. hook angle - the negative hook angle controls feed rate and reduces grabbing, providing a safer, more controlled cut when working with metal stock on a miter saw, radial arm saw, or table saw.
• 1" arbor size - the standard 1" arbor fits a wide range of miter saws, radial arm saws, and stationary table saws, making this blade broadly compatible with common workshop equipment.

Why This Product

• Freud's proprietary TiCo HI-Density Carbide Non-Ferrous Blend is formulated specifically for aluminum, brass, and copper - giving you a blade purpose-built for thick non-ferrous stock rather than a compromised general-purpose alternative.
• The combination of a unique gullet design and Silver Ice Coating works together to reduce chip build-up and pitch accumulation, keeping cuts clean and the blade performing consistently over time.
• With 114 teeth on a 16" blade and a -7 deg. hook angle, this blade is engineered for controlled, smooth cutting of non-ferrous materials with wall thickness up to 1/4" - reducing the finishing work needed after each cut.
• Compatibility with three common tool types - miter saw, radial arm saw, and stationary table saw - means this specialty non-ferrous blade works across the equipment most likely already in your shop.

Specifications

• Brand: Freud
• Diameter: 16"
• Teeth: 114
• Arbor: 1"
• Kerf:.142"
• Plate:.118"
• Hook Angle: -7 deg.
• Grind: TCG
• Usage: Cutting Thick Non-Ferrous Materials And Aluminum. Wall thickness 1/4" Maximum.
• Compatible Tools: Miter Saw; Radial Arm Saw; Stationary Table Saw
• Compatible Materials: Aluminum; Brass; Copper
• Category: Aluminum and Non-Ferrous (Thick)
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Specialty Blade

Frequently Asked Questions

What materials can this blade cut?

This blade is designed to cut aluminum, brass, and copper. It is rated for thick non-ferrous materials with a maximum wall thickness of 1/4". It is not intended for ferrous metals or wood applications.

What tools is this 16" blade compatible with?

This blade is compatible with miter saws, radial arm saws, and stationary table saws equipped with a 1" arbor. Always confirm your tool's arbor size and maximum blade diameter before installing.

What does the TCG grind mean for cutting performance?

TCG stands for Triple Chip Grind. This tooth geometry is particularly suited for cutting non-ferrous metals like aluminum, brass, and copper, helping to produce clean cut edges and reducing the likelihood of chipping or cracking in the material.

Is any lubrication recommended when using this blade?

Yes. Freud recommends using a liquid lubricant when cutting with this blade. A spray of WD-40 or a similar liquid lubricant applied every 4 to 5 cuts is advised. Wax sticks are not recommended.
