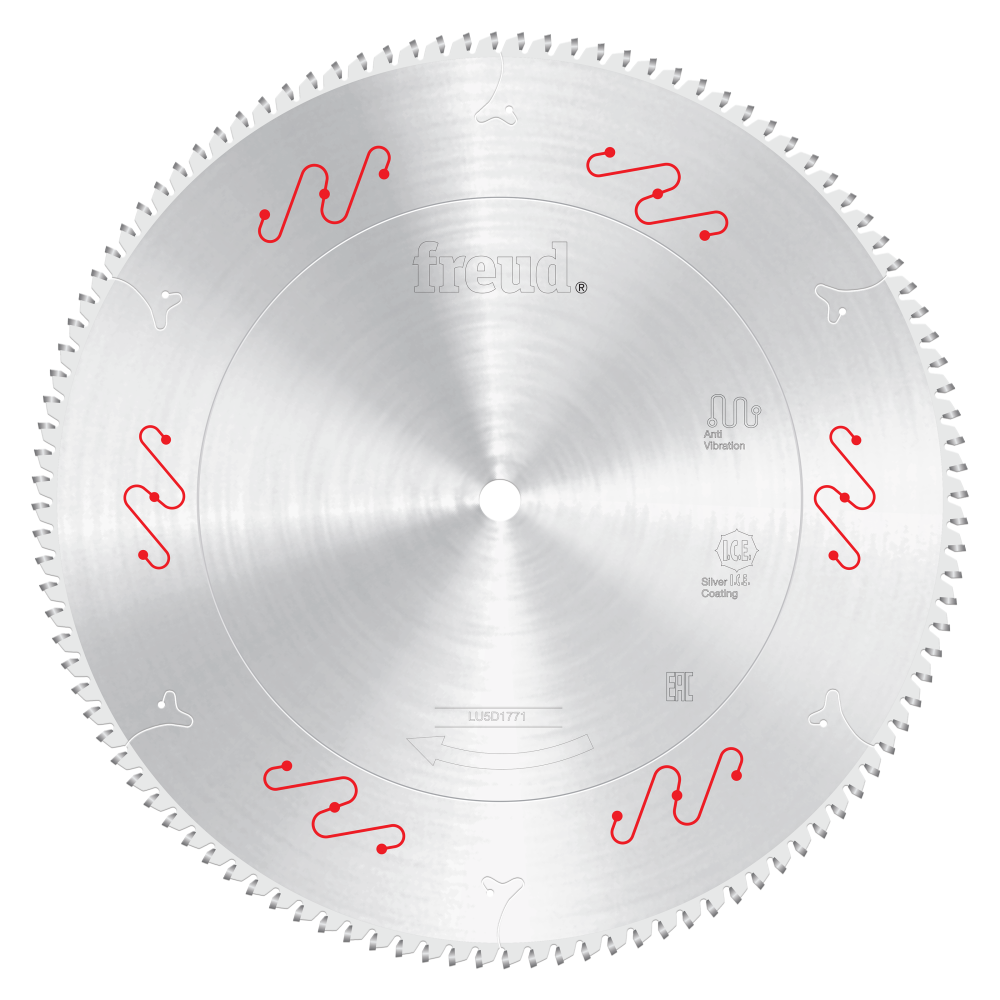

The Freud 14" 108-Tooth Carbide Tipped Saw Blade (LU5D1771) is a precision-engineered cutting tool built specifically for sawing aluminum and non-ferrous metals, including drawn products and tubes whose thickness exceeds 5 mm. Featuring a Triple Chip Grind (TCG) tooth geometry and a -6 deg. hook angle, this 14-inch circular saw blade is designed for use with miter saws, stationary table saws, and double miter saws, delivering clean, accurate results in demanding metalworking and fabrication environments. With 108 carbide-tipped teeth and a 3.5 kerf, it strikes an ideal balance between cutting efficiency and smooth surface finish in aluminum, brass, copper, plastic, and vinyl.

Key Features

• Freud's exclusive blend of TiCo Hi-Density Carbide is specifically designed for each cutting application to maximize cutting life and material finish - meaning the carbide compound is matched to aluminum and non-ferrous metal cutting, so you get longer tool life and cleaner cuts with less frequent blade changes.
• Triple Chip Grind (TCG) tooth geometry with a -6 deg. hook angle - the negative hook angle controls material feed rate and reduces the risk of grabbing or chipping when cutting metals like aluminum, brass, and copper.
• Freud's own Silver I.C.E. Coating reduces heat, build up, and eliminates rust and corrosion to maximize the life of the blade - keeping the blade running cooler and cleaner during extended cutting sessions with abrasive non-ferrous materials.
• Anti-Vibration design eliminates movement and reduces vibration for flawless cuts - contributing to a smoother, more controlled cut and reducing operator fatigue during repetitive production work.
• Tri-Metal Brazing gives the tooth superior bond strength and protects the carbide tooth by giving it increased flexibility and impact resistance - an especially valuable property when cutting harder non-ferrous metals like brass and copper where tooth breakage is a concern.
• Freud's Hi-Tolerance Precision Plate Grinding and Tensioning features a laser cut blade body from 48 Rockwell steel plate (the world's highest quality steel) that remains flat and true, over the lifetime of the blade, for ultimate accuracy in picture frames and delicate coated moldings - ensuring the blade body does not warp or deflect, maintaining cut accuracy throughout the blade's service life.
• PISTORIUS pinhole configuration - ensures direct compatibility with PISTORIUS-style saws for a secure, properly seated fit without the need for adapters.
• 108 carbide-tipped teeth with a 3.5 kerf - the high tooth count produces fine, smooth cuts in non-ferrous metals and plastics, while the kerf dimension determines the width of material removed per pass.

Why This Product

• Engineered specifically for aluminum and non-ferrous metals - including aluminum, brass, copper, plastic, and vinyl - this blade is purpose-built for the material types where tooth geometry, hook angle, and carbide blend all need to work together, rather than relying on a general-purpose blade that may deliver inconsistent results.
• The combination of Silver I.C.E. Coating and TiCo Hi-Density Carbide helps maximize the working life of the blade, reducing downtime associated with premature wear when cutting demanding materials like aluminum tubes and drawn products thicker than 5 mm.
• Anti-Vibration design paired with a precision-tensioned 48 Rockwell laser-cut steel plate keeps the blade flat and stable throughout its service life, supporting consistent cut quality across high-volume or repetitive cutting tasks.
• Compatible with miter saws, stationary table saws, and double miter saws with a standard 5/8" arbor, and specifically configured for PISTORIUS pinhole layouts, making this blade a practical fit for a wide range of professional shop setups without modification.

Specifications

• Brand: Freud
• Manufacturer: Freud
• Model Number: LU5D1771
• Product Group: Saw Blades
• Category: Aluminum and Plastics
• Sub Category: Aluminum and Non-Ferrous (Medium)
• Diameter: 14"
• Teeth: 108
• Arbor: 5/8"
• Kerf: 3.5
• Hook Angle: -6 deg.
• Plate: 3
• Grind: TCG
• Pinholes: PISTORIUS
• Compatible Tools: Miter Saw; Stationary Table Saw; Double Miter Saw
• Compatible Materials: Plastic; Vinyl; Aluminum; Brass; Copper
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Sawblades to cut aluminum and non-ferrous metals
• To cut drawn products and tubes whose thickness exceeds 5 mm - it is recommendable to use it with the sawblade over the workpiece to be cut.

Frequently Asked Questions

What materials can this 14" Freud saw blade cut?

This blade is designed to cut plastic, vinyl, aluminum, brass, and copper. It is specifically suited for aluminum and non-ferrous metal applications, including drawn products and tubes whose thickness exceeds 5 mm.

Which saws is this blade compatible with?

This blade is compatible with miter saws, stationary table saws, and double miter saws. It features a 5/8" arbor and a PISTORIUS pinhole configuration for proper mounting on compatible machines.

What does the TCG grind mean for my cuts?

TCG stands for Triple Chip Grind. This tooth geometry is well suited for cutting non-ferrous metals and hard materials, helping to produce smooth, controlled cuts while reducing the stress placed on individual carbide teeth during each pass.

Why does the hook angle on this blade have a negative value?

This blade features a -6 deg. hook angle, which is a negative (or negative rake) configuration. A negative hook angle helps control how aggressively the blade feeds into the material, reducing the tendency for the blade to grab or climb during cuts in aluminum and other non-ferrous metals - an important safety and quality consideration in metalcutting applications.
