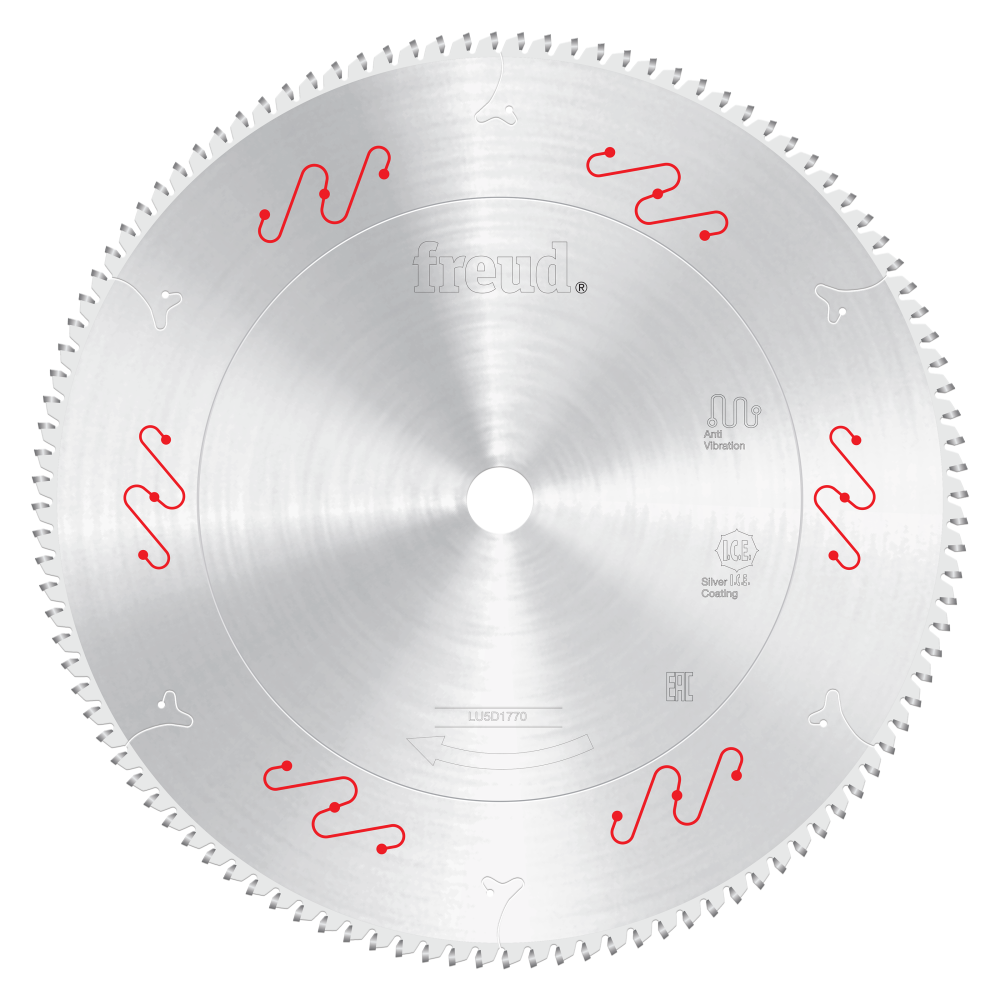

Freud's 14-inch, 108-tooth carbide tipped saw blade is purpose-built for cutting aluminum and non-ferrous metals - delivering clean, precise results in drawn products and tubes whose thickness exceeds 5 mm. Designed for use with miter saws, stationary table saws, and double miter saws, this blade excels when cutting materials such as aluminum, brass, copper, plastic, and vinyl. Featuring a Triple Chip Grind (TCG) tooth geometry, a -6 deg. hook angle, and Freud's exclusive TiCo Hi-Density Carbide blend, this non-ferrous metal cutting blade brings professional-grade performance to demanding cutting applications. For best results, it is recommendable to use it with the sawblade over the workpiece to be cut.

Key Features

• TiCo Hi-Density Carbide formulation - Freud's exclusive blend is specifically designed for each cutting application to maximize cutting life and material finish, meaning fewer blade changes and consistently clean edges on aluminum, brass, copper, and similar materials.
• Triple Chip Grind (TCG) tooth geometry - engineered for cutting aluminum and non-ferrous metals, this grind pattern reduces chipping and delivers smooth, burr-free cuts through drawn products and tubes exceeding 5 mm in thickness.
• -6 deg. hook angle - the negative hook angle controls feed rate and reduces the risk of grabbing or climb-cutting when working with non-ferrous metals, giving the operator greater safety and cut consistency.
• Silver I.C.E. Coating - Freud's own coating reduces heat and build-up while eliminating rust and corrosion, extending the working life of the blade even in high-volume metal cutting environments.
• Anti-Vibration design - eliminates movement and reduces vibration for flawless cuts, resulting in tighter tolerances and a cleaner finished edge on every pass.
• Tri-Metal Brazing - gives each tooth superior bond strength and protects the carbide tooth by giving it increased flexibility and impact resistance, reducing the risk of tip loss during demanding cuts through harder non-ferrous alloys.
• Hi-Tolerance Precision Plate Grinding and Tensioning - features a laser cut blade body from 48 Rockwell steel plate that remains flat and true over the lifetime of the blade, ensuring ultimate accuracy cut after cut.
• 108-tooth count with a 3.5 mm kerf - the high tooth count combined with a controlled kerf width produces smooth surface finishes on aluminum profiles, vinyl extrusions, and copper tubing without excessive material waste.
• 1-inch arbor compatibility - fits the standard 1-inch arbor found on miter saws, stationary table saws, and double miter saws, making this blade a straightforward upgrade for existing shop setups.

Why This Product

• Versatile non-ferrous cutting performance - rated for aluminum, brass, copper, plastic, and vinyl, this blade covers a wide range of non-ferrous and synthetic materials from a single tool investment.
• Built-in heat and corrosion protection - the Silver I.C.E. Coating actively reduces heat build-up and prevents rust, helping the blade maintain peak performance over an extended service life compared to uncoated alternatives.
• Stable, vibration-free cuts in demanding materials - the anti-vibration design combined with a laser cut 48 Rockwell steel plate body keeps the blade flat and true, reducing the chatter that commonly occurs when cutting metal profiles at high speeds.
• Compatible with multiple machine types - works with miter saws, stationary table saws, and double miter saws, offering flexibility across different workstation configurations without requiring a dedicated blade for each machine.

Specifications

• Brand: Freud
• Product Group: Saw Blades
• Category: Aluminum and Plastics
• Sub Category: Aluminum and Non-Ferrous (Medium)
• Diameter: 14"
• Teeth: 108
• Arbor: 1"
• Kerf: 3.5
• Plate: 3
• Hook Angle: -6 deg.
• Grind: TCG
• Compatible Tools: Miter Saw; Stationary Table Saw; Double Miter Saw
• Materials: Plastic; Vinyl; Aluminum; Brass; Copper
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Sawblades to cut aluminum and non-ferrous metals

Frequently Asked Questions

What materials can this blade cut?

This blade is designed to cut plastic, vinyl, aluminum, brass, and copper. It is specifically rated for drawn products and tubes whose thickness exceeds 5 mm in the aluminum and non-ferrous metals category.

Which machines is this blade compatible with?

This 14-inch saw blade is compatible with miter saws, stationary table saws, and double miter saws that accept a 1-inch arbor.

What does the TCG grind mean for my cuts?

TCG stands for Triple Chip Grind, a tooth geometry specifically suited to cutting aluminum and non-ferrous metals. It helps reduce chipping and produces smoother, cleaner cut surfaces compared to standard tooth profiles when working through metal profiles and tubing.

What is the recommended cutting orientation for this blade?

For optimal results, it is recommendable to use this sawblade over the workpiece to be cut, particularly when processing drawn products and tubes whose thickness exceeds 5 mm.
