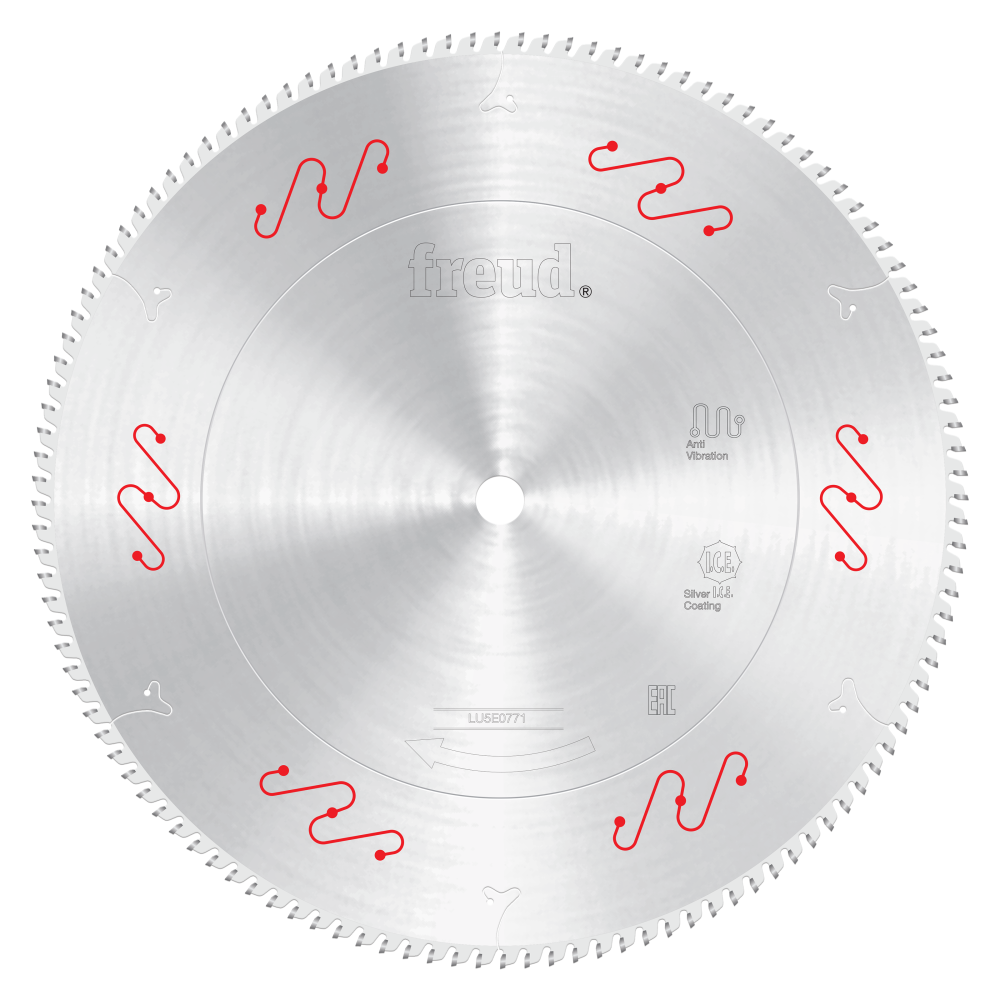

Freud 12 in. 120-Tooth Carbide Tipped Saw Blade is engineered for cutting aluminum and non-ferrous metals with precision and a clean, splinter-free finish. Featuring a Triple Chip Grind (TCG) tooth geometry and a 5 deg. hook angle, this circular saw blade is purpose-built to cut special drawn products - such as tubes and similar products having ultra-thin walls - while delivering an excellent cutting finish, without splintering. The reduced kerf optimizes performance even in low-power machines, making this a practical solution for workshops running miter saws, stationary table saws, and double miter saws alike. Made in Italy with Freud's exclusive TiCo Hi-Density Carbide and protected by Silver I.C.E. Coating, this non-ferrous cutting blade is built to last through demanding production environments and professional shop use.

Key Features

• TiCo Hi-Density Carbide: Freud's exclusive blend of TiCo Hi-Density Carbide is specifically designed for each cutting application to maximize cutting life and material finish - meaning fewer blade changes and consistently high-quality cuts over the long life of the blade.
• Silver I.C.E. Coating: Freud's own Silver I.C.E. Coating reduces heat, build up, and eliminates rust and corrosion to maximize the life of the blade - keeping the blade performing at its best even after extended use in demanding conditions.
• TCG (Triple Chip Grind) Tooth Design: The TCG grind is optimized for cutting plastic, vinyl, aluminum, brass, and copper - producing clean, burr-free cuts in non-ferrous and synthetic materials that would otherwise chip or tear with standard grinds.
• 120-Tooth Configuration: With 120 teeth on a 12 in. diameter blade, this saw blade produces ultra-fine finish cuts in thin-walled tubes and drawn products - making it ideal when surface quality and dimensional accuracy are critical.
• Anti-Vibration Design: Anti-Vibration design eliminates movement and reduces vibration for flawless cuts - resulting in smoother operation and reduced operator fatigue during repetitive cutting tasks.
• Tri-Metal Brazing: Tri-Metal Brazing gives the tooth superior bond strength and protects the carbide tooth by giving it increased flexibility and impact resistance - so the cutting edges stay secure and withstand the stresses of cutting hard non-ferrous materials.
• Hi-Tolerance Precision Plate Grinding and Tensioning: Freud's Hi-Tolerance Precision Plate Grinding and Tensioning features a laser cut blade body from 48 Rockwell steel plate (the world's highest quality steel) that remains flat and true, over the lifetime of the blade, for ultimate accuracy in picture frames and delicate coated moldings - ensuring straight, reliable cuts without blade wander.
• 5 deg. Hook Angle: The 5 deg. positive cutting angle is well-suited for controlled feeding through aluminum, brass, copper, and plastics - giving the operator better command of the cut and reducing the risk of material grabbing.
• PISTORIUS Pinholes: Compatible with PISTORIUS pinhole configurations, this blade fits seamlessly into professional double miter saw setups without requiring adapters or modifications.

Why This Product

• The TCG grind combined with 120 teeth on a 12 in. plate delivers the kind of fine, splinter-free finish needed when cutting thin-walled aluminum tubes, plastic profiles, and other special drawn products where surface quality cannot be compromised.
• Silver I.C.E. Coating actively reduces heat and prevents corrosion, extending the usable life of the blade and protecting your investment in a premium carbide-tipped tool.
• The reduced kerf and optimized plate dimensions (2.2 mm plate, 3 mm kerf) mean this blade runs efficiently even in lower-horsepower machines - broadening its usefulness across a wider range of shop setups.
• Tri-Metal Brazing and Anti-Vibration design work together to deliver stable, accurate cuts in materials like brass, copper, vinyl, and aluminum - reducing rework and waste on the job.

Specifications

• Brand: Freud
• Product Group: Saw Blades
• Category: Aluminum and Plastics
• Sub Category: Aluminum and Non-Ferrous (Thin)
• Diameter: 12 in.
• Teeth: 120
• Arbor: 5/8 in.
• Kerf: 3
• Plate: 2.2
• Hook Angle: 5 deg.
• Grind: TCG
• Pinholes: PISTORIUS
• Tools: Miter Saw; Stationary Table Saw; Double Miter Saw
• Materials: Plastic; Vinyl; Aluminum; Brass; Copper
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Sawblades to cut aluminum and non-ferrous metals

Frequently Asked Questions

What materials is this blade designed to cut?

This blade is designed to cut plastic, vinyl, aluminum, brass, and copper. It is specifically suited to cutting special drawn products, such as tubes and similar products having ultra-thin walls, delivering an excellent cutting finish without splintering.

Which machines is this 12 in. Freud blade compatible with?

This blade is compatible with miter saws, stationary table saws, and double miter saws. Its PISTORIUS pinhole configuration supports use in professional double miter saw setups. The reduced kerf also makes it suitable for use in low-power machines.

What type of tooth grind does this blade use, and why does it matter for non-ferrous cutting?

This blade uses a TCG (Triple Chip Grind), which is the tooth geometry of choice for cutting aluminum, brass, copper, and plastic materials. The TCG grind alternates between flat-top and chamfered teeth, reducing chipping and producing clean, burr-free edges that are especially important when cutting thin-walled or precision drawn products.

What is the arbor size for this blade, and how does the Silver I.C.E. Coating benefit long-term use?

This blade has a 5/8 in. arbor. Freud's own Silver I.C.E. Coating reduces heat, build up, and eliminates rust and corrosion to maximize the life of the blade - helping maintain cutting performance and protecting the blade body over time, even in high-use shop environments.
