Product Description

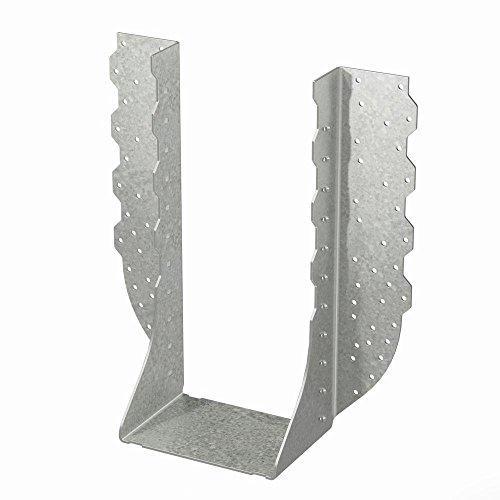

The Simpson HGUS5.62/14 HGUS Galvanized Face-Mount Joist Hanger by Simpson is built for structural connections where higher load values are required. Designed to provide reliable support underneath the joist, rafter, or beam, this face-mount hanger accommodates nominal 6x12, 6x14, and 6x16 lumber as well as 5-1/2 in. x 14 to 24 in. tall glulam members - making it a versatile solution for heavy-timber framing and demanding structural applications. Constructed from 12-gauge steel with a G90 zinc galvanized finish, it delivers the durability and strength needed for long-term performance.
Key Features
- Double-shear nailing design - distributes the load through two points on each joist nail, providing greater strength and structural integrity at every connection point
- Fewer nails required for a complete connection - speeds up installation time and reduces material use without compromising load performance
- Compatible with standard nails (16d common) - no specialty fasteners needed, keeping your workflow simple and your hardware costs predictable
- Fits a wide range of member sizes - works with nominal 6x12, 6x14, and 6x16 lumber as well as 5-1/2 in. x 14 to 24 in. tall glulam, reducing the need for multiple hanger SKUs on a single job
- 12-gauge steel construction - delivers the heavy-duty rigidity required in high-load framing scenarios where lighter hangers are not adequate
- G90 zinc galvanized finish - provides extra corrosion resistance to help extend service life in exposed or moisture-prone environments
- Tabs must not be bent or removed - preserving the tab geometry maintains the hanger's rated load performance and code-compliance integrity
Why This Product
- Engineered for high-load applications - the HGUS series is specifically designed for connections where greater load values are needed, making this hanger appropriate for heavy structural members that standard hangers cannot adequately support
- Double-shear nailing means stronger connections with less hardware - by spreading load across two shear points per nail and allowing fewer nails overall, this hanger helps contractors work faster while maintaining structural reliability
- Broad member compatibility reduces jobsite complexity - a single hanger model that handles multiple nominal lumber sizes and glulam members means fewer product variations to manage across a project
- Built-in corrosion protection for lasting performance - the G90 galvanized coating adds a layer of durability that helps protect the connection in conditions where bare steel would deteriorate over time

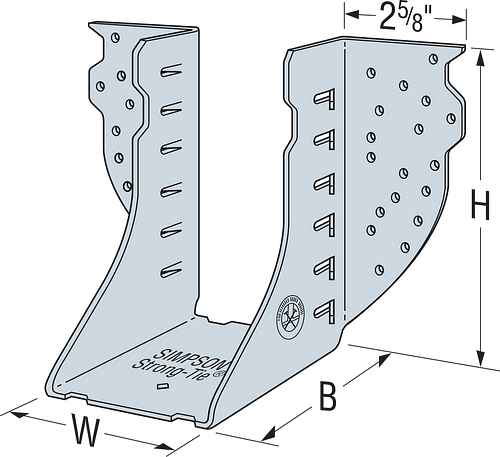

Specifications
- MPN: HGUS5.62/14
- Brand: Simpson Strong-Tie
- Gauge: 12
- Seat Width: 5-5/8 in.
- Hanger Height: 12-7/16 in.
- Coating/Finish: Zinc Galvanized, G90
- Member Size: 6x12, 6x14, 6x16, 5-1/2 in. x 14 to 24 in. tall glulam
- Install With: 16d common nails
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What lumber sizes is the HGUS5.62/14 compatible with?
This hanger is compatible with nominal 6x12, nominal 6x14, and nominal 6x16 lumber, as well as 5-1/2 in. x 14 to 24 in. tall glulam members.
What type of nails should be used to install the HGUS5.62/14?
The HGUS5.62/14 should be installed with 16d common nails. The double-shear nailing design allows for the use of fewer standard nails while still achieving a strong connection.
What is double-shear nailing and why does it matter?
Double-shear nailing distributes the load through two points on each joist nail, which provides greater strength compared to single-shear nailing. This design contributes to the hanger's extra-heavy-capacity performance in high-load applications.
How is the HGUS5.62/14 protected against corrosion?
The hanger is coated with a G90 zinc galvanized finish, which provides extra corrosion resistance and helps extend the service life of the connector in exposed or demanding environments.
