Product Description

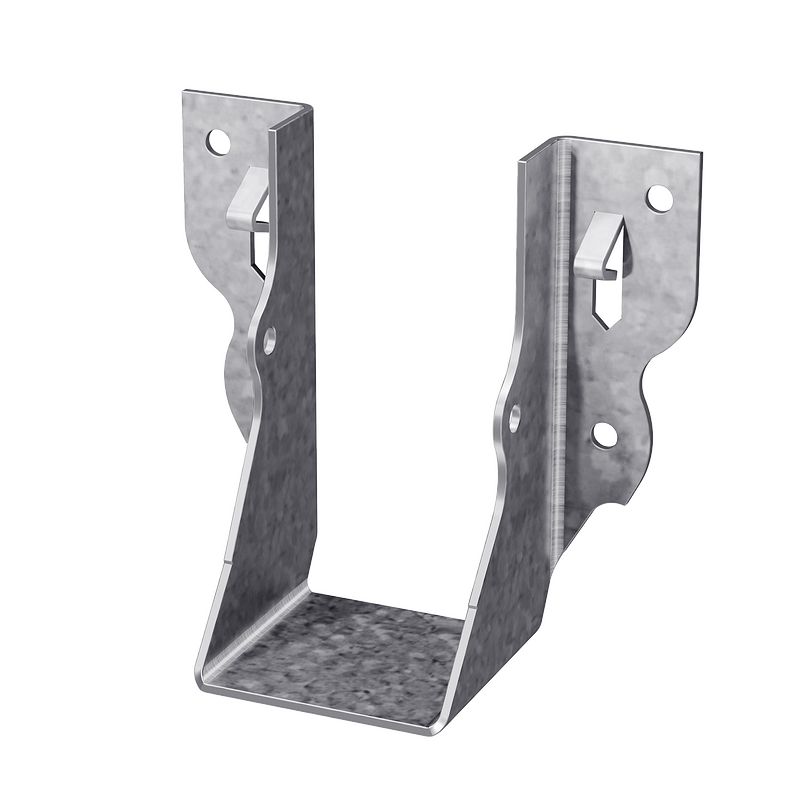

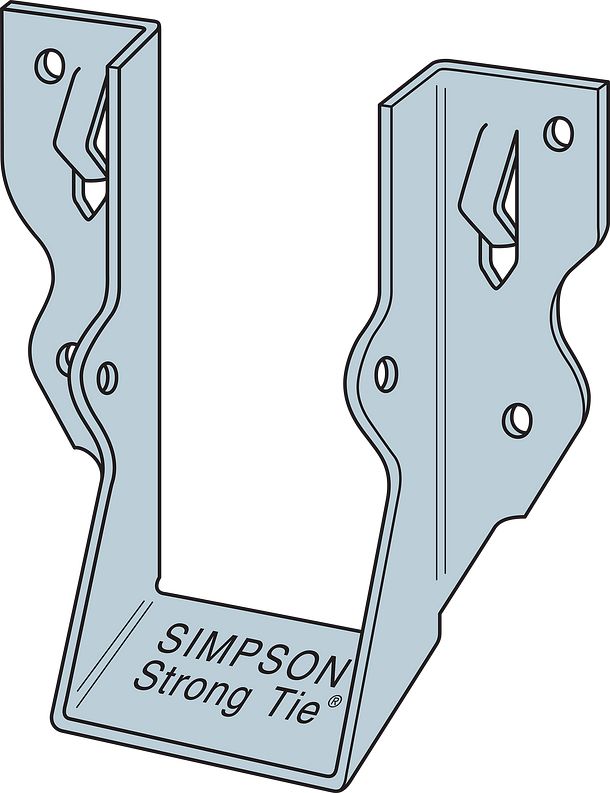

The Simpson LU24 LU Galvanized Face-Mount Joist Hanger for 2x4 by Simpson Strong-Tie is engineered for joist-to-header installation in wood-framed construction. This face-mount hanger features speed prongs that temporarily position and secure the connector, enabling easier and faster installation. Value engineered for strength and precision-formed for installation ease, the economical LU24 delivers reliable, code-compliant performance in a wide range of framing applications.
Key Features
- LU-series hangers are tested, load rated and code compliant
- The LU series installs using several fastener selections with tested allowable loads
- Speed prongs temporarily position and secure the connector for easier and faster installation
- Precision-formed - engineered for installation ease and design value
- Seat width: 1-9/16 in.
- Nominal joist size: 2x4
- Made from 20-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Made in the United States
Specifications
- Model Number: LU24
- Member Size: 2x4
- Seat Width: 1-9/16 in.
- Gauge: 20
- Coating/Finish: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Joist-to-header connections in wood-framed construction
- Face-mount installations with solid sawn lumber (Douglas Fir/Southern Pine)
- Face-mount installations with solid sawn lumber (Spruce-Pine-Fir/Hem-Fir)
- Face-mount installations with rough lumber (DF/SP/SPF/HF)
- Joists sloped up to 1/4:12 achieve table loads
Frequently Asked Questions
- What fasteners are required to install the LU24 joist hanger?
- Install with (4) 0.162 in. x 3-1/2 in. nails in the header and (2) 0.148 in. x 1-1/2 in. nails in the joist; #9 x 1-1/2 in. Strong-Drive SD screws may also be used.
- What joist size is the LU24 designed to support?
- The LU24 is designed for a nominal 2x4 joist size, with a seat width of 1-9/16 in.
- Is the LU24 suitable for outdoor or moisture-exposed applications?
- The LU24 is finished with a G90 zinc galvanized coating, which provides extra corrosion resistance, making it appropriate for applications where added protection against moisture is needed.
- Is the LU24 code compliant?
- Yes. LU-series hangers are tested, load rated and code compliant, and install using several fastener selections with tested allowable loads.
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
- Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
