Product Features
Product Description

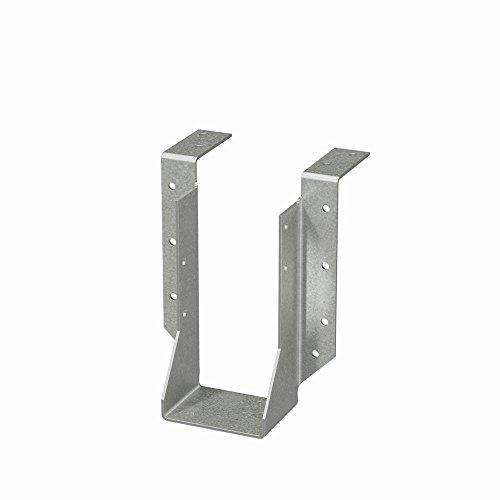

The Simpson Strong-Tie HU28-2TF HUTF Galvanized Top-Flange Joist Hanger for Double 2x8 is a hybrid heavy-duty face mount hanger engineered to deliver maximum down loads with a minimum number of fasteners. Designed by Simpson Strong-Tie, this HUTF-series hanger uniquely combines the structural advantages of both face-mount and top-mount hanger designs, making it an integral component for reliable framing connections in residential and commercial construction applications.
Key Features
- Hybrid HUTF design incorporates the advantages of both face-mount and top-mount hangers for maximum versatility
- Face-nailing allows the hanger to be securely attached to the framing member
- The hanger can be skewed a maximum of 45 deg. or sloped downward to a maximum of 45 deg.
- HUTF-series hangers are tested, load rated and code compliant
- Made from 12-gauge steel for heavy-duty structural performance
- Galvanized (G90) for extra corrosion resistance
- Seat width: 3-1/8 in.
- Nominal joist size: Double 2x8
- Rough beam sizes are available by special order
Specifications
- MPN: HU28-2TF
- Brand: Simpson Strong-Tie
- Series: HUTF
- Member Size: Double 2x8
- Seat Width: 3-1/8 in.
- Width (W): 3.125 in.
- Height (H): 7-1/8 in.
- B Dimension: 2.5 in.
- TF Dimension: 2.5 in.
- Gauge: 12
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Installation Fasteners (sold separately): Install with (12) 0.162 in. x 3-1/2 in. nails in the header and (4) 0.148 in. x 3 in. nails in the joist
- Country of Origin: ZZ
Options
- Contact us for additional options or special order inquiries
Frequently Asked Questions
- What makes the HU28-2TF a hybrid hanger?
- The HU28-2TF belongs to Simpson Strong-Tie's HUTF series, which incorporates the advantages of both face-mount and top-mount hanger designs. This hybrid approach allows for face-nailing to securely attach the hanger to the framing member while also providing the structural benefits of a top-flange connection.
- What fasteners are required to install the HU28-2TF?
- Installation requires (12) 0.162 in. x 3-1/2 in. nails in the header and (4) 0.148 in. x 3 in. nails in the joist. Using the correct fasteners as specified is essential to achieve the hanger's rated load capacity.
- Can the HU28-2TF be used at an angle?
- Yes. The HU28-2TF can be skewed a maximum of 45 deg. or sloped downward to a maximum of 45 deg., providing significant installation flexibility for angled or sloped framing applications.
- Is the HU28-2TF suitable for use in corrosive environments?
- The HU28-2TF features a Zinc Galvanized G90 coating that provides extra corrosion resistance, making it suitable for environments where moisture exposure is a concern. Always verify local code requirements for coating specifications in highly corrosive applications.
Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
