Product Description

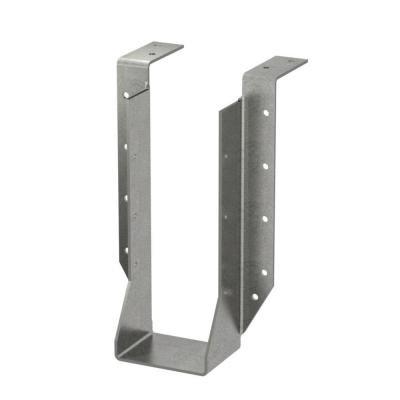

The Simpson Strong-Tie HUS210-2TF HUS Galvanized Top-Flange Joist Hanger for Double 2x10 is a heavy-duty, hybrid face-mount hanger engineered for applications where higher load values are required. Combining the advantages of both face-mount and top-mount designs, this hanger provides reliable support underneath double 2x10 joists, rafters, or beams for a strong, code-compliant connection.
Key Features
- Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
- Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
- Do not bend or remove tabs
- Nominal joist size: Double 2x10
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- Model Number: HUS210-2TF
- Member Size: Double 2x10
- Gauge: 14
- Width: 3-1/8 in.
- Height: 9-1/4 in.
- Top Flange (TF): 1-1/2 in.
- Coating/Finish: Zinc Galvanized, G90
- Install With: 16d common nails
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders. Some products available in HDG.
Frequently Asked Questions
- What size joist is the HUS210-2TF designed for?
- The HUS210-2TF is designed for a nominal joist size of Double 2x10, providing a secure face-mount connection for doubled lumber members.
- What fasteners should be used to install the HUS210-2TF?
- This hanger should be installed with 16d common nails. Always use all specified fasteners to ensure proper load performance and code compliance.
- What is double-shear nailing and why does it matter?
- Double-shear nailing means the nail is installed through both the joist and the header, distributing the load through two points on each joist nail. This design delivers greater strength compared to single-shear connections and allows for fewer nails overall while maintaining high load values.
- Is the HUS210-2TF protected against corrosion?
- Yes. The HUS210-2TF features a G90 zinc galvanized coating, which provides extra corrosion resistance, making it suitable for treated lumber and other applications where moisture exposure is a concern.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
