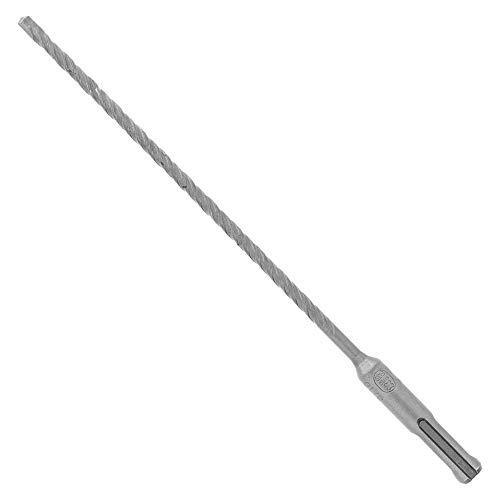

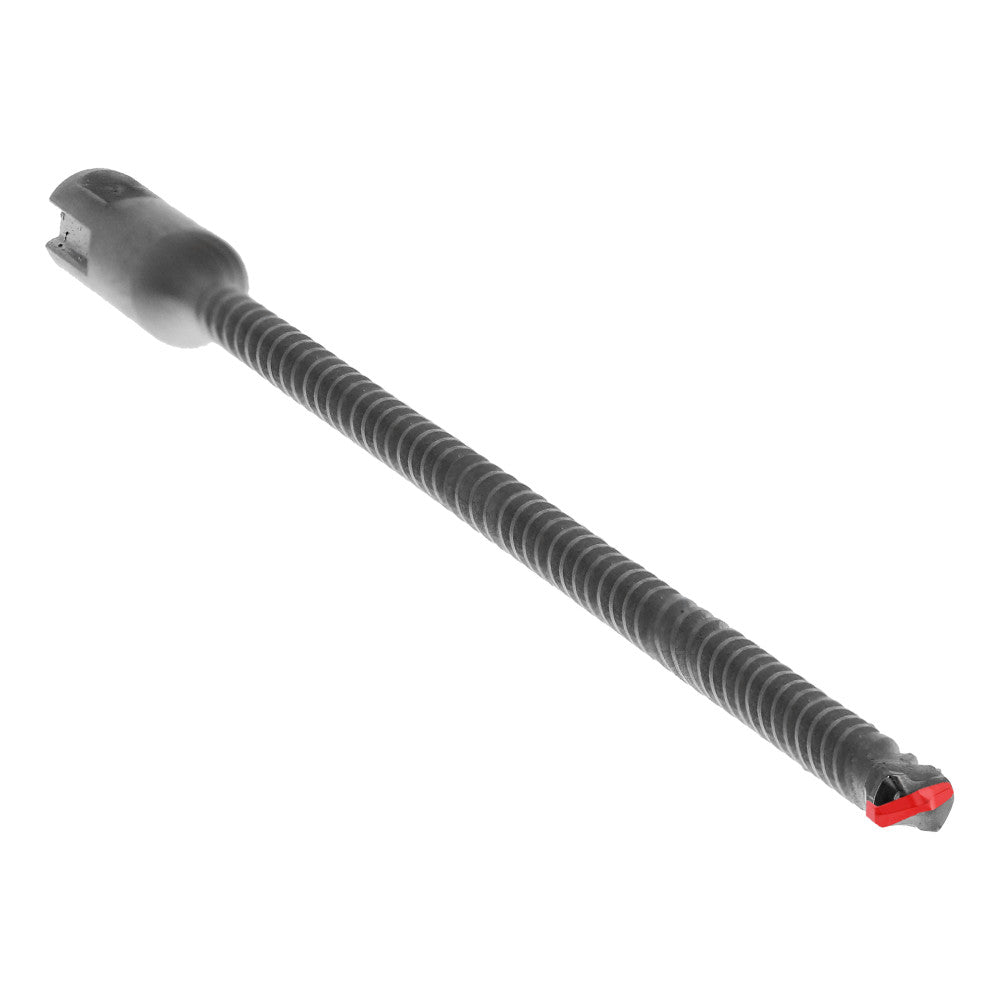

Diablo 3/16" x 6" x 8" SDS-Plus 2-Cutter Carbide-Tipped Hammer Drill Bit by Diablo delivers one of the fastest and longest lasting drilling solutions available for concrete and masonry applications. Engineered in Germany with a unique brazing and hardening process, this SDS-Plus rotary hammer bit is built to drive clean, accurate holes through concrete and brick/block with speed and precision. Whether you are setting anchors in concrete or working through tough block material, this bit is optimized for maximum performance in both corded and cordless SDS-Plus rotary hammers.

Key Features

• Diablo Dura-Carbide construction - withstands impact and high heat applications, dramatically extending service life versus standard hammer bits so you replace bits less often on demanding jobsites
• Peak Point tip design - enables aggressive starts that produce clean, fast holes, making it easier to hit your mark accurately from the first moment the bit contacts the surface
• Optimized brazing and hardening process - extends the life of the carbide tips and increases productivity, keeping the cutting edge sharp and effective through more holes drilled
• Optimized four-flute design - removes dust faster from the bore, keeping the carbide tips cooler for ultimate strength and durability across heavy-duty concrete drilling tasks
• 3/16" diameter with 6" working length and 8" overall length - sized precisely for common anchor installations in concrete and masonry, reducing rework and giving you reliable depth on each pass
• SDS-Plus shank - compatible with corded and cordless SDS-Plus rotary hammers, locking securely to transfer maximum energy to the cutting tip with every hammer blow

Why This Product

• The Dura-Carbide tip and optimized brazing process mean the cutting edge holds up longer under the repeated impact and heat of concrete drilling - reducing downtime caused by worn or broken bits mid-job
• The Peak Point tip design is built for aggressive starts, so you get clean, precise holes sized for common anchors without wandering or chipping the surface unnecessarily
• The four-flute dust removal design keeps the bit cooler during use, which directly contributes to longer bit life and more consistent hole quality through brick, block, and concrete
• Compatibility with both corded and cordless SDS-Plus rotary hammers gives you flexibility across different tool setups on the same worksite without needing a separate bit for each tool type

Specifications

• Brand: Diablo
• Category: SDS-Plus 2-Cutter
• Diameter: 3/16"
• Overall Length: 8"
• Working Length: 6"
• Shank: SDS Plus
• Head Type: Carbide-Tipped
• Number of Cutters: 2
• Compatible Tools: SDS-Plus Rotary Hammer Drill
• Compatible Materials: Concrete; Brick/Block
• Country of Origin: Germany

Available Pack Options

• DMAPL2060: 1 Ea
• DMAPL2060-P25: 25 Pk

Approved Applications

• Drilling concrete
• Drilling brick and block masonry
• Creating anchor holes for common sized anchors in concrete and masonry

Frequently Asked Questions

What types of materials can this bit drill through?

This bit is designed to drill through concrete and brick/block masonry. The Dura-Carbide tip and four-flute design work together to handle the hard, abrasive nature of these materials efficiently.

What rotary hammers is this bit compatible with?

This bit is compatible with SDS-Plus rotary hammer drills, both corded and cordless. The SDS-Plus shank locks into the chuck securely to transfer hammer energy directly to the carbide tip on every stroke.

Why does the four-flute design matter for concrete drilling?

The optimized four-flute design removes dust from the hole faster than fewer-flute configurations, which keeps the carbide tips cooler during drilling. Cooler tips retain their hardness longer, resulting in greater strength, durability, and consistent hole quality over the life of the bit.

What is the working length versus the overall length of this bit?

This bit has a working length of 6" and an overall length of 8". The working length is the effective cutting depth the bit can reach, while the overall length accounts for the SDS-Plus shank and body needed to seat in the rotary hammer tool.
